Zigbee Smart Scene Remote

MOES ZigBee Smart Scene Remote – 4-Button Scene Switch

The MOES ZigBee Smart Scene Remote is a compact wireless 4-button scene controller designed to make everyday smart-home automation easier to trigger. Each button supports single-click, double-click and long-press actions, allowing up to 12 configurable scenes or commands when used with a compatible ZigBee gateway and automation platform.

12 Customisable Actions from 4 Buttons

Use the four physical buttons to trigger different smart-home scenes without opening an app. Depending on your automation setup, actions can include lighting scenes, device control, routines and other compatible ZigBee automations.

• 4 physical buttons
• Single-click, double-click and long-press actions
• Up to 12 configurable scenes or commands
• Designed for quick, convenient scene activation

ZigBee 3.0 Wireless Connectivity

The remote communicates using ZigBee 3.0. A compatible ZigBee gateway or coordinator is required for network operation and scene automation. The control area should be within the coverage of the ZigBee network.

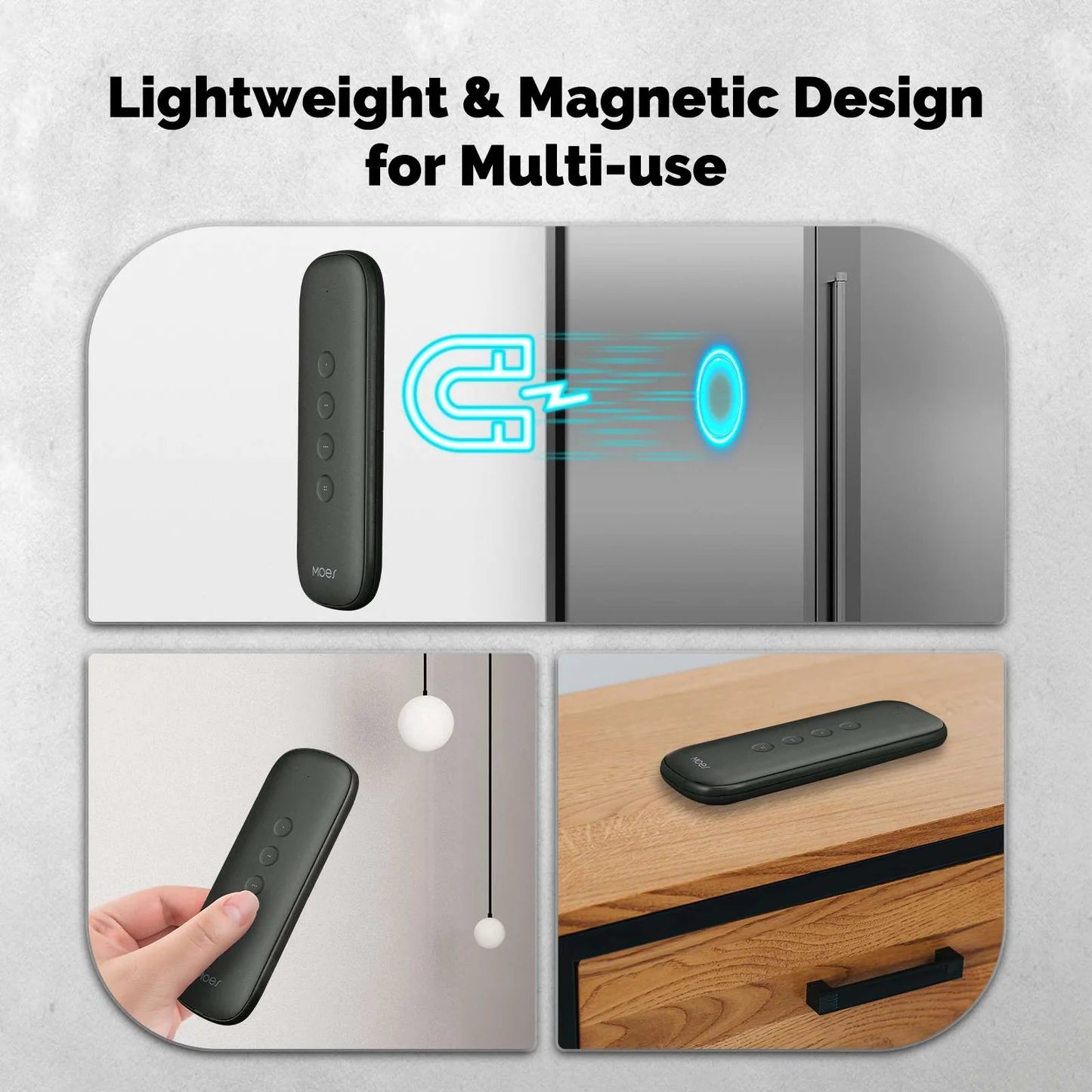

Portable Magnetic Design

The compact remote can be carried in your hand or positioned on a suitable metal surface using its magnetic design. This makes it practical for convenient access in different areas of the home.

Long Battery Life

The scene switch uses a CR2032 button battery and is specified for up to 365 days of battery life, depending on usage and operating conditions.

Built for Everyday Use

Each button is rated for a lifecycle of up to 500,000 presses, providing durable physical controls for frequent daily use.

Technical Specifications

• Brand: MOES
• Model / MPN: ZR-SR-R01-GY
• Product type: ZigBee 4-button smart scene switch / wireless remote
• Communication protocol: ZigBee 3.0
• Number of buttons: 4
• Supported actions: Single click, double click and long press
• Maximum configurable scenes/actions: 12
• Power supply: 1 × CR2032 button battery
• Battery life: Up to 365 days
• Standby current: 20 µA
• Dimensions: 130 × 45 × 15 mm
• Working temperature: -10°C to 45°C
• Working humidity: Less than 90% RH
• Button lifecycle: Up to 500,000 presses
• Mounting / use: Portable or magnetic attachment to suitable metal surfaces

Compatibility & Gateway Requirement

The remote is designed for ZigBee smart-home systems and is associated with the MOES/Tuya smart-home ecosystem. It requires a compatible ZigBee gateway or coordinator; it does not operate as a standalone ZigBee hub.

What’s Included

• 1 × MOES ZigBee Smart Scene Switch
• 1 × CR2032 button battery

Important Note

Actual available functions depend on the connected ZigBee gateway, automation platform and the devices being controlled. The remote is a scene controller, not a ZigBee gateway itself.
