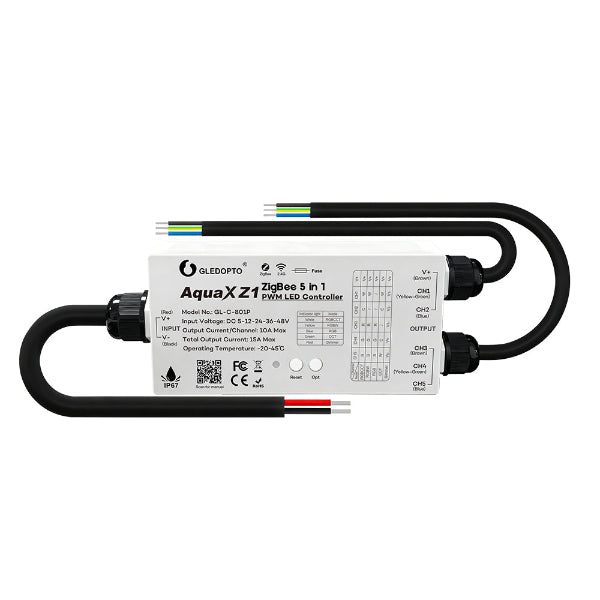

GLEDOPTO AquaX Z1 Zigbee 5-in-1 PWM LED Controller IP67 (GL-C-801P)
Bring smart control to low-voltage LED lighting in outdoor and moisture-prone environments with the GLEDOPTO AquaX Z1 GL-C-801P. This Zigbee 5-in-1 PWM LED controller supports Single Colour, CCT, RGB, RGBW and RGB+CCT/RGBCCT lighting modes in one controller, making it suitable for a wide range of constant-voltage LED strip installations.
The controller supports DC 5V, 12V, 24V, 36V and 48V input configurations and provides up to 10A per channel, with a 15A maximum total output. Its IP67 enclosure is designed for installations where protection from dust and water ingress is required.
5-in-1 LED Control in One Device
Choose the operating mode that matches your LED installation:
- RGB+CCT / RGBCCT: Control RGB colour channels together with tunable white.
- RGBW: Control RGB channels with a dedicated white channel.
- RGB: Control standard three-channel RGB LED strips.
- CCT: Adjust between warm and cool white on compatible tunable-white LED strips.
- Dimmer: Control brightness for compatible single-colour LED strips.
IP67 Protection for Demanding Installations
The sealed IP67-rated enclosure makes the GL-C-801P suitable for applications where the controller may be exposed to dust, rain or water splashing. It can be considered for suitable outdoor low-voltage lighting installations, garden lighting, landscape projects and humid environments when installed according to the manufacturer's requirements.
Wide DC Voltage Compatibility
The GL-C-801P supports 5V, 12V, 24V, 36V and 48V DC input configurations. The controller regulates the connected LED load but does not change the power-supply voltage, so the LED strip and power supply must be selected for the same operating voltage.
High-Current PWM Output
The controller is rated for up to 10A maximum output per channel and 15A maximum combined output. Always size the power supply, wiring and LED load within the applicable voltage and current limits.
Zigbee Smart Home Integration
Using Zigbee connectivity, the GL-C-801P can be integrated with compatible Zigbee ecosystems and coordinators. Compatibility listed for this model includes Home Assistant through Zigbee2MQTT or ZHA, Amazon Echo devices with a built-in Zigbee hub, Homey, Philips Hue and Tuya Zigbee gateways. Actual functionality can vary depending on the coordinator, gateway and software configuration.
Local Zigbee Control
Zigbee provides local wireless communication through a mesh network rather than requiring the controller itself to connect directly to Wi-Fi. In a suitable Zigbee network, powered devices can also participate in mesh routing.
Technical Specifications
- Brand: GLEDOPTO
- Series: AquaX Z1
- Model: GL-C-801P
- Product type: Zigbee 5-in-1 PWM LED Controller
- Control protocol: Zigbee
- Operating modes: Single Colour / Dimmer, CCT, RGB, RGBW, RGB+CCT (RGBCCT)
- Input voltage: DC 5V / 12V / 24V / 36V / 48V
- Maximum output per channel: 10A
- Maximum total output: 15A
- Ingress protection: IP67
- Operating temperature: -20°C to +45°C
- PWM frequency options: 600 / 800 / 1000 / 2000 / 4000 / 8000Hz
- Default PWM frequency: 1000Hz
- Power-off memory: Supported
- TouchLink: Supported
- RF control: 2.4GHz
- Enclosure material: Flame-retardant PC
- Enclosure colour: White
- Dimensions: 132 × 67 × 30mm
- Input cable: 2 × 2.5mm², 25cm
- Output cable: 3 × 1.0mm², 30cm
Suitable Applications
- Outdoor low-voltage LED strip installations
- Landscape and garden lighting
- Architectural accent lighting
- Outdoor joinery and sheltered lighting projects
- Garden features and suitable pond-edge lighting installations
- Humid indoor environments
- Smart home LED strip automation
Important Installation Notes
- Use a suitable DC power supply that matches the LED strip's required voltage.
- Do not exceed 10A on any individual channel or 15A total across the controller.
- The controller does not convert the input power-supply voltage.
- IP67 protection depends on correct installation and maintaining the enclosure and cable connections as intended.
- Check the compatibility of your Zigbee coordinator, gateway or smart-home platform before installation.
Why Choose the GLEDOPTO GL-C-801P?
The AquaX Z1 GL-C-801P combines five common PWM LED control modes, wide DC voltage support, high-current output and IP67 protection in one Zigbee controller. It is a practical option for smart-home users and installers who need flexible control of compatible constant-voltage LED strips in outdoor or moisture-prone environments.
