Zigbee Pro RGBCCT LED Controller
Zigbee Pro RGBCCT LED Controller
Smarter Control for RGB, CCT & RGBCCT LED Strips
Upgrade compatible low-voltage LED strips with smart colour, colour-temperature and brightness control using the Gledopto GL-C-008P Zigbee Pro RGBCCT LED Controller.
✔ Zigbee Pro Smart Control
✔ RGB, RGBW, RGB+CCT, CCT & Dimming Modes
✔ DC 12V / 24V / 36V / 48V / 54V Input
✔ Up to 5A Per Channel / 10A Total
✔ Zigbee2MQTT Support
✔ 2.4G RF Control Support
Built for analog, constant-voltage LED strips, smart-home lighting installations, accent lighting, cabinets, entertainment areas and other compatible low-voltage lighting applications.
Bring Smarter Control to Your LED Lighting
Not every LED strip installation needs another basic on/off controller.
If you want to adjust colour, white-light temperature and brightness from a compatible smart-home system, the controller needs to support more than simple power switching.
The Gledopto GL-C-008P is designed specifically for this type of setup. It provides Zigbee-based control for compatible analog LED strips, allowing you to manage RGB colour, colour temperature and brightness while supporting several compatible LED controller modes.
With Zigbee2MQTT support and 2.4G RF capability, it gives smart-home users and installers greater flexibility when integrating compatible LED lighting into an existing system.
Whether you're building smart accent lighting, upgrading an existing LED strip installation or creating a more flexible lighting system, the GL-C-008P provides practical control without requiring a separate controller for every lighting function.
Why Choose the Gledopto GL-C-008P?
Choosing a Zigbee LED strip controller is about more than simply connecting an LED strip. Compatibility, voltage range, current capacity and smart-home integration all matter.
The GL-C-008P combines:
Zigbee Pro connectivity for compatible smart-home integration
RGB, CCT and brightness control for flexible lighting adjustment
12V–54V DC input support for compatible low-voltage LED installations
Up to 5A per channel and 10A total output current
Zigbee2MQTT support for compatible smart-home setups
2.4G RF support for compatible Gledopto control devices
Its specifications make it a practical choice for users who need a Zigbee RGBCCT LED controller with flexible voltage support and multiple control options.
Why Gledopto Compared to a Basic LED Controller
| Feature | Gledopto GL-C-008P | Basic LED Controller |
|---|---|---|
| Smart Control | Zigbee + compatible 2.4G RF | Often limited |
| RGB Control | Supported | Depends on model |
| Colour Temperature | Supported with compatible CCT/RGBCCT strips | Depends on model |
| Brightness Control | Supported | Usually supported |
| Zigbee2MQTT | Supported | Model dependent |
| Input Voltage | 12V / 24V / 36V / 48V / 54V DC | Often more limited |
| Output Current | Up to 5A/channel, 10A total | Model dependent |
| LED Modes | RGB, RGBW, RGB+CCT, CCT & Dimming | Often fewer options |
The Difference You Notice Immediately
Control Colour & White Temperature
Adjust compatible RGB/RGBCCT lighting between colour effects and adjustable white-light settings through supported smart-home controls.
Integrate With Your Smart Home
Connect the controller to a compatible Zigbee ecosystem and use supported integrations such as Zigbee2MQTT for detailed lighting control.
Support Different Lighting Setups
The controller supports compatible RGB, RGBW, RGB+CCT, CCT and dimming modes, making it suitable for a range of LED strip applications.
Work Across Multiple Voltage Requirements
The GL-C-008P accepts 12V, 24V, 36V, 48V and 54V DC input, provided the controller, LED strip and power supply are correctly matched.
Add Flexible Control Options
Use Zigbee smart-home control or compatible Gledopto 2.4G RF devices depending on your installation requirements.
Premium Features
| Feature | Benefit |
|---|---|
| Zigbee Pro Connectivity | Integrates compatible LED lighting into supported smart-home systems |
| RGB + CCT Control | Adjust colour and white-light temperature with compatible LED strips |
| Multiple LED Modes | Supports RGB, RGBW, RGB+CCT, CCT and dimming applications |
| 12V–54V DC Input | Provides flexibility across compatible low-voltage LED setups |
| Up to 5A Per Channel | Supports higher-current compatible LED applications within rated limits |
| 10A Total Output | Provides up to 10A total output according to the manufacturer's specification |
| Zigbee2MQTT Support | Enables detailed controls through a compatible Zigbee2MQTT setup |
| 2.4G RF Support | Adds compatibility with suitable Gledopto RF control devices |
| Compact IP20 Housing | 89 × 48 × 23.5 mm design for suitable protected installations |
Specifications are based on Gledopto's current product information and the current Zigbee2MQTT device listing.
How to Use the Gledopto GL-C-008P
Using the controller requires the LED strip, power supply and controller to be correctly matched.
-
Select a compatible LED strip.
Use an analog, constant-voltage LED strip suitable for the controller's supported modes.
-
Match the voltage.
Confirm that the LED strip and power supply match one of the controller's supported input voltages: 12V, 24V, 36V, 48V or 54V DC.
-
Connect the LED strip.
Wire the compatible LED strip to the controller while observing correct polarity and output-current limits.
-
Connect your Zigbee system.
Pair the controller with a compatible Zigbee gateway or supported Zigbee2MQTT setup.
-
Configure your lighting.
Use the compatible control system to adjust power, brightness, colour temperature and colour.
-
Use RF control where appropriate.
Compatible Gledopto 2.4G RF devices can provide an additional control option.
Important: Disconnect power before wiring or changing connections. Do not exceed the controller's rated current, and install the IP20 controller in a suitable dry, protected location.
Who Is It For?
The Gledopto GL-C-008P Zigbee Pro LED Controller is ideal for:
Smart-home enthusiasts
Home Assistant and Zigbee users
Zigbee2MQTT users
DIY LED lighting projects
Smart-home installers
Electricians and lighting professionals
Homeowners upgrading compatible LED strips
Users installing RGB, CCT or RGBCCT lighting
Businesses creating smart accent or feature lighting
If you want more precise control over compatible LED strips without being restricted to basic lighting functions, the GL-C-008P provides a flexible smart-control option.
Important Compatibility Information
Before purchasing, confirm that your LED strip is analog and constant-voltage and that its required voltage matches the controller and power supply.
The GL-C-008P supports 12V, 24V, 36V, 48V and 54V DC input, with a maximum output of 5A per channel and 10A total according to Gledopto.
For Zigbee operation, compatibility depends on the specific gateway, hub or integration being used. Zigbee2MQTT currently lists the GL-C-008P as a supported device.
The controller is IP20, so it is not waterproof and should be installed in a suitable dry, protected location.
Warranty & Product Support
For warranty coverage, installation requirements and returns, refer to the current store terms and product support information before installation.
Because this is an electrical low-voltage controller, incorrect voltage, polarity, wiring or excessive current can damage the controller or connected equipment. Always verify compatibility and electrical requirements before connecting power.
Specifications
| Specification | Details |
|---|---|
| Brand | Gledopto |

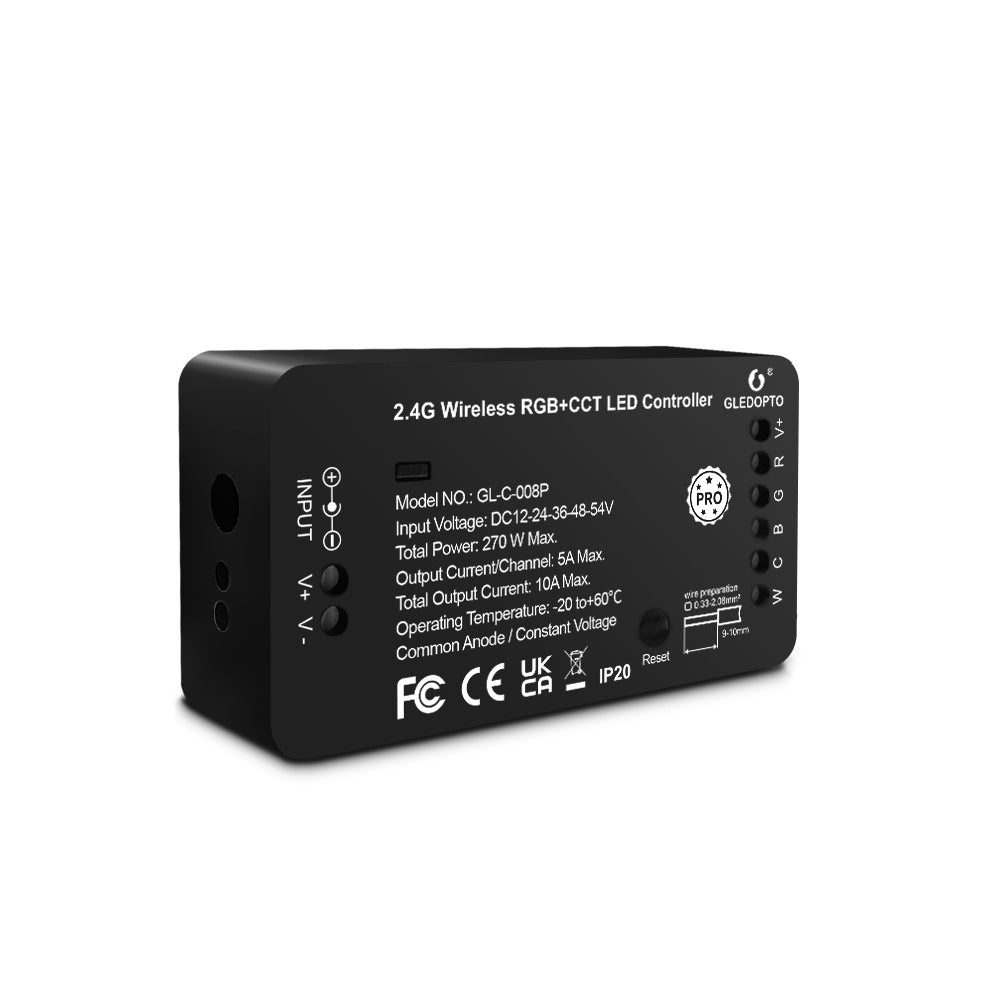

| Model | GL-C-008P |
| Product Type | Zigbee Pro RGBCCT LED Controller |
| Wireless Protocol | Zigbee + 2.4G RF |
| Input Voltage | DC 12V / 24V / 36V / 48V / 54V |
| Maximum Output Current | 5A per channel |
| Maximum Total Output | 10A |
| LED Modes | RGB, RGBW, RGB+CCT, CCT & Dimming |
| Supported Integration | Zigbee2MQTT and compatible Zigbee systems |
| Protection Rating | IP20 |
| Dimensions | 89 × 48 × 23.5 mm |
| Weight | Approx. 0.06 kg |
| LED Type | Analog / Constant-Voltage |
Technical specifications are based on the manufacturer's current GL-C-008P specification and the product information published by Dialed In.
Frequently Asked Questions
What LED strips does the GL-C-008P support?
The GL-C-008P is designed for analog, constant-voltage LED strips, including compatible RGBCCT applications. It also supports compatible RGB, RGBW, CCT and dimming modes.
What voltage does the Gledopto GL-C-008P support?
It supports DC 12V, 24V, 36V, 48V and 54V input. The power supply voltage must match the connected LED strip and installation requirements.
What is the maximum current?
The manufacturer's specification lists 5A maximum per output channel and 10A maximum total output current. Actual usable power depends on the voltage, LED strip and total load.
Does it work with Zigbee2MQTT?
Yes. Zigbee2MQTT currently lists the Gledopto GL-C-008P as a supported device and exposes controls including power, brightness, colour temperature and colour.
Can I adjust the colour temperature?
Yes. With a compatible CCT or RGBCCT LED strip, the controller can provide adjustable colour-temperature control through supported Zigbee systems.
Does it support RGB colour control?
Yes. The GL-C-008P supports compatible RGB/RGBCCT lighting control, including colour controls through supported Zigbee integrations.
Is the GL-C-008P waterproof?
No. It has an IP20 protection rating and should be installed in a suitable dry, protected location away from direct water exposure.
Can I use any Zigbee hub?
Not necessarily. Zigbee compatibility depends on the specific hub or integration. Check your hub's supported-device list before purchasing. Zigbee2MQTT currently lists the GL-C-008P as supported.
Does it support 2.4G RF control?
Yes. The GL-C-008P uses Zigbee + 2.4G RF and can work with compatible Gledopto RF control options.
Take Smarter Control of Your LED Lighting
Whether you're building a smart-home lighting system, upgrading RGB/CCT LED strips, or integrating compatible low-voltage lighting into a Zigbee setup, the Gledopto GL-C-008P Zigbee Pro RGBCCT LED Controller gives you flexible control in a compact package.
With Zigbee integration, Zigbee2MQTT support, RGB and CCT control, multiple LED modes, 12V–54V DC input support and 2.4G RF capability, it is designed for customers who need more control than a basic LED strip controller can provide.
Choose the Gledopto GL-C-008P for a practical, specification-led way to add smart control to compatible analog LED lighting.
- Model: GL-C-008P
- Connectivity: Zigbee 3.0
- Input: 12V-54V
- MaxLoad: 5A / 270W
- Dimensions: 88.9 x 48 x 22.9mm
- Supported LED Strips: RGB, RGBW, CCT, RGBCCT
