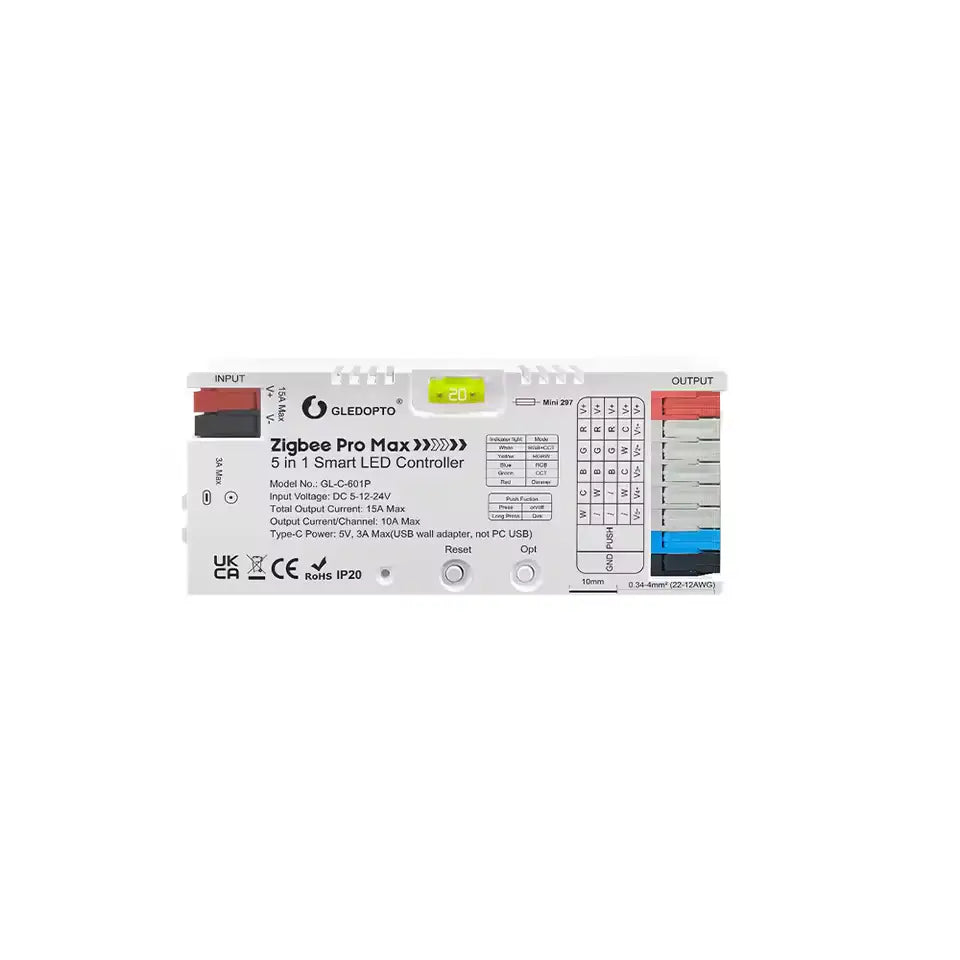

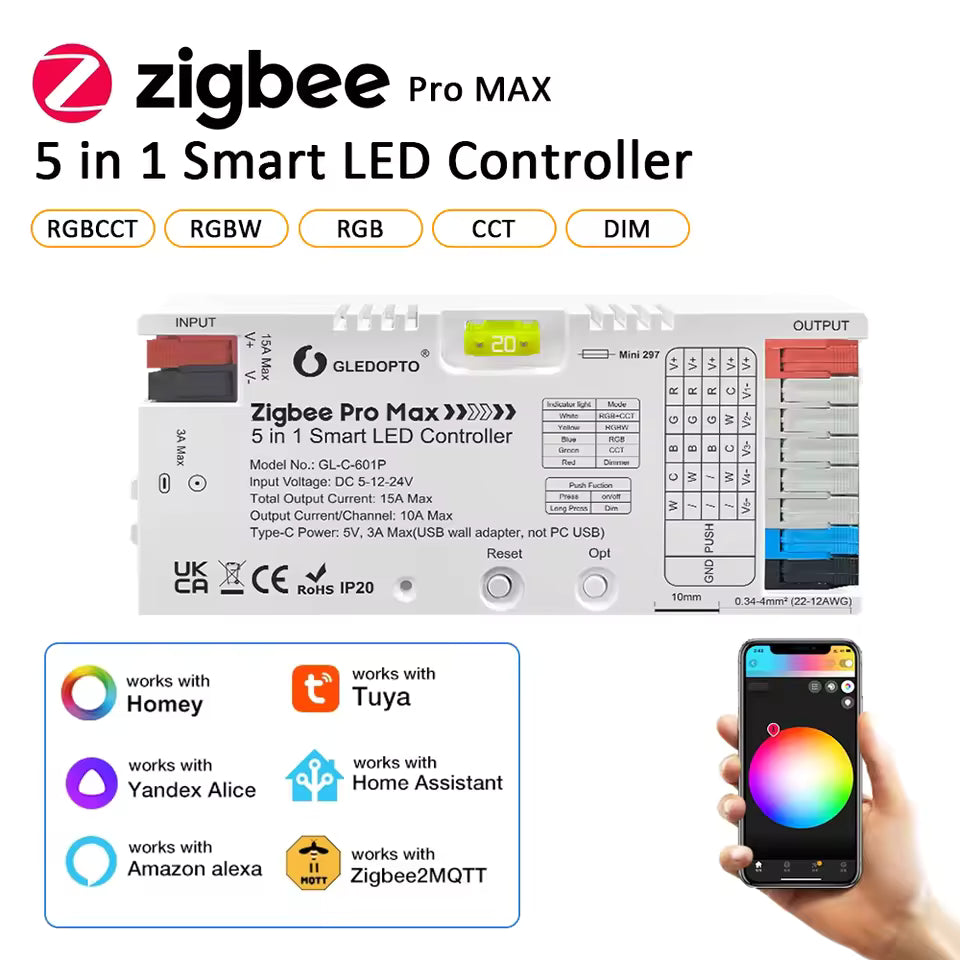

GLEDOPTO Zigbee Pro Max 5-in-1 LED RGBCCT Controller
The GLEDOPTO GL-C-601P Zigbee Pro Max 5-in-1 LED Controller is a versatile smart controller for analog/PWM LED strips. It supports five lighting modes: RGBCCT, RGBW, RGB, CCT and Dimmer, making it suitable for a wide range of smart lighting installations.
With Zigbee 3.0 connectivity, the controller can be integrated with compatible smart home gateways and platforms including Home Assistant ZHA/Zigbee2MQTT, Philips Hue, Amazon Echo, SmartThings, Tuya and Homey. It also supports a 2.4G RF control option according to the manufacturer's documentation.

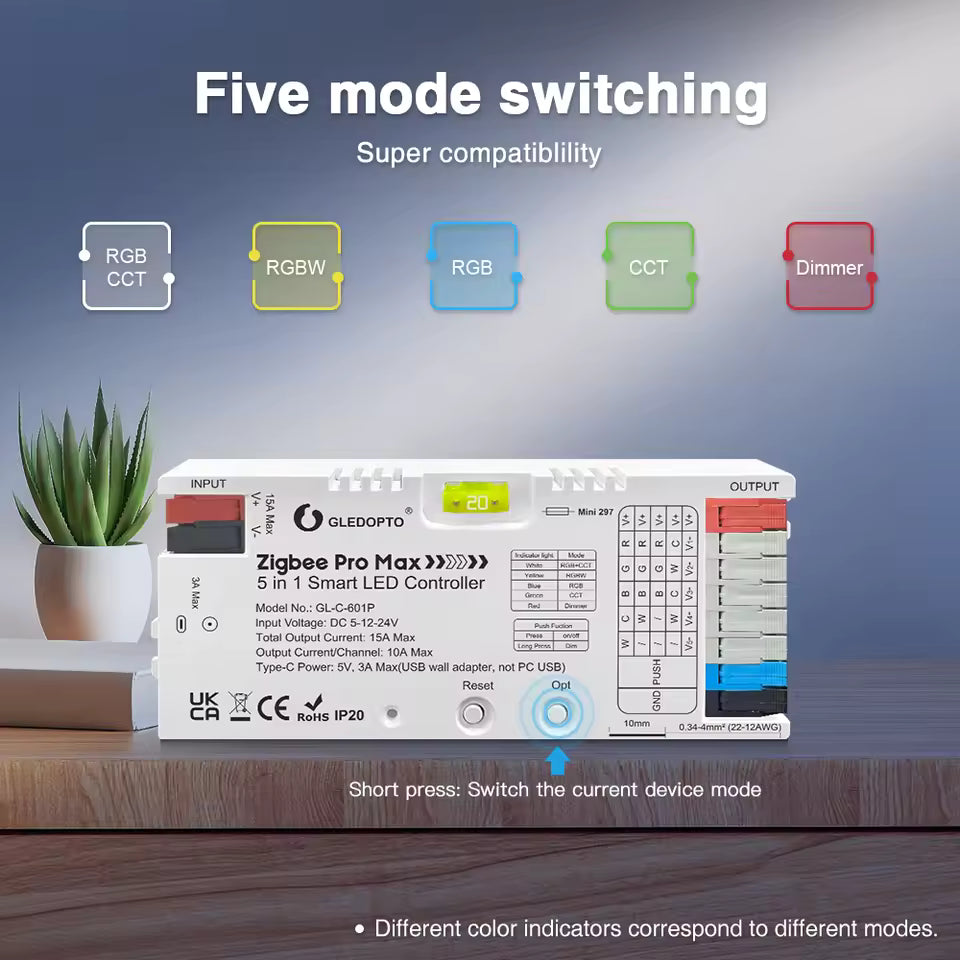

5-in-1 LED Strip Control
The GL-C-601P can operate different types of analog/PWM LED strips through selectable control modes:
- RGBCCT
- RGBW
- RGB
- CCT
- Dimmer
This controller is designed for analog/PWM LED strips and does not support addressable LED strips.
Zigbee 3.0 Smart Home Integration
Connect the controller to a compatible Zigbee smart home system for app-based and automation-based lighting control. Supported platforms and gateways include Home Assistant ZHA/Zigbee2MQTT, Philips Hue, Amazon Echo, SmartThings, Tuya and Homey, subject to the capabilities and compatibility of the specific gateway or platform.
Flexible Power and Output Support

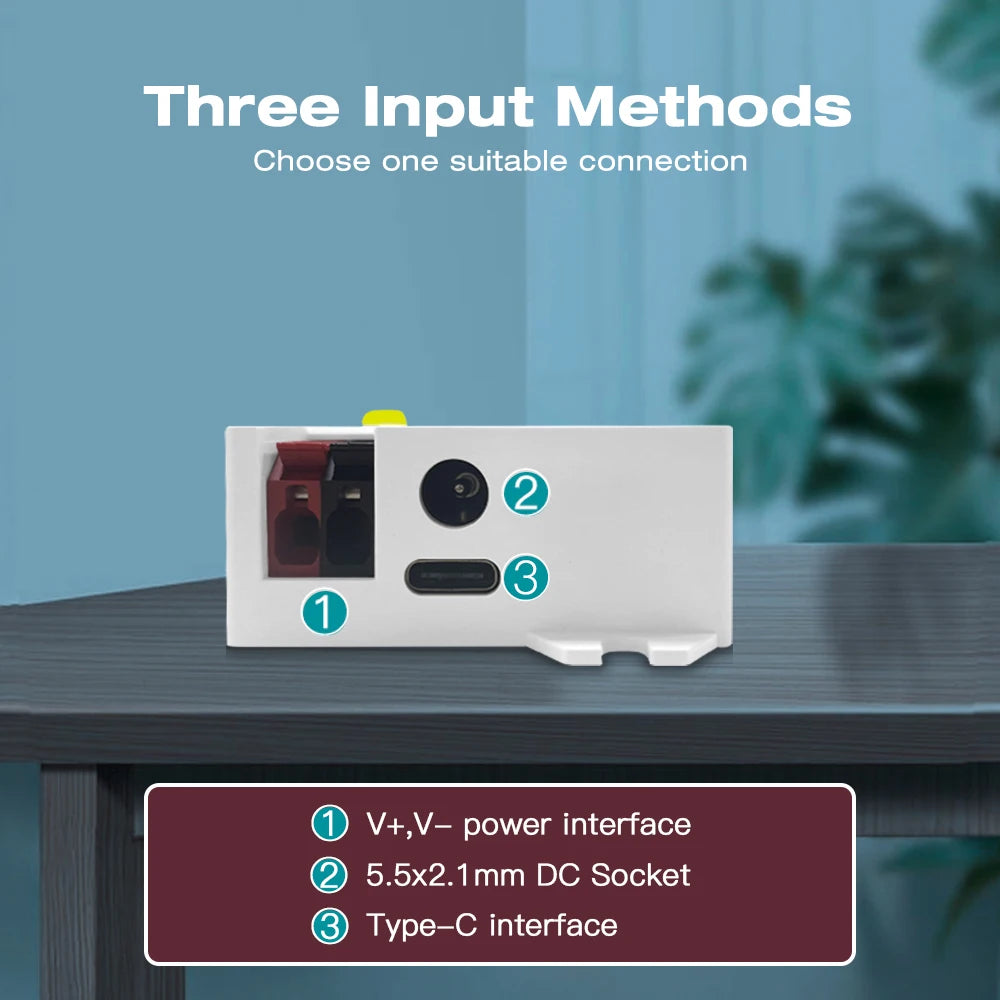

The controller supports a DC 5-12-24V input and has a maximum total output current of 15A, with up to 10A per channel. It also provides USB Type-C power input at 5V/3A.

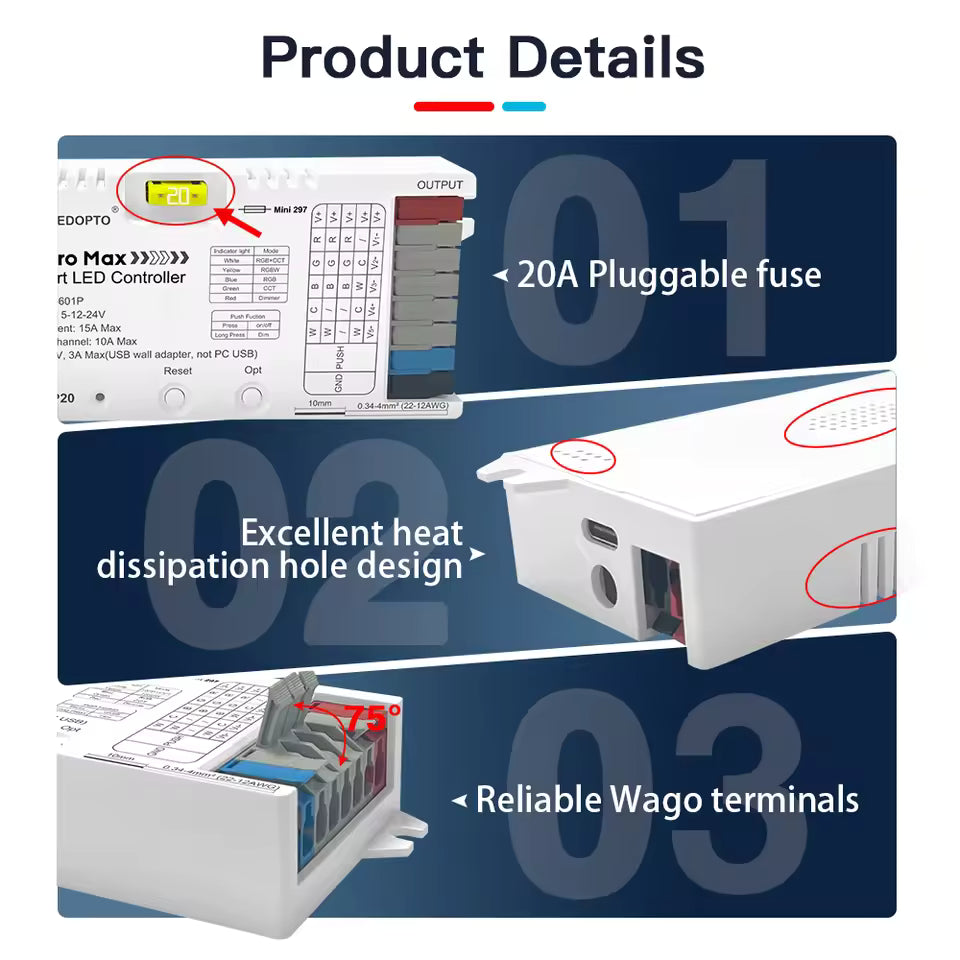

Installation Features
- Quick-release wire terminals for convenient wiring.
- Pluggable fuse for added electrical protection.

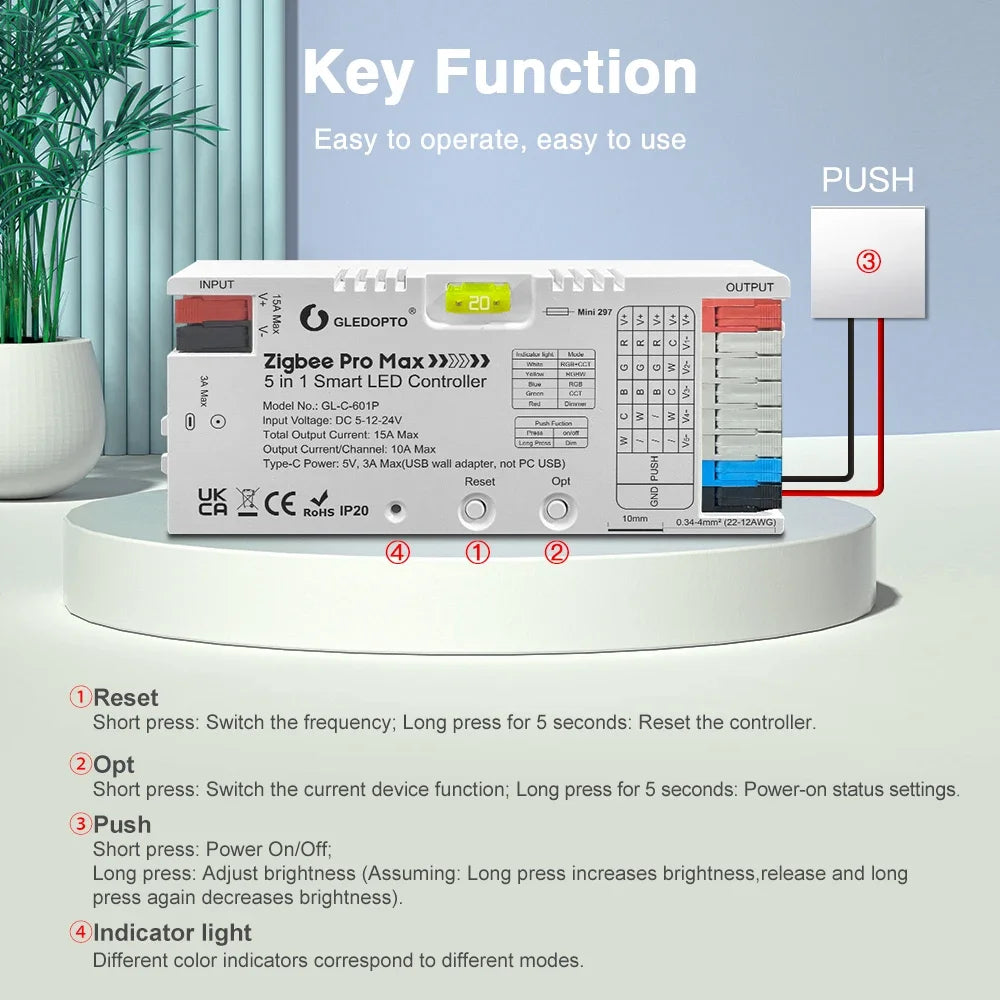

- External push-button switch support.
- Reset and function controls on the controller.
- Compact 129 × 50 × 23 mm housing.

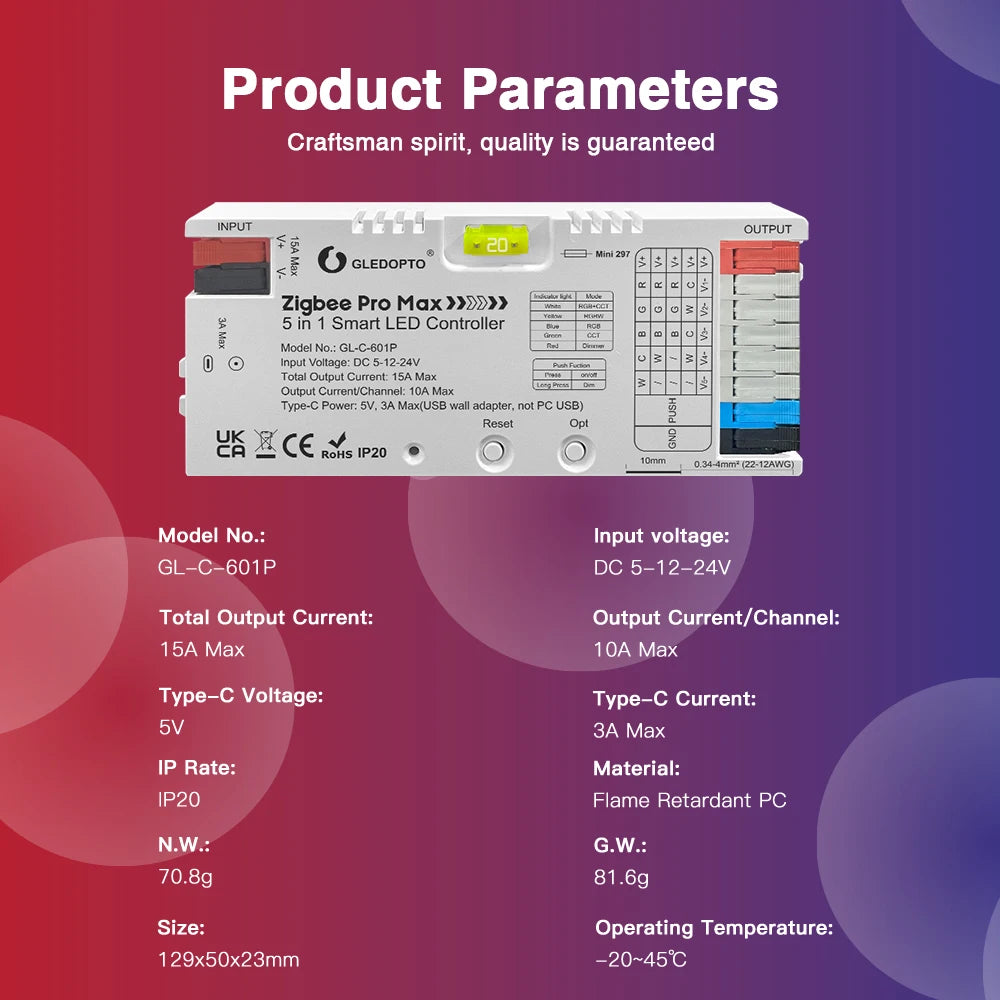

Technical Specifications
| Brand | GLEDOPTO |
|---|---|
| Model | GL-C-601P |
| Product Type | Zigbee 3.0 5-in-1 PWM LED Controller |
| Supported LED Modes | RGBCCT, RGBW, RGB, CCT, Dimmer |
| LED Type | Analog/PWM LED strips |
| Addressable LED Support | No |
| Input Voltage | DC 5-12-24V |
| Total Output Current | 15A Max |
| Output Current per Channel | 10A Max |
| USB Type-C Power | DC 5V, 3A Max |
| Wireless Protocol | Zigbee 3.0; 2.4G RF |
| Housing Material | Flame-retardant PC |
| IP Rating | IP20 |
| Operating Temperature | -20°C to 45°C |
| Dimensions | 129 × 50 × 23 mm |
| Colour | White |
Smart Lighting Applications
The GL-C-601P is suitable for smart-home lighting installations using compatible analog/PWM LED strips, including RGB, RGBW, CCT, RGBCCT and single-colour dimmable lighting applications. It can be used where centralized smart-home control, automation and flexible LED-strip mode selection are required.
Important Compatibility Note
This is a controller for analog/PWM LED strips. It is not designed for addressable or individually controlled LED strips. Always match the LED strip voltage and electrical load to the controller's specifications before installation.
Frequently Asked Questions
What LED strips does the GL-C-601P support?
It supports analog/PWM LED strips in RGBCCT, RGBW, RGB, CCT and Dimmer modes.
Does it support addressable LED strips?
No. The GL-C-601P is designed for analog/PWM LED strips rather than addressable LED strips.
What voltage does the controller support?
The specified DC input range is 5-12-24V.
What is the maximum output current?
The total output current is rated up to 15A, with up to 10A per channel.
Which smart home systems can it work with?
It is designed for Zigbee smart-home integration and is compatible with platforms and gateways including Home Assistant ZHA/Zigbee2MQTT, Philips Hue, Amazon Echo, SmartThings, Tuya and Homey, subject to platform and gateway support.
- Model: GL-C-601P
- Connectivity: Zigbee 3.0
- Input: 5V-24V DC
- USB: TypeC 5V/3A
- Current: 15A per channel
- MaxLoad: 15A
- Terminals: Quick Connect
- Dimensions: 129x50x23mm
- Supported LED Strips: RGB, RGBW, CCT, RGBCCT
