Zigbee Pro+ 5in1 LED Controller

$39.90

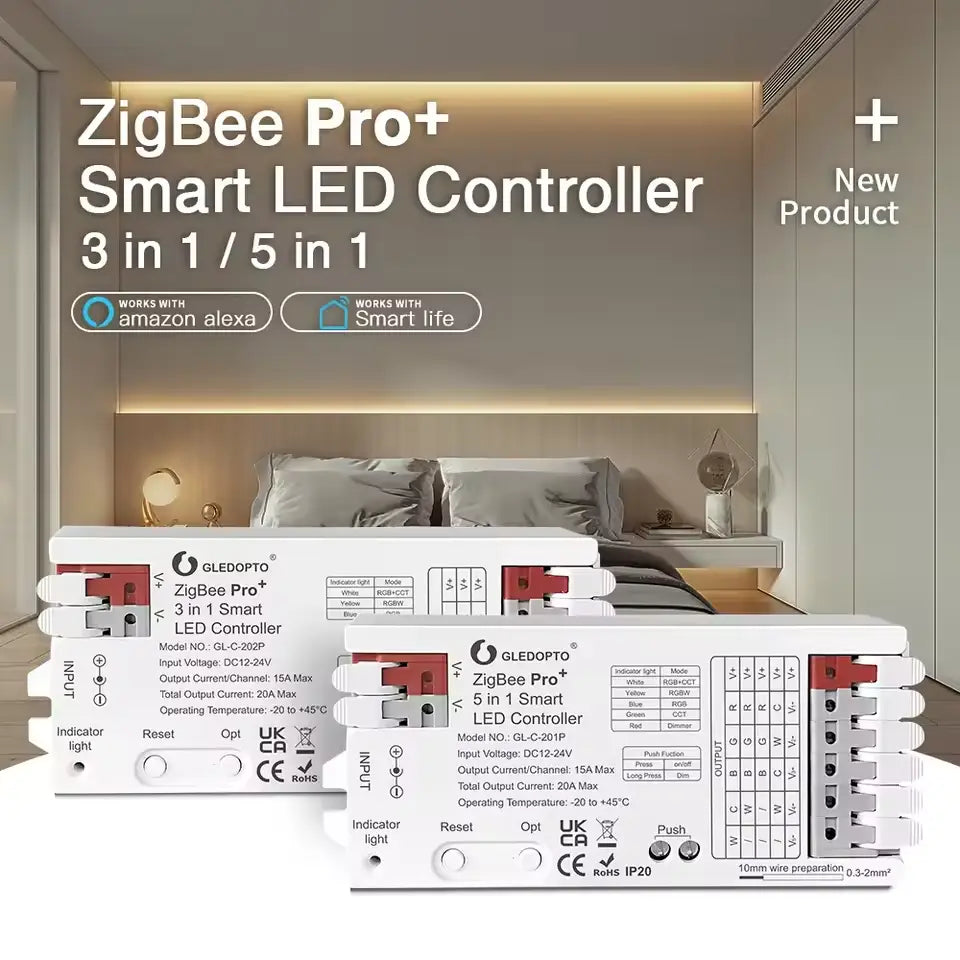

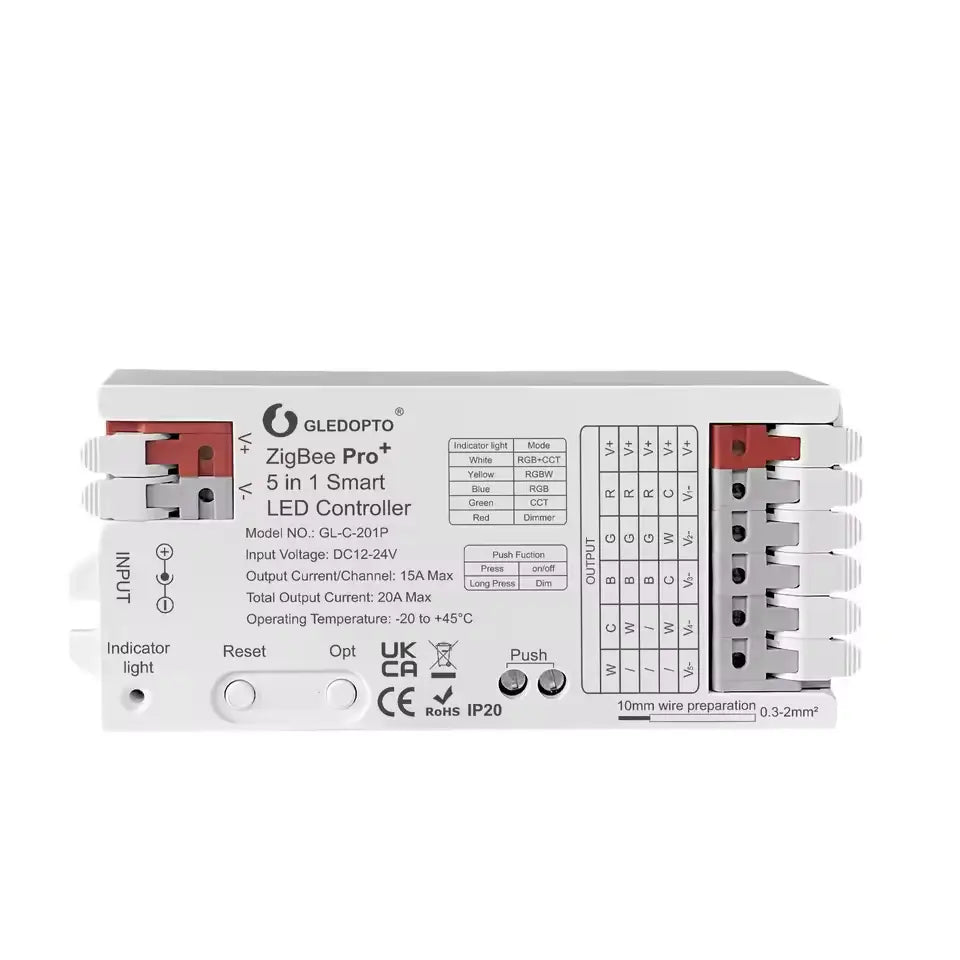

GLEDOPTO Zigbee Pro+ 5-in-1 LED Controller GL-C-201P

GLEDOPTO Zigbee Pro+ 5-in-1 LED Controller

The GLEDOPTO GL-C-201P Zigbee Pro+ 5-in-1 LED Controller provides smart control for compatible low-voltage LED strip lighting. It supports five lighting modes: RGBCCT, RGBW, RGB, CCT and single-colour dimming, making one controller suitable for a wide range of analogue LED strip installations.

Smart Zigbee 3.0 LED Strip Control

The GL-C-201P uses Zigbee 3.0 for integration with compatible smart-home gateways and controllers. It is designed for use with LED strips and can provide app, voice and compatible RF remote control options depending on the connected smart-home system and accessories.

5-in-1 LED Strip Compatibility

The controller can be configured for the following LED strip types:

RGBCCT
RGBW
RGB
CCT
Single-colour dimming

12–24V DC Input

The GL-C-201P is designed for low-voltage DC LED strip systems. GLEDOPTO specifies an input voltage of DC 5V, 12V or 24V for this model. The controller is not a power supply, so a suitable DC power supply must be selected separately for the LED strip installation.

High-Current Output

The controller supports up to 20A total output current, with a maximum of 15A per channel. Always size the power supply, wiring and LED load appropriately for the installation and follow the manufacturer's wiring instructions.

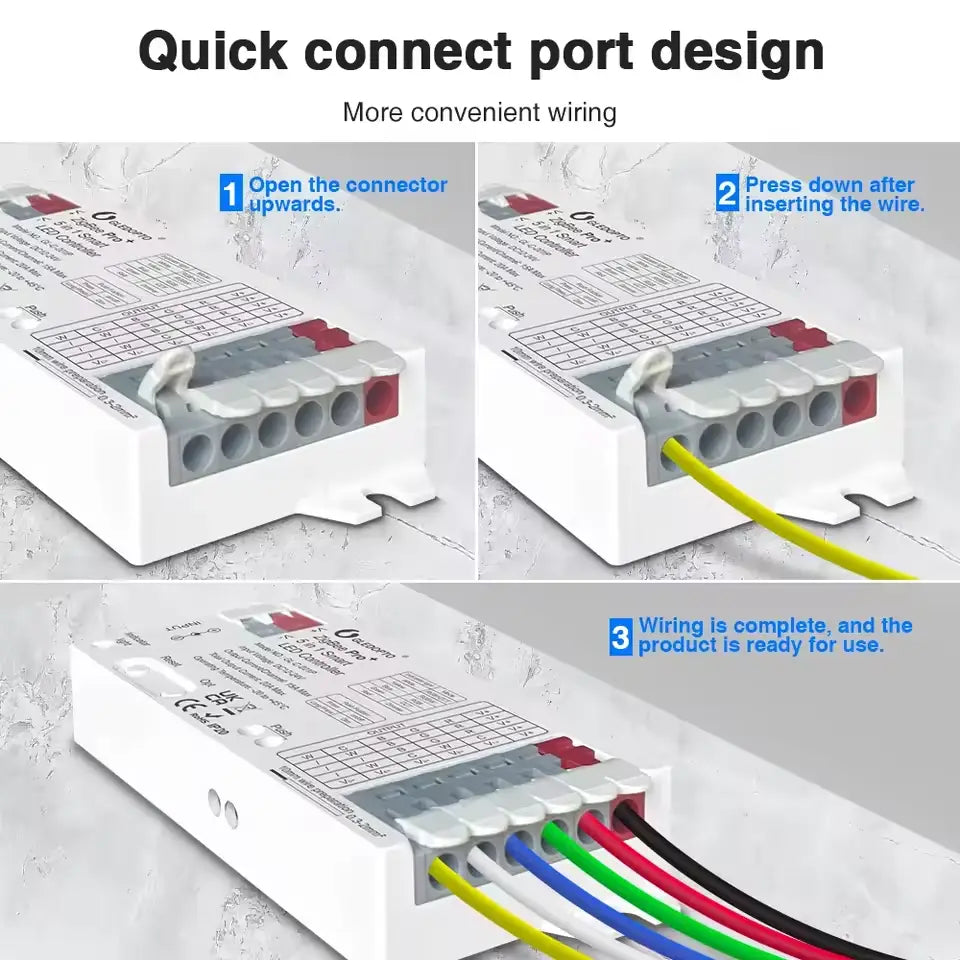

Quick-Release Terminals

The controller uses quick-release wire terminals to make connecting the power supply and compatible LED strips more convenient during installation.

External Push Button Support

An external push button switch can be connected for local control, providing an additional control option alongside compatible smart-home and remote-control methods.

Compact Pro+ Design

The GL-C-201P has a compact enclosure measuring 108 × 45 × 18 mm. It uses a flame-retardant PC housing and has an IP20 rating, making it intended for suitable indoor, dry-location applications.

Key Specifications

Brand: GLEDOPTO
Model: GL-C-201P
Product Type: Zigbee Pro+ 5-in-1 Smart LED Controller
Protocol: Zigbee 3.0
Input Voltage: DC 5V / 12V / 24V
Total Output Current: 20A maximum
Output Current per Channel: 15A maximum
Supported LED Strip Types: RGBCCT, RGBW, RGB, CCT and Dimmer
Material: Flame-retardant PC
IP Rating: IP20
Dimensions: 108 × 45 × 18 mm
Control Methods: APP / Voice / compatible RF remote control

Important Installation Note

This controller is intended for compatible low-voltage DC LED strips and must not be connected directly to mains AC power. Check polarity, voltage, current requirements and LED-strip wiring before installation. Disconnect power before wiring or servicing.

Model: GL-C-201P
Connectivity: Zigbee 3.0
Input: 5V-24V
Current: 15A per channel
MaxLoad: 20A
Terminals: Quick Connect
Dimensions: 18x45x108mm
Supported LED Strips: RGB, RGBW, CCT, RGBCCT

What LED strips does the GL-C-201P support?

The GL-C-201P is a 5-in-1 controller supporting RGBCCT, RGBW, RGB, CCT and dimmable/single-colour LED strips.

What voltage does the GL-C-201P support?

The manufacturer's specification lists DC 5V, 12V and 24V input.

What is the maximum output current?

The controller supports 20A maximum total output current and 15A maximum output current per channel.

Does it use Zigbee 3.0?

Yes. The GL-C-201P uses Zigbee and is designed for integration with compatible Zigbee smart-home systems.

Can it work with Home Assistant?

The controller is documented for use with Zigbee platforms including Home Assistant ZHA and Zigbee2MQTT, subject to compatible integration/device support.

Does it support RGB, RGBW and RGBCCT?

Yes. The 5-in-1 configuration supports RGB, RGBW and RGBCCT, as well as CCT and dimming modes.

Can I connect a physical switch?

Yes. GLEDOPTO specifies support for an external push-button switch.

What are the controller dimensions?

The GL-C-201P measures 108 × 45 × 18 mm.
