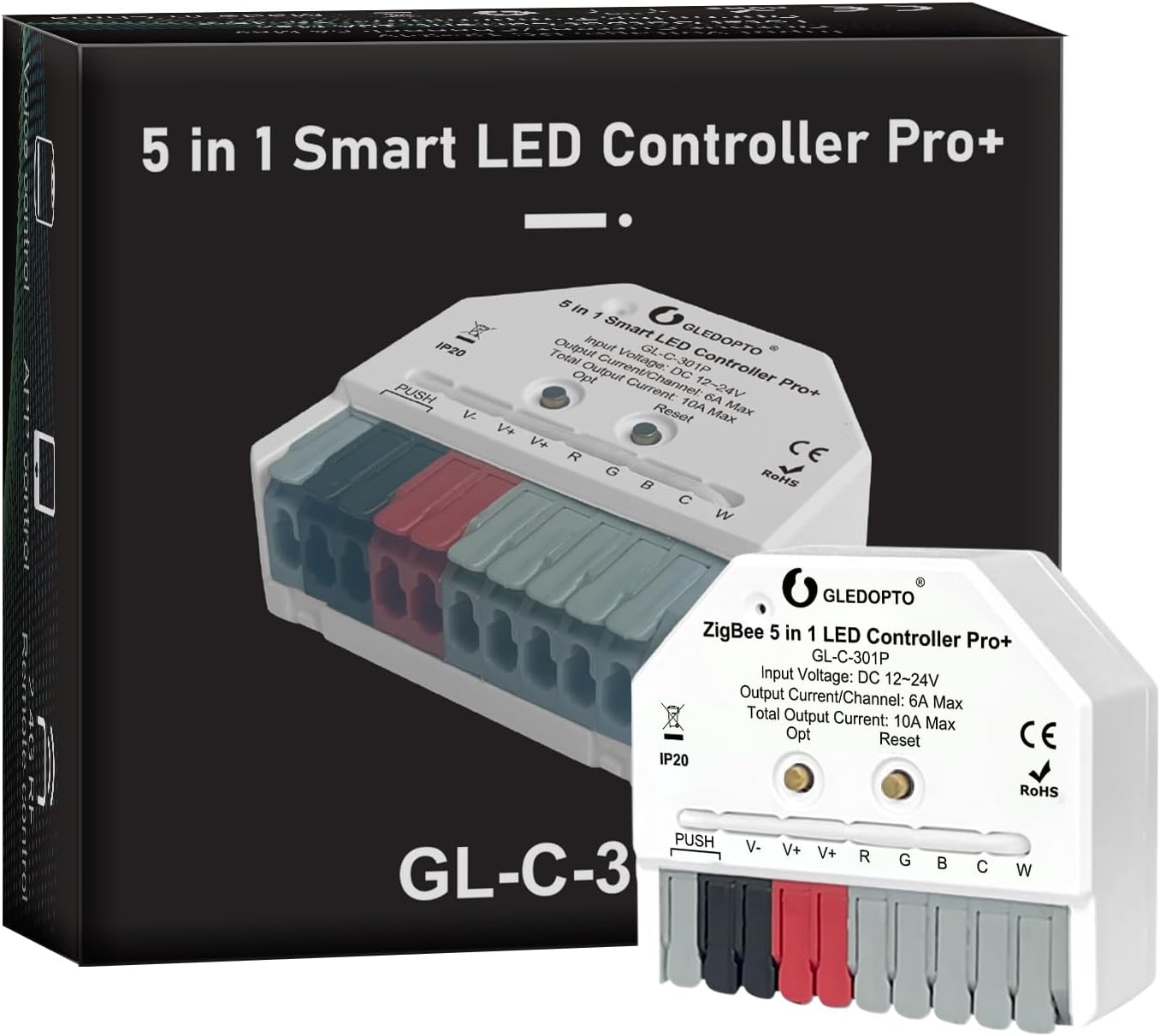

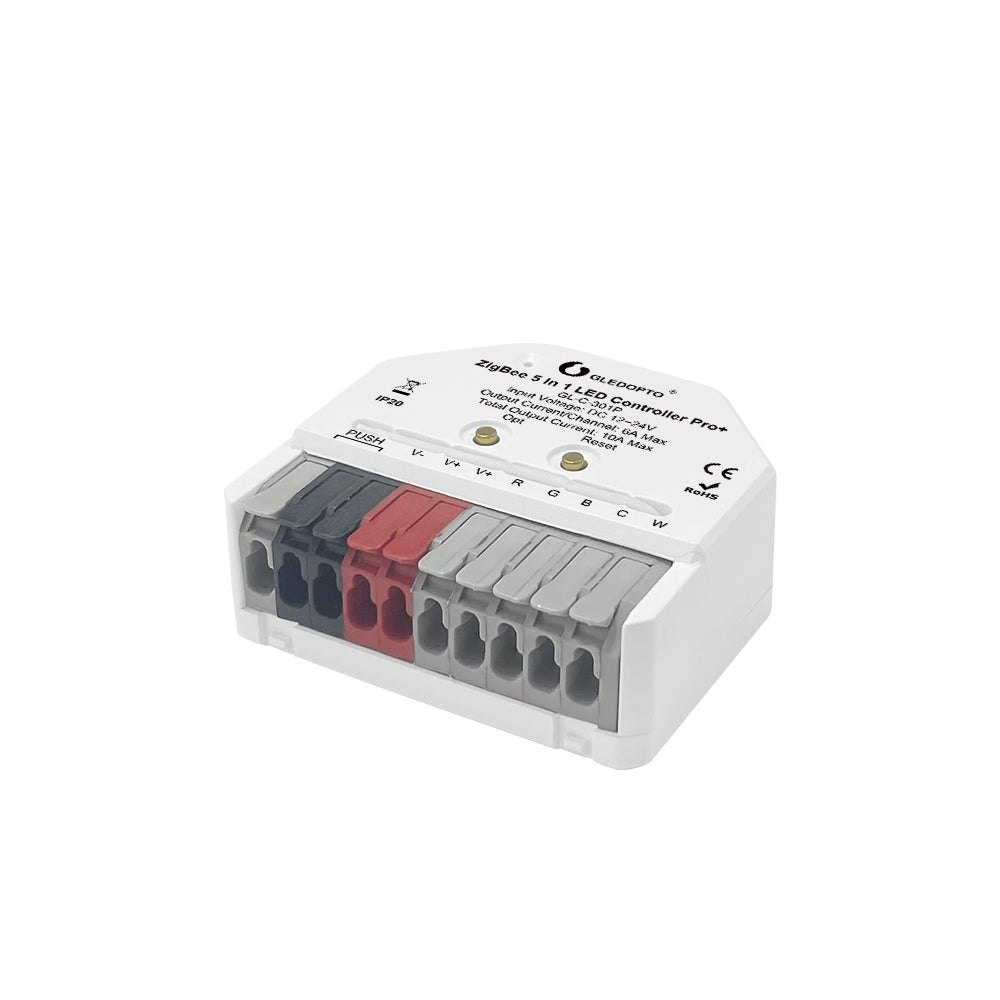

Gledopto Zigbee Pro+ 5in1 Mini LED Controller
The Gledopto Zigbee Pro+ 5in1 Mini LED Controller (GL-C-301P) is a compact Zigbee 3.0 controller designed for smart control of low-voltage analogue LED strips. It supports five lighting modes in one controller: single-colour dimming, CCT, RGB, RGBW and RGBCCT.
With a DC 12–24V input, up to 10A total output current and up to 6A per channel, the GL-C-301P provides a flexible solution for smart LED lighting installations. Its compact 42 × 38 × 17mm enclosure is suitable for installations where space is limited.
5-in-1 LED Strip Control
The GL-C-301P can be configured for different analogue LED strip types, allowing one controller design to serve multiple lighting applications. Supported modes include:
- Single Colour / Dimmer: On/off and brightness control for single-colour LED strips.
- CCT: Control of tunable-white LED strips.
- RGB: Control of red, green and blue LED channels.
- RGBW: Control of RGB channels together with a dedicated white channel.
- RGBCCT: Combined colour and tunable-white control.
Smart Home Connectivity
The controller communicates using Zigbee 3.0 and also supports 2.4GHz RF. It can be integrated with compatible Zigbee smart-home gateways and platforms. The supplied product information lists compatibility with systems and gateways including Home Assistant ZHA, Zigbee2MQTT, Philips Hue, Amazon Echo, SmartThings, Tuya and Homey; exact functionality can depend on the gateway, integration and selected controller mode.
Compact Design and Wiring

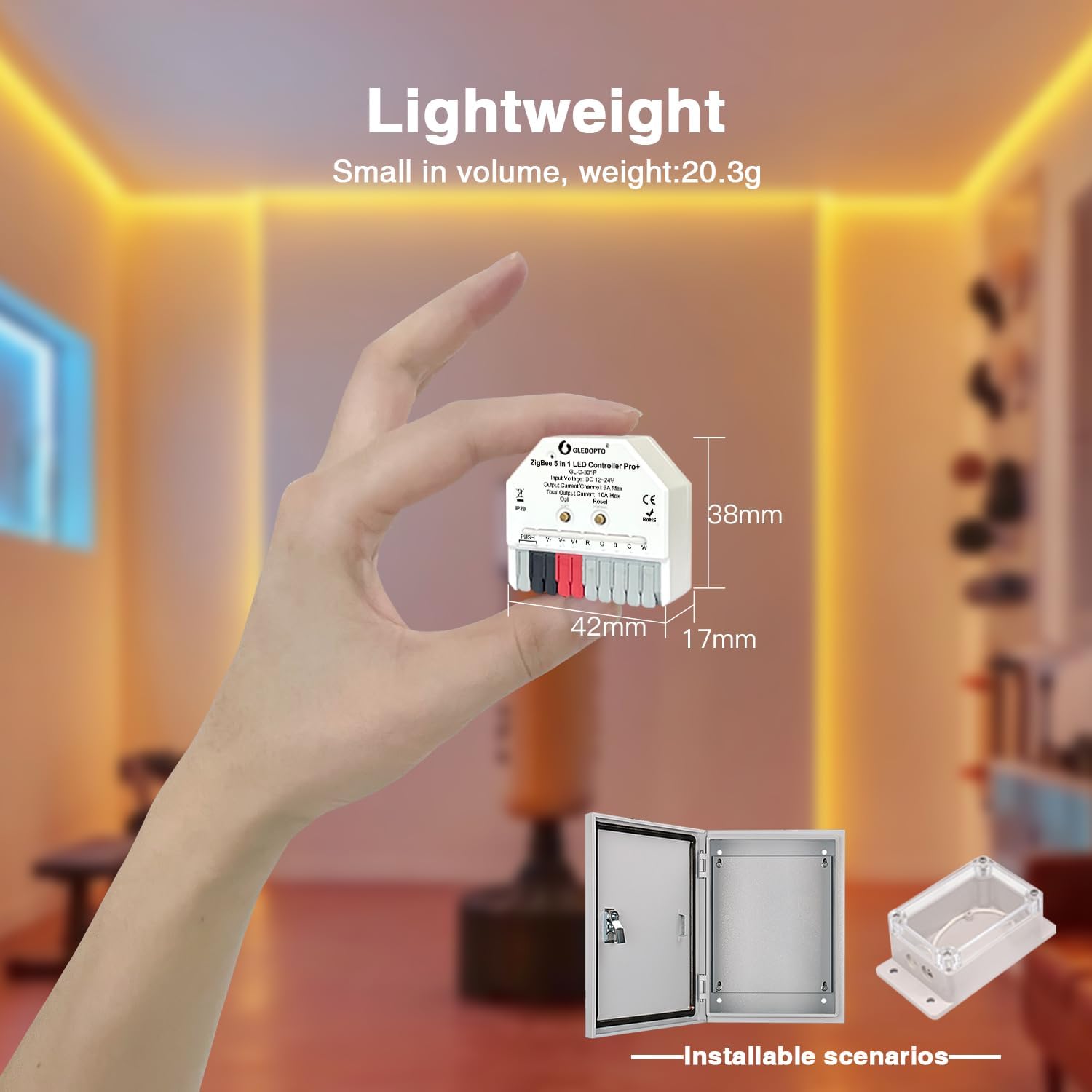

Measuring only 42 × 38 × 17mm, the GL-C-301P is designed for compact installations. It uses quick-connect terminals and supports recommended wire sizes from 0.5–1.5mm² (24–16 AWG), with an approximately 8–9mm stripping length.

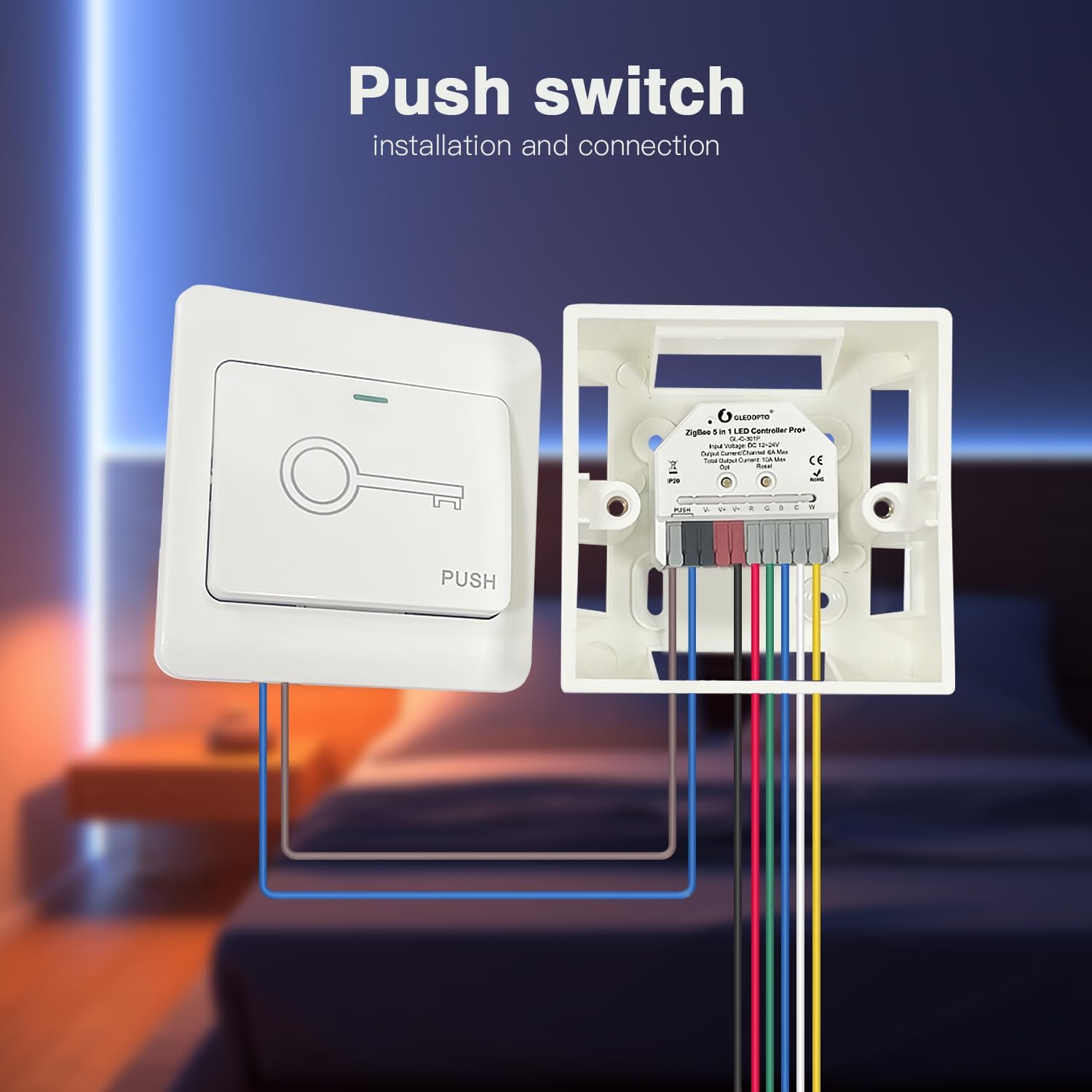

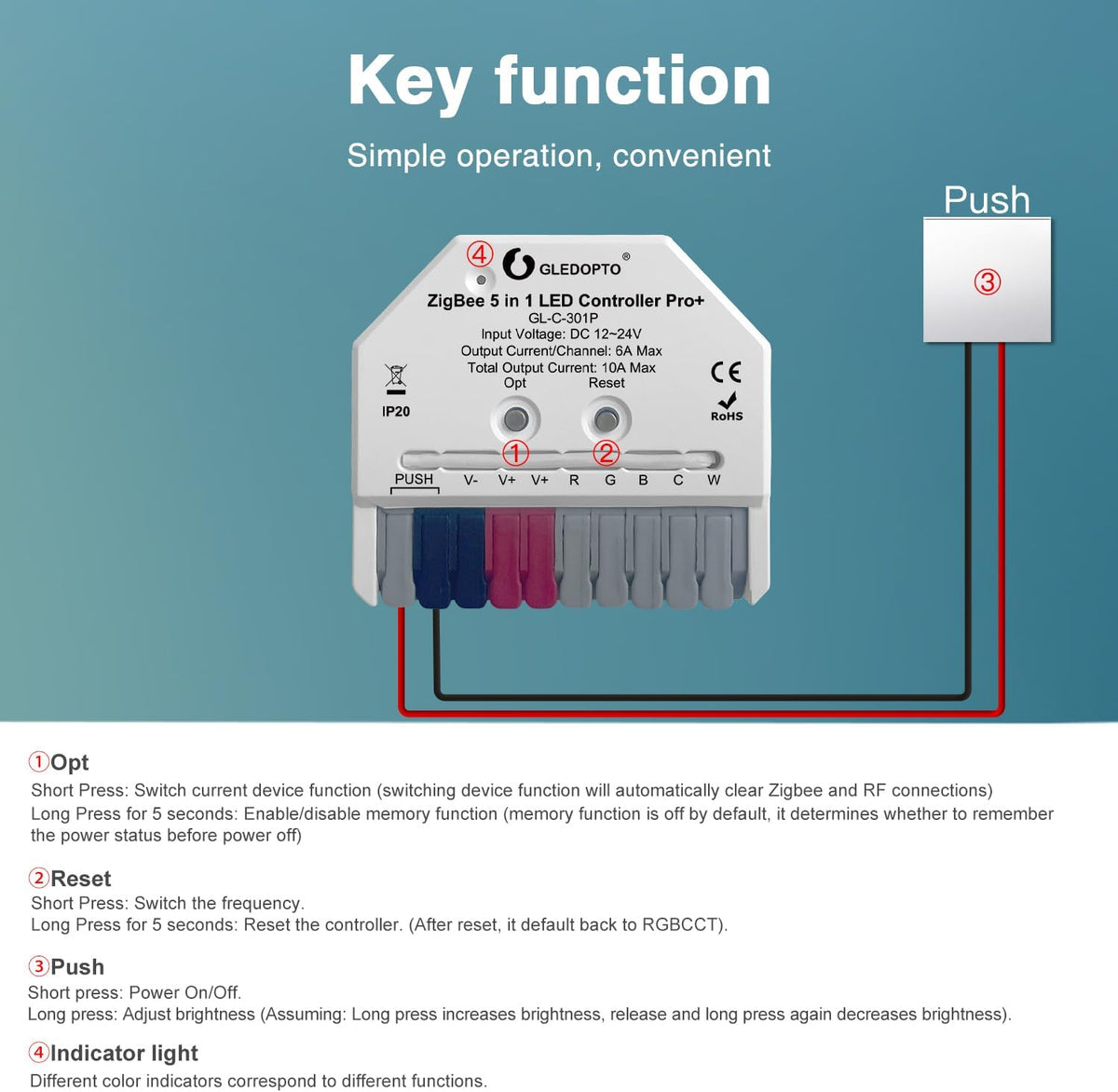

An external push-button switch can also be connected for local control. The push input supports power on/off and brightness adjustment according to the controller's operating mode.
Power and Output Specifications
- Input voltage: DC 12–24V
- Maximum output current: 10A total
- Maximum output current per channel: 6A
- Control protocol: Zigbee 3.0 + 2.4GHz RF
- LED types: Single Colour, CCT, RGB, RGBW and RGBCCT
- IP rating: IP20
- Operating temperature: -20°C to 45°C
Adjustable PWM Frequency
The controller provides selectable PWM frequencies of 600Hz, 800Hz, 1000Hz, 2000Hz, 4000Hz and 8000Hz. The default frequency is 1000Hz. This gives installers flexibility when matching the controller with different power-supply and lighting requirements.

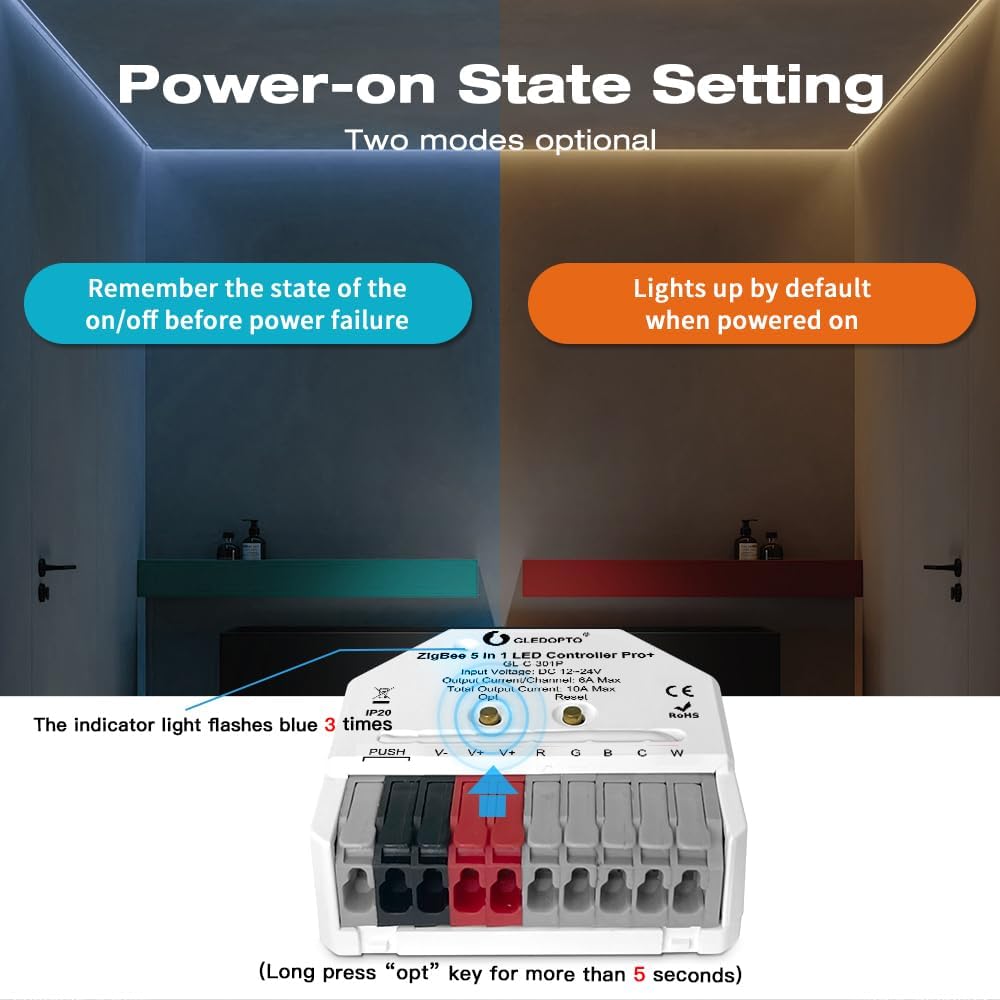

Power-On Memory Function
The GL-C-301P includes a configurable memory function for the power state. The memory function is disabled by default and can be enabled or disabled using the controller's button interface.
Key Features
- Zigbee 3.0 smart LED control
- 2.4GHz RF support
- 5-in-1 LED strip controller
- Supports single-colour, CCT, RGB, RGBW and RGBCCT strips
- DC 12–24V input
- 10A maximum total output current
- 6A maximum output current per channel
- Compact 42 × 38 × 17mm design
- Quick-connect wiring terminals
- External push-button input
- Selectable 600Hz–8000Hz PWM frequency
- IP20 enclosure

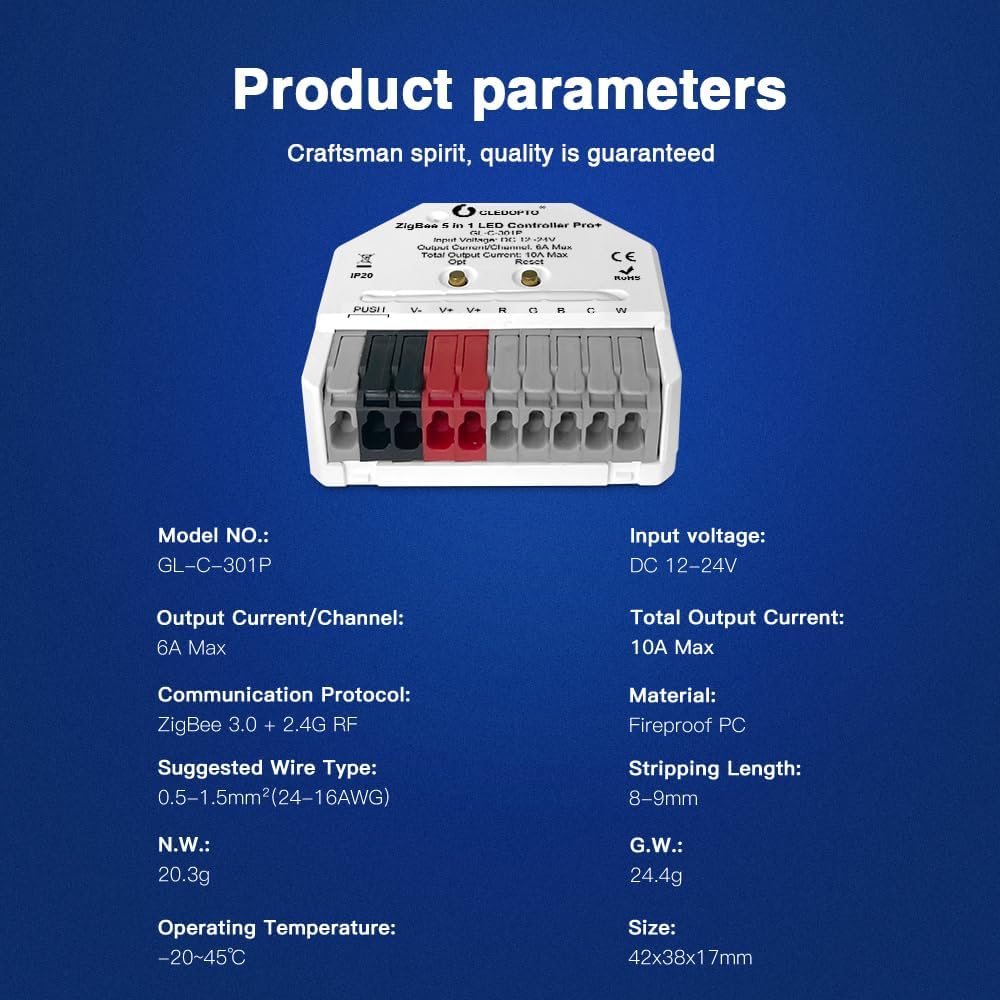

Technical Specifications
| Specification | Details |
|---|---|
| Brand | Gledopto |
| Model | GL-C-301P |
| Product Type | Zigbee 5-in-1 LED Controller |
| Input Voltage | DC 12–24V |
| Total Output Current | 10A Max |
| Output Current per Channel | 6A Max |
| Communication | Zigbee 3.0 + 2.4GHz RF |
| Supported Modes | Single Colour, CCT, RGB, RGBW, RGBCCT |
| Recommended Wire | 0.5–1.5mm² (24–16 AWG) |
| Wire Stripping Length | 8–9mm |
| PWM Frequency | 600Hz, 800Hz, 1000Hz, 2000Hz, 4000Hz or 8000Hz |
| Material | Flame-retardant / fireproof PC |
| IP Rating | IP20 |
| Operating Temperature | -20°C to 45°C |
| Dimensions | 42 × 38 × 17mm |
Installation Note
The GL-C-301P is intended for low-voltage DC 12–24V LED strip systems. It should not be connected directly to mains AC power. Installation and wiring should be performed with the power disconnected and by a suitably qualified person where required. Do not exceed the controller's stated voltage or current limits, and note that the IP20 rating does not provide water protection.
What's Included
- 1 × Gledopto GL-C-301P Zigbee Pro+ 5in1 Mini LED Controller
