Zigbee Motion PIR Sensor
Zigbee Motion PIR Sensor
Monitor movement and automate your home with the Moes ZSS-S01-PIR-C Zigbee Motion PIR Sensor.
✔ Zigbee 3.0 Smart Motion Sensor
✔ 120° Motion Detection Angle
✔ Up to 8m Detection Range
✔ Replaceable CR2450 Battery
✔ 360° Magnetic Mounting Base
✔ MOES & Tuya Smart App Support
✔ Home Assistant, ZHA & Zigbee2MQTT Compatible
Built for smart home security, automatic lighting, motion alerts, and reliable Zigbee automation.
Smarter Motion Detection Without Complicated Installation
A smart home should respond when something happens—not require you to control everything manually.
The Moes Zigbee Motion PIR Sensor detects human movement and turns that activity into useful smart-home actions. Receive smartphone notifications, trigger lights when someone enters a room, or create automated scenes based on motion.
Its compact design and 360° magnetic mounting base make installation and positioning simple, while the 120° detection angle and up to 8m detection range provide practical coverage for rooms, hallways, entrances, and other key areas.
Why Choose the Moes Zigbee Motion PIR Sensor?
Choosing a motion sensor is about more than simply detecting movement. Reliable connectivity, flexible installation, battery efficiency, and smart-home compatibility all matter.
The Moes sensor combines:
120° detection angle and up to 8m range for practical motion coverage
Zigbee connectivity for integration with compatible smart home gateways
Replaceable CR2450 battery designed for up to 24 months of operation
360° magnetic mounting for easy positioning and angle adjustment
MOES and Tuya Smart app support for convenient motion notifications
Home Assistant compatibility through ZHA and Zigbee2MQTT
Every feature is designed to make smart-home monitoring and automation easier to install, manage, and use.
Why Zigbee Motion Detection Compared to Basic Sensors
| Feature | Moes Zigbee Motion PIR Sensor | Basic Motion Sensor |
|---|---|---|
| Connectivity | Zigbee | Varies |
| Detection Range | Up to 8m | Varies |
| Detection Angle | 120° | Varies |
| Mounting | 360° Magnetic Base | Standard Mounting |
| Smart Automation | Yes | Limited/Varies |
| App Alerts | MOES & Tuya Smart | Varies |
| Home Assistant | ZHA/Zigbee2MQTT | Depends on Device |
| Battery | Replaceable CR2450 | Varies |
The Difference You Notice Immediately
Know When Movement Is Detected
Receive motion alerts through the MOES or Tuya Smart app, helping you stay informed about activity in your home.
Automate Your Lighting
Use motion as a smart trigger to turn hallway, entryway, or room lighting on automatically when movement is detected.
Cover More With One Sensor

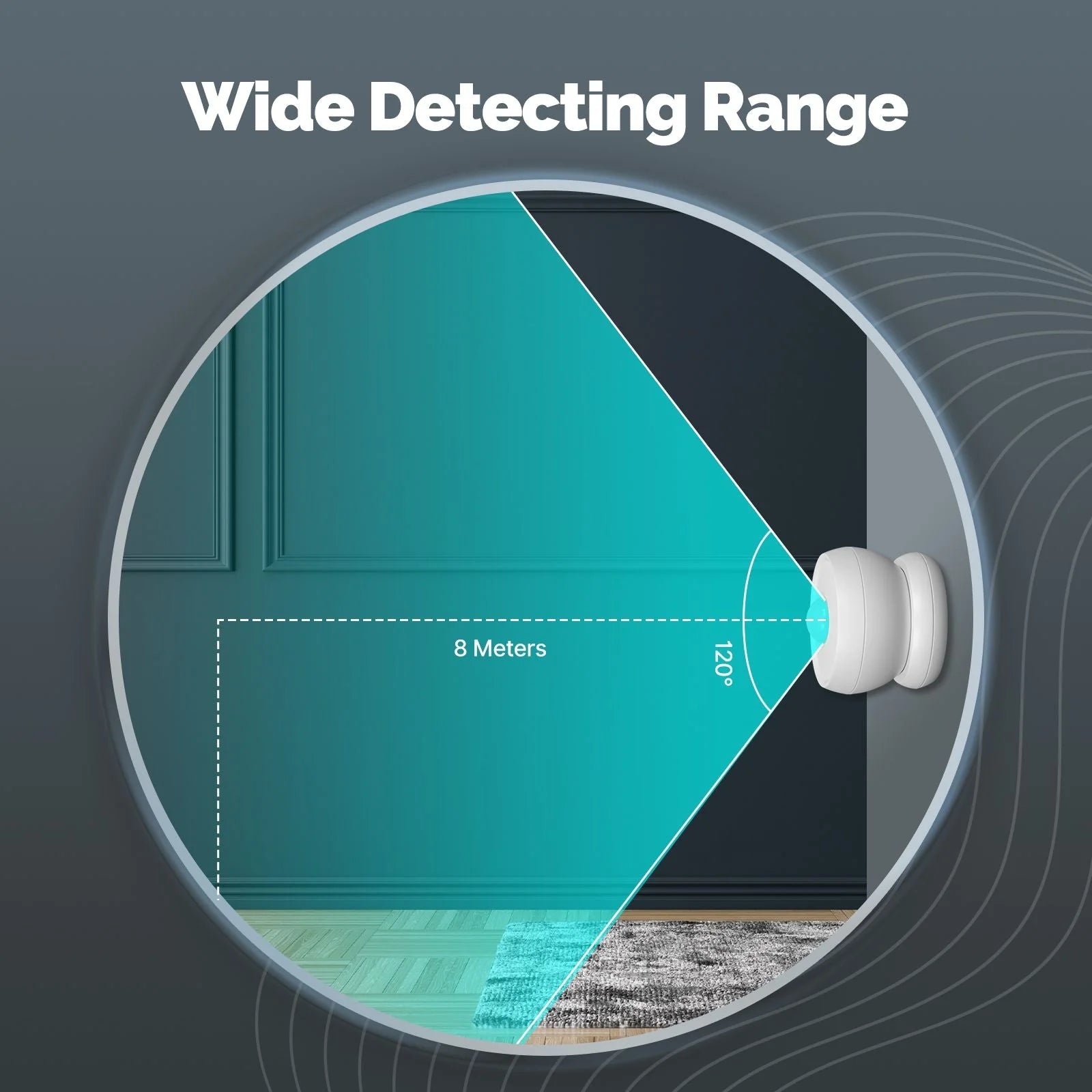

The 120° detection angle and up to 8m range provide useful coverage for common indoor monitoring and automation areas.
Position It Where You Need It

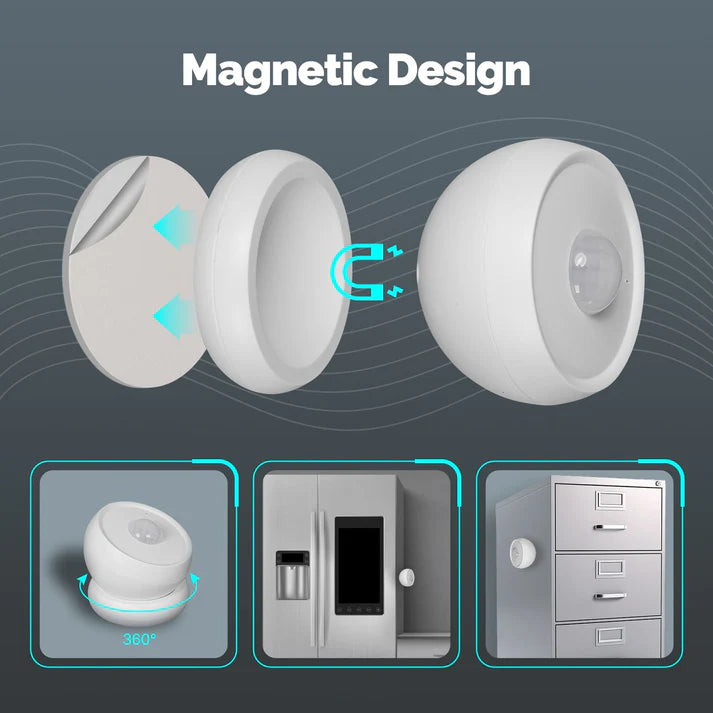

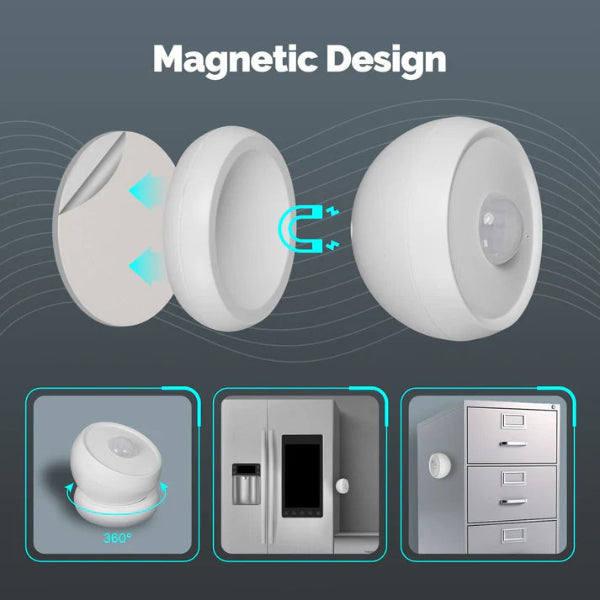

The 360° magnetic mounting base makes it easy to place, adjust, and reposition the sensor without complicated mounting hardware.
Build a More Connected Smart Home
Integrate motion detection into supported Tuya, MOES, Home Assistant, ZHA, and Zigbee2MQTT setups for customised automation.
Smart Features
| Feature | Benefit |
|---|---|
| Zigbee Motion Detection | Reliable trigger for compatible smart home automations |
| 120° Detection Angle | Provides broad motion coverage |
| Up to 8m Detection Range | Monitors movement across larger indoor areas |
| CR2450 Replaceable Battery | Convenient long-term power solution |
| 360° Magnetic Mount | Simple installation and flexible positioning |
| MOES & Tuya Smart App | Receive motion notifications on your smartphone |
| Home Assistant Support | Build advanced automations with ZHA/Zigbee2MQTT |
| Zigbee IEEE 802.15.4 | Connects through compatible Zigbee systems |
How to Use the Moes Zigbee Motion Sensor
Using the sensor is straightforward:
Install the battery and prepare the sensor for pairing.
Connect it to a compatible Zigbee gateway or supported smart home system.
Position the sensor using the 360° magnetic mounting base.
Adjust the angle toward the area you want to monitor.
Create your automation for alerts, lighting, scenes, or other supported smart devices.
Test the detection area and adjust the sensor position if required.
Who Is It For?
The Zigbee Motion PIR Sensor is ideal for:
Smart home owners
Home Assistant users
Tuya and MOES users
Home security and monitoring setups
Lighting automation projects
Zigbee DIY enthusiasts
People who want motion-triggered lighting
Anyone expanding an existing Zigbee network
If you want your smart home to react automatically to movement, this sensor provides a compact and practical way to add motion detection to your setup.
Specifications
| Specification | Details |
|---|---|
| Model | Moes ZSS-S01-PIR-C |
| Sensor Type | PIR Motion Sensor |
| Detection Range | Up to 8m |
| Detection Angle | 120° |
| Battery | CR2450 |
| Input Voltage | DC 3V |
| Zigbee Standard | IEEE 802.15.4 |
| Working Temperature | -10°C to +55°C |
| Working Humidity | ≤90% RH, non-condensing |
| Storage Temperature | -15°C to +70°C |
| Storage Humidity | ≤90% RH, non-condensing |
| Mounting | 360° Magnetic Base |
Frequently Asked Questions
What is the detection range?
The sensor has a detection range of up to 8 metres with a 120° detection angle.
What battery does it use?
It uses a replaceable CR2450 battery.
Does it work with Tuya?
Yes. The product supports the MOES and Tuya Smart apps and can work with compatible Tuya-based Zigbee gateways.
Does it work with Home Assistant?
Yes. The sensor is designed to integrate with Home Assistant through ZHA or Zigbee2MQTT, when used with compatible Zigbee hardware and configuration.
How is the sensor mounted?
It features a 360° magnetic mounting base, allowing flexible positioning and angle adjustment.
Can I use it for automatic lighting?
Yes. Motion detection can be used as a trigger for compatible smart-home lighting and automation scenes.
Make Your Smart Home Respond Automatically
Stop relying on manual controls for every action. The Moes Zigbee Motion PIR Sensor gives your smart home a practical way to detect movement and respond automatically.
With up to 8m detection, a 120° detection angle, replaceable CR2450 battery, flexible magnetic mounting, and support for MOES, Tuya, Home Assistant, ZHA, and Zigbee2MQTT, it is built for smart lighting, motion alerts, security monitoring, and everyday home automation.
Add the Zigbee Motion PIR Sensor to your smart home setup and start building more responsive automations today.
- Working Temperature： -10℃~+55℃
- Storage Temperature： -15℃-+70℃
- Working Humidity： ≤90%RH（No Condensation）
- Storage Humidity：≤90%RH（No Condensation）
- Input Voltage：DC 3V
- Battery Specifications：CR2450
- Detection range：8m
- Detection angle：120°
- ZigBee Standard：IEEE 802.15.4
