Gledopto - GL-C-010WL

WLED ESP32 Addressable Controller

Name: WLED ESP32 Addressable Controller
Brand: Gledopto
SKU: GL-C-010WL
Price: 30.9 AUD
Availability: InStock

$30.90

Tax included.

Model: GL-C-010WL

GL-C-010WL

GL-C-010WL-D

Powerful dual channel sound reactive addressable RGB LED Controller.

Ask a question

Size guide

Share

WLED ESP32 Addressable Controller

WLED ESP32 Addressable Controller | GL-C-010WL | Gledopto

WLED ESP32 Addressable Controller – Gledopto GL-C-010WL

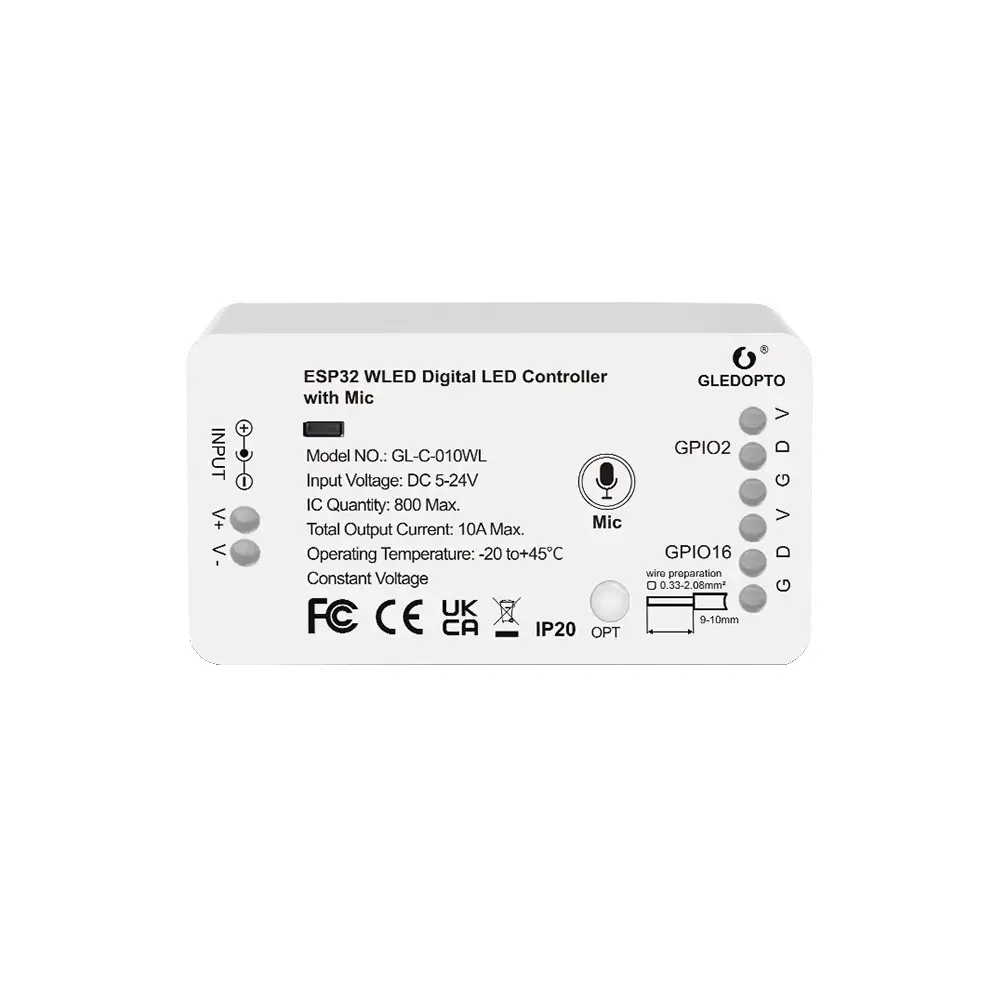

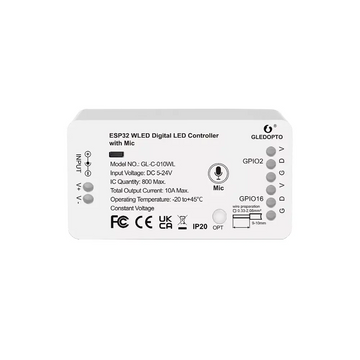

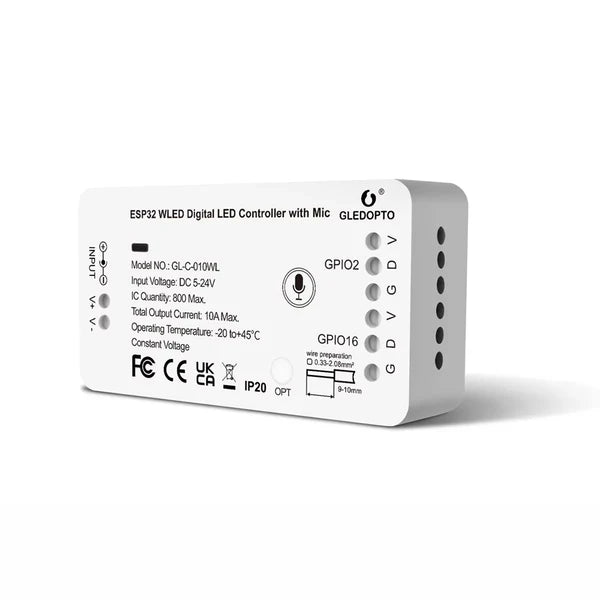

The Gledopto GL-C-010WL is a dual-channel ESP32 WLED addressable LED controller designed for compatible digital LED strips. It supports 5V, 12V and 24V addressable LED strip systems, with a maximum total output current of 10A. A built-in I2S PDM digital microphone enables sound-reactive lighting effects for music and other audio-driven installations.

Key Features

ESP32-based WLED addressable LED controller
2 independent addressable LED channels
Supports compatible 5V, 12V and 24V addressable LED strips
10A maximum total output current
Built-in I2S PDM digital microphone for sound-reactive effects
Wi-Fi connectivity for WLED control
OTA firmware updates on the GL-C-010WL version
Compact IP20 enclosure

Supported Addressable LED Strips

The GL-C-010WL is listed as compatible with a range of digital LED protocols, including WS2812B, WS2811, WS2813, WS2815, SK6812, TM1814, APA102, WS2801, LDP8806 and GS8208. Always confirm the LED strip voltage, protocol, wiring and power requirements before connection.

Sound-Reactive Lighting

The built-in I2S PDM digital microphone allows compatible WLED effects to respond to music and sound. This makes the controller suitable for entertainment lighting, music-reactive installations, displays and other dynamic LED projects.

Two Independent Channels

Two addressable output channels allow compatible LED strips to be controlled as separate lighting circuits. This provides greater flexibility when creating multi-strip or multi-zone lighting installations.

Power and Current

The controller accepts DC 5V, 12V or 24V input and has a maximum total output current rating of 10A. The connected LED strips and power supply must be matched to the selected voltage and total current requirements.

Firmware Updates

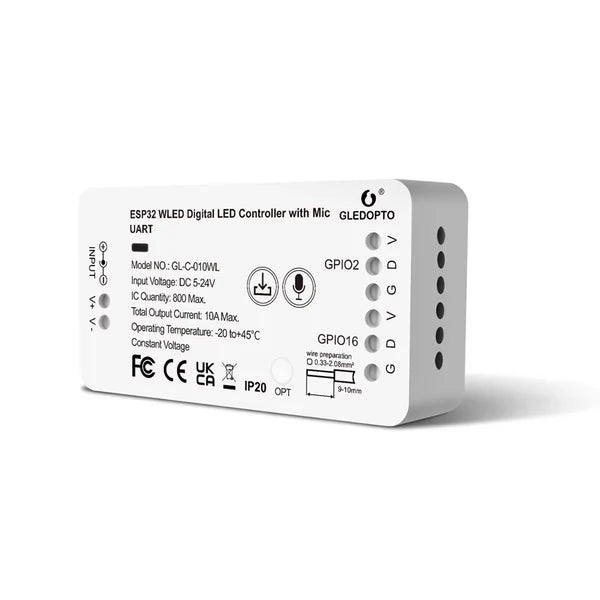

The GL-C-010WL supports over-the-air (OTA) firmware updates. The related GL-C-010WL-D variant additionally includes an internal Micro USB port for easier firmware flashing.

Technical Specifications

Model	GL-C-010WL
Chipset	ESP32
Input Voltage	DC 5V–24V
Maximum Total Current	10A
Channels	2 independent addressable LED channels
Connectivity	Wi-Fi
Microphone	Built-in I2S PDM digital microphone
Sound Reactive	Yes
IP Rating	IP20
Dimensions	23.5 × 48 × 89 mm
Weight	0.06 kg
Colour	White

GL-C-010WL vs GL-C-010WL-D

Feature	GL-C-010WL	GL-C-010WL-D
ESP32	Yes	Yes
5V–24V input	Yes	Yes
2 addressable channels	Yes	Yes
Built-in I2S PDM microphone	Yes	Yes
Maximum total current	10A	10A
OTA updates	Yes	Yes
Internal Micro USB port	No	Yes

Applications

Music-reactive LED lighting
Home and entertainment lighting
Gaming and media-room lighting
Display and feature lighting
DIY WLED projects
Multi-strip addressable LED installations

Important Compatibility Note

This controller is intended for compatible addressable LED strips, not conventional analogue PWM LED strips. Check the LED strip's voltage, data protocol, wiring and current requirements before installation. The 10A rating is the maximum total current specified for the controller; it is not a statement that every LED strip can safely operate at 10A.

Optional Remote Control

An optional Gledopto WLED remote control can be used where supported by the controller and setup.

Model: GL-C-010WL
Chip: ESP32
Input: 5V-24V
MaxLoad: 10 A
Dimensions: 23.5x48x89mm
Supported LEDs: WS2812B WS2811 WS2813 WS2815 SK6812 TM1814 APA102 WS2801 LDP8806 GS8208

Is the GL-C-010WL compatible with WLED?

Yes. The GL-C-010WL is an ESP32-based WLED digital/addressable LED controller.

What voltage does the GL-C-010WL support?

It supports DC 5V, 12V and 24V input.

How many LED strips can it control?

The controller provides 2 independent addressable LED channels.

What is the maximum current?

The maximum total output current is 10A.

Does it support sound-reactive lighting?

Yes. It includes a built-in I2S PDM digital microphone for sound-reactive LED effects.

Which LED strips are supported?

The product listing identifies compatibility with WS2812B, WS2811, WS2813, WS2815, SK6812, TM1814, APA102, WS2801, LDP8806 and GS8208. Compatibility should still be checked against the specific strip's voltage and protocol.

Does the GL-C-010WL support OTA updates?

Yes. The GL-C-010WL supports OTA firmware updates.

Does the GL-C-010WL have USB?

The standard GL-C-010WL does not have the internal Micro USB port. The GL-C-010WL-D variant adds an internal Micro USB port for easier flashing.

What is the size?

The official Gledopto specification lists the dimensions as 23.5 × 48 × 89 mm.

Is the controller waterproof?

No. Gledopto lists the enclosure as IP20, so it should not be treated as a waterproof controller.
