15A WLED ESP32 Addressable LED Controller

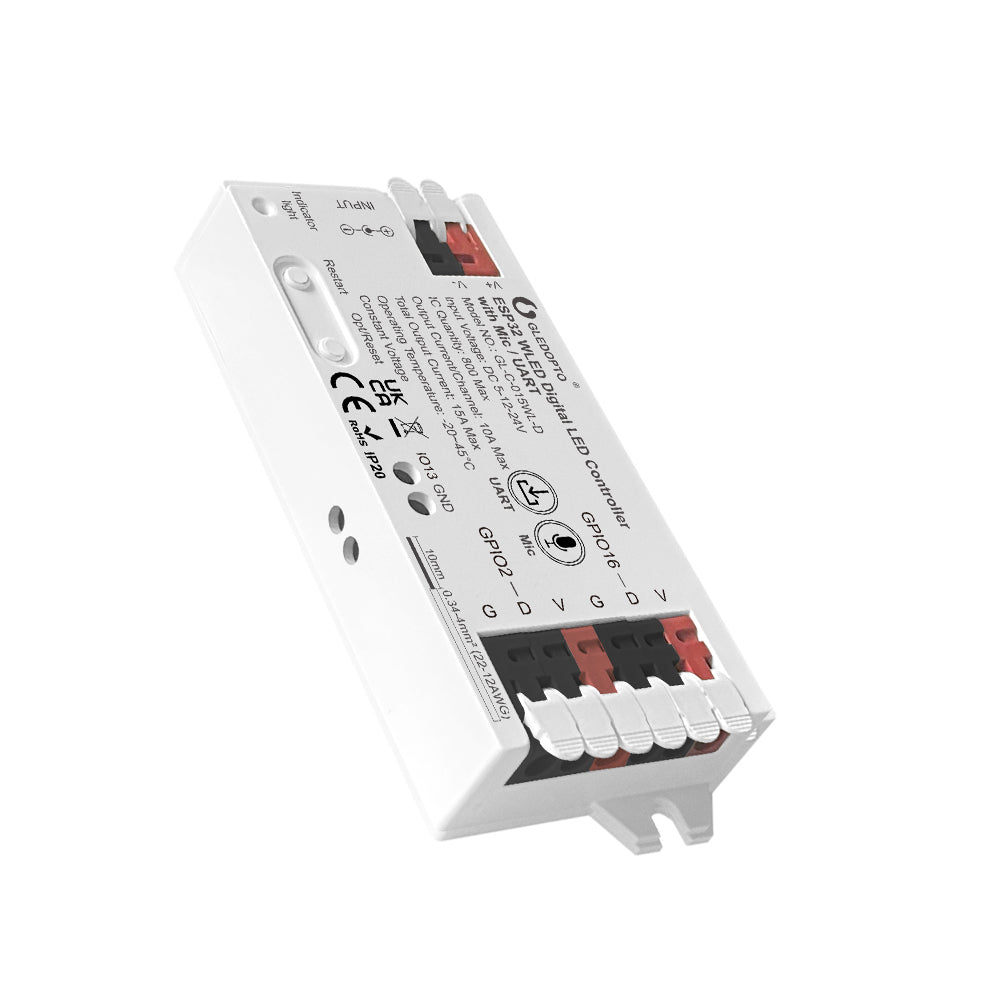

The GLEDOPTO GL-C-015WL-D is an ESP32-based WLED digital LED controller designed to control addressable LED strips over Wi-Fi. It supports a wide range of digital LED strip ICs and provides two independently configurable output channels, with up to 15A total output current and up to 10A per channel.
Sound-Reactive WLED Control
A built-in digital microphone enables sound-reactive lighting effects, allowing compatible addressable LED strips to respond to music and ambient sound when the WLED audio-reactive features are configured.
Key Features
- ESP32-based WLED digital LED controller
- Built-in digital microphone for sound-reactive lighting
- Wi-Fi control with WLED
- Two addressable LED output channels
- DC 5V–24V constant-voltage input
- 15A maximum total output current
- 10A maximum output current per channel
- Supports up to 800 addressable LED ICs

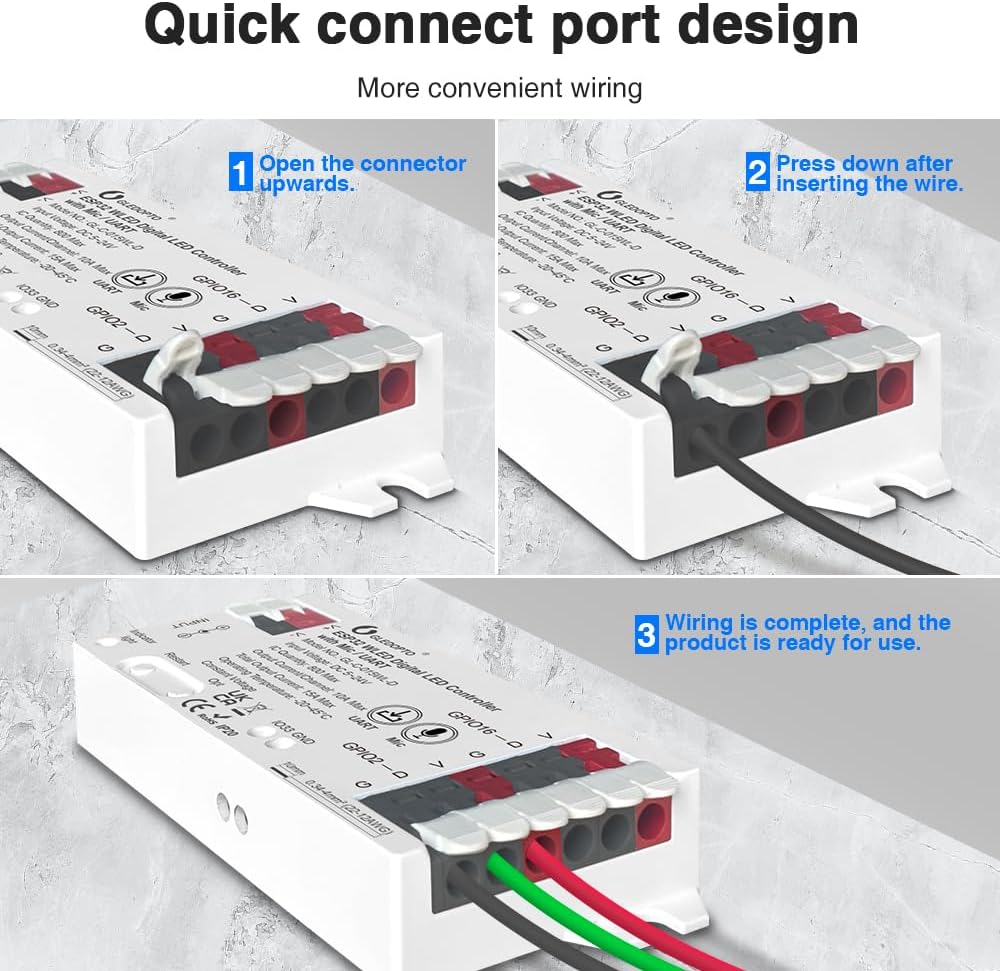

- Quick-release terminals for easier wiring

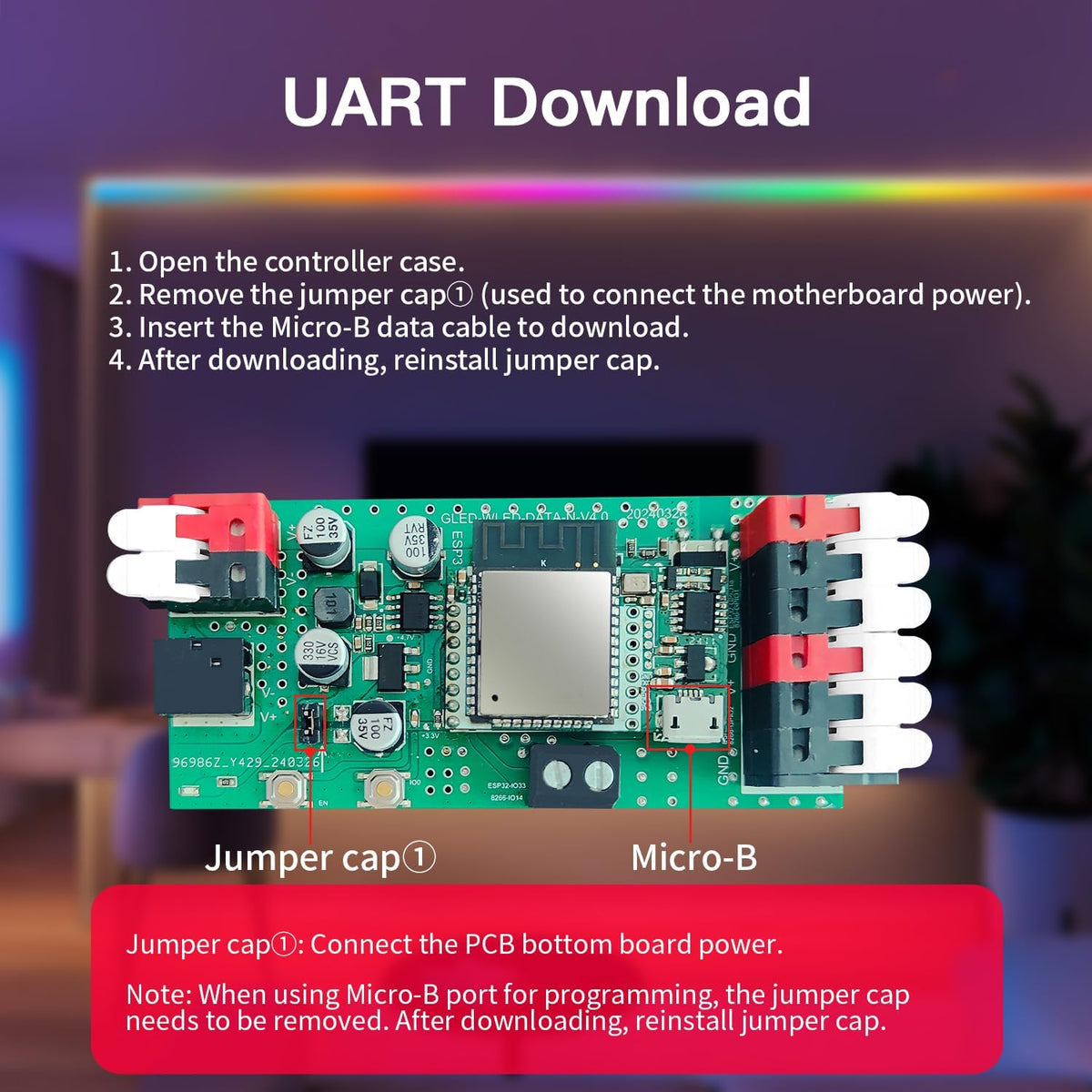

- Micro-USB/UART port for firmware flashing and serial access

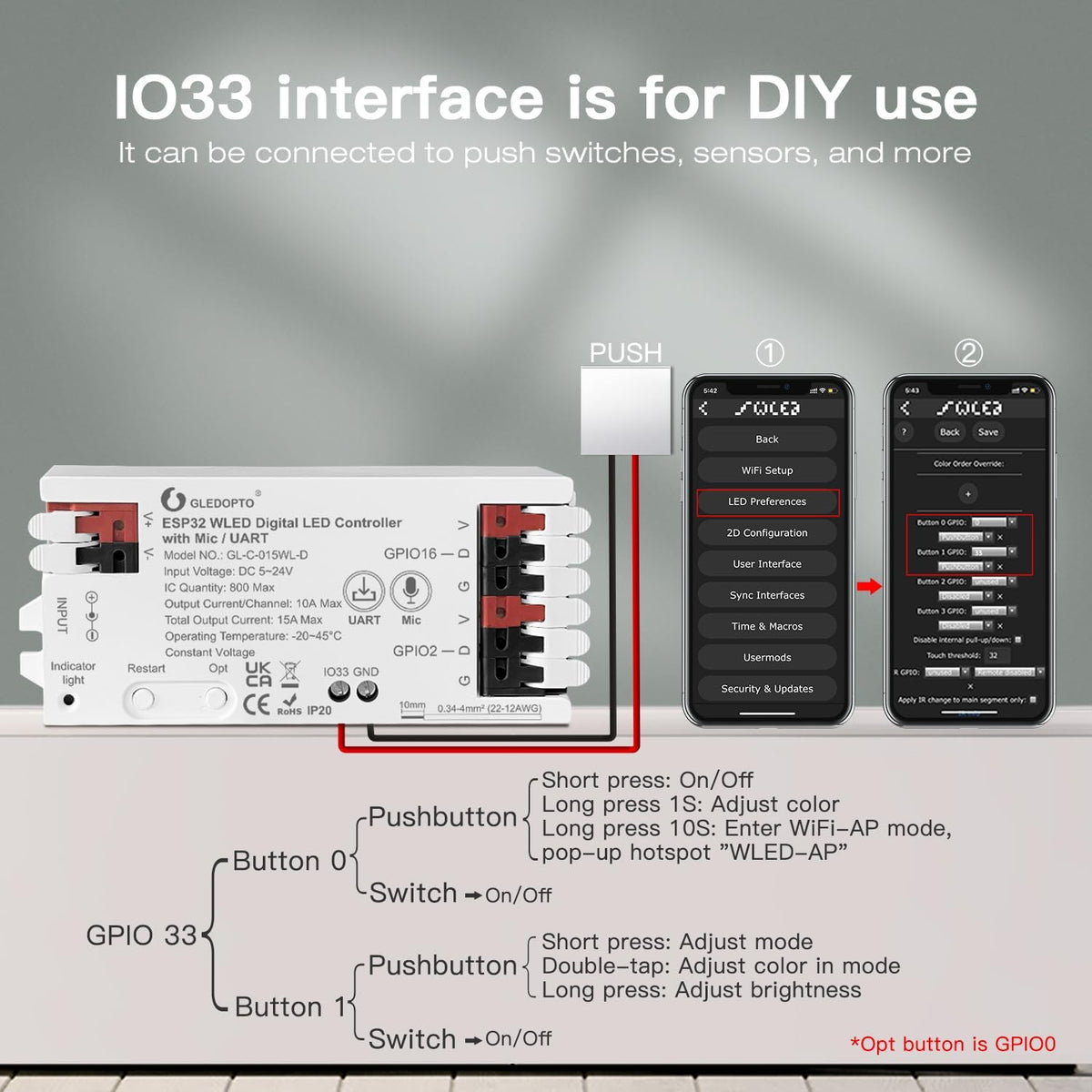

- IO33 available as an extended GPIO interface
- Supports OTA firmware updates through WLED
Supported Addressable LED Strips
The GL-C-015WL-D is intended for digital, addressable LED strips rather than conventional analogue LED strips. Compatibility includes commonly used addressable protocols such as WS2811, WS2812/WS2812B, WS2814, SK6812, TM1814, WS2813, WS2815 and selected SM16703 and other compatible digital LED ICs.

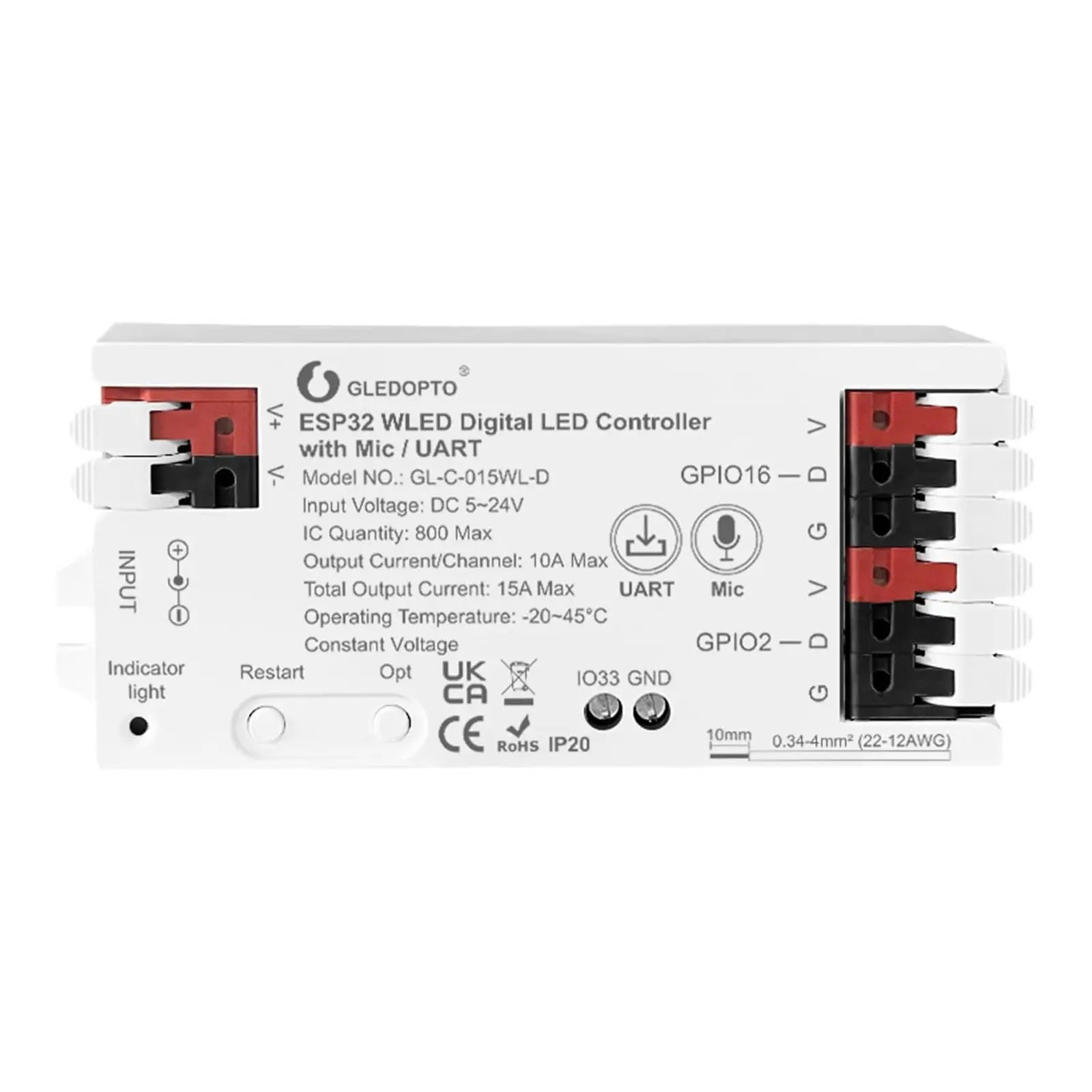

Technical Specifications
- Brand: GLEDOPTO
- Model: GL-C-015WL-D
- Controller Type: ESP32 WLED digital LED controller with microphone / UART
- Input Voltage: DC 5V–24V
- Total Output Current: 15A maximum
- Output Current per Channel: 10A maximum
- Output Channels: 2
- Wireless Communication: Wi-Fi
- Maximum Addressable IC Quantity: 800
- Operating Temperature: -20°C to 45°C
- Dimensions: 108 × 45 × 18 mm
- Material: Flame-retardant PC
- Protocol/Platform: WLED over Wi-Fi

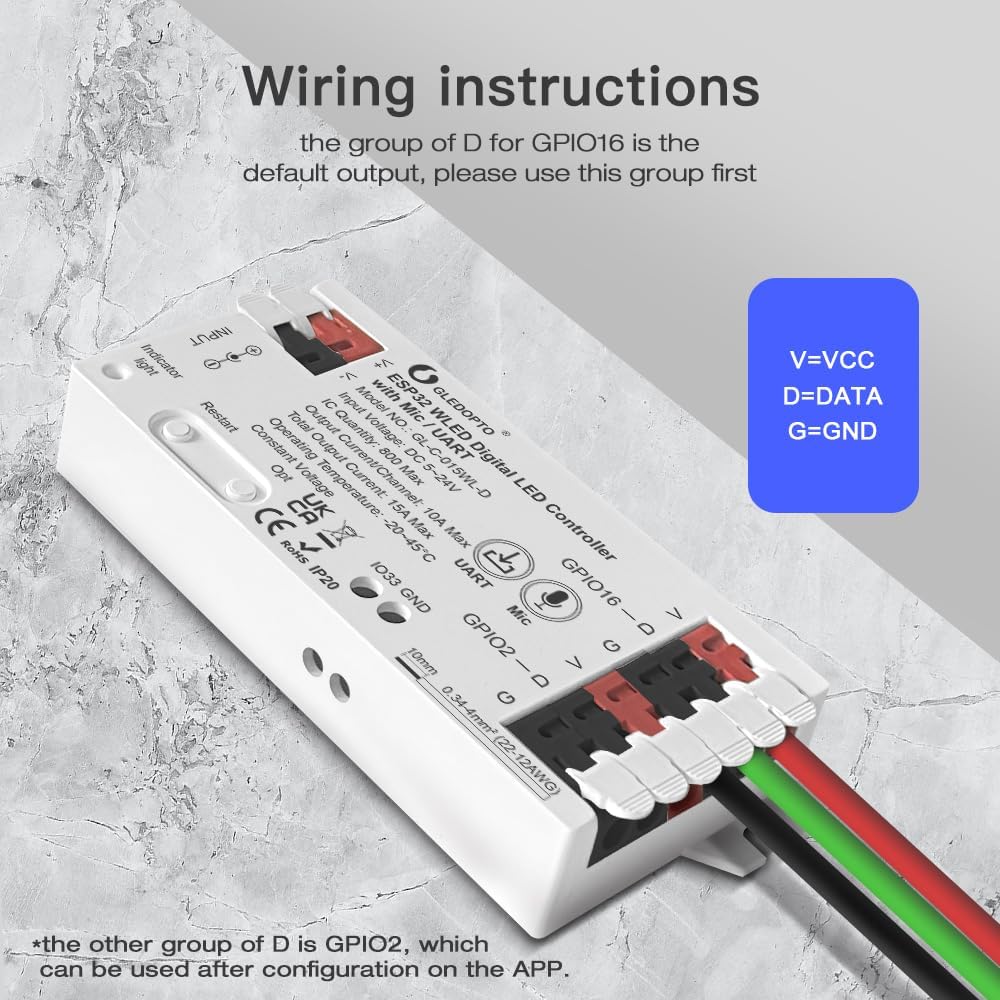

Installation and Connectivity
The controller uses quick-release terminals for straightforward connection of compatible digital LED strips. The two primary outputs can be configured through WLED, while the additional GPIO interface can be used for supported DIY/custom control applications. Always match the controller's DC input voltage to the LED strip and power supply requirements, and keep the total load within the specified current limits.
WLED Features

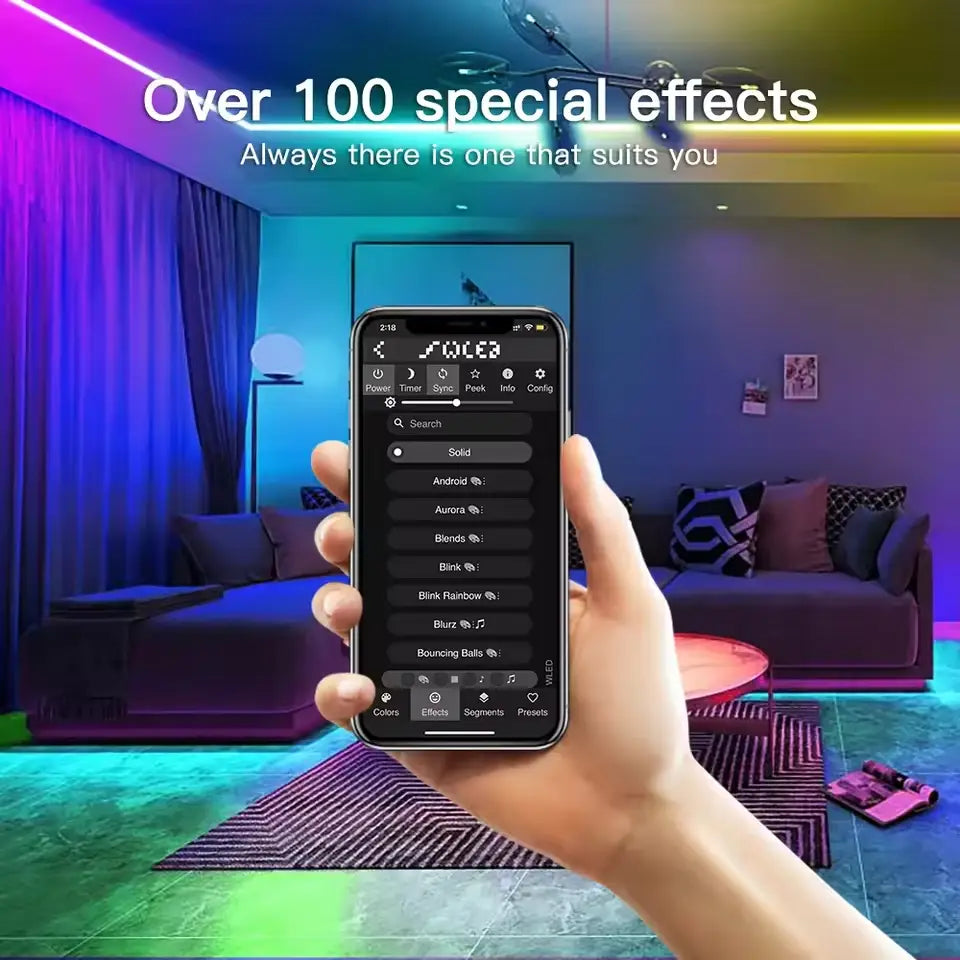

Once connected to a compatible network, the controller can be configured through WLED for colour selection, effects, presets, segments and other supported digital-lighting functions. OTA updates can be used for supported firmware updates, while the Micro-USB/UART interface provides a convenient option for firmware flashing or serial access.
What It Is Suitable For
- Addressable RGB and compatible digital LED strip projects
- Music and sound-reactive lighting installations
- DIY WLED lighting projects
- Home automation and smart-lighting setups using WLED
- Custom LED effects, presets and segmented lighting
- Projects requiring Wi-Fi-based control of addressable LEDs
Important Compatibility Note
This controller is for addressable/digital LED strips. It is not intended for standard non-addressable analogue RGB strips. The LED strip, power supply and controller must be compatible in voltage, wiring and current requirements.
Frequently Asked Questions
What is the model number?
The model number is GLEDOPTO GL-C-015WL-D.
What voltage does the GL-C-015WL-D support?
It accepts DC 5V to 24V input.
How much current can it handle?
The maximum total output current is 15A, with a maximum of 10A per channel.
Does it support sound-reactive lighting?
Yes. The GL-C-015WL-D includes a built-in digital microphone for supported WLED sound-reactive lighting features.
How many LED strip outputs does it have?
It provides two addressable LED output channels.
Does it work with WLED?
Yes. It is an ESP32-based WLED digital LED controller and uses Wi-Fi for WLED control.
Is it compatible with analogue RGB LED strips?
No. It is designed for digital/addressable LED strips and compatible addressable LED protocols.
How many addressable LED ICs can it support?
The specified maximum is up to 800 addressable LED ICs.
- Model: GL-C-015WL
- Software: WLED
- Channels: 2
- Chip: ESP32
- Input: 5V-24V
- Control: DIY Switch
- MaxLoad: 15 A
- Dimensions: 108 x 45 x 18 mm
- Supported LEDs: WS2812B WS2811 WS2813 WS2815 SK6812 TM1814 APA102 WS2801 LDP8806 GS8208
