Lolin - WeMos S3 Pro

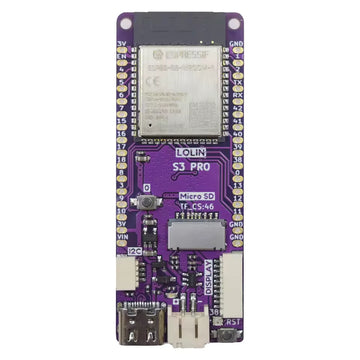

WeMos S3 Pro ESP32-S3

Name: WeMos S3 Pro ESP32-S3
Brand: Lolin
SKU: LL-S3-Pro
Price: 32.95 AUD
Availability: InStock

$32.95

GST included.

The most powerful Wemos board available. The first ever to feature dual core performance. This will handle even the most complex IoT projects.

Quantity

Ask a question

Size guide

WeMos S3 Pro ESP32-S3

$32.95

Product description

The Wemos S3 Pro ushers in the most powerful Wemos board yet. This board has been modernised by upgrading to the most powerful and versatile ESP32-S3 microcontroller, which provides significant performance and memory improvements, and additional enhancements. This is the most powerful Wemos board to date and the first to offer dual core performance! The WeMos S3 Pro is capable of handling complex IoT projects with ease.

Features of the WeMos S3 Pro:

Based on the ESP32-S3 Dual Core Wifi SoC, offering improved performance and functionality compared to all previous WeMos mini boards

Faster processor
16MB Flash, 8MB PSRAM
Improved ADC (16 channels)
More GPIO pins

25x GPIO pins supporting protocols such as ADC, DAC, I2C, SPI, UART, and USB OTG
Micro SD card slot, Display port, I2C port (this fits, but uses a different pinout to the common QWIIC connectors)
Type-C USB port for programming and power, eliminating the need for additional serial adapters or wiring
Compatible with a wide range of programming languages including MicroPython, Arduino, CircuitPython, and ESP-IDF

Default firmware is MicroPython

Compatible with Tasmota, ESPHome, WLed and other ESP based projects for easy integation into open home automation platforms.

Overall, the WeMos S3 Pro is a powerful and versatile development board that is perfect for anyone looking to build connected IoT devices. With its fast processor, large memory, and wide range of inputs and outputs, you'll have everything you need to bring your ideas to life. So why wait? Get your hands on the WeMos S3 Pro today and start building your next IoT project.

Specifications

Microcontroller: Dual Core ESP32-S3-WROOM-1
Operating Voltage: 3.3V
Digital I/O Pins: 25
Analog Input Pins: 16
Clock Speed: 240 MHz
Flash Memory: 16MB
PSRAM: 8MB
WiFi: 802.11 b/g/n
Interfaces: ADC, 2xI2C buses, SPI, UART, USB OTG
Connectors: I2C, Display, SD Card slot
USB: Type-C USB port for power and programming
Platform Compatibility: Arduino, Micropython, ESP-IDF, Tasmota, ESPHome
Compatible with D1 Mini shields
Power supply: USB or External 3.3V (800mA max)
Dimensions: 34.3x 25.4mm
Weight: 3g
