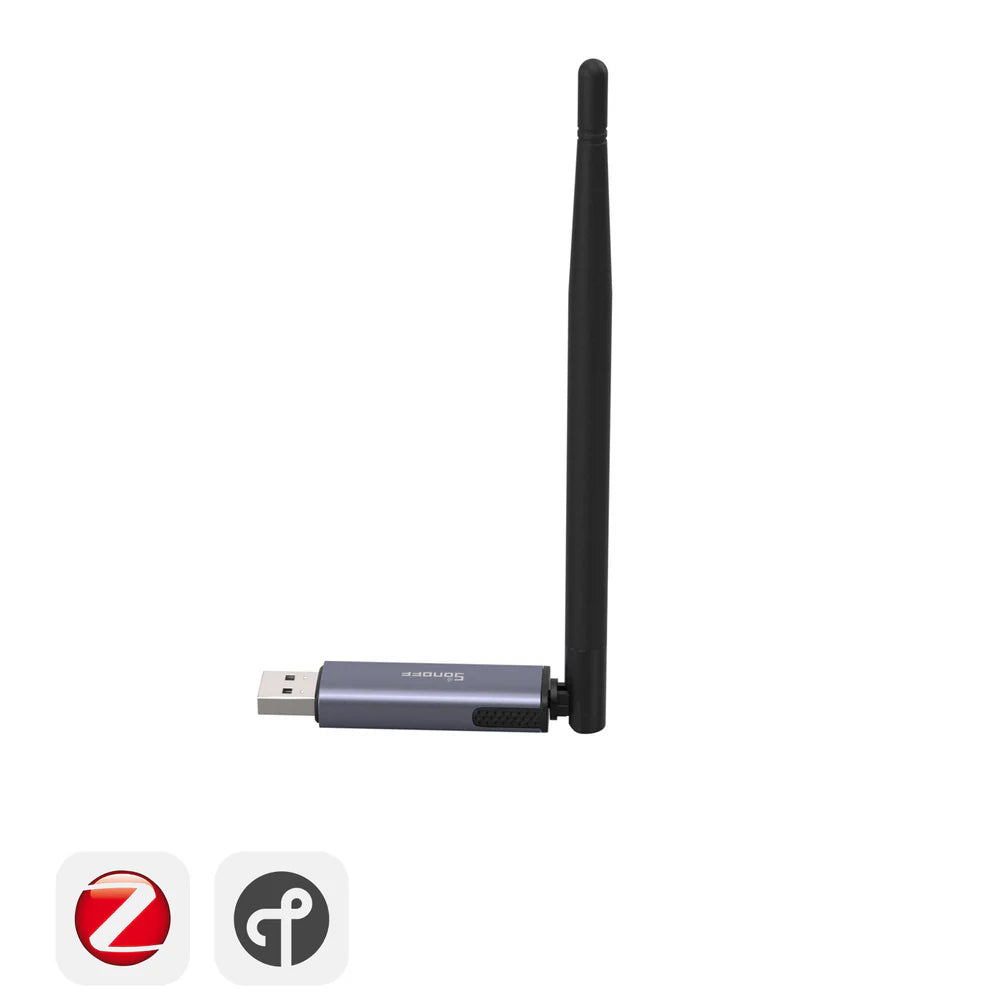

SONOFF Zigbee/Thread USB Dongle Plus MG24

Build a faster, more flexible and locally controlled smart home with the SONOFF Zigbee/Thread USB Dongle Plus MG24.

The SONOFF Dongle Plus MG24 is a high-performance Zigbee USB coordinator designed to connect and manage compatible Zigbee devices through popular open-source smart home platforms. It provides a practical alternative to using multiple brand-specific hubs, giving you one flexible coordinator for building and expanding a multi-brand Zigbee smart home network.

Powered by the advanced Silicon Labs EFR32MG24 chipset, the MG24 delivers enhanced processing performance with 1536KB Flash and 256KB RAM for faster automation processing and responsive device control. With Zigbee 3.0 support, an adjustable external antenna, 1m USB extension cable and flexible firmware options, it is built for users who want reliable local control, better network flexibility and a smart home that can grow with their needs.

Why Choose the SONOFF Dongle Plus MG24?

The SONOFF Zigbee USB Dongle Plus MG24 combines powerful hardware, flexible software support and improved wireless performance in one compact coordinator.

✔ High-Performance EFR32MG24 Chipset
The advanced EFR32MG24 provides 1536KB Flash and 256KB RAM, supporting faster data processing and responsive Zigbee device control.

✔ Zigbee 3.0 Local Control
Connect compatible Zigbee devices to supported smart home platforms for local device management without depending on a manufacturer's cloud hub.

✔ Enhanced Antenna Performance
The external antenna provides 3dBi gain by default and can be optimised up to 4.5dBi through positioning and channel selection, helping improve wireless coverage.

✔ Wide Smart Home Compatibility
Designed to work with open-source platforms including Home Assistant, Zigbee2MQTT and other compatible systems, giving you greater freedom when building your smart home.

✔ Flexible Firmware Options
Use the SONOFF Dongle Flasher to install supported firmware and configure the dongle for different roles, including Zigbee Coordinator, Zigbee Router and OpenThread RCP applications.

✔ Includes 1m USB Extension Cable
Position the dongle away from your host device to help reduce interference and find a more suitable location for the antenna.

Built for a More Flexible Smart Home

The SONOFF Dongle Plus MG24 is designed for users who want to bring compatible Zigbee devices from different manufacturers into one smart home environment.

Instead of purchasing separate hubs for different Zigbee brands, the MG24 can act as a central Zigbee coordinator for supported open-source platforms. This makes it easier to build a customised system around your preferred software, devices and automation routines.

Whether you are adding smart lights, sensors, switches, plugs or other compatible Zigbee products, the MG24 gives your setup a flexible foundation for future expansion.

Powerful EFR32MG24 Performance

At the centre of the MG24 is the Silicon Labs EFR32MG24 chipset with 1536KB Flash and 256KB RAM.

SONOFF states that the MG24 provides 100% more Flash and 300% more RAM than its EFR32MG21 comparison, giving the device greater resources for demanding firmware and smart home applications.

This additional processing capability is designed to support faster automation processing and quicker communication with Zigbee sub-devices, making it a strong choice for growing smart home networks.

Enhanced Antenna for Reliable Connectivity

The MG24 features an adjustable external antenna designed to improve wireless communication.

The antenna provides 3dBi gain by default and can reach up to 4.5dBi when optimised by angle and channel. SONOFF lists a signal range of up to 200 metres in free line of sight, while actual indoor range will depend on walls, interference, building materials and network conditions.

The adjustable antenna also allows you to direct the antenna towards connected devices for improved positioning and potentially more stable communication.

Universal Zigbee USB Coordinator

The SONOFF Zigbee USB Dongle Plus MG24 is designed to work as a universal coordinator for supported open-source smart home platforms.

Compatible environments include:

• Home Assistant

• Zigbee2MQTT

• openHAB

• Other compatible open-source Zigbee platforms

This gives you the freedom to create a multi-brand Zigbee ecosystem instead of being restricted to one manufacturer's hub.

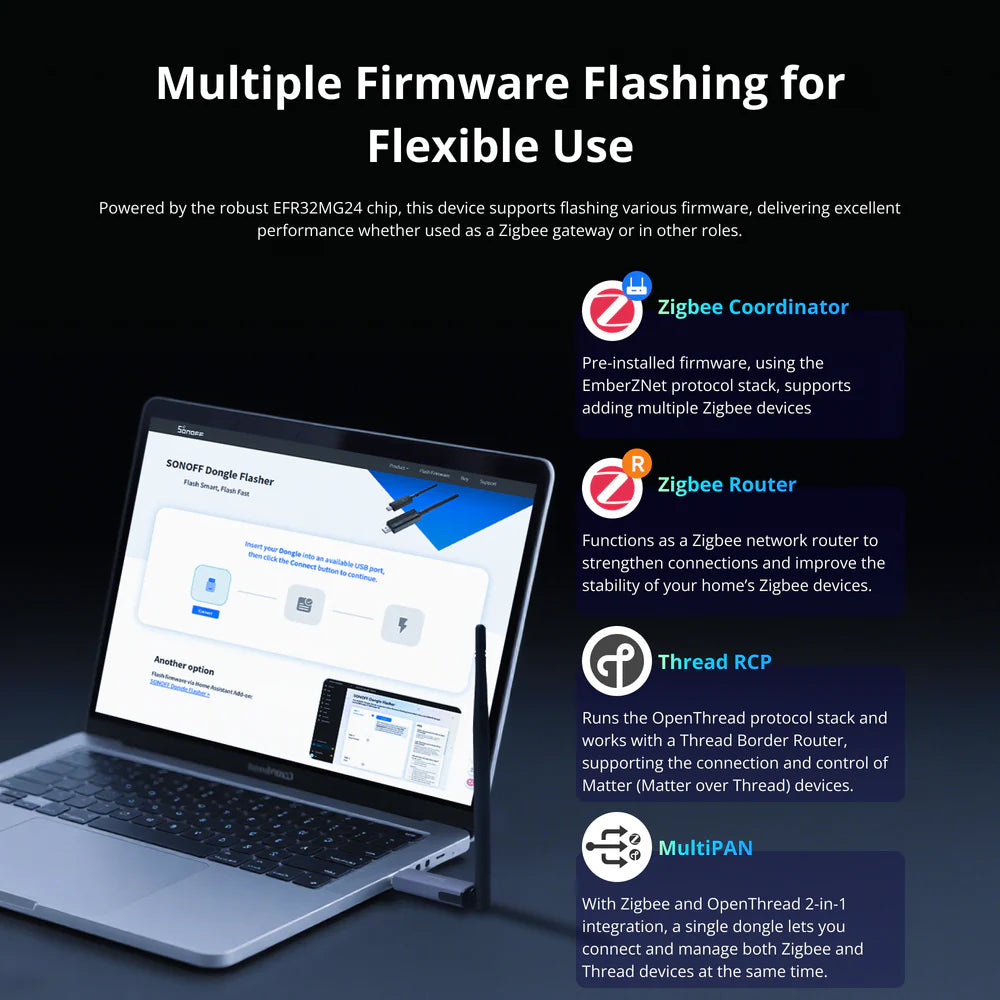

Flexible Firmware for Advanced Smart Home Setups

The MG24 is not limited to one fixed operating role.

Using the SONOFF Dongle Flasher, supported firmware can be installed to use the hardware for different applications. Depending on the selected firmware and configuration, the MG24 can function as a Zigbee Coordinator, Zigbee Router, OpenThread RCP or MultiPAN RCP.

For advanced smart home users, this flexibility means the same hardware can adapt as your automation requirements develop.

Zigbee and Thread Flexibility

The MG24 supports Zigbee 3.0 and can also be configured for Thread-related applications using compatible firmware.

SONOFF documents OpenThread functionality and configurations for connecting with a Thread Border Router and supporting Matter over Thread devices. It also documents a Zigbee and OpenThread two-in-one configuration for users who want to manage both technologies with compatible firmware and software.

This makes the MG24 an appealing option for users who want flexibility as smart home standards continue to develop.

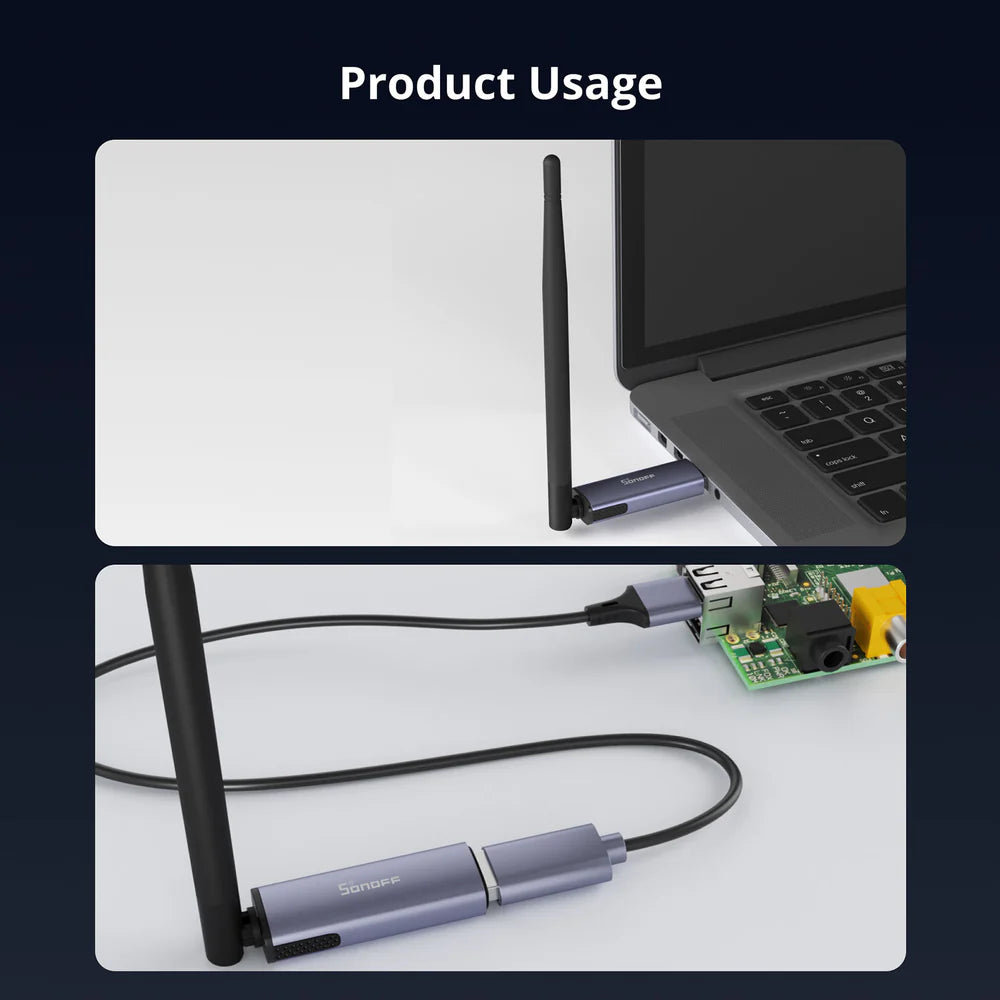

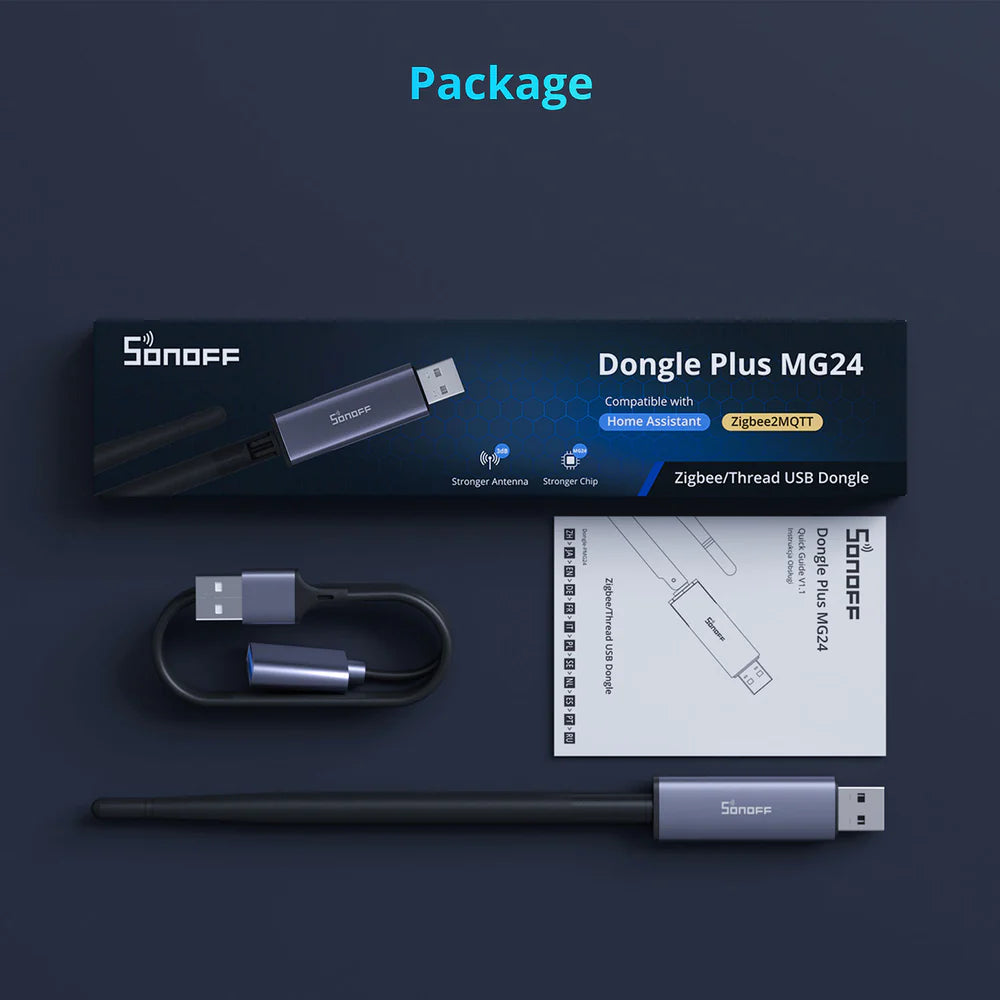

Included 1m USB Extension Cable

The included 1 metre USB extension cable gives you greater freedom when installing the coordinator.

Rather than keeping the dongle directly beside a computer, Raspberry Pi or home automation server, you can position it further away from potential sources of electromagnetic interference. This can also make it easier to place the external antenna in a more suitable position for your Zigbee network.

Durable Aluminium Alloy Housing

The MG24 features an aluminium alloy housing designed to provide a compact and durable finish.

SONOFF describes the housing as pressure-resistant and corrosion-resistant and states that it has undergone a 24-hour salt spray test.

The result is a clean, compact USB coordinator designed to fit naturally into modern smart home installations.

How to Use the SONOFF Dongle Plus MG24

Setting up the SONOFF Zigbee USB coordinator is straightforward when used with a compatible platform:

1. Connect the MG24 to your Home Assistant server, Raspberry Pi, computer or other supported host using USB.

2. Use the included USB extension cable if you need to move the dongle away from the host device.

3. Install or configure your preferred Zigbee platform, such as ZHA or Zigbee2MQTT.

4. Configure the MG24 as your Zigbee coordinator according to the platform's instructions.

5. Put compatible Zigbee devices into pairing mode and add them to your network.

6. Create automations and scenes through your chosen smart home platform.

For ZHA, SONOFF's current documentation explains that users can configure the dongle and then add Zigbee sub-devices through Home Assistant.

Who Is the SONOFF MG24 For?

The SONOFF Dongle Plus MG24 is ideal for:

• Home Assistant users

• Zigbee2MQTT users

• Smart home enthusiasts

• DIY automation builders

• Raspberry Pi smart home users

• Multi-brand Zigbee installations

• Users replacing multiple Zigbee hubs

• Advanced users experimenting with Zigbee and Thread

• Anyone building a flexible local smart home network

If you want greater control over your smart home infrastructure and prefer an open, customisable approach, the MG24 provides a strong foundation for expanding your automation setup.

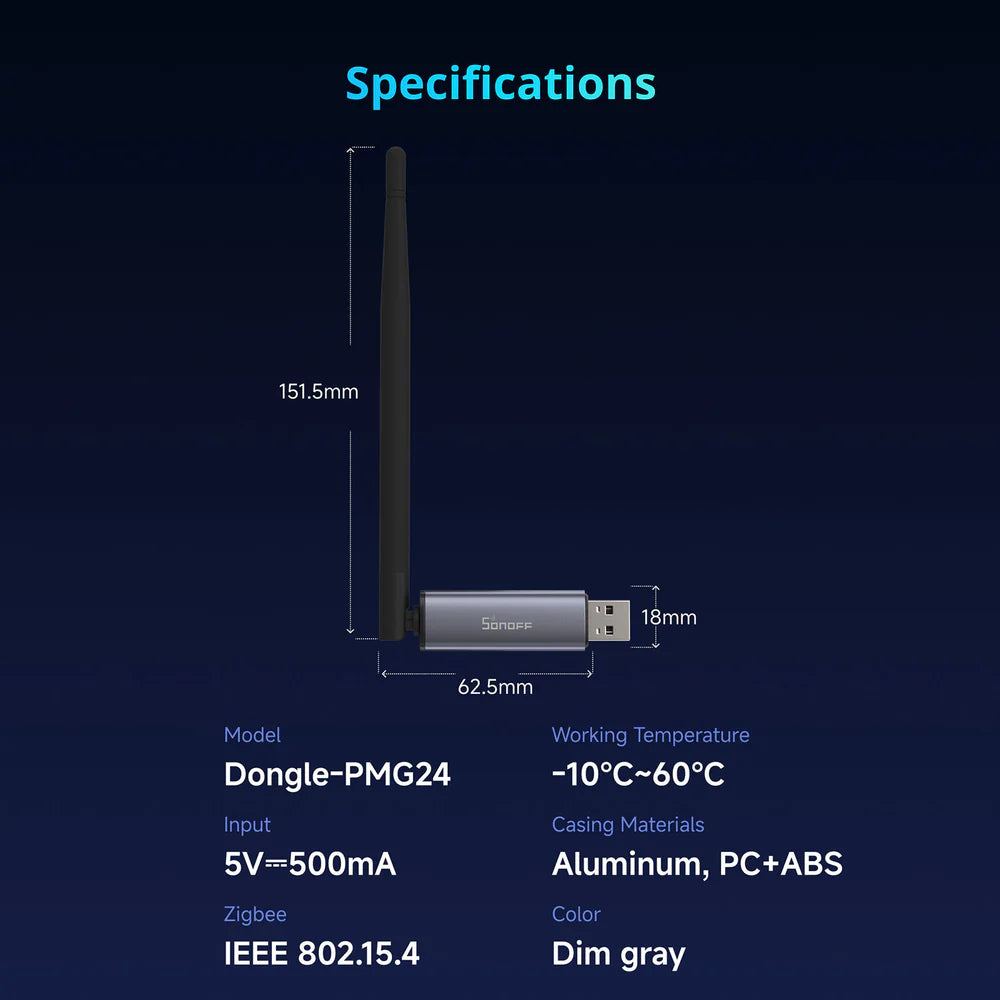

SONOFF Dongle Plus MG24 Specifications

Specifications are based on SONOFF's latest published MG24 hardware information.

Frequently Asked Questions

Can the SONOFF MG24 work with Home Assistant?

Yes. The SONOFF Dongle Plus MG24 is designed to work as a Zigbee gateway with Home Assistant and compatible integrations such as ZHA and Zigbee2MQTT.

Does the MG24 support Zigbee 3.0?

Yes. The MG24 supports Zigbee 3.0 and is designed to act as a Zigbee coordinator for compatible smart home devices.

Can I use Zigbee devices from different brands?

Yes, the MG24 is designed for multi-brand Zigbee smart home networks through supported open-source platforms. Device compatibility can vary depending on the specific device and software integration.

Does the SONOFF MG24 support Thread?

Yes, the MG24 can be configured for OpenThread RCP and other supported Thread-related applications using compatible firmware. SONOFF also documents configurations involving Matter over Thread.

Why is the USB extension cable included?

The 1m USB extension cable allows you to position the MG24 away from the host device, helping reduce potential interference and giving you more flexibility when positioning the antenna.

Build Your Smart Home Around More Freedom

The SONOFF Zigbee/Thread USB Dongle Plus MG24 gives you a powerful and flexible way to build, manage and expand a modern Zigbee smart home. With the EFR32MG24 chipset, 1536KB Flash, 256KB RAM, Zigbee 3.0 support, enhanced external antenna, flexible firmware options and wide open-source platform compatibility, it is built for users who want more control without being locked into one manufacturer's hub.

Whether you're starting a new Home Assistant Zigbee setup, upgrading an existing Zigbee network or exploring Thread and Matter capabilities, the MG24 provides a versatile foundation for your smart home.

Ready to take control of your Zigbee network? Add the SONOFF Zigbee/Thread USB Dongle Plus MG24 to your smart home setup today and build a more flexible, connected and locally managed automation system.
