Generic - WeMos D1 Uno

WeMos D1 Uno ESP-12F

Name: WeMos D1 Uno ESP-12F
Brand: Generic
SKU: GN-D1-Uno
Price: 12.9 AUD
Availability: InStock

$12.90

Quantity

Ask a question

Size guide

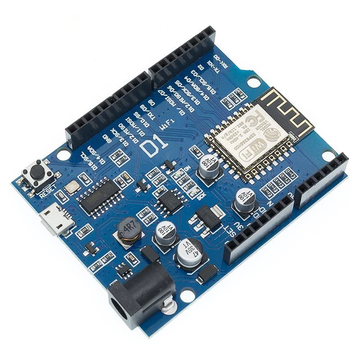

WeMos D1 Uno ESP-12F

$12.90

Product description

The Wemos D1 is a powerful and versatile microcontroller board that combines the functionality of an Arduino Uno R3 form factor with the added convenience of built-in Wi-Fi connectivity and a significantly more powerful microcontroller. This board is based on the ESP-12F Wi-Fi module, which includes an improved antenna design for improved Wi-Fi performance. It makes a cost-effective and versatile solution for a wide range of Internet of Things (IoT) projects and home automation.

One of the key features of the Wemos D1 is its compatibility with the Arduino Uno R3 form factor. This means that it can easily be integrated into existing projects and used with a wide range of shields and peripherals, making it a flexible solution for a variety of applications. This board has 14 digital I/O pins, 1 analog input pin, and supports various serial protocols such as I2C, UART, and SPI. It also has OTA (over-the-air) updates and deep-sleep mode for power-saving.

The Wemos D1 can be programmed using the popular Arduino IDE or Platform IO and is also supported by the popular open-source firmwares Tasmota and ESPHome, which provides built-in drivers and a code-free experience for many popular sensors, displays and actuators. This provides a convienent interface for controlling and automating smart home devices and allows for seamless integration into Home Assistant and other open home automation platforms.

Overall, the Wemos D1 is an excellent choice for anyone looking for a powerful, versatile, and cost-effective microcontroller board for their IoT projects and home automation. With its built-in Wi-Fi, USB-to-Serial converter, and support for a wide range of programming environments and firmware, it is easy to use and integrate into your projects, making it a great solution for both beginners and experienced makers.

Specifications

Microcontroller: ESP-12F (ESP8266EX)
Operating Voltage: 3.3V
Digital I/O Pins: 11 (of which 4 provide PWM output)
Analog Input Pins: 1 ADC
Serial Support: I2C, SPI, UART
Clock Speed: 80 MHz
Flash Memory: 4MB
SRAM: 80KB
On-board Wi-Fi: 802.11 b/g/n
USB-to-Serial converter: CH340G
Dimensions: 68.6mm x 53.4mm
Compatible with Arduino Uno R3 form factor and pinout
Additional features include built-in support for OTA (over-the-air) updates and deep-sleep mode for power-saving.
Platform Compatibility: Arduino, Micropython, ESP-IDF
Power supply: USB or External Power jack, 9-24V power input
