SONOFF SenseGuard Motion Gen2 Zigbee Motion Sensor
SONOFF SenseGuard Motion Gen2 Zigbee Motion Sensor
Make Your Smart Home Respond Automatically
Detect movement, control lighting intelligently, and create smarter home automations with the SONOFF SenseGuard Motion Gen2 (SNZB-03PR2).
✔ Zigbee 3.0 PIR Motion Sensor
✔ Independent Ambient Light / Lux Sensor
✔ Adjustable 5–60 Second Detection Interval
✔ 120° Detection Angle & Up to 6m Range
✔ Up to 3 Years Battery Life
✔ Flexible Magnetic, Adhesive & Standalone Installation
Designed for hallways, bedrooms, entrances, stairways, living spaces, and smart home security scenes.
Smarter Motion Detection, Built for Everyday Automation
Traditional motion sensors can trigger lights unnecessarily or provide limited control over when automation runs.
The SONOFF SenseGuard Motion Gen2 combines fast PIR motion detection with an independent ambient light sensor, allowing your smart home to react to both movement and actual light conditions.
Set the sensor to trigger lights only when motion is detected in darker conditions, create automated scenes, or use unexpected movement to activate compatible security devices and notifications.
With Zigbee 3.0 connectivity, adjustable detection intervals, wide-angle coverage, and up to 3 years of battery life, SenseGuard Motion Gen2 makes everyday automation more responsive while keeping installation simple.
Why Choose the SONOFF SenseGuard Motion Gen2?
Choosing a Zigbee motion sensor is about more than simply detecting movement. Accurate light sensing, reliable coverage, flexible automation, and low maintenance all matter.
SenseGuard Motion Gen2 combines:
Fast PIR motion detection for responsive smart scenes
Independent lux sensor for accurate ambient-light-based automation
Adjustable 5–60 second detection interval to reduce unnecessary activations
120° sensing angle with up to 6m detection range
Up to 3 years of battery life from a CR2477 battery
Flexible magnetic, adhesive, or standalone placement
Built around the Zigbee 3.0 standard, the SNZB-03PR2 is designed to integrate into compatible smart home environments and support more intelligent automation.

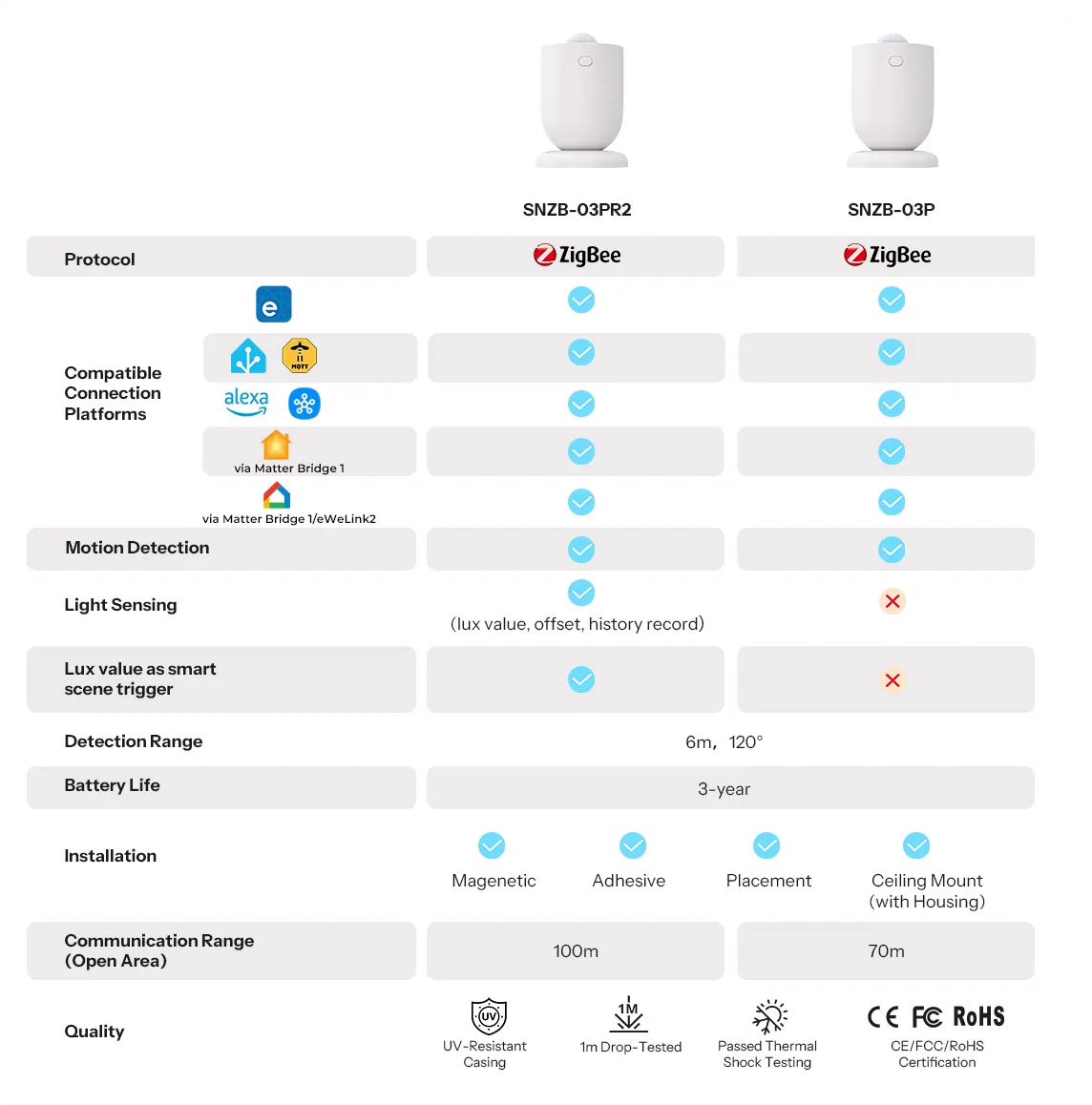

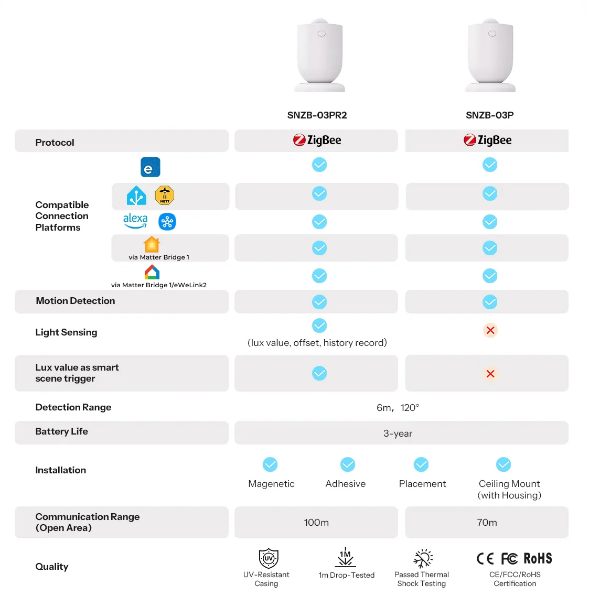

Why SenseGuard Motion Gen2 Compared to Standard Motion Sensors
| Feature | SONOFF SenseGuard Motion Gen2 | Standard Motion Sensor |
|---|---|---|
| Motion Detection | Fast PIR Detection | Motion Detection |
| Light Detection | Independent Lux Sensor | Often Limited or Unavailable |
| Detection Interval | Adjustable 5–60s | Often Fixed |
| Coverage | 120° / Up to 6m | Varies |
| Smart Lighting | Motion + Lux Conditions | Usually Motion-Based |
| Battery Life | Up to 3 Years | Varies |
| Connectivity | Zigbee 3.0 | Varies |
| Installation | Magnetic / Adhesive / Standalone | Varies |
The Difference You Notice Immediately
Control Lighting More Intelligently
Use motion and ambient light conditions together to create lighting scenes that respond to when a space is actually being used.
Reduce Unnecessary Activations
Adjust the detection interval from 5 to 60 seconds to help prevent repeated triggers and create smoother automations.
Cover More of Your Space
The 120° detection angle and up to 6m detection range provide broad indoor coverage for hallways, entrances, stairways, and rooms.
Spend Less Time Maintaining It
The low-power design and CR2477 battery provide up to 3 years of operation, reducing frequent battery changes.
Install It Where You Need It
Use magnetic, adhesive, or standalone placement and adjust the sensor direction to suit your space.
Premium Features
| Feature | Benefit |
|---|---|
| Zigbee 3.0 Connectivity | Reliable integration with compatible Zigbee smart home hubs |
| Fast PIR Motion Detection | Detects movement quickly for responsive automation |
| Independent Lux Sensor | Enables accurate ambient-light-based triggers |
| 5–60s Adjustable Detection Interval | Helps reduce repeated or unnecessary activations |
| 120° Detection Angle | Provides broad motion coverage |
| Up to 6m Detection Range | Suitable for hallways, entrances, rooms, and stairways |
| Up to 3-Year Battery Life | Reduces maintenance and battery replacement |
| Flexible Installation | Magnetic, adhesive, or standalone placement |
How to Use the SONOFF SenseGuard Motion Gen2
Using the SNZB-03PR2 is straightforward:
Install the sensor in a suitable indoor location using the preferred mounting method.
Connect it to a compatible SONOFF Zigbee hub and supported smart home platform.
Configure the motion detection interval from 5–60 seconds.
Calibrate and configure the lux sensor for light-based automation where required.
Create smart scenes for lighting, security alerts, cameras, or other compatible devices.
Let SenseGuard automatically detect movement and trigger your connected smart home actions.
Note: A compatible Zigbee gateway/hub is required for operation.
Who Is It For?
SenseGuard Motion Gen2 is ideal for:
Smart home enthusiasts
Homeowners automating lighting
Users building Zigbee smart home systems
People looking for a reliable Zigbee motion sensor
Homeowners wanting automatic hallway and staircase lighting
Users creating motion-based security scenes
Home Assistant and other compatible smart home users
Anyone wanting low-maintenance indoor motion detection
If you're tired of manually switching lights or want your smart home to react more intelligently to movement and light conditions, the SONOFF SenseGuard Motion Gen2 provides a practical upgrade.

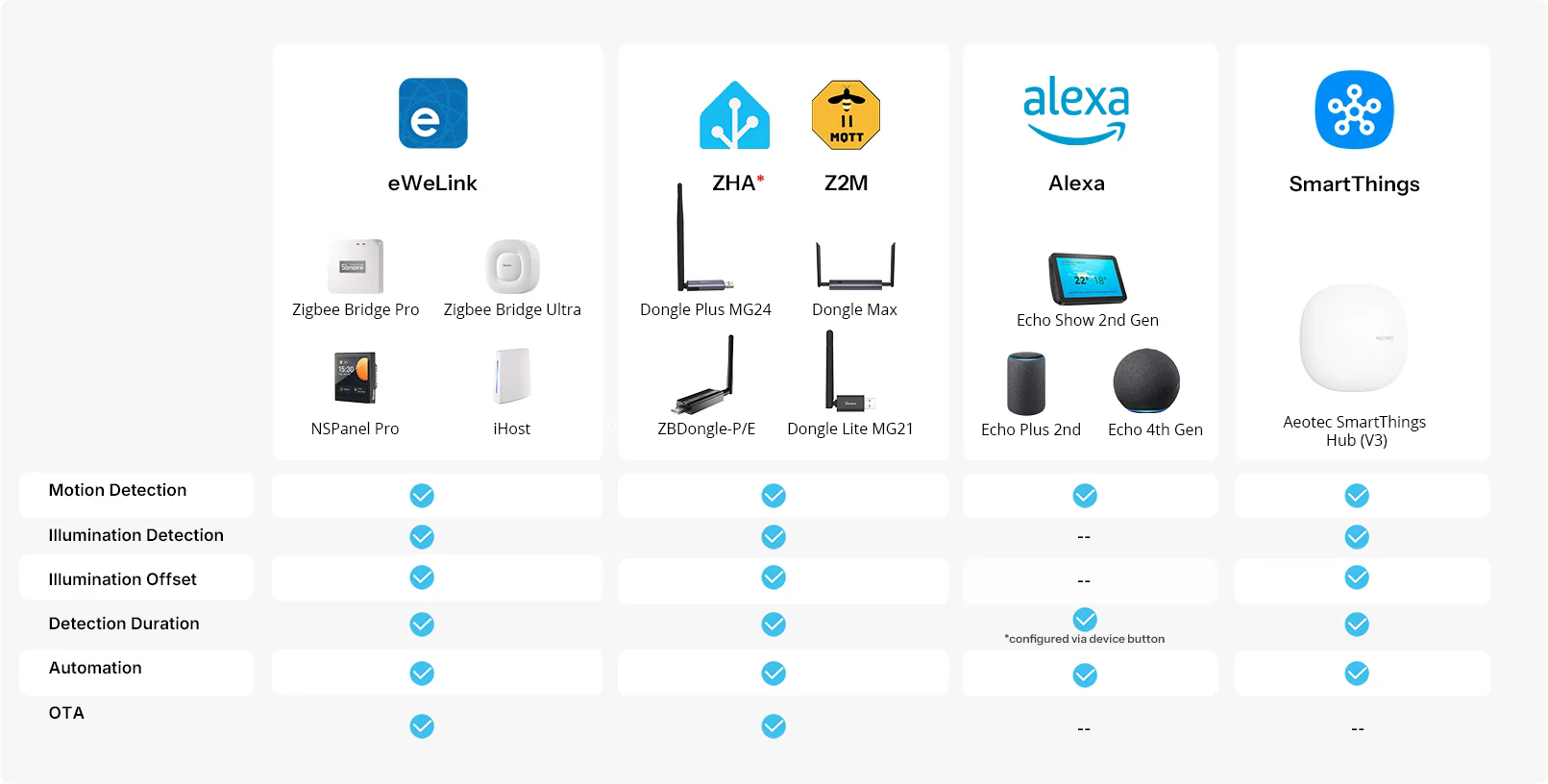

Compatibility & Integration
The SNZB-03PR2 uses the Zigbee 3.0 / IEEE 802.15.4 standard and requires a compatible Zigbee hub.
It can be integrated into supported smart home ecosystems through compatible SONOFF gateways and Matter Bridge solutions. SONOFF also documents integration with open-source platforms and third-party Zigbee environments, with compatibility depending on the hub, coordinator, and software configuration.
Specifications
| Specification | Details |
|---|---|
| Product | SONOFF SenseGuard Motion Gen2 |
| Model | SNZB-03PR2 |
| Product Series | SenseGuard Series |
| Sensor Type | PIR Motion + Ambient Light Sensor |
| Wireless Protocol | Zigbee 3.0 / IEEE 802.15.4 |
| Detection Angle | 120° |
| Detection Distance | Up to 6m |
| Detection Interval | Adjustable 5–60 seconds |
| Light Measurement | Lux Sensor with Calibration |
| Light History | Up to 6 Months |
| Battery | CR2477 |
| Input | 3V DC |
| Battery Life | Up to 3 Years |
| Wireless Range | Up to 100m in open area |
| Dimensions | 44 × 44 × 65mm |
| Weight | 42.7g with battery |
| Installation | Magnetic / Adhesive / Standalone |
| Application | Indoor |
| Operating Temperature | -10°C to 60°C |
| Operating Humidity | 5–95% RH, non-condensing |
| Certifications | CE / FCC / RoHS |
Frequently Asked Questions
Does the SONOFF SenseGuard Motion Gen2 require a Zigbee hub?
Yes. A compatible Zigbee gateway or hub is required to connect and control the SNZB-03PR2.
What is the motion detection range?
The sensor provides up to 6m detection distance with a 120° detection angle, making it suitable for indoor areas such as hallways, entrances, stairways, and rooms.
Can I adjust the motion detection interval?
Yes. The detection interval can be configured from 5 to 60 seconds, helping reduce repeated activations and create smoother smart home scenes.
Does it have a light sensor?
Yes. SenseGuard Motion Gen2 features an independent ambient light sensor that measures lux levels and supports calibration for more precise lighting automation. It can also record illumination history for up to 6 months.
How long does the battery last?
The CR2477-powered sensor provides up to 3 years of battery life, depending on usage and operating conditions.
Can it be used for smart security?
Yes. Motion detection can be used as a trigger for compatible security scenes, including gateway alarms, app notifications, and camera recording when configured with supported devices and platforms.
Where can I install it?
The sensor is designed for indoor use and supports magnetic, adhesive, or standalone placement. Its adjustable positioning helps you aim detection toward the area you want to monitor.
Make Your Home More Responsive
Stop relying on manual switches and basic motion detection. The SONOFF SenseGuard Motion Gen2 Zigbee Motion Sensor combines fast PIR detection, independent lux sensing, adjustable detection intervals, wide-angle coverage, and long battery life to create smarter, more practical home automation.
Whether you're automating lights, improving everyday convenience, or building motion-triggered security scenes, SenseGuard Motion Gen2 gives your Zigbee smart home the information it needs to respond at the right time.
Upgrade your smart home with intelligent motion and light detection today.
- Model: SNZB-03PR2 (SenseGuard Motion Gen2)
- Battery: 3V(CR2477);
- Battery Life: Up to 3 years
- Detection Angle: 120°
- Detection Distance: Up to 6 m (20 ft)
- Wireless protocol: ZB (IEEE 802.15.4);
- Material: PC;
- Dimension: 44X44X65mm
