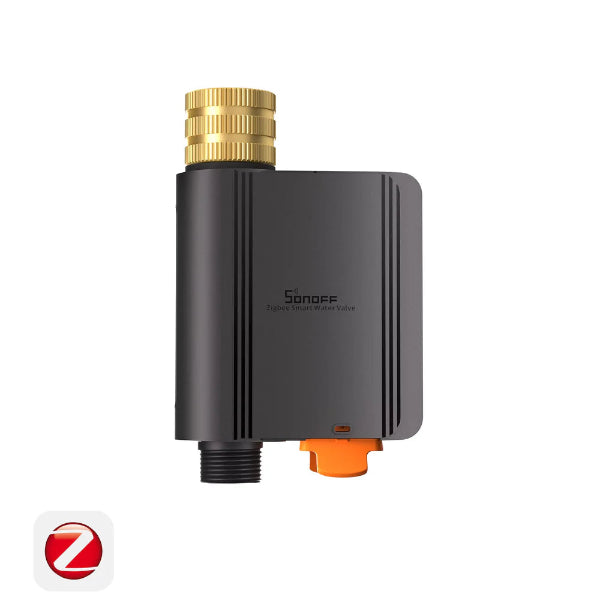

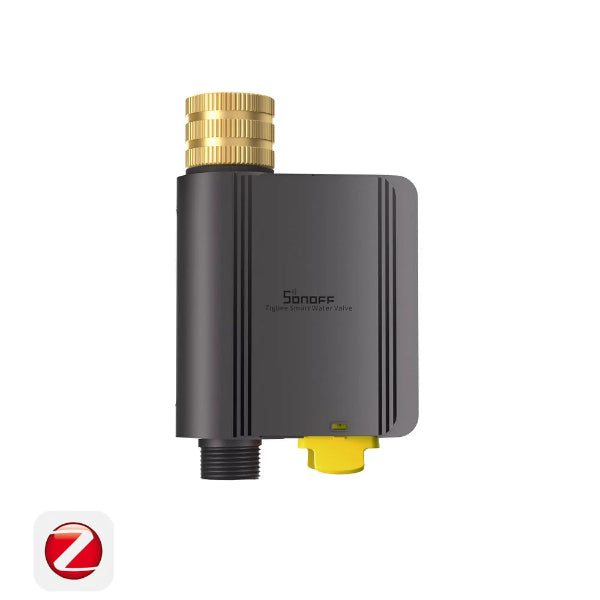

Sonoff Hydro ONE Zigbee Smart Water Valve

Take control of outdoor watering with the SONOFF Hydro ONE Zigbee Smart Water Valve (SWV-ZFE). Designed for garden irrigation, this smart water valve combines Zigbee 3.0 and Bluetooth Low Energy (BLE) proximity control with a durable brass water inlet, flexible watering schedules, weather-aware automation and an integrated flow meter.

Smart Irrigation with Precise Water Control

Hydro ONE lets you automate irrigation by watering duration or target volume. Create up to 6 watering schedules and use flexible scheduling options such as specific days, odd/even days and interval-based watering. Weather-based rules can skip watering when conditions make irrigation unnecessary, while seasonal adjustment helps adapt watering throughout the year.

Integrated Flow Meter for Water Usage Tracking

Unlike a basic smart water valve, the Hydro ONE SWV-ZFE includes an integrated flow meter for monitoring water consumption. The flow meter detects approximately 2–45 L/min, allowing volume-based watering and helping you monitor how much water is being delivered to your garden. Watering records can be viewed by day, month or half-year, helping you identify unusual irrigation activity and manage water usage more effectively.

Zigbee 3.0 and Local Proximity Control

Connect Hydro ONE to a compatible Zigbee gateway or coordinator for remote control, automation and smart-home integration. When a gateway is unavailable or the Zigbee connection is unsuitable, the valve also supports BLE proximity communication for nearby control and essential irrigation settings.

Durable Brass Water Inlet for Outdoor Irrigation

The upgraded brass water inlet is designed for reliable outdoor use under continuous water pressure and exposure to sunlight. The SWV-ZFE uses a 3/4-inch BSP connection (G3/4-14), making it the regional version intended for the UK, Europe and other markets using the BSP standard.

Smart Safety and Abnormal Condition Alerts

Hydro ONE provides monitoring and protection features designed to reduce irrigation problems. The system can provide alerts for conditions including low battery, water shortage, leakage and frost risk. A built-in child lock helps prevent accidental operation from the local controls.

Weather-Aware and Seasonal Irrigation

Make watering more efficient by using weather-based irrigation rules and seasonal adjustment. Hydro ONE can help avoid unnecessary watering during unsuitable weather conditions and adjust irrigation settings as seasonal requirements change.

Outdoor-Ready Design

The valve has an IP55 waterproofing rating and a PC+ABS casing. It operates with 4 × 1.5V AA batteries (6V input), eliminating the need for a dedicated outdoor power cable.

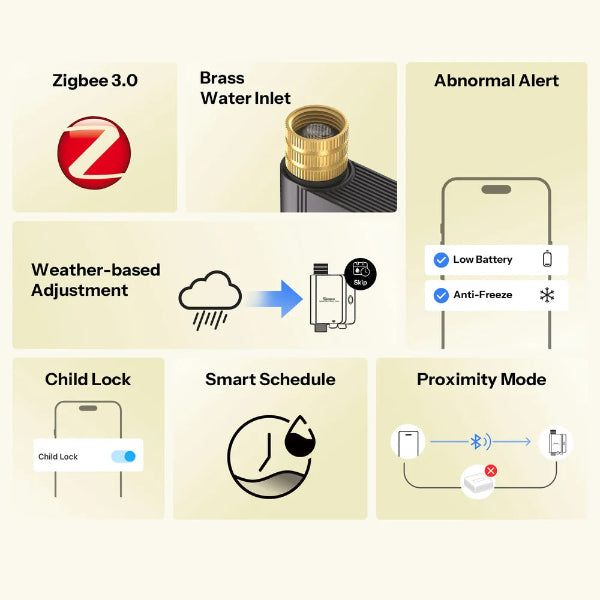

Key Features

• Integrated flow meter: Monitor water consumption and use volume-based watering.
• Zigbee 3.0: Connect to compatible Zigbee gateways and smart-home systems.
• BLE proximity mode: Access essential control and settings nearby.
• Up to 6 schedules: Create flexible irrigation plans for different watering needs.
• Timed and volume-based watering: Choose duration-based or target-volume irrigation.
• Weather-aware automation: Skip watering under selected unsuitable weather conditions.
• Seasonal adjustment: Adapt irrigation settings throughout the year.
• Water usage history: Review irrigation data by day, month or half-year.
• Brass water inlet: Durable construction for outdoor irrigation applications.
• Safety alerts: Monitor low battery, water shortage, leakage and frost conditions.
• Child lock: Helps prevent accidental local operation.
• IP55 rating: Designed for outdoor installation environments.

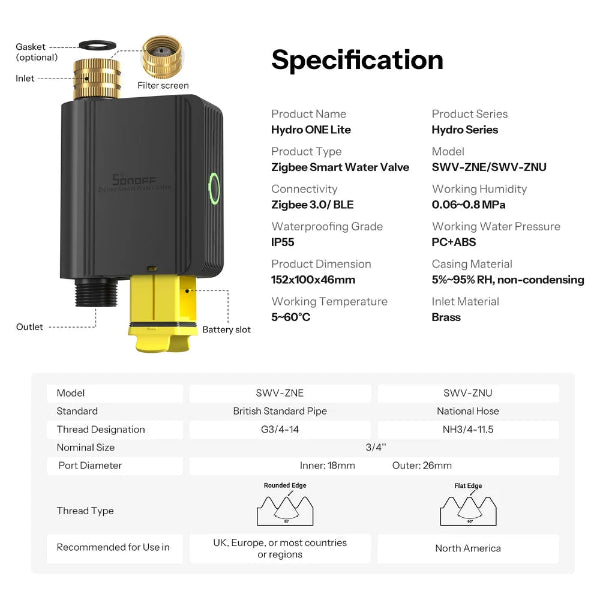

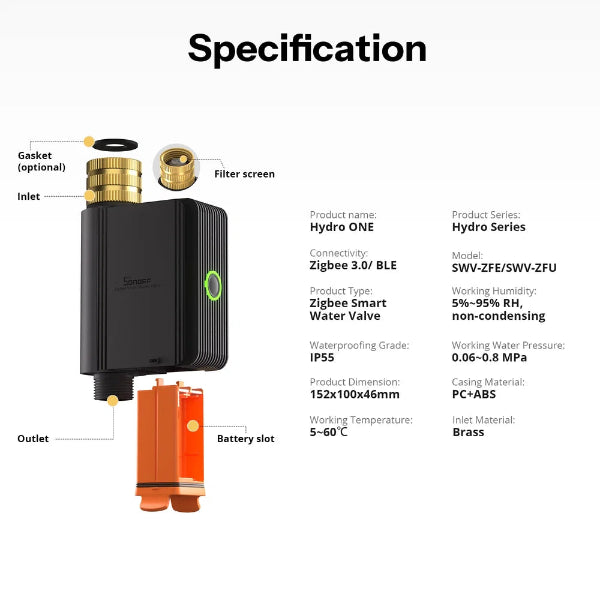

Technical Specifications

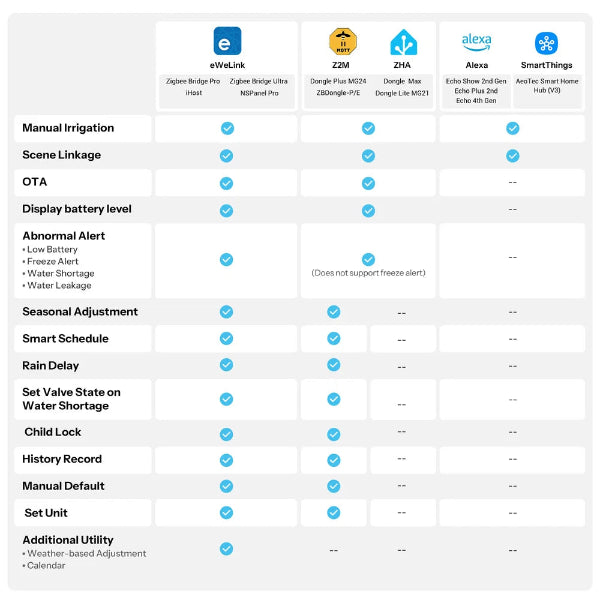

Smart Home Compatibility

Hydro ONE is built on the Zigbee 3.0 standard and can integrate with compatible Zigbee platforms. SONOFF also supports integration with Apple Home through a Matter Bridge. Compatible third-party ecosystem functions depend on the required gateway, bridge or integration method. For Home Assistant ZHA, SONOFF currently specifies that a script is required for Hydro ONE.

Important Installation and Compatibility Notes

• SWV-ZFE is the BSP version: It uses G3/4-14 BSP threading and is intended for regions using the BSP standard.
• Do not reverse the water flow direction: Install the inlet and outlet according to the installation instructions.
• Not recommended for drinking water: SONOFF states that the SWV is mainly designed for garden irrigation with tap water.
• Flow measurement: For accurate flow measurement, SONOFF recommends vertical installation because horizontal installation can increase measurement error.
• Gateway requirements: Remote Zigbee features require a compatible Zigbee gateway or coordinator; proximity mode provides nearby control without relying on the gateway.

Why Choose SONOFF Hydro ONE?

If you need more than simple on/off irrigation control, Hydro ONE adds measurable water usage, volume-based watering, flexible automation and smart safety monitoring to a durable outdoor valve. It is a practical choice for automated garden irrigation, outdoor watering systems and smart-home water management where precise control and consumption tracking are important.
