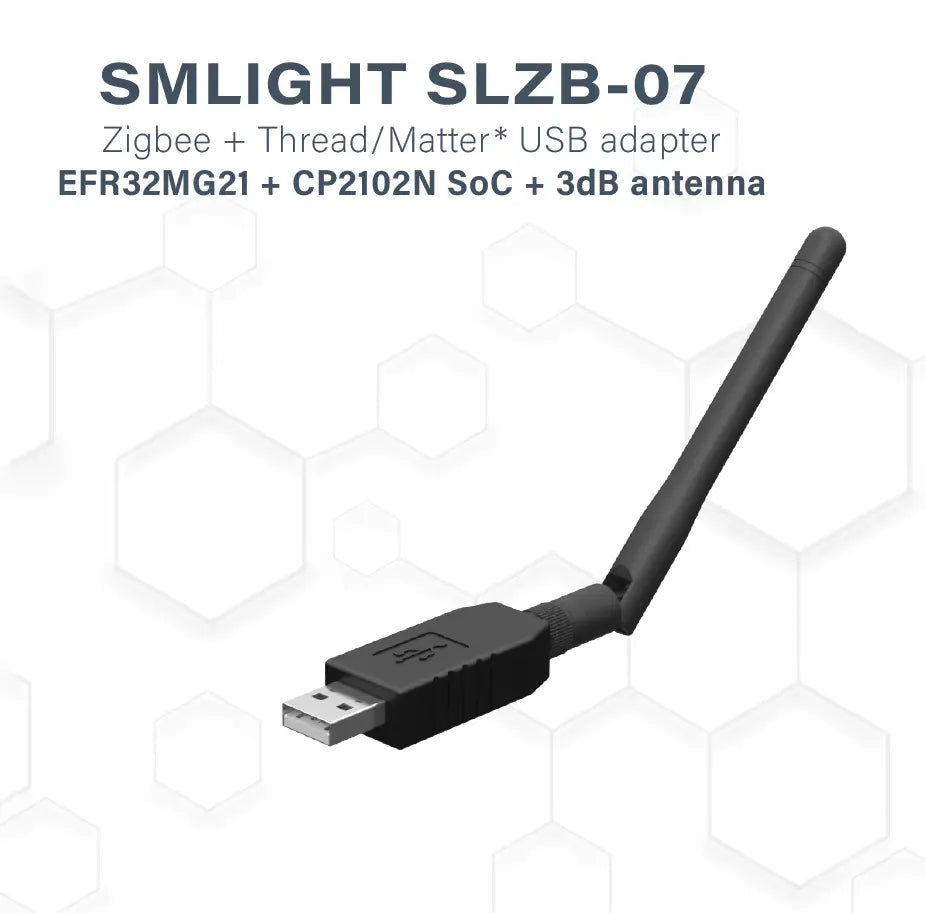

SMLIGHT SLZB-07 USB Zigbee Adapter
The SMLIGHT SLZB-07 is a compact USB Zigbee coordinator built around the Silicon Labs EFR32MG21 radio SoC. It provides a straightforward way to connect a Zigbee network to a compatible computer, Raspberry Pi or mini PC running a home automation platform.
The SLZB-07 is pre-flashed and supports popular Zigbee platforms including Home Assistant ZHA and Zigbee2MQTT. It can also be flashed with compatible Thread firmware when Thread operation is required.
Key Features
- Silicon Labs EFR32MG21 Zigbee/Thread radio SoC
- Zigbee 3.0 support
- Thread support with compatible firmware
- +20 dB onboard radio amplifier
- +3 dB external rotatable antenna
- Compact 18 × 54 × 10 mm form factor
- USB-A connection for direct use with a host computer or compatible system
- CP2102N USB-to-UART bridge
- Pre-flashed for plug-and-play Zigbee use
- Compatible with Home Assistant ZHA and Zigbee2MQTT
- Supports firmware updates using the SMLIGHT web flasher
- Can be configured for coordinator, router or Thread firmware
- 4-layer RF-isolated PCB
Home Assistant and Zigbee2MQTT Compatibility
The SLZB-07 is designed for USB-based smart-home installations. It works with Home Assistant ZHA and Zigbee2MQTT when the appropriate Zigbee coordinator firmware is installed. This makes it suitable for managing compatible Zigbee lights, sensors, switches and other smart-home devices through a supported host system.
EFR32MG21 Radio SoC
The SLZB-07 uses the Silicon Labs EFR32MG21 as its radio SoC. The device combines the radio with an onboard +20 dB amplifier and an external +3 dB rotatable antenna to provide a practical USB Zigbee coordinator for home automation installations.
Compact USB Design
Measuring approximately 18 × 54 × 10 mm, the SLZB-07 is designed to occupy very little space around the USB port. Its external antenna can be rotated in three axes to help position the adapter appropriately when installed near a computer, Raspberry Pi or mini PC.
Firmware and Flashing
The SLZB-07 is supplied pre-flashed for use as a Zigbee coordinator. SMLIGHT also provides a web-based flasher for supported firmware updates and for changing between supported coordinator, router and Thread firmware configurations.
What's Included
- 1 × SMLIGHT SLZB-07 USB Zigbee adapter
- 1 × +3 dB rotatable external antenna
- QR-code manual card
Technical Specifications
- Model: SLZB-07
- Radio SoC: Silicon Labs EFR32MG21
- USB-to-UART: Silicon Labs CP2102N
- Radio amplifier: +20 dB
- Antenna: External +3 dB, rotatable 3-axis
- PCB: 4-layer, RF-isolated
- Dimensions: 18 × 54 × 10 mm
- Weight: 14 g
- Connection: USB-A
- Operating temperature: +5 to +35 °C
- Protocols: Zigbee 3.0; Thread with compatible firmware
Who Is the SLZB-07 For?
The SLZB-07 is suited to users building USB-connected Zigbee networks with Home Assistant, Zigbee2MQTT or other compatible smart-home software. Its compact size makes it particularly useful for Raspberry Pi, mini PC and home-server installations where USB space is limited.
Support and Documentation
For setup instructions, firmware information and device documentation, refer to the official SMLIGHT SLZB-07 manual.
- SoC: Silabs EFRMG21
- Serial chip: CP2102N supporting baudrates up to 921k
- Zigbee Support: ZHA, Zigbee2MQTT
- Matter Support: Experimental Thread firmware available
