Smart RGBCCT Matter LED Controller
Smart RGBCCT Matter LED Controller
Smart RGBCCT Matter LED Controller

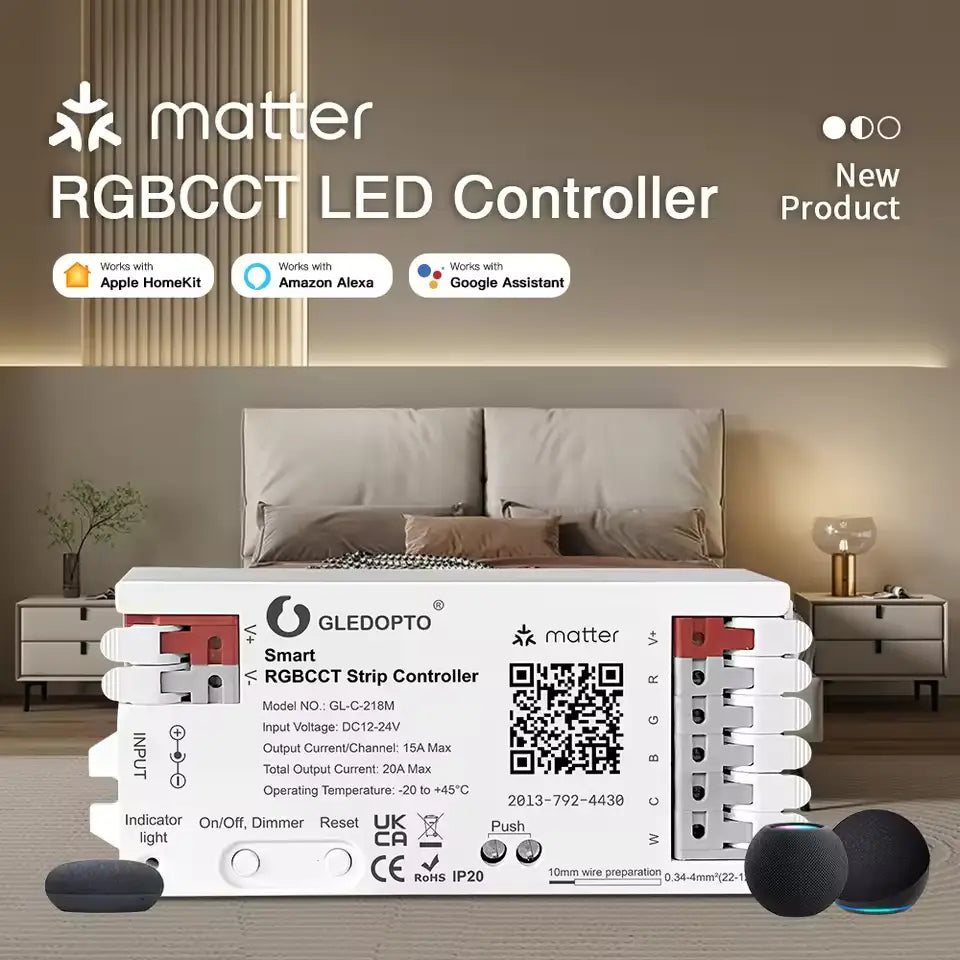

Bring analog RGBCCT LED strip lighting into your Matter-enabled smart home with the GLEDOPTO GL-C-218M Smart RGBCCT Matter LED Controller. Designed for 12–24V DC constant-voltage LED strips, it provides Matter connectivity for app and smart-home control while also allowing direct operation from the controller.
Smart Matter Lighting Control
The GL-C-218M uses the Matter protocol and can integrate with compatible smart-home platforms such as Apple Home, Amazon Alexa and Google Home. A compatible Matter controller, hub or smart speaker is required for smart-home integration, and the relevant app and device must support Matter.
RGBCCT LED Strip Support
The controller is designed for analog RGBCCT LED strips with separate red, green, blue, warm-white and cool-white channels. It uses PWM control to provide adjustable brightness, color and white-light control. It is intended for constant-voltage 12V or 24V DC LED strips and is not designed for digital addressable LED strips.
High-Current Output

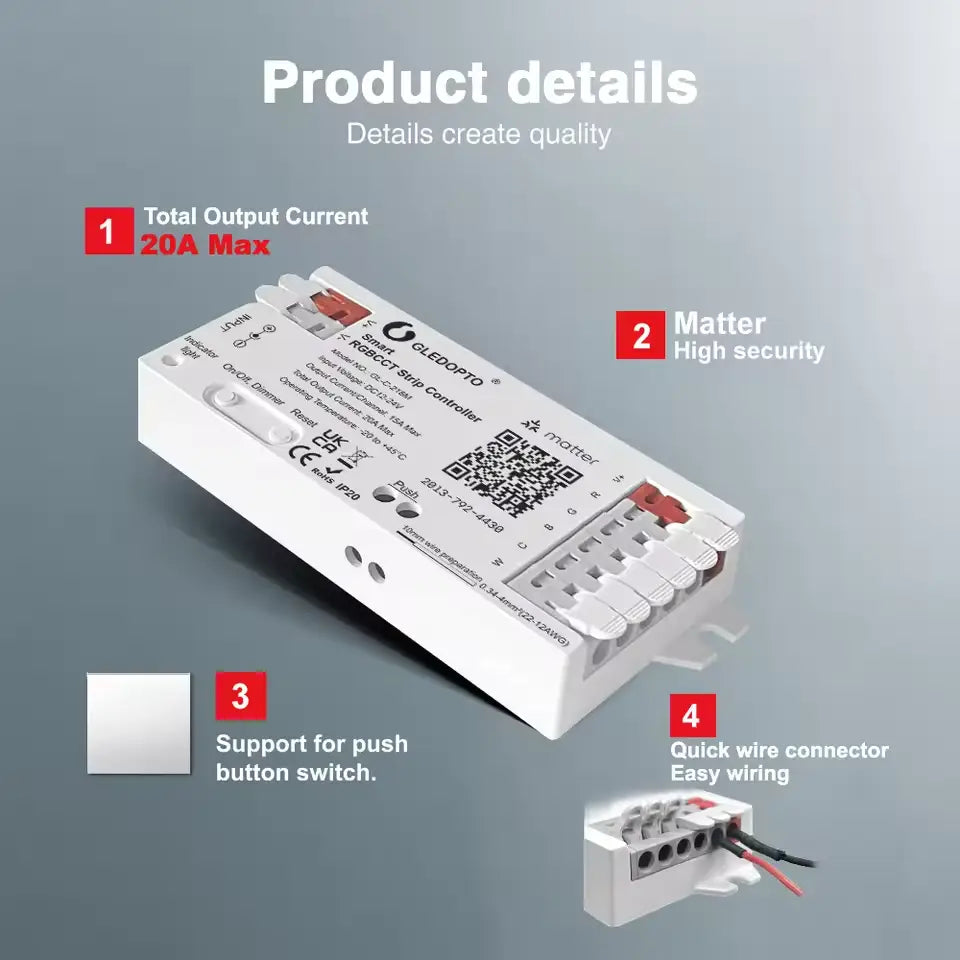

The GL-C-218M supports up to 15A maximum output per channel and up to 20A total output current across the controller. The connected LED strip, power supply and wiring must be appropriately sized for the actual load.
Easy Wiring and Local Control
Quick-connect terminals provide convenient wiring for the power supply and LED strip. An external push-button switch can also be connected for local control. The built-in controls can be used for power, brightness, color cycling and reset/pairing functions.
Technical Specifications

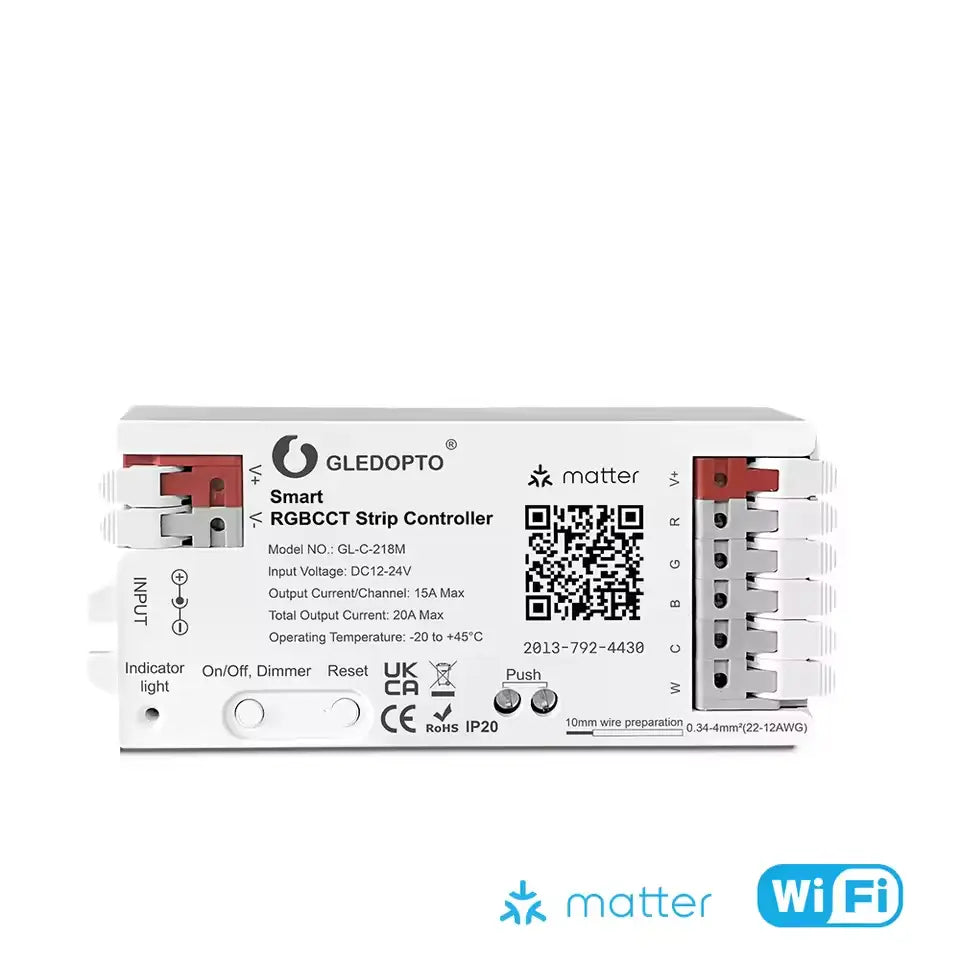

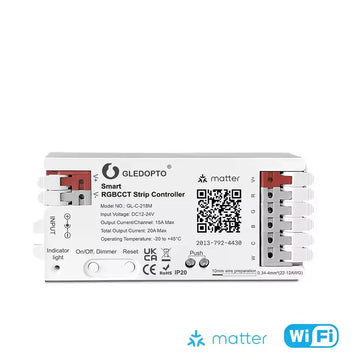

- Model: GL-C-218M
- Protocol: Matter
- Connectivity: Matter over Wi-Fi
- Input Voltage: DC 12–24V
- Output Current per Channel: 15A maximum
- Total Output Current: 20A maximum
- LED Type: Analog RGBCCT LED strip, common positive
- Control: PWM
- Material: Flame-retardant PC
- Operating Temperature: -20°C to +45°C
- Protection Rating: IP20
- Dimensions: 108 × 45 × 18 mm
Compatible Smart-Home Platforms
Matter integration is supported with compatible Apple Home, Amazon Alexa and Google Home environments. The specific hub, smart speaker and app must support Matter.
Important Compatibility Note
This controller is intended for analog PWM RGBCCT LED strips using 12V or 24V DC. It should not be used with digital addressable LED strips. Always disconnect power before wiring or servicing the controller and verify the LED strip voltage before connection.
- Model: GL-C-218M
- Connectivity: Matter Wifi
- Input: 12V-24V
- Current: 15A per channel
- MaxLoad: 20A
- Terminals: Quick Connect
- Dimensions: 18x45x108mm
- Supported LED Strips: RGB, RGBW, CCT, RGBCCT
