SLZB-Ultima

SMLIGHT SLZB-Ultima3 Multi-Radio Smart Home Hub

Build a flexible, local-first smart home with the SMLIGHT SLZB-Ultima3, a modular multi-radio hub designed for advanced Home Assistant users, smart-home enthusiasts, developers and system integrators. It combines dedicated Zigbee/Thread radio hardware with 2.4GHz Wi-Fi and Bluetooth through an ESP32-S3, plus 100 Mb Ethernet, USB host connectivity, IR control and expansion interfaces.

Multi-Protocol Smart Home Connectivity

The SLZB-Ultima3 is designed for smart-home installations that use several communication technologies. Its two dedicated radio chips can be used for Zigbee and Thread networking, while the ESP32-S3 provides 2.4GHz Wi-Fi and Bluetooth. The device can be integrated with Home Assistant and supports Zigbee2MQTT and ZHA.

Dual Dedicated Zigbee and Thread Radios

The hub uses a Silicon Labs EFR32MG24 radio and a Texas Instruments CC2674P10 radio. Depending on the configuration, these radios can be used as Zigbee Coordinators, Zigbee Routers or OpenThread Border Routers, allowing separate Zigbee or Thread networks to be built on dedicated radio hardware.

ESP32-S3 with Wi-Fi and Bluetooth

An Espressif ESP32-S3 provides the main processing platform together with built-in 2.4GHz Wi-Fi and Bluetooth. When compatible ESPHome firmware is used, the Bluetooth capability can provide Bluetooth Proxy functionality for Home Assistant.

Ethernet, USB and Expansion

The SLZB-Ultima3 includes 100 Mb Ethernet and a dedicated USB host interface for compatible external radios and peripherals. GPIO and I²C interfaces provide additional options for compatible sensors, UPS systems and custom hardware projects.

Optional Expansion Modules

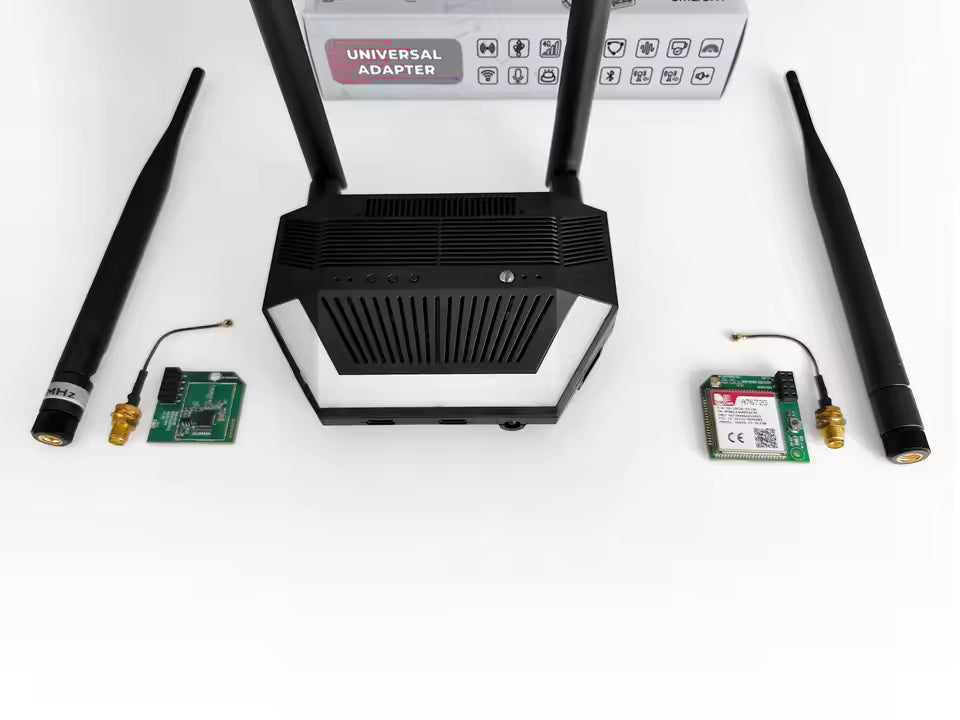

The modular design supports optional add-ons including PoE, Z-Wave 800, 4G/LTE and a microphone module. These options allow the hub to be adapted for different installations and connectivity requirements.

Infrared Control

Built-in IR reception and transmission allows compatible infrared equipment such as TVs, air conditioners, projectors and AV equipment to be integrated into smart-home automations.

Local-First Smart Home Operation

SLZB-OS provides a web interface with features such as OTA firmware updates, WireGuard VPN, DDNS, local automations and an internal Zigbee Hub mode. ESPHome is also supported for compatible use cases, including Bluetooth Proxy, IR, LEDs, buttons, buzzer and GPIO functions.

Home Assistant, Zigbee2MQTT and ZHA

The SLZB-Ultima3 is designed to work with Home Assistant environments and supports Zigbee2MQTT and ZHA. SMLIGHT also provides an official Home Assistant integration for local device management, diagnostics and firmware-related functions.

Key Features

• Dual dedicated Zigbee/Thread radio hardware
• Silicon Labs EFR32MG24 radio
• Texas Instruments CC2674P10 radio
• Espressif ESP32-S3 main MCU
• 2.4GHz Wi-Fi
• Built-in Bluetooth
• 100 Mb Ethernet via W5500 Ethernet controller
• Native ESP USB connectivity and dedicated USB host
• Zigbee 3.0 Coordinator / Router support
• OpenThread Border Router support
• Zigbee2MQTT and ZHA support
• Built-in IR receiver and transmitter
• GPIO and I²C expansion

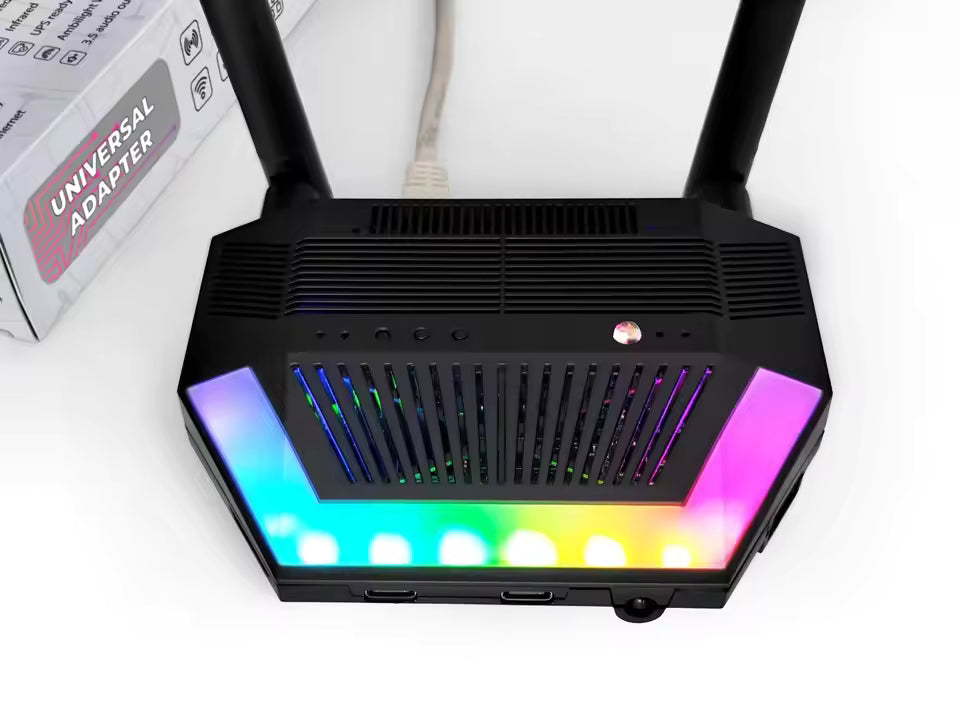

• 12 addressable WS2812B RGB LEDs
• 3 physical buttons and 4 service LEDs
• Built-in buzzer
• Optional PoE add-on
• Optional Z-Wave 800 add-on
• Optional 4G/LTE add-on
• Optional microphone add-on
• SLZB-OS and ESPHome firmware options

Technical Specifications

What's Included

• SMLIGHT SLZB-Ultima3 hub
• Silicon Labs EFR32MG24 radio
• Texas Instruments CC2674P10 radio

Optional PoE, Z-Wave 800, 4G/LTE and microphone modules are separate expansion options and should not be represented as included unless the specific store variant/package includes them.

Frequently Asked Questions

Does the SLZB-Ultima3 work with Home Assistant?

Yes. It is designed for Home Assistant environments and supports integrations such as Zigbee2MQTT and ZHA.

Does it support both Zigbee and Thread?

Yes. It has two dedicated Zigbee/Thread radio chips that can be configured for Zigbee and/or Thread networking according to the supported operating mode.

Does it have Wi-Fi and Bluetooth?

Yes. The ESP32-S3 provides 2.4GHz Wi-Fi and Bluetooth functionality. Bluetooth Proxy is supported with compatible ESPHome firmware.

Can I add Z-Wave or 4G/LTE?

Yes. Optional Z-Wave 800 and 4G/LTE add-ons are available for supported configurations.

Can I connect it through Ethernet?

Yes. The device provides 100 Mb Ethernet as well as built-in 2.4GHz Wi-Fi.

Important Configuration Note

Optional modules are configuration-dependent. Confirm the exact hardware package before listing PoE, Z-Wave, 4G/LTE or microphone functionality as included in a particular store variant.
