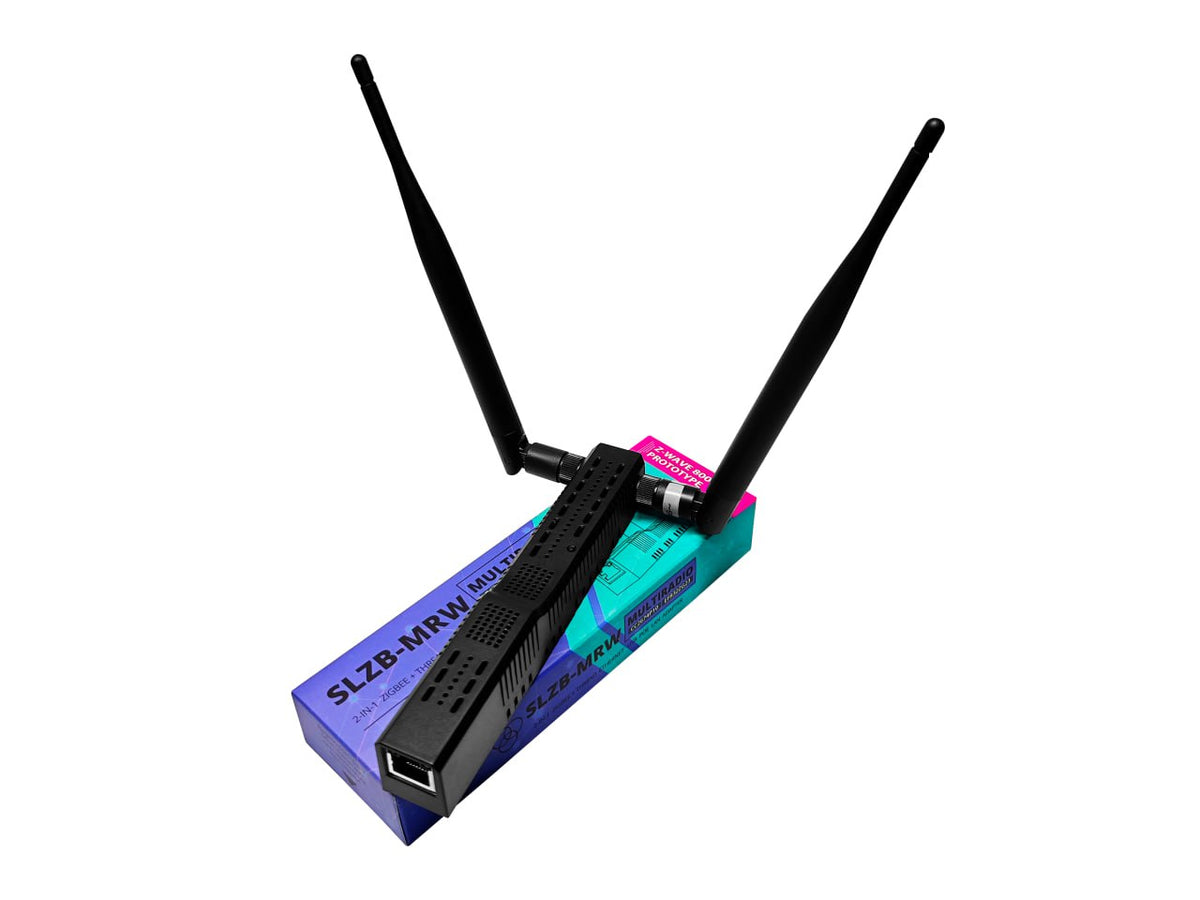

SMLIGHT SLZB-MRW10U Z-Wave, Zigbee & Thread Adapter Prototype
Call for Testers: The SMLIGHT SLZB-MRW10U is a compact multiprotocol adapter designed for evaluation and development across Zigbee 3.0, Thread/Matter, Wi-Fi and Z-Wave. These units are distributed as testing samples and are intended for evaluation purposes only.
Testing Program
The SLZB-MRW10U has completed SMLIGHT's internal testing and is described as providing stable operation across its supported networks. The current units are being supplied to testers before the planned full Z-Wave certification process.
Important: Z-Wave functionality on this prototype is currently non-certified. These samples are intended strictly for evaluation and testing and are not certified for commercial Z-Wave deployment.
The current tester price reflects participation in the testing program. The expected retail price (RRP) is approximately $129, subject to final retail pricing.
Multiprotocol Hardware
The SLZB-MRW10U combines dedicated processing and radio hardware to support several smart-home and IoT protocols:
- CC2674P10: Zigbee 3.0, Thread and Matter over Thread.
- EFR32ZG23: Z-Wave 800-series functionality for non-certified testing.
- ESP32-S3: Wi-Fi and Bluetooth functionality in the U variant.
Zigbee, Thread & Matter
The CC2674P10 radio provides native support for Zigbee 3.0 and Thread-based applications, including Matter over Thread. The platform is suitable for smart-home hubs, bridges, automation systems and custom IoT development where multiple wireless protocols need to be evaluated.
Z-Wave Testing
The SLZB-MRW10U includes an EFR32ZG23-based Z-Wave radio intended for evaluation. Z-Wave support on these prototype units is currently non-certified. Testers can use the hardware and associated software tooling to evaluate Z-Wave functionality before the planned certification stage.
Wi-Fi & Bluetooth
The U variant uses an ESP32-S3 for Wi-Fi and Bluetooth functionality, providing the network and local connectivity layer for the adapter and its software environment.
Smart Home & Development Use
The adapter is designed for developers, advanced smart-home users, testers and integrators working with multiprotocol environments. It can be used as a foundation for evaluating Zigbee, Thread/Matter and non-certified Z-Wave integrations in supported software environments.
Software & Integration
SMLIGHT's SLZB platform supports integrations and tooling used in smart-home environments, including Home Assistant, Zigbee2MQTT and OpenThread-based setups. SMLIGHT also provides tester documentation for Z-Wave JS UI and Z-Wave integration with Home Assistant.
Important Product Notice
- This is a prototype/testing unit, not a standard certified retail Z-Wave product.
- Z-Wave functionality is currently non-certified.
- The unit is supplied for evaluation and testing purposes.
- Do not represent the prototype as a commercially certified Z-Wave product.
- Final retail specifications, certification status and RRP may change before general release.
Documentation
Key Specifications
| Model | SLZB-MRW10U |
|---|---|
| Radio 1 | EFR32ZG23 — Z-Wave 800 series, non-certified testing |
| Radio 2 | CC2674P10 — Zigbee 3.0, Thread, Matter over Thread |
| Core / Connectivity SoC | ESP32-S3 — Wi-Fi and Bluetooth |
| Zigbee capacity | Up to 400 end devices as specified for the CC2674P10-based radio configuration |
| Primary use | Smart-home integration, multiprotocol development, testing and evaluation |
| Z-Wave certification | Non-certified prototype/testing hardware |
- Radio1: Silabs EFR32ZG23
- Radio2: TI CC2674P10
- Main MCU: Espressif ESP32 -S3
- USB/UART: native ESP32 USB
- Ethernet SoC: Wiznet w5500
- Zigbee Output Gain: +20dB
- Ethernet support: Yes
- WiFi support: Yes
- PoE support: Yes
- PoE standard: IEEE 802.3af (15W)
- USB Type-C control: Yes
- ESP32 Flasher integrated: Yes
- ESP32 Autoboot: Yes, through DTR / RTS
- Pre-flashed: Yes, Zigbee and ESP
- Zigbee 3.0 Coordinator mode: Yes
- Zigbee 3.0 Router mode: Yes
- Zigbee to Ethernet: Yes
- Zigbee to USB: Yes
- Zigbee2MQTT support: Yes
- ZHA support: Yes
- Dimensions: 160x22x24mm
- Operating environment: +5 – +35 C
- Warranty: 12 months
Matter-over-Thread guide (Home Assistant)
https://youtu.be/WwYVRuVpAJI
