SLZB-07p10 USB Zigbee Adapter

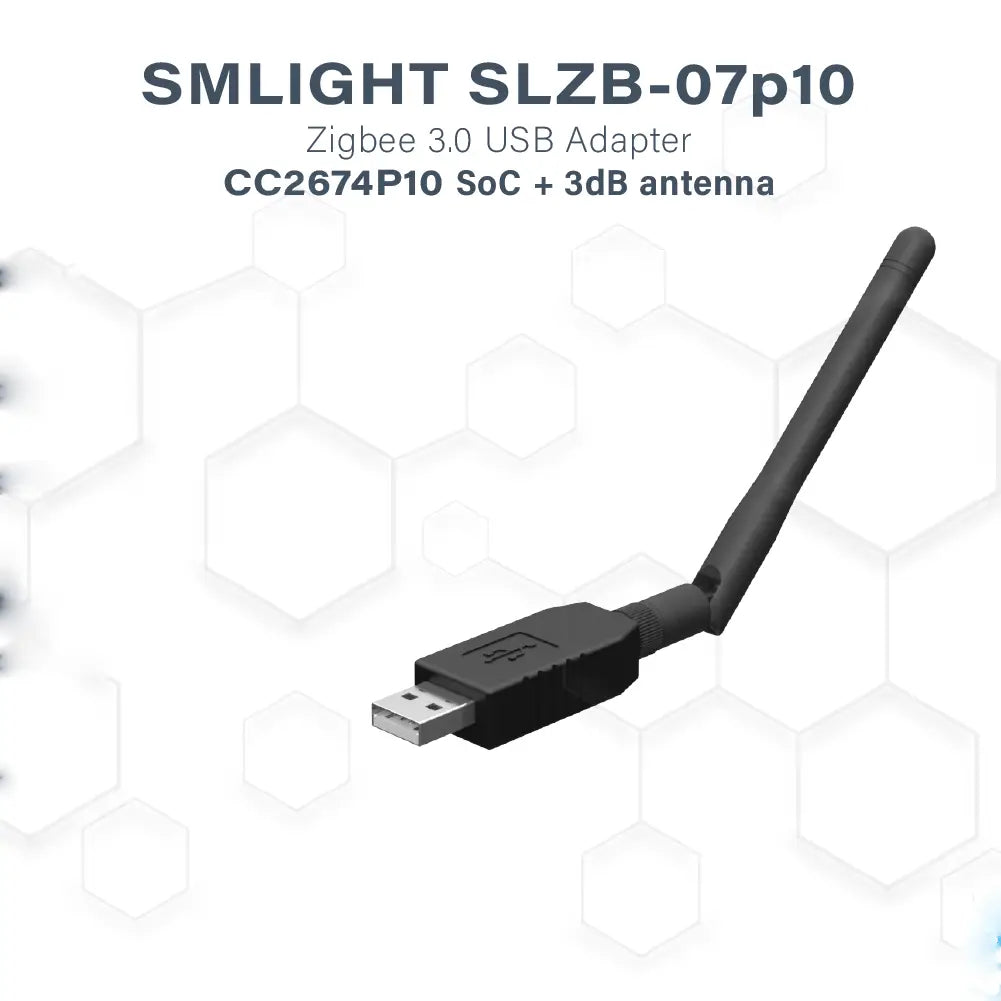

SMLIGHT SLZB-07p10 USB Zigbee Coordinator

The SMLIGHT SLZB-07p10 is a compact USB Zigbee coordinator designed for smart home setups using platforms such as Home Assistant and Zigbee2MQTT. It uses the Texas Instruments CC2674P10 radio SoC and combines it with a CP2102N USB-to-UART bridge, an onboard +20 dB radio amplifier, and a rotatable +3 dB external antenna.

Pre-flashed and designed for plug-and-play operation, the SLZB-07p10 provides native Zigbee support and can also be used with Thread-capable firmware. Its compact 18 × 54 × 10 mm enclosure is designed to fit beside neighboring USB ports without unnecessarily blocking them.

Key Features

• Texas Instruments CC2674P10: High-performance Zigbee/Thread radio SoC used in the SLZB-07p10 variant.
• +20 dB radio amplifier: Integrated RF amplification for extended wireless coverage.
• +3 dB rotatable antenna: External three-axis rotatable antenna for flexible positioning.
• Home Assistant compatible: Designed for use with Home Assistant ZHA.
• Zigbee2MQTT compatible: Designed for Zigbee2MQTT-based smart home installations.
• Pre-flashed: Supplied ready for use as a Zigbee coordinator.
• Zigbee 3.0: Supports Zigbee 3.0 operation.
• Thread capable: Thread firmware is available for the SLZB-07p10 hardware.
• USB-A connection: Connects directly to a compatible USB host such as a PC, Raspberry Pi, or mini PC.
• Compact form factor: Measures approximately 18 × 54 × 10 mm and weighs about 14 g.
• CP2102N USB-to-UART bridge: Provides the USB-to-serial interface used by the coordinator.
• Firmware flashing: SMLIGHT provides a web flasher for updating or changing supported firmware modes.

Smart Home Compatibility

The SLZB-07p10 is designed for USB-based smart home installations and supports popular open home automation software. It works with Home Assistant ZHA and Zigbee2MQTT for Zigbee networks. The hardware is also capable of running supported Thread firmware.

Hardware & Design

The SLZB-07p10 uses the same compact USB stick design as the other SLZB-07 variants, with the radio SoC being the primary difference between models. The device includes a four-layer PCB, RF isolation, an integrated +20 dB radio amplifier, CP2102N USB-to-UART bridge, and a rotatable +3 dB external antenna.

What's Included

• SMLIGHT SLZB-07p10 USB coordinator
• +3 dB rotatable external antenna
• QR-code manual card

Technical Specifications

• Model: SLZB-07p10
• Radio SoC: Texas Instruments CC2674P10
• Radio protocols: Zigbee 3.0 / Thread
• USB-to-UART bridge: Silicon Labs CP2102N
• Radio amplifier: +20 dB
• Antenna: +3 dB, external, rotatable
• Connector: USB-A
• Dimensions: 18 × 54 × 10 mm
• Weight: approximately 14 g

Firmware & Setup

The SLZB-07p10 is supplied pre-flashed. SMLIGHT also provides a web-based flasher that can be used to update the SLZB-07pX firmware and select supported firmware types such as Coordinator, Router, or Thread.

Why Choose the SLZB-07p10?

The SLZB-07p10 combines a compact USB form factor with the Texas Instruments CC2674P10 radio, integrated +20 dB amplification, and an external +3 dB antenna. It is a practical choice for users building USB-based Zigbee networks with Home Assistant or Zigbee2MQTT who want a compact coordinator with extended-range radio hardware.

Support

For setup instructions, firmware information, and the latest technical documentation, refer to the official SMLIGHT SLZB-07 documentation.
