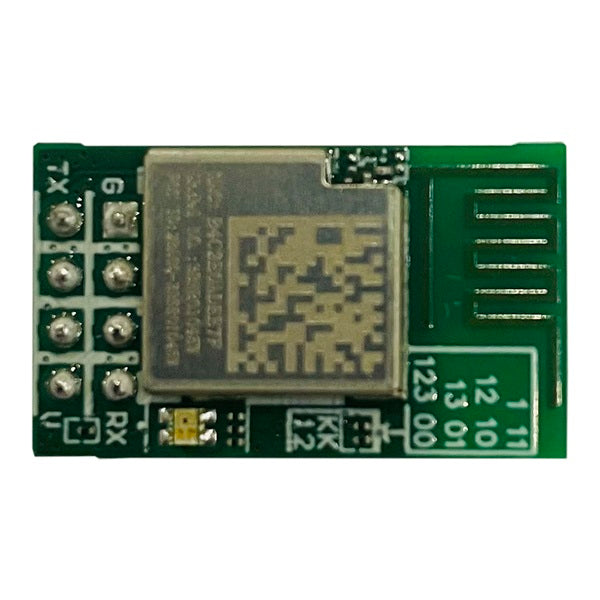

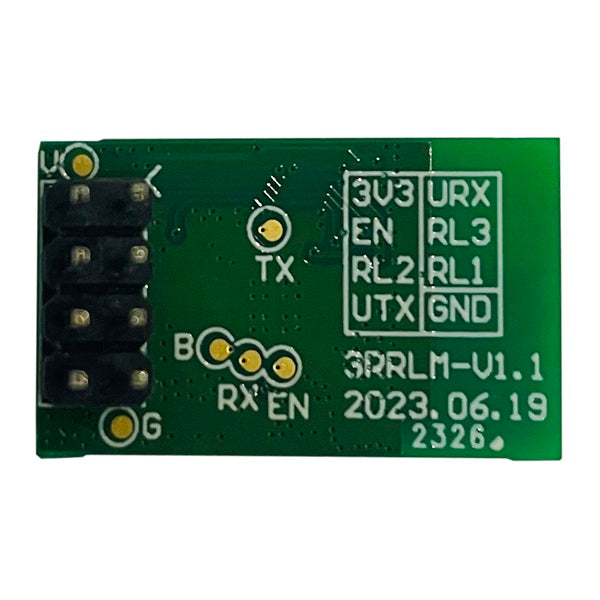

The PineNut Matter Relay Board is a compact Matter-certified WiFi module designed for digital output control and integration into Matter-compatible smart home and home automation networks. It provides a ready-to-use Matter solution with a built-in antenna and a unique QR code for straightforward pairing with a Matter network.
Matter-Certified Smart Home Control
Based on the PineNut-01M platform, this module is designed to interoperate within Matter home automation networks. It provides one default digital output and can be configured for up to three outputs, making it suitable for compact IoT and smart home control applications.
Key Features
- Matter-certified WiFi connectivity
- Built-in antenna
- Digital output control
- Default one output, configurable up to three outputs
- Unique QR code for Matter network pairing
- BL602 MCU
- 4MB flash memory
- Compact 14.3 x 24.8 mm form factor
Technical Specifications
- Wireless: Matter-certified WiFi with built-in antenna
- MCU: BL602
- Flash: 4MB
- Input Power: 3.3V
- I/O Voltage Tolerance: 3.6V maximum
- Dimensions: 14.3 x 24.8 mm
- Outputs: One default output; configurable up to three outputs
Easy Matter Pairing

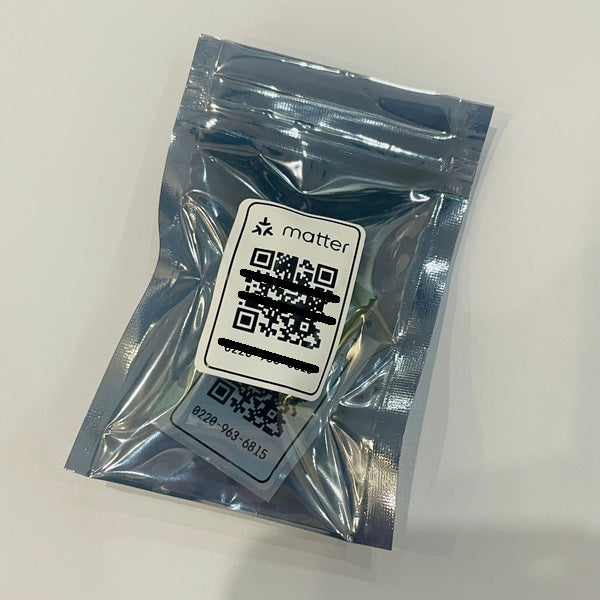

Each module includes a unique QR code intended for Matter pairing. This helps simplify the process of adding the device to a compatible Matter home automation network.
Important Information
This module is not hackable and does not include source code. It is intended to be used as a ready-to-use Matter-certified digital output module rather than as an open firmware development platform.
Suitable Applications
- Matter-compatible smart home projects
- IoT digital output control
- Home automation integrations
- Compact embedded Matter projects
- Custom smart home control systems
- Wireless: Matter certified WiFi with built-in antenna
- MCU: BL602
- Flash: 4MB
- Input power: 3.3V
- I/O voltage tolerance: 3.6V Max
- Dimension: 14.3 x 24.8 mm
