Pinecil v2 Soldering Iron

Pinecil V2 Smart Portable Soldering Iron

The Pinecil V2 is a compact smart soldering iron from PINE64 designed for portable electronics work, repair projects, and makers who want computer-controlled temperature management in a small form factor. It uses a 32-bit RISC-V processor and runs Ralim's open-source IronOS firmware.

Pinecil V2 supports power through either its USB-C input or DC5525 barrel jack, with only one power input intended to be used at a time. The USB-C input supports USB Power Delivery (PD) and Quick Charge (QC 3.0), while the DC input supports 12V–24V operation. A monochrome OLED display provides temperature and system information.

Key Features

• RISC-V processor: Built around the Bouffalo BL706 and a 32-bit RV32IMAFC RISC-V core.
• IronOS firmware: Runs Ralim's open-source IronOS firmware platform.
• OLED display: 0.69-inch monochrome OLED with 96 × 16 pixel resolution.
• Dual power input: USB-C PD/QC 3.0 or DC5525 barrel input.
• Portable design: 103 mm body length without the tip and 155 mm with the supplied tip.
• Automatic standby: Supports idle detection, sleep mode, and automatic shutdown features through IronOS.
• Replaceable tips: Compatible with PINE64 short tips and TS100-style normal-length tips.
• Bluetooth Low Energy: Pinecil V2 hardware supports BLE features with compatible IronOS firmware and applications.
• Home Assistant support: Pinecil V2 can be monitored and controlled through the Home Assistant IronOS integration when supported firmware and setup are used.

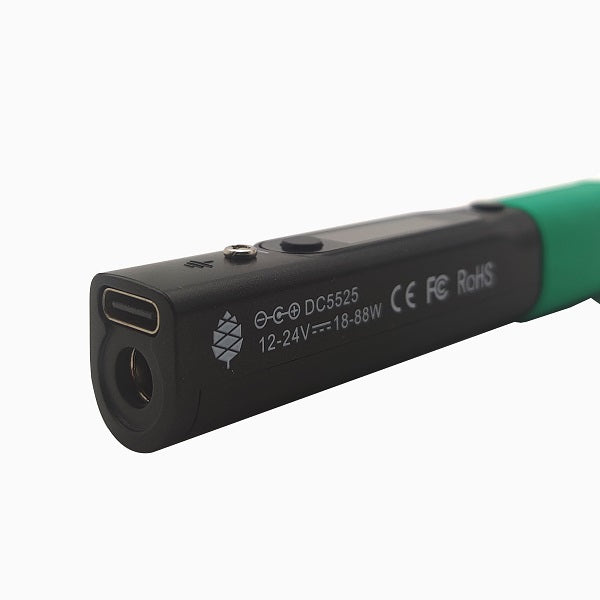

Power Input

• USB-C: USB PD and QC 3.0, 12V–20V, up to 3A.
• DC barrel: DC5525, 12V–24V, 3A.
• Maximum rated power: 88W.

Display and Electronics

• MCU: Bouffalo BL706.
• CPU: 32-bit RV32IMAFC RISC-V SiFive E24 core at 144 MHz.
• Internal ROM: 192 KB.
• System SRAM: 132 KB.
• Display: 0.69-inch white monochrome OLED.
• Resolution: 96 × 16 pixels.
• Firmware platform: Ralim's IronOS.

Body and Tip Specifications

• Dimensions: 155 mm with solder tip or 103 mm without solder tip × 12.8 mm × 16.2 mm.
• Weight: 28 g with solder tip or 18 g without solder tip.

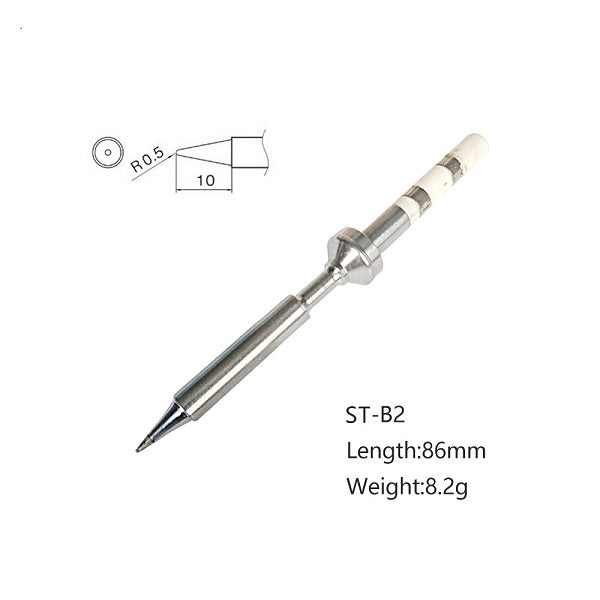

• Included tip: ST-B2 short soldering tip.
• Tip length: 86 mm.
• Tip weight: 8.2 g.
• Tip compatibility: PINE64 short tips and compatible TS100-style tips.

Smart Features

IronOS provides computer-controlled temperature management together with sleep and idle functions, motion detection, automatic shutdown options, display controls, and additional configuration features. Pinecil V2 also includes BLE hardware for compatible wireless control and monitoring applications.

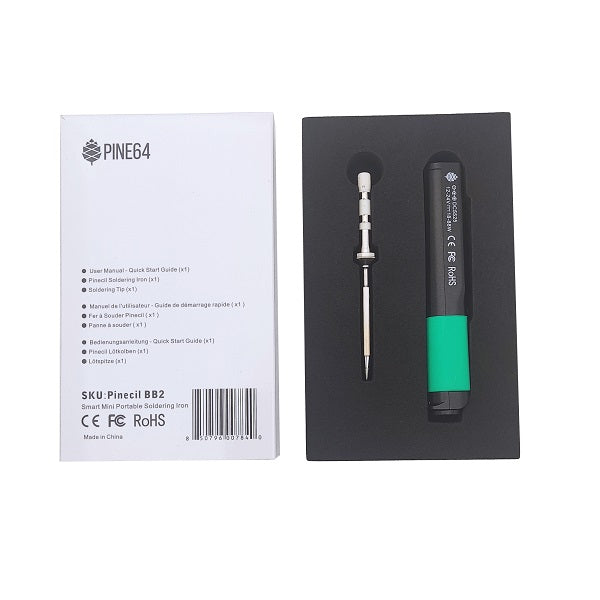

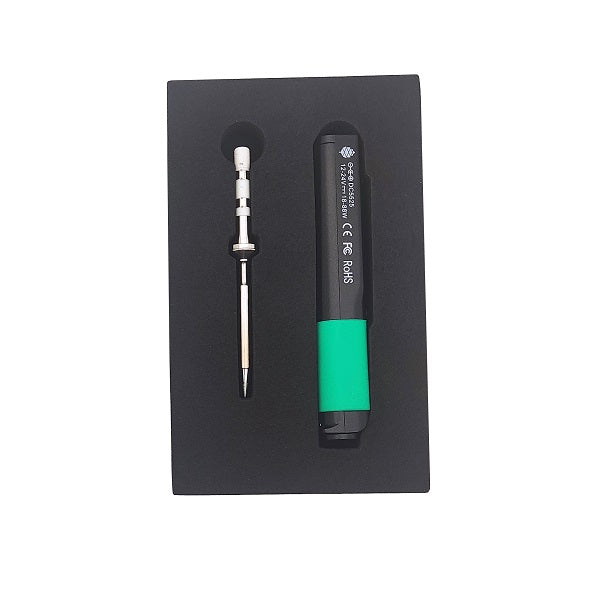

Package Contents

• 1 × Pinecil V2 Soldering Iron
• 1 × ST-B2 Short Soldering Tip

Compatibility and Documentation

Pinecil V2 is part of the PINE64 Pinecil platform and is compatible with the open-source IronOS firmware ecosystem. Official documentation is available from PINE64, including specifications, firmware information, tips, and development resources.

Important Product Information

A power supply is not included unless specifically stated by the seller. The Pinecil V2 is designed to use one power input at a time. Always follow the manufacturer's documentation and safety guidance when handling the product.

FAQ

What is the Pinecil V2?

Pinecil V2 is a compact smart soldering iron from PINE64 that uses a 32-bit RISC-V processor and runs Ralim's IronOS firmware.

What power inputs does Pinecil V2 support?

It supports USB-C with PD/QC 3.0 and a DC5525 barrel input. The V2 is rated for 12V–24V operation.

Which soldering tip is included?

The standard package includes one PINE64 ST-B2 short soldering tip.

Does Pinecil V2 have a display?

Yes. It has a 0.69-inch white monochrome OLED display with a 96 × 16 pixel resolution.

Does Pinecil V2 support Bluetooth?

Yes. The V2 uses the BL706 MCU with Bluetooth Low Energy hardware. BLE features require compatible IronOS firmware and software.

Does Pinecil V2 work with Home Assistant?

Yes. PINE64 documents a Home Assistant IronOS integration for monitoring and controlling Pinecil V2.

Is a power supply included?

The standard package contents list the Pinecil V2 soldering iron and ST-B2 short tip. A power supply is not listed as included.

What firmware does Pinecil V2 use?

Pinecil V2 uses Ralim's IronOS open-source firmware.
