Odroid M1S

Odroid M1S

Product description
Specifications
Related Links
Shipping & Returns
Product description

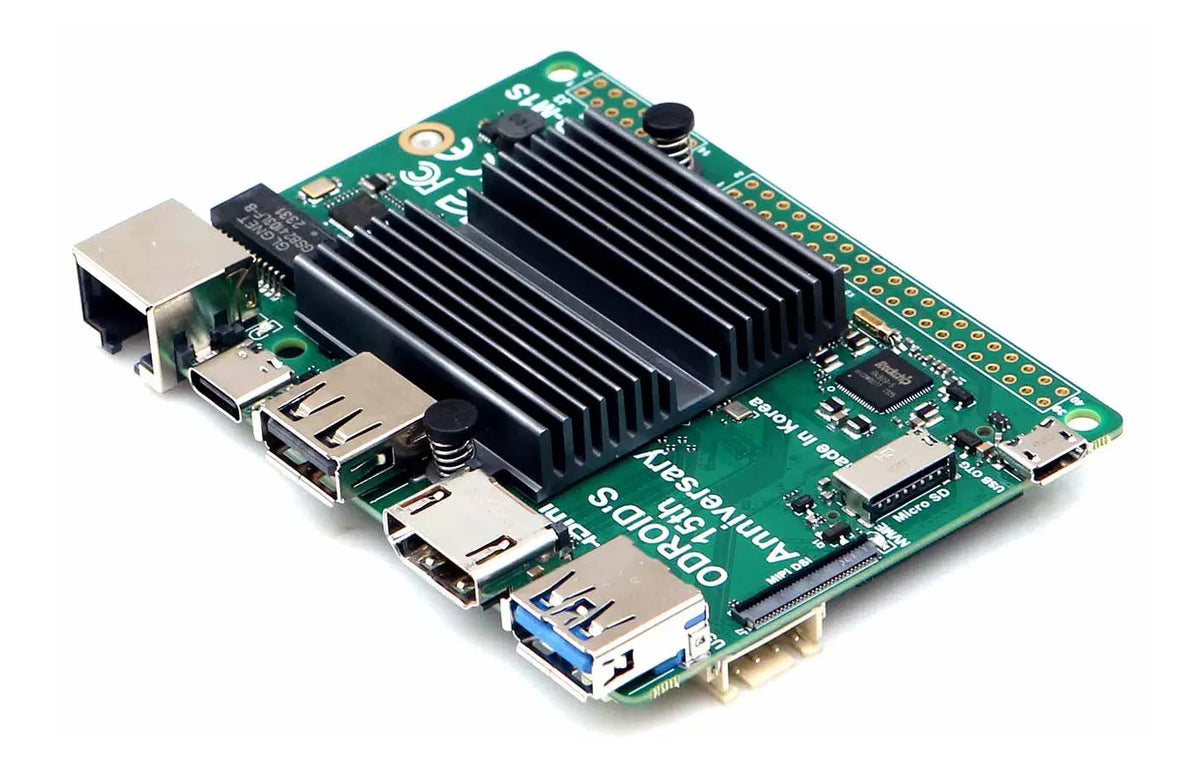

Designed for Hardkernel's 15th anniversary, the ODROID-M1S is a smaller, cheaper, and more efficient single computer board compared to the ODROID-M1 single board computer introduced last year with a Rockchip RK3568 SoC.

This board provides excellent value including a case and power supply. What really sets it apart from the Raspberry Pi is the builtin fast 64GB eMMC flash with speeds around 180MB/s or enjoy super fast speeds of ~400MB/s with a SSD connected to the M.2 PCIe 2.1 slot.

As this board is brand new OS support is currently limited to Ubuntu or Android 11. Expect support for others such as Armbian to follow soon.

HAOS - Our lead developer has added support for this board to Home Assistant OS (HAOS). Watch for full featured support in the forthcoming HAOS 12.0 release, however you can beta test HAOS on this board right now!

Features:

  • Rockchip RK3566 SoC (which is just a fraction slower than the RK3568 on the Odroid-M1)
  • 4GB or 8GB LPDDR4 memory
  • 64GB eMMC flash soldered on the board
  • PCIe - M2 Slot
  • SD Card slot
  • HDMI 2.0 and MIPI DSI video interfaces
  • Gigabit Ethernet
  • Type-C USB for power
  • 1x USB 2, 1x USB 3 and 1x USB OTG ports

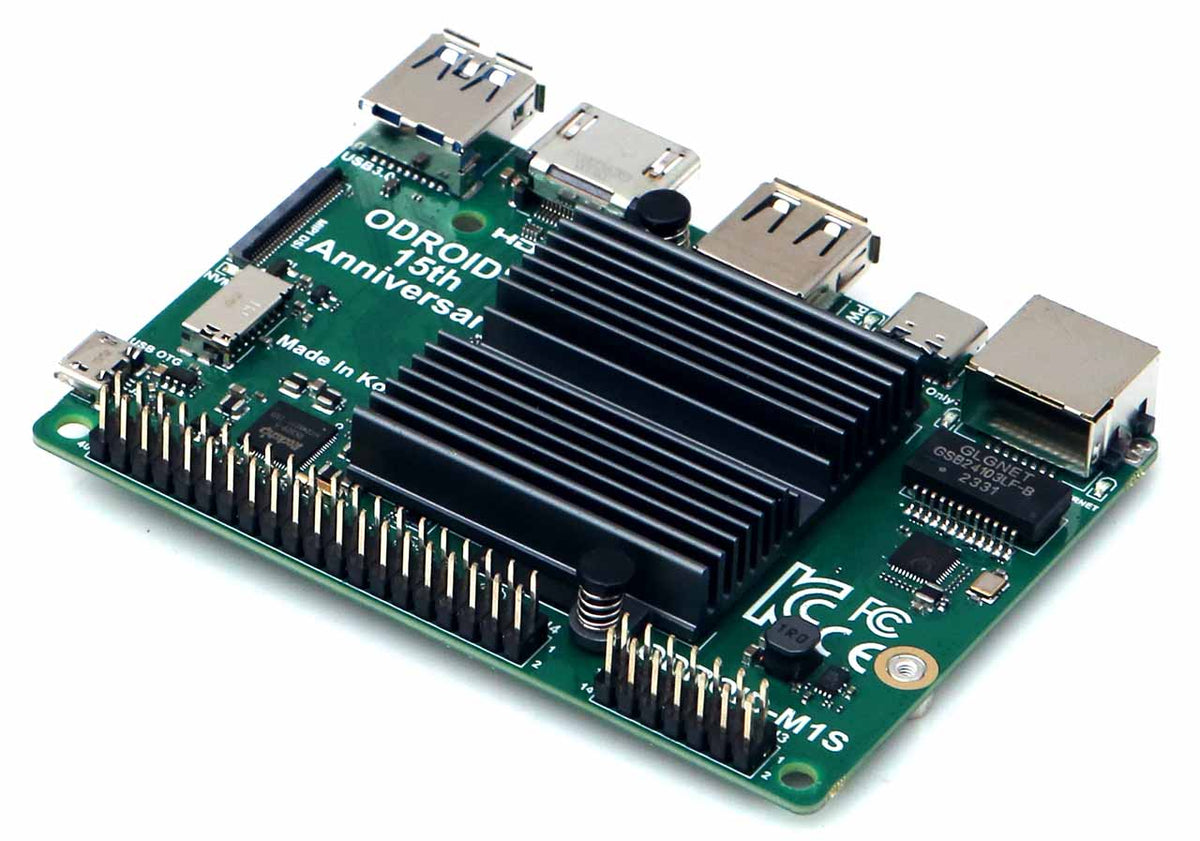

  • 2x GPIO expansion headers (optional)

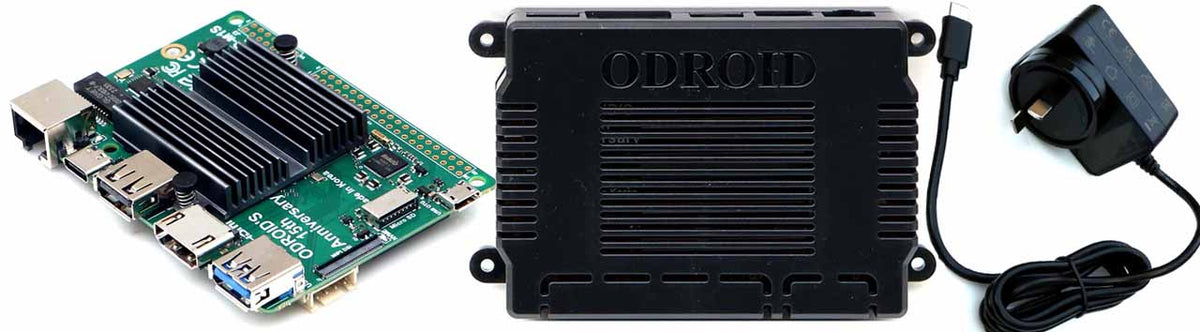

Package Includes:

  • 1x Odroid M1s (with optional soldered header pins)
  • 1x Plastic Case
  • 1x Power supply
Specifications
  • Form Factor: Board Dimensions: 90mm x 65mm x 16mm
  • Weight: 52g including heatsink
  • Processor: Rockchip RK3566 Processor - Quad-Core Cortex-A55 (1.8GHz)
  • GPU: Mali-G52 MP2 GPU with 4 x Execution Engines (800Mhz)
  • NPU: 0.8 TOPS@INT8, Integrated AI accelerator RKNN NPU
  • RAM: LPDDR4 4/8GiB Data rate: 2112 MT/s, up to 1,055MHz
  • Storage: 64GB eMMC embedded (soldered to the PCB)
  • Micro SD slot (UHS-I SDR104, Boot priority is always higher than eMMC)
  • NVME M.2 SSD (PCIe 2.1 x 1 lane)
  • Network: 1 x GbE LAN ports (RJ45, supports 10/100/1000 Mbps) Realtek RTL8211F
  • Video: 1 x HDMI 2.0 (up to 4K@60Hz with HDR, EDID), 1 x MIPI DSI Interface
  • USB: 1 x USB 2.0 host port, 1 x USB 3.0 host port, 1 x USB 2.0 micro OTG port
  • Debug: Serial console (UART)
  • GPIO: 1 x 40 pin and 1 x 14 pin GPIO Headers
  • Other: RTC backup battery connector, System LED indicators
  • Power: 5V USB Type C for Power only
  • Efficiency: Idle 1.1W, Peak 3.5W (CPU only)
