Moes Tuya Wired Zigbee Hub

MOES Tuya Wired Zigbee Hub

The MOES Tuya Wired Zigbee Hub (ZHUB-MS) is a wired smart gateway designed to connect and manage compatible Zigbee 3.0 smart-home devices through the MOES, Tuya Smart or Smart Life ecosystem. Its Ethernet connection provides a wired network link to the router instead of using Wi-Fi as the gateway's network connection, making it suitable for smart-home installations where a stable wired network connection is preferred.

The hub acts as the central gateway for compatible Zigbee devices, allowing users to add and manage devices and create smart-home automations through the supported mobile app. The wired version is specified for up to 300 connected devices.

Key Features

• Zigbee 3.0 Gateway: Provides a central gateway for compatible Zigbee 3.0 smart-home devices.
• Wired Network Connection: Connects to the home router using an Ethernet/network cable rather than Wi-Fi for the gateway's network connection.
• Smart App Control: Designed for management through the MOES, Tuya Smart or Smart Life ecosystem, subject to device and app compatibility.
• Large Device Capacity: The wired version is specified for up to 300 connected devices.
• Smart-Home Automation: Provides a central gateway through which compatible Zigbee devices can participate in smart-home scenarios and automations.
• Compact Design: Measures approximately 95 × 95 × 22 mm and weighs approximately 182 g according to MOES documentation.

Technical Specifications

• Product Name: Wired Smart Gateway
• Model: ZHUB-MS
• Wireless Protocol: Zigbee 3.0
• Network Connection: Wired Ethernet/network cable
• App Ecosystem: MOES / Tuya Smart / Smart Life, subject to compatibility
• Maximum Connected Devices: Up to 300 for the wired version
• Power Input: DC 5V 2A
• Operating Temperature: -10°C to 55°C
• Operating Humidity: 10%–90% RH, non-condensing
• Product Dimensions: 95 × 95 × 22 mm
• Product Weight: Approximately 182 g
• Frequency Band: 2.400–2.484 GHz
• Maximum Radio Transmit Power: Less than +19 dBm

How It Works

Connect the hub to power and connect it to a compatible router through its network cable. The gateway then provides the Zigbee network connection used by compatible Zigbee devices. Devices can be added and managed through the supported MOES/Tuya/Smart Life app ecosystem.

Compatibility and Important Notes

This hub is intended for compatible Tuya/MOES Zigbee devices and other compatible Zigbee 3.0 products. Compatibility should be checked for the specific device before purchase because not every Zigbee product from every manufacturer is guaranteed to work with the Tuya ecosystem.

The wired network connection removes the need for the gateway itself to use Wi-Fi as its router connection, but Zigbee still operates in the 2.4 GHz radio band. Therefore, the wired connection should not be described as eliminating all possible 2.4 GHz radio interference.

Home Assistant integration may be possible through Tuya-related integrations, but this product is primarily designed for the MOES/Tuya ecosystem. Users choosing a native Home Assistant Zigbee setup should verify compatibility and their preferred Zigbee coordinator architecture before purchasing.

What's Included

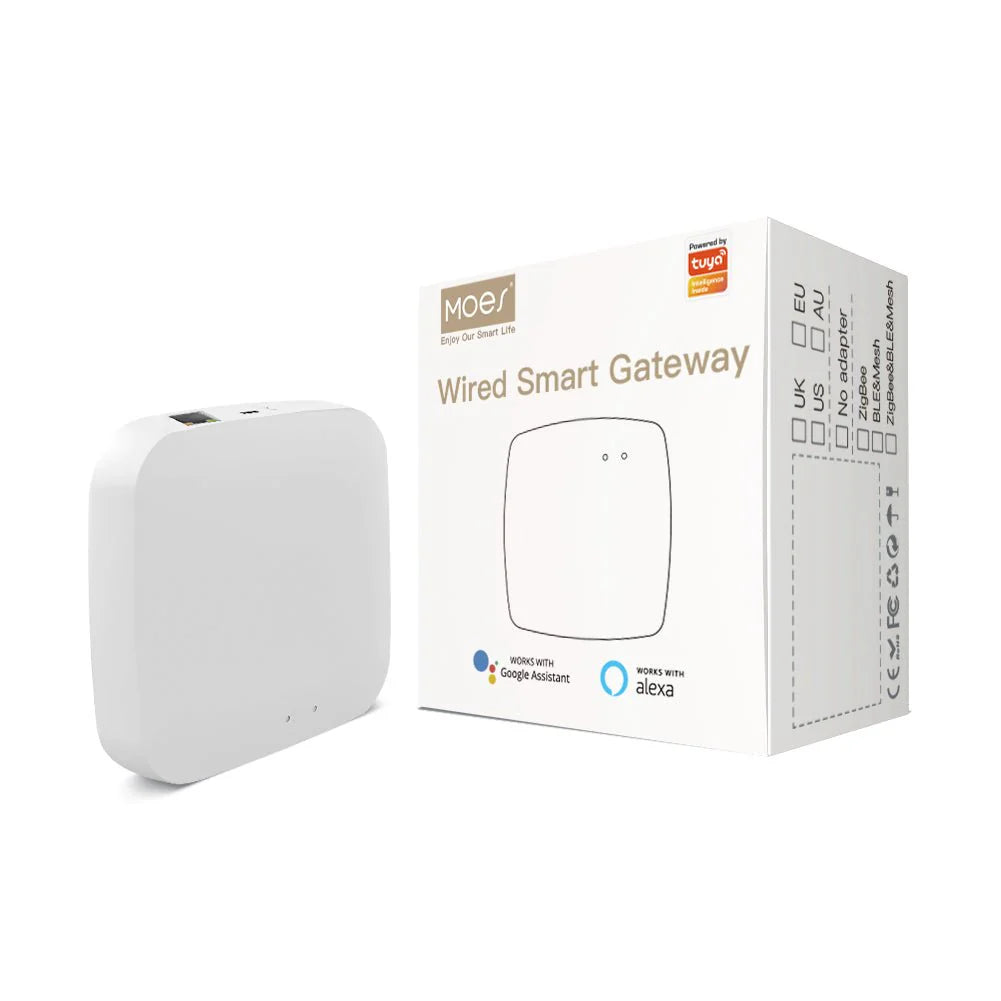

• MOES Wired Zigbee Smart Gateway
• Power cable
• Network cable for the wired version
• Quick/user guide
• Power adapter may depend on the supplied package or seller configuration

Who Is It For?

The MOES Tuya Wired Zigbee Hub is suitable for users building a larger Tuya/MOES-based smart-home system who prefer a wired network connection between the Zigbee gateway and their router. It is particularly useful when a dedicated Ethernet connection is available and the installation requires support for a larger number of compatible Zigbee devices.
