M5Stack -

M5Stamp C3U - ESP32-C3

Name: M5Stamp C3U - ESP32-C3
Brand: M5Stack
SKU: M5-C3U
Price: 19.0 AUD
Availability: InStock

$19.00

GST included.

Model: No Headers

No Headers

Included Headers

Quantity

Ask a question

Size guide

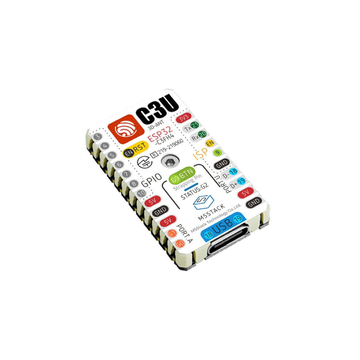

M5Stamp C3U - ESP32-C3

Product description

The M5Stamp C3U is a compact and powerful device featuring the ESPRESSIF ESP32-C3 RISC-V microcontroller and Wi-Fi 5 (LE) connectivity, making it suitable for both home appliances and industrial automation. It boasts advanced security features including RSA-3072-based secure boot and AES-128-XTS-based flash encryption. Its compact size and versatile capabilities make it ideal for a variety of IoT applications.

The M5Stamp C3U is based on 32-bit RISC-V microcontroller technology, operating at a maximum clock frequency of 160 MHz and has 400 KB of internal RAM and 4 MB Flash, this enables it to handle a wide range of connected device use cases. Additionally, the device features an exceptional heat resistance plastic enclosure, which can sustain a higher operating temperature.

Product Features

Three soldering options are available (SMT, DIP, flywire)
High-temperature resistant plastic enclosure, Peak temperature = 230℃
M5Stamp C3 contains 5V->3.3V DC/DC design
GPIOx14
USB Type C port
Programmable RGB LED x1, Reset button x1, button x1
3D antenna, providing stable and reliable wireless communication.
Platform support: Arduino, ESP32-IDF (UIFlow support coming soon)

Includes

1 x M5Stamp C3U
1 x Heat Resistant Sticker
1x Headers set (optional)
