M5StickC Plus2

M5StickC PLUS2 is an iterative version of M5StickC PLUS, featuring the ESP32-PICO-V3-02 chip as the main controller with built-in WiFi functionality. The compact device integrates a wealth of hardware resources within its small form factor, including infrared, RTC, microphone, LED, IMU, buttons, buzzer, and more. It boasts a 1.14-inch TFT screen with a resolution of 135*240, driven by the ST7789V2. The battery capacity has been increased to 200mAh, and the interface also supports HAT and Unit series products. This compact and versatile development tool is designed to spark limitless creative possibilities.

M5StickC PLUS2 facilitates the rapid prototyping of IoT products, streamlining the entire development process. Even beginners in programming can easily build interesting applications and apply them to real-life scenarios using M5StickC PLUS2.

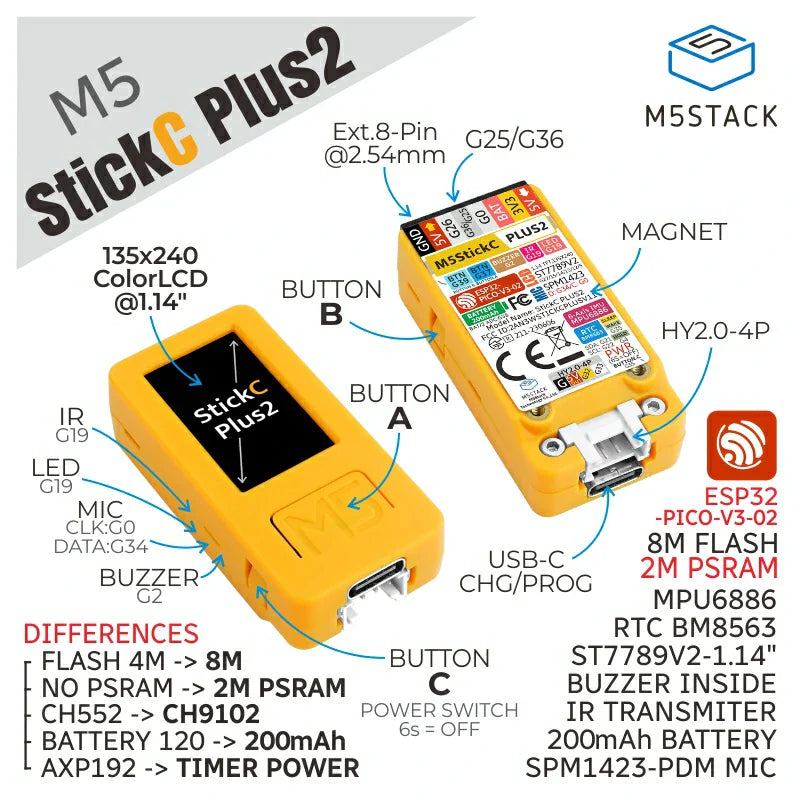

Product Features

• ESP32-PICO-D4 microcontroller support Wi-Fi
• 8MB Flash 2MB PSRAM
• Built-in 6-Axis IMU
• Red LED
• IR transmitter
• Microphone
• RTC
• Buttons, LCD(1.14 inch)
• Built-in Lipo Battery
• Extendable Socket
• Built-in Passive Buzzer
• Wearable & Wall mounted

 Compatible with multi-platform development:

• UIFlow
• MicroPython
• ESP-IDF

• ESPHome, Tasmota (some peripheral chips may require custom firmware builds to enable. Contact us for further information)
