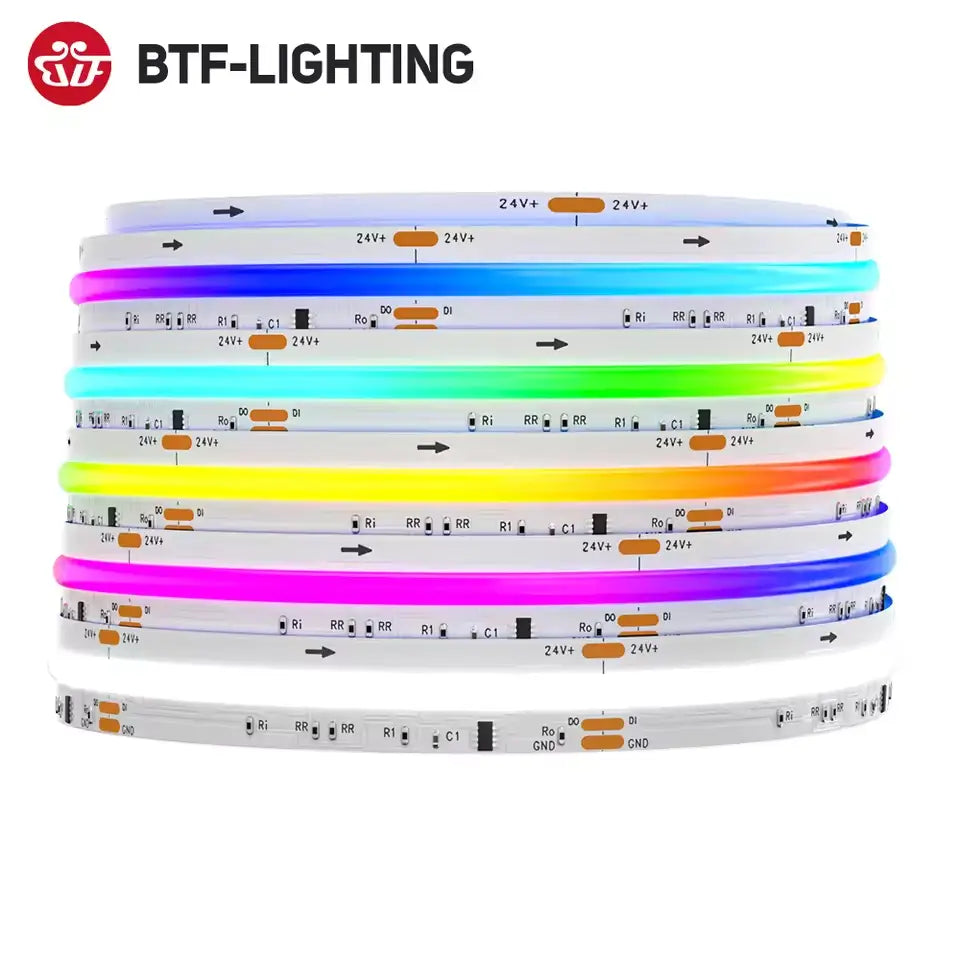

FCOB Addressable RGBW Strip WS2814 24V

FCOB Addressable RGBW LED Strip WS2814 24V

Create smooth, continuous lighting effects with the FCOB Addressable RGBW WS2814 LED Strip. Operating at 24V DC and using high-density FCOB technology, this flexible 12mm-wide strip combines RGB color control with a dedicated white channel for a more versatile lighting experience.

High-Density FCOB COB Lighting

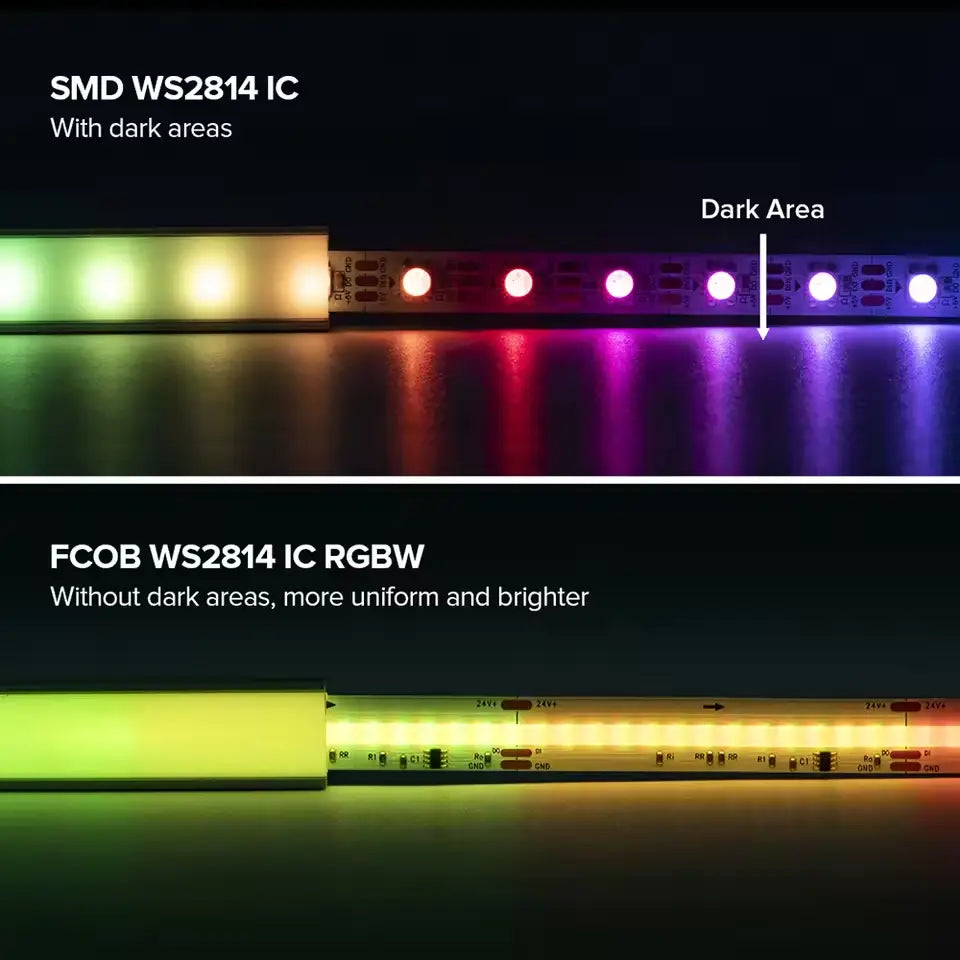

With 896 LEDs per metre, the FCOB construction provides a dense, uniform light-emitting surface that helps reduce the visible spotting commonly associated with conventional LED strips. The 180° viewing angle provides broad, even light distribution, making it suitable for applications where a smooth appearance is important.

Addressable WS2814 RGBW Control

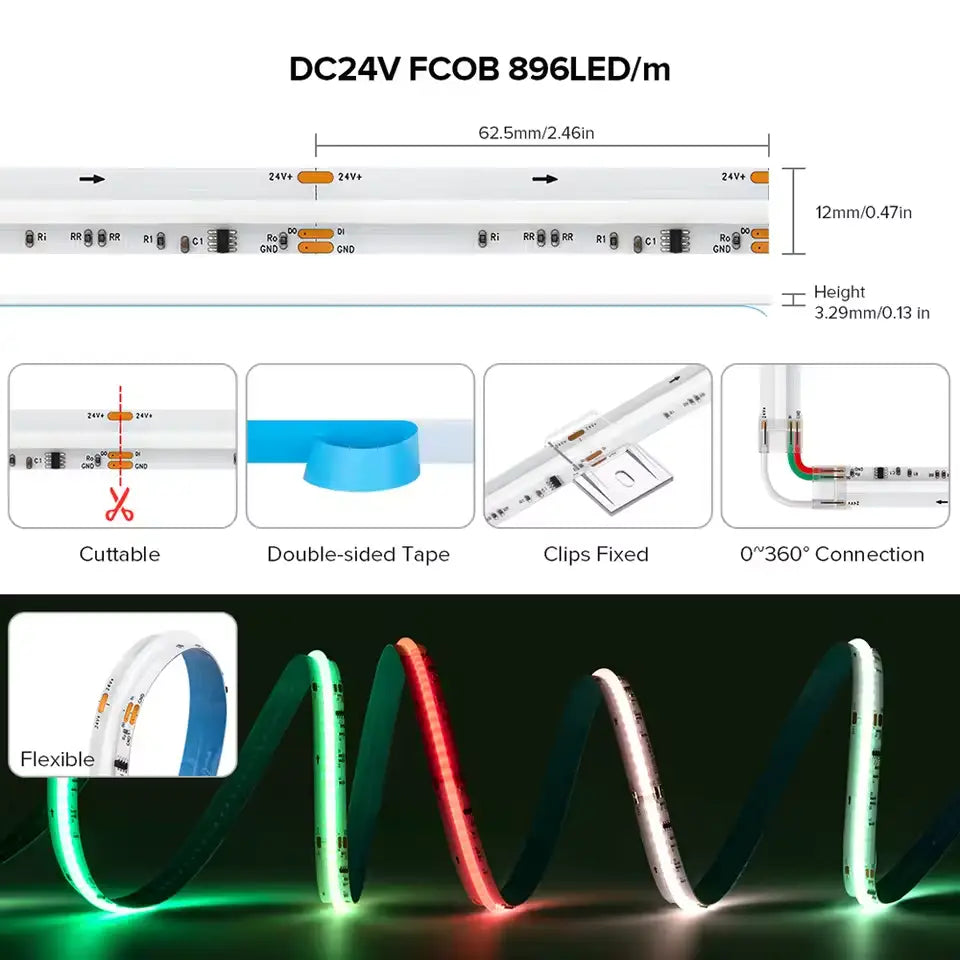

The integrated WS2814 IC supports individually addressable sections for dynamic RGBW lighting effects. For the 896 LEDs/m version, the strip is addressable in groups of 56 LEDs, with a 62.5mm cutting interval. Each addressable section can be controlled independently when used with a compatible WS2814 RGBW controller.

RGBW With Three White Options

Choose the white-channel version that matches your lighting application:

• RGBCW: Cool White, approximately 6000K
• RGBNW: Natural White, approximately 4000K
• RGBWW: Warm White, approximately 3000K

Flexible 24V Design

The 24V DC design is well suited to longer LED-strip installations than comparable low-voltage configurations, while the flexible FCOB construction makes the strip practical for architectural, decorative and accent-lighting applications. Use a compatible 24V power supply and WS2814 RGBW controller appropriate for the installed strip length and power requirement.

Suitable Applications

• Home and room accent lighting
• TV and home-entertainment backlighting
• Cabinet and shelving illumination
• Architectural and decorative lighting
• Retail and display lighting
• Hospitality and commercial interiors
• Custom RGBW lighting projects
• Dynamic chasing and programmable lighting effects

Specifications

• LED type: FCOB RGBW WS2814 IC
• Input voltage: DC 24V
• LED density: 896 LEDs/m
• IC density: 16 ICs/m
• Addressable group: 56 LEDs
• Cutting interval: 62.5mm
• PCB width: 12mm
• Power: approximately 21–22W/m, depending on the referenced specification
• Viewing angle: 180°
• CRI: Ra >90
• White-channel options: Cool White, Natural White or Warm White
• White-channel temperatures: approximately 6000K / 4000K / 3000K
• Operating temperature: -20°C to +45°C
• Storage temperature: -20°C to +60°C
• IP rating: IP30 / non-waterproof version

Package Includes

• 1 × FCOB WS2814 RGBW LED strip, terminated at both ends with a 4-pin connector
• 3 × mounting clips
• 2 × solderless connectors
• Extra wire/connector

Important Compatibility Information

This is a 24V addressable RGBW strip and requires a compatible WS2814 RGBW controller and suitable 24V DC power supply. The strip should not be connected directly to mains power. Power consumption depends on the selected lighting effect, white-channel use and installed length, so size the power supply and controller for the actual installation.
