FCOB Addressable RGB Strip WS2811 12V

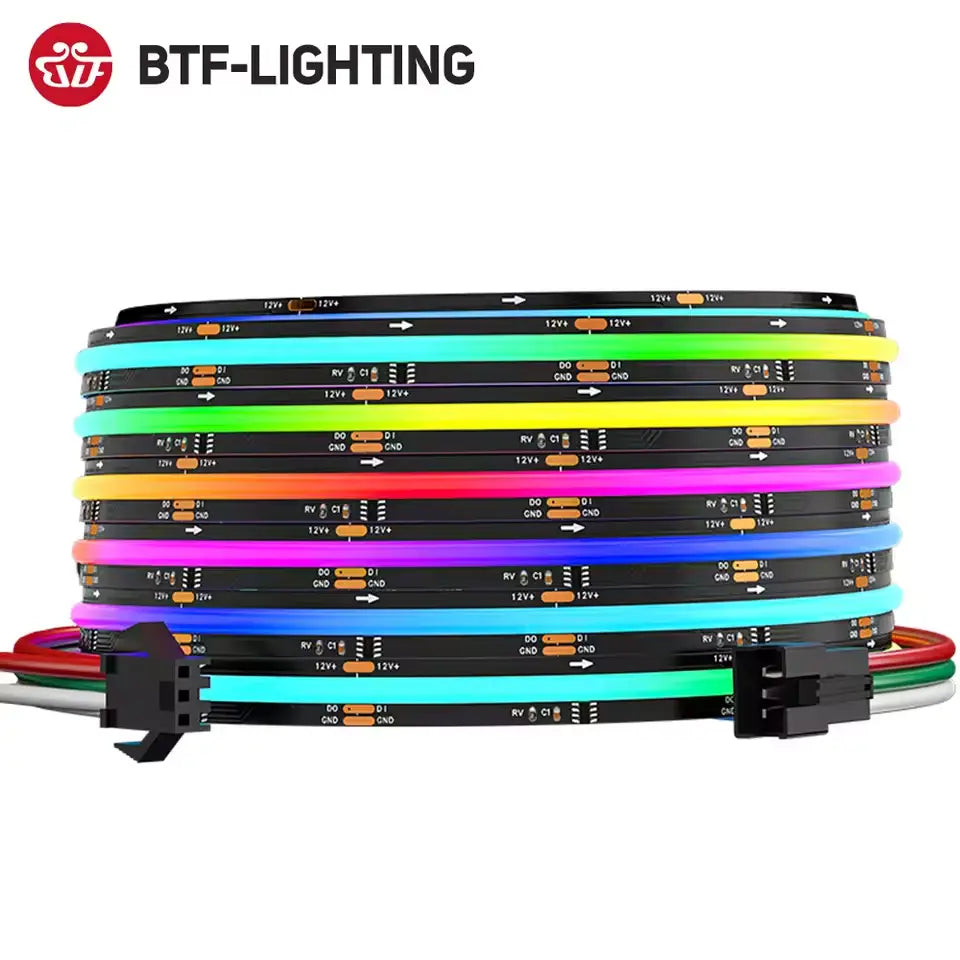

FCOB WS2811 Addressable RGB LED Strip – 12V, 630 LEDs

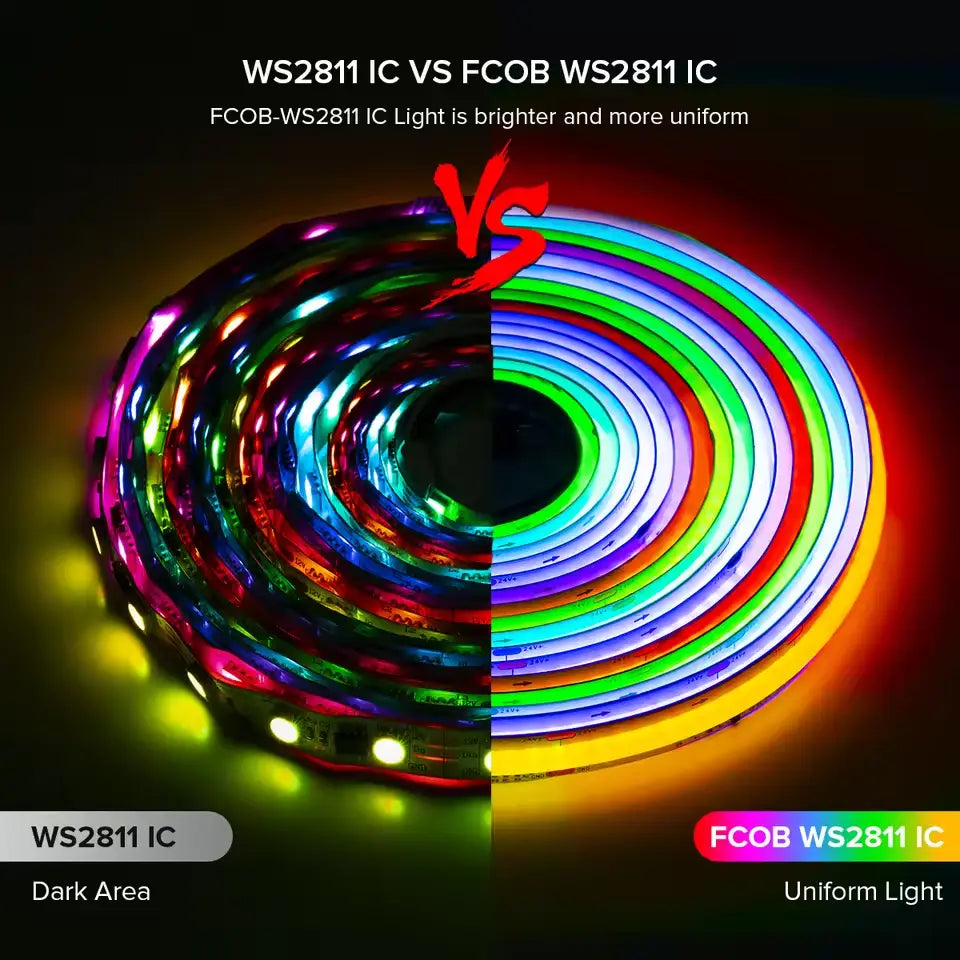

Create smooth, programmable RGB lighting with the FCOB WS2811 Addressable RGB LED Strip. Designed for 12V RGB control systems, this flexible 10mm COB LED strip uses FCOB (Flip Chip on Board) technology to provide a continuous and uniform light appearance with reduced visible hotspotting compared with conventional individually packaged LED strips.

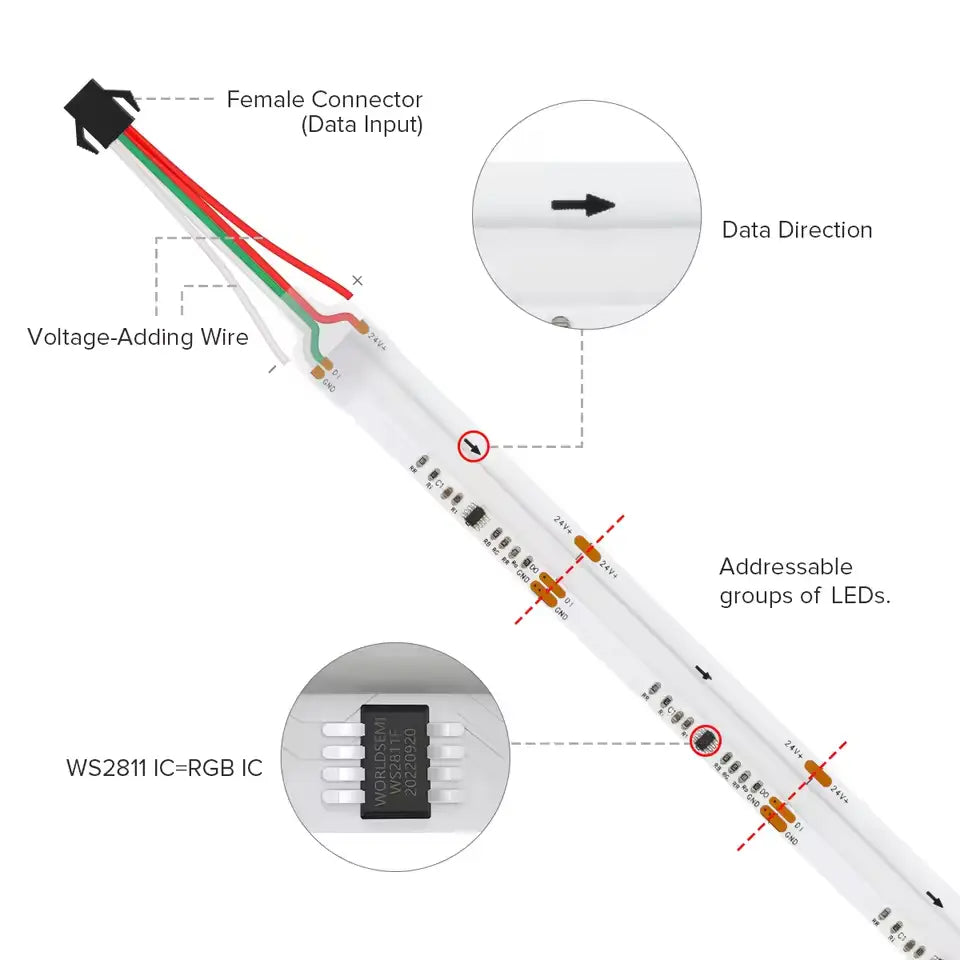

Addressable RGB Lighting with WS2811 Control

The WS2811 addressable design allows compatible controllers to control the strip for dynamic RGB lighting effects. It is suitable for projects using compatible 12V controllers and can be used with control solutions such as WLED or Tasmota when paired with suitable compatible hardware.

Flexible 10mm FCOB Construction

The 10mm flexible COB format is designed for applications where a clean, continuous lighting appearance is preferred. FCOB technology places the LED chips directly on the circuit board, helping produce consistent illumination along the strip.

Suitable for Home and Commercial Lighting Projects

Use the strip for accent lighting, entertainment areas, decorative installations, smart-home projects, display lighting and other RGB lighting applications where programmable addressable effects are required.

Controller Compatibility

This strip is designed for use with compatible 12V WS2811 controllers. Bundle options are available with suitable controllers powered by Tasmota or WLED. Always verify the controller's voltage, signal configuration and connector wiring before installation.

What’s Included

• 1 × FCOB WS2811 Addressable RGB LED Strip
• 4-pin connectors terminated at both ends
• 3 × mounting clips
• 2 × solderless connectors
• Extra wire/connector

Key Specifications

• Product Type: Addressable RGB LED Strip
• LED Technology: FCOB (Flip Chip on Board)
• Controller/Protocol: WS2811
• Voltage: 12V DC
• Total LEDs: 630
• Strip Width: 10mm
• Lighting Type: RGB
• Addressable: Yes
• Dimmable: Yes, with a compatible controller
• Connection: 4-pin connectors
• Construction: Flexible COB LED strip

Installation Notes

Use a suitable 12V DC power supply and a compatible WS2811 controller. Confirm the strip's wiring and connector pinout before powering the installation. Do not connect the strip to a voltage higher than its specified 12V operating voltage.

Important Compatibility Information

Controller and power-supply requirements depend on the installation. WLED and Tasmota are controller/software options referenced for compatible setups; compatibility should be confirmed for the specific controller hardware being used. The product information provided here does not specify IP/water-resistance rating, LED density per metre, power consumption, colour temperature, strip length or cutting interval, so those specifications should not be assumed.
