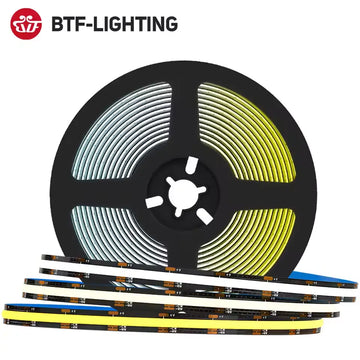

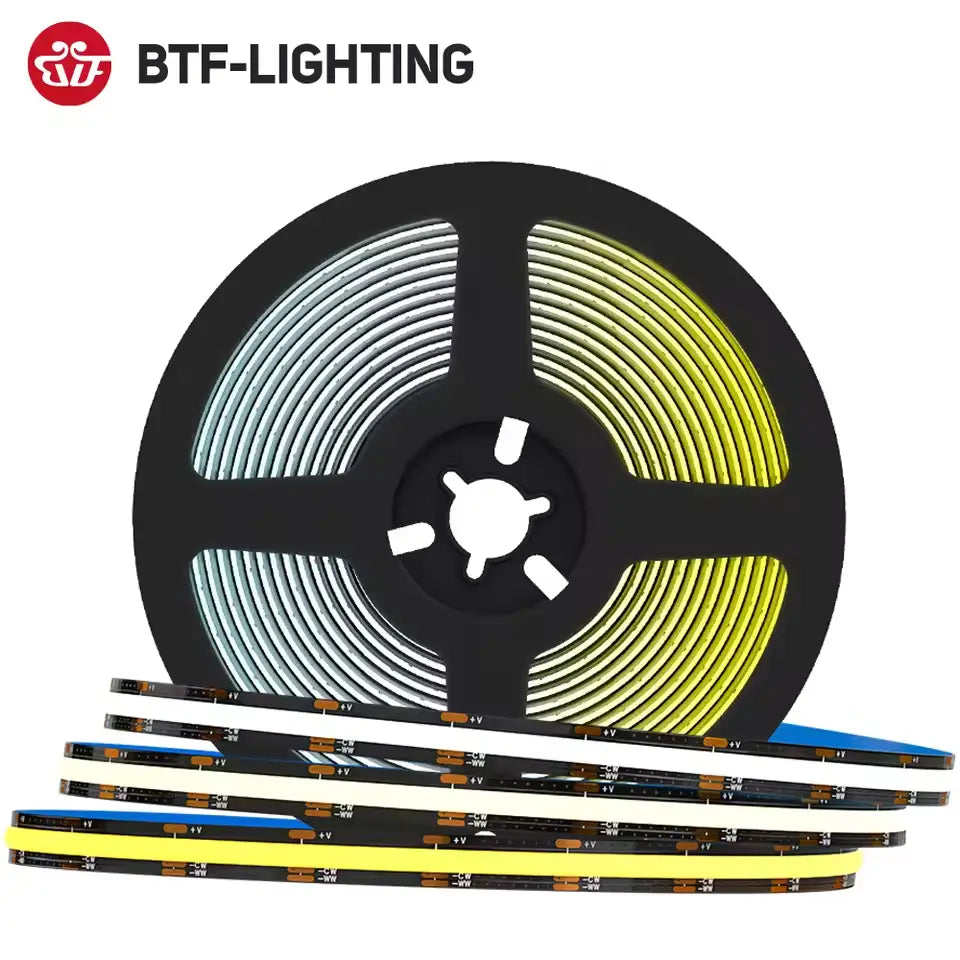

FCOB 12V CCT LED Strip

FCOB 12V CCT LED Strip – 640 LED Adjustable White Light

Create smooth, consistent white lighting with the FCOB 12V CCT LED Strip. Designed with 640 LEDs and a flexible 10mm FCOB/COB construction, this strip provides an even line of illumination with adjustable colour temperature from 2700K warm white to 6500K cool white.

The CCT design allows you to adjust the white light to suit different spaces and applications, from warm and comfortable ambient lighting to cooler, brighter task or display lighting. It is designed for use with compatible 12V CCT controllers, including suitable controller options using Zigbee, Tasmota or WLED.

Key Features

• 12V DC operation
• 640 LEDs for high-density illumination
• 10mm flexible strip
• CCT adjustable white light
• Adjustable colour temperature from 2700K to 6500K
• FCOB/COB construction for smooth, consistent light distribution
• Dimmable when used with a compatible 12V CCT controller
• Terminated with a 4-pin RGBCCT connector
• Suitable for compatible CCT lighting and smart-controller setups

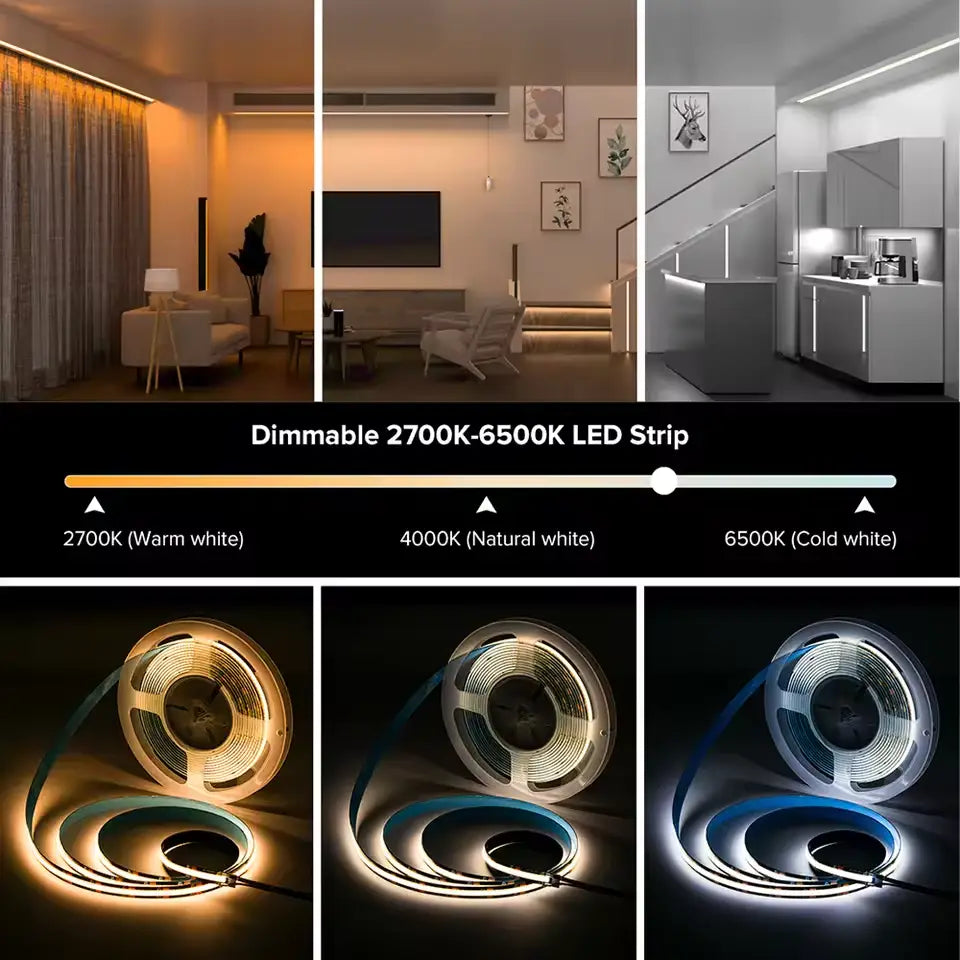

Adjustable 2700K–6500K White Light

Use the CCT range to create different lighting moods and functions. Choose a warmer 2700K setting for a softer, more comfortable atmosphere or move toward 6500K for a cooler white appearance. The adjustable range makes the strip suitable for a variety of residential, entertainment, display and commercial lighting applications.

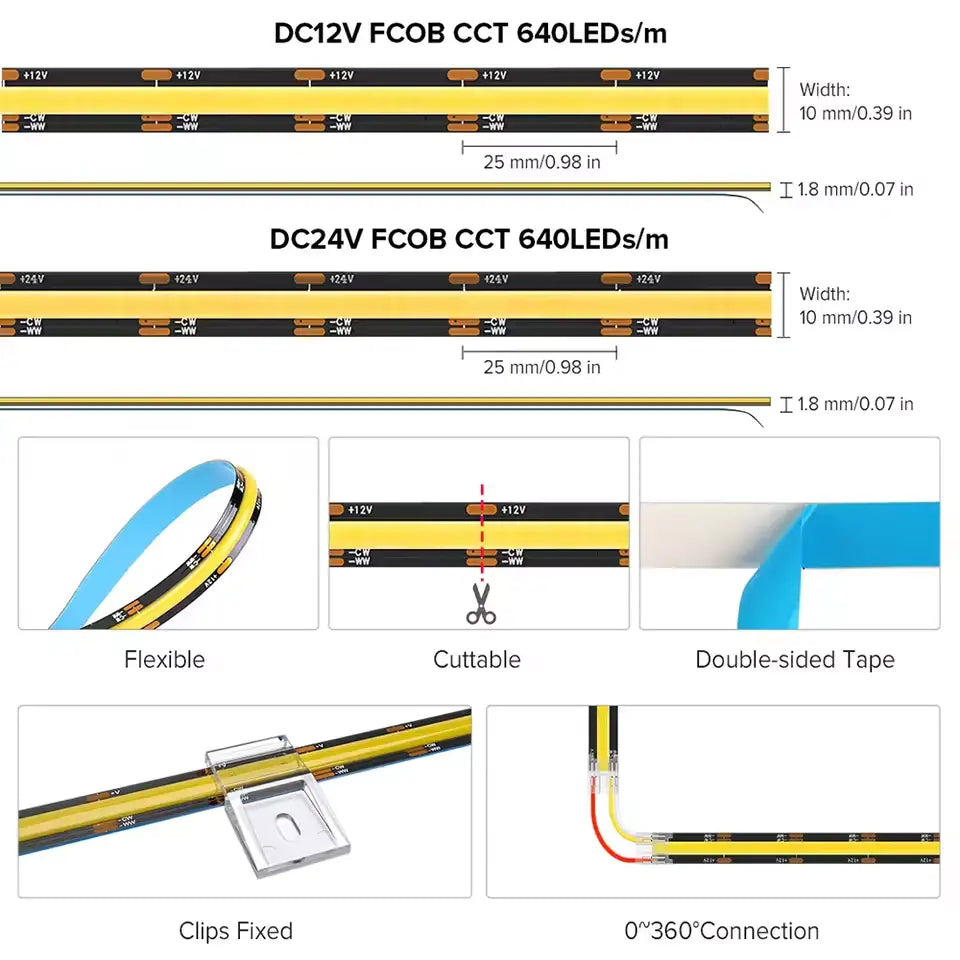

FCOB High-Density Design

The FCOB construction is designed to produce a smooth and continuous-looking light output across the strip, helping reduce the visible point-source appearance associated with widely spaced individual LEDs. Its flexible 10mm format also makes it practical for installations where a narrow LED strip is required.

Compatible Controllers

This strip is designed to work with a suitable 12V CCT controller. Compatible controller options may include systems based on Zigbee, Tasmota or WLED, provided the controller is suitable for the strip's voltage, CCT configuration and electrical requirements.

Applications

• Home ambient and accent lighting
• Living rooms and bedrooms
• Home entertainment setups
• Cabinet and display lighting
• Commercial and retail lighting
• Decorative architectural lighting
• Smart-home lighting installations

Package Includes

• FCOB CCT LED strip with a 4-pin RGBCCT connector terminated at both ends
• 3 mounting clips
• 2 solderless connectors
• Extra wire/connector

Important Compatibility Information

A compatible 12V CCT controller and suitable 12V power supply are required for operation. Controller and power-supply capacity should be selected according to the actual strip length and electrical load. Check the controller's connector configuration and specifications before installation.

Product Specifications

FAQs

What voltage does this CCT LED strip use?

The strip is designed for 12V DC operation.

What colour temperature range does it support?

The adjustable CCT range is 2700K to 6500K, allowing the white light to be adjusted from warm white to cool white.

How many LEDs are on the strip?

This product is specified with 640 LEDs.

What is the width of the LED strip?

The strip is 10mm wide.

Can the strip be dimmed?

Yes. Dimming requires a compatible 12V CCT controller.

Does it include a controller or power supply?

No controller or power supply is listed in the supplied package contents. A suitable 12V CCT controller and power supply are required for operation.

What connector does it use?

The strip is supplied with a 4-pin RGBCCT connector terminated at both ends.

What controllers can be used with it?

The product is intended for compatible 12V CCT controllers. The supplied product information specifically mentions suitable controller options based on Zigbee, Tasmota or WLED. Always confirm voltage, CCT configuration, connector and load compatibility before installation.
