Product description
Upgrade your electronic projects with these powerful and versatile genuine Espressif modules designed to tackle a wide range of applications. From low-power sensor networks to demanding tasks like voice encoding, music streaming, and MP3 decoding, the ESP32-WROOM-32 is here to deliver exceptional performance.

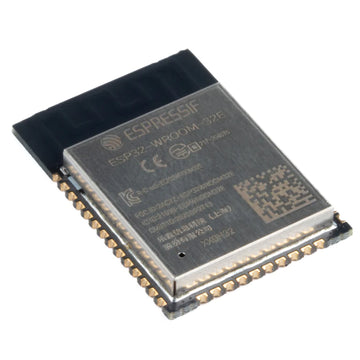

Equipped with the ESP32-D0WD-V3 chip, these modules offer scalability and adaptability. With two individually controllable CPU cores and an adjustable clock frequency ranging from 80 MHz to 240 MHz, you have the flexibility to optimize performance according to your specific needs. Plus, the chip features a low-power coprocessor that conserves energy during less computationally intensive tasks, such as peripheral monitoring.

Enjoy seamless integration with a wide range of peripherals, including capacitive touch sensors, Hall sensors, SD card interface, Ethernet, high-speed SPI, UART, I2S, and I2C. The comprehensive set of features ensures that you have the necessary tools at your disposal for successful project implementation.

The inclusion of Bluetooth, Bluetooth LE, and Wi-Fi connectivity makes these modules incredibly versatile. With Wi-Fi, you can establish a large physical range and connect directly to the internet via a Wi-Fi router. Bluetooth functionality allows convenient pairing with smartphones or broadcasting low-energy beacons for easy detection. And with a sleep current of less than 5 µA, the ESP32 chip is perfectly suited for battery-powered and wearable electronics applications.
Specifications
  • MPN: ESP32-WROOM-32D or ESP32-WROOM-32E
  • Manufacturer: Espressif
  • CPU: Xtensa® 32-bit LX6 Dual-core processor
  • Speed: 80 MHz to 240 MHz
  • Chip: ESP32-D0WD
  • Flash: 4MB, 8MB or 16MB
  • ROM: 448 KB
  • SRAM: 520 KB
  • RTC SRAM: 16 KB
  • WiFi: 802.11 b/g/n (802.11n up to 150 Mbps)
  • Bluetooth: v4.2 BR/EDR and Bluetooth LE
  • Antenna: PCB Antenna
  • Package: 38pin SMD Module - 1.27mm pitch
  • Size: 18 x 19.2 x 3.2 mm (±0.2mm)
  • Operating Temperature: -40°C ~ 85°C
  • Supply Voltage: 3.0V~3.6V
