ESP32 WLED PWM LED Controller for Analogue LED Strips

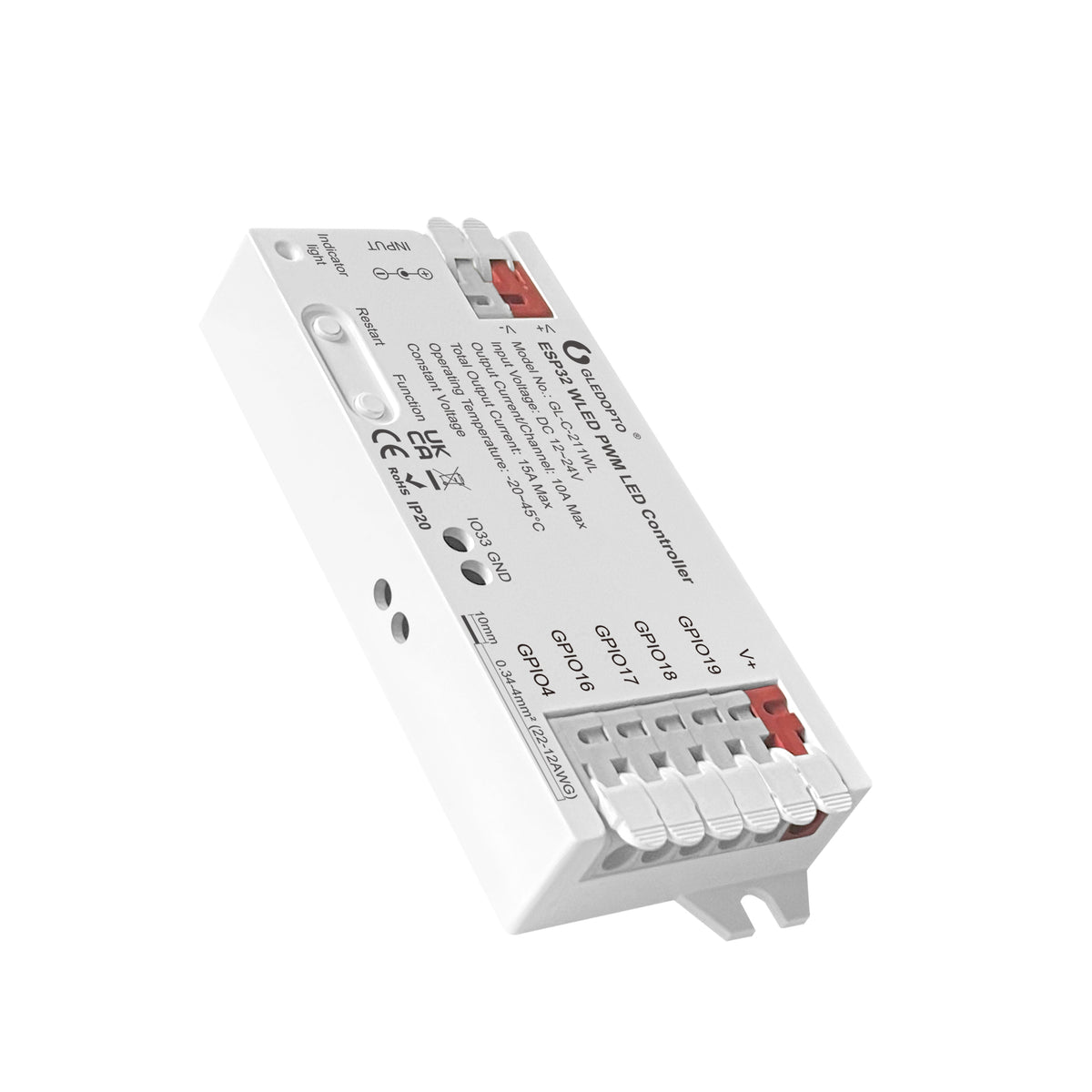

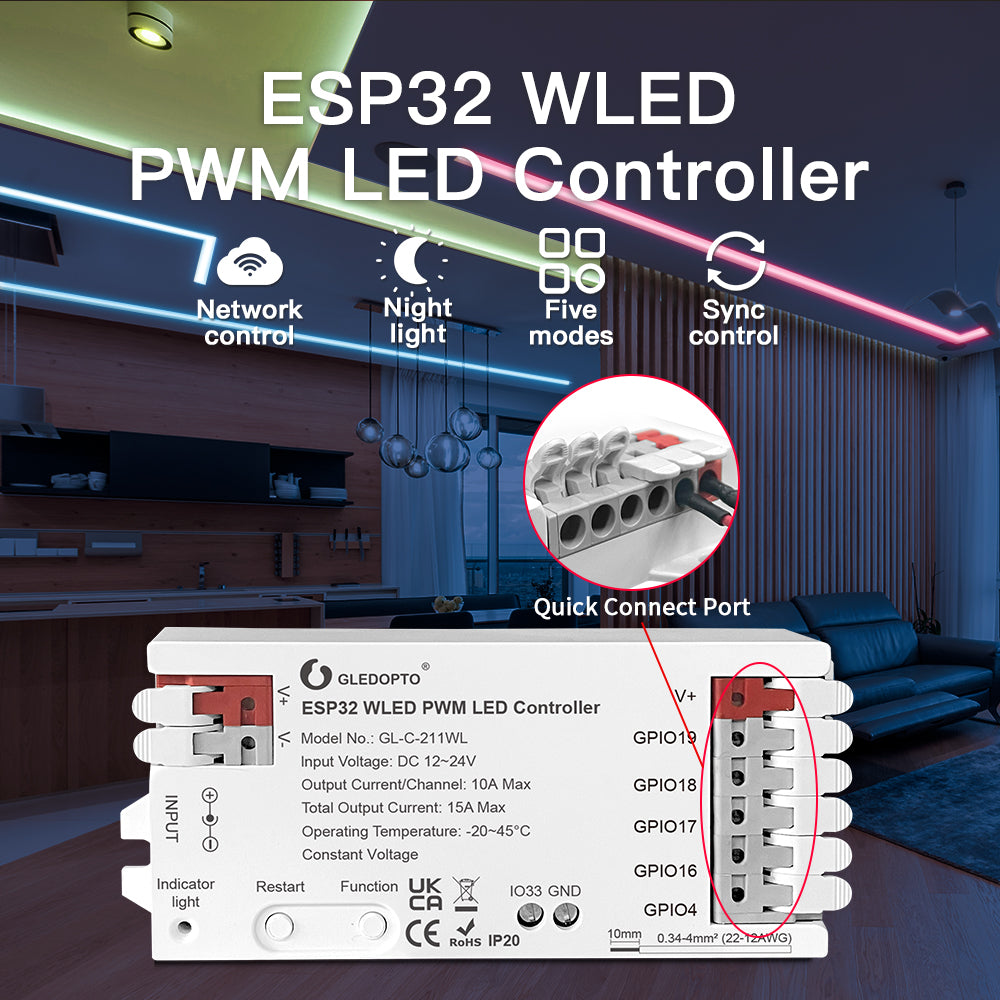

Build flexible smart lighting projects with the GLEDOPTO GL-C-211WL, an ESP32-based Wi-Fi PWM controller designed for compatible analogue LED strips. With WLED control, it provides convenient control of brightness, colour and lighting settings through a local web interface and compatible WLED applications.
Wide Analogue LED Strip Compatibility

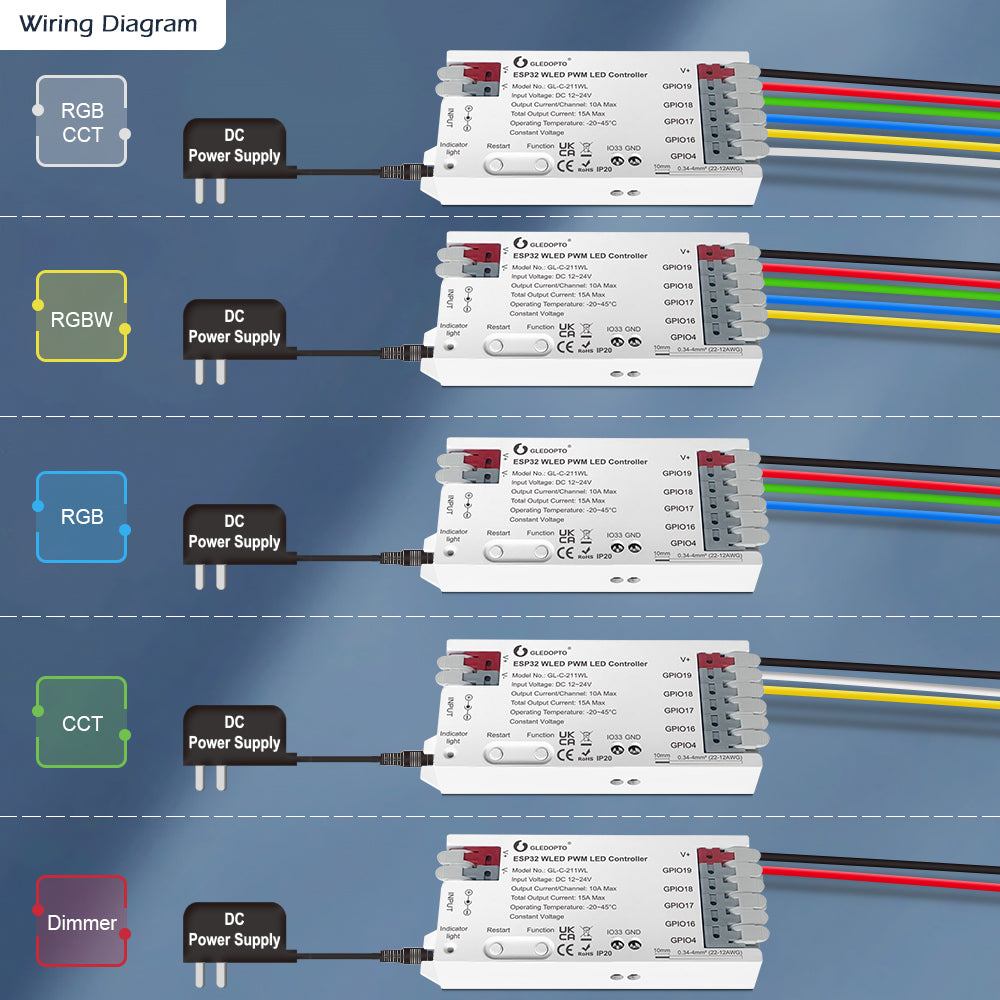

The GL-C-211WL supports several common PWM-dimmable analogue LED strip configurations, including RGB, RGBW, RGBCCT, CCT and single-colour/dimmer strips. It is intended for analogue PWM lighting rather than addressable LED pixel strips.
- RGB: Control red, green and blue channels.
- RGBW: Control RGB channels plus a dedicated white channel.
- RGBCCT: Control RGB and colour-temperature channels on compatible strips.
- CCT: Control compatible warm-white/cool-white strips.
- Single-colour: Provide PWM dimming for compatible monochrome LED strips.
WLED and ESP32 Control

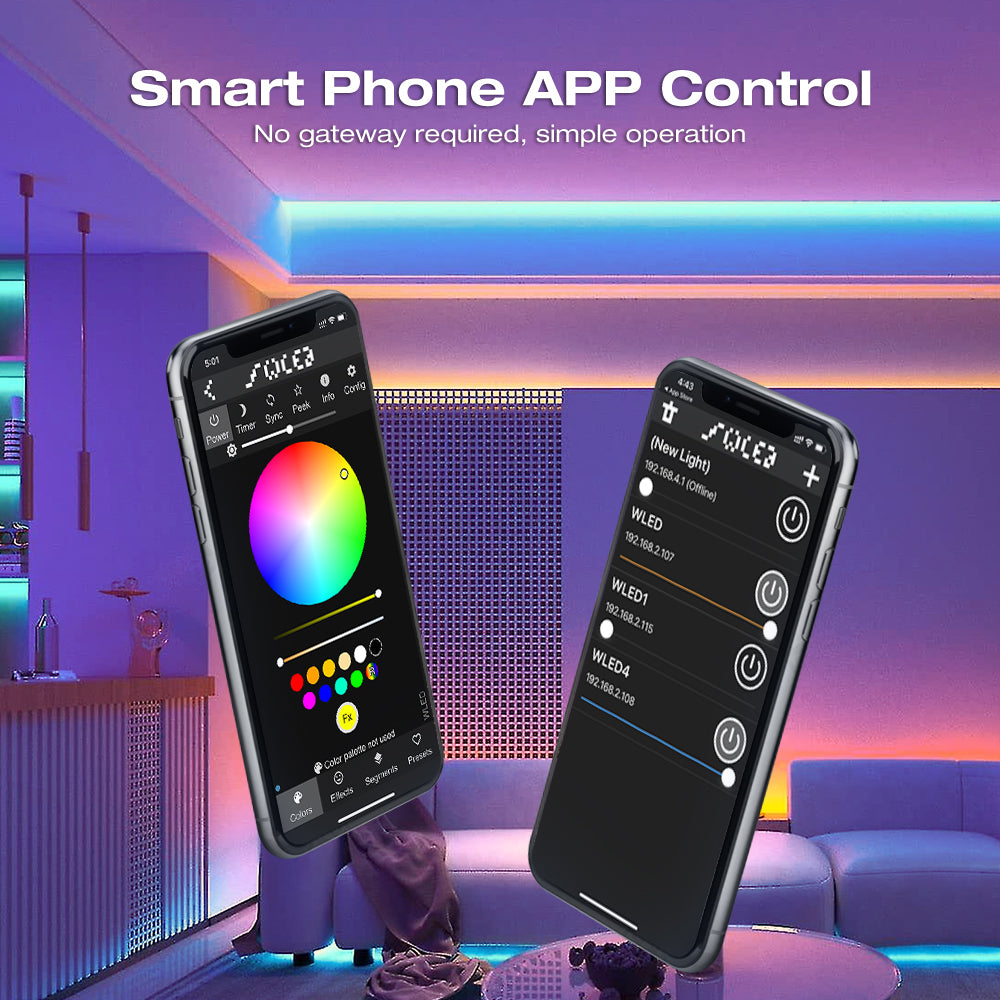

Built around an ESP32 platform and supplied for WLED-based control, the controller can be configured over Wi-Fi and operated through WLED-compatible interfaces. This makes it suitable for DIY lighting projects and smart-home installations where local network control is preferred.
High-Current PWM Output
The controller accepts a DC 12–24V input and is rated for up to 10A per channel, with a maximum total output current of 15A. Select a suitable power supply and ensure that the connected LED strip, wiring and total load remain within the controller and power-supply ratings.
Practical Smart Lighting Applications
The GL-C-211WL can be used for compatible analogue LED strip projects in bedrooms, kitchens, display cabinets, entertainment areas, workshops, feature lighting and other custom lighting installations.
Important Compatibility and Installation Information
- This controller is designed for compatible PWM-dimmable analogue LED strips.
- It is not intended for addressable LED pixel strips.
- Use a DC 12–24V power source that matches the LED strip and installation requirements.
- Do not exceed the 10A maximum channel rating or 15A maximum total output rating.
- The controller has an IP20 rating and should be installed in a suitable dry indoor environment.
- Check the strip type, voltage, wiring, channel load and total load before installation.
- Higher-current installations should be installed and checked by a suitably qualified person.
Specifications

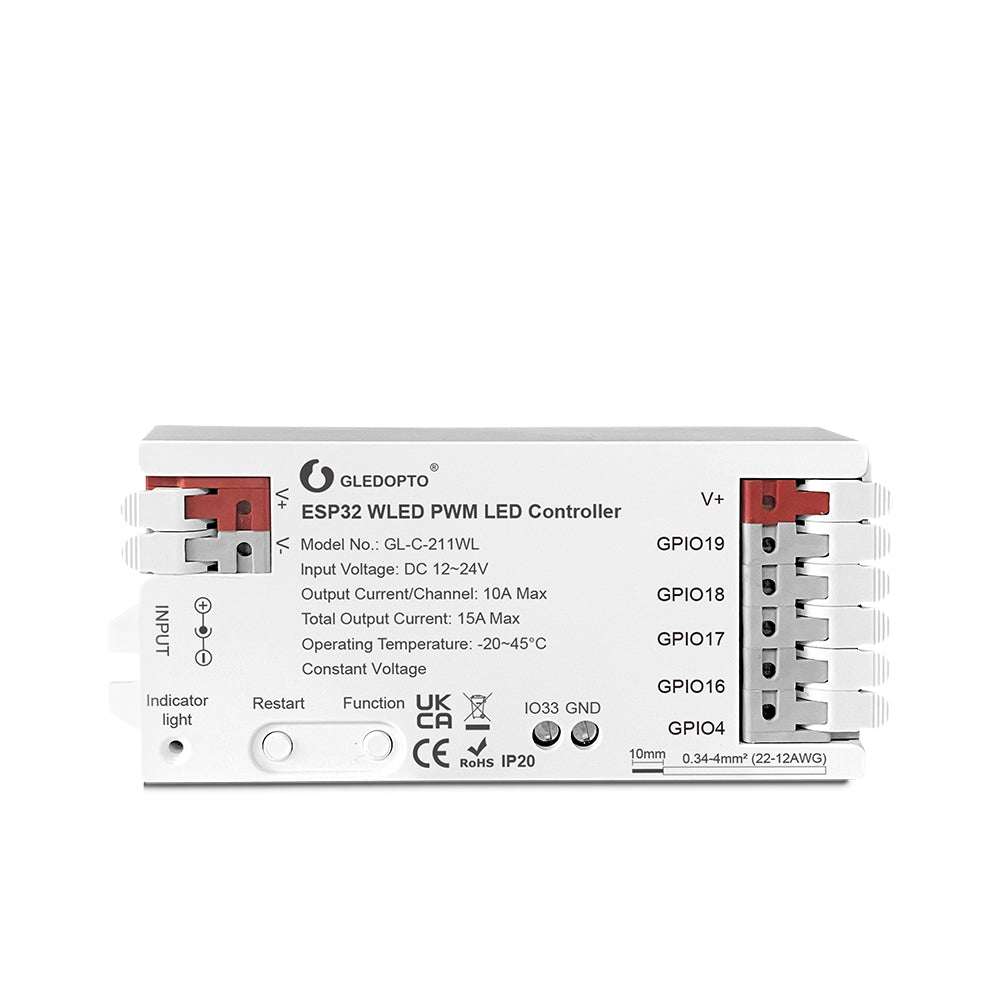

| Model | GLEDOPTO GL-C-211WL |
|---|---|
| Controller Type | ESP32 WLED PWM LED Controller |
| Input Voltage | DC 12–24V |
| Wireless Communication | Wi-Fi |
| Maximum Output Current per Channel | 10A |
| Maximum Total Output Current | 15A |
| Supported Strip Types | RGBCCT, RGBW, RGB, CCT and single-colour/dimmer PWM LED strips |
| Dimensions | 108 × 45 × 18 mm |
| Operating Temperature | -20°C to 45°C |
| IP Rating | IP20 |
| Material | Flame-retardant PC |
| Control Platform | WLED |
- Controller: Gledopto GL-C-211WL
- Firmware: WLED
- Input: 12–24V DC
- Output: Up to 10A per channel, 15A total maximum
- Maximum load: Up to 360W at 24V, subject to the channel and total-current limits
- Strip type: Analogue PWM LED strips RGB, RGBW, CCT, RGBCCT
- Housing: PC enclosure
