ESP32 WLED Mini LED Controller

GLEDOPTO ESP32 WLED Mini LED Controller

The GLEDOPTO GL-C-310WL is a compact E SP32-based WLED digital LED controller designed for WiFi control of compatible addressable LED strips. It works with the WLED app and can be integrated with Home Assistant through its WLED integration, giving you convenient control of lighting effects, brightness, colour and segments.

The GL-C-310WL includes a built-in microphone for sound-reactive lighting effects and uses quick-release terminals for convenient wiring. It accepts DC 5–24V input, supports up to 6A maximum output per channel and has a 10A maximum total output current.

Key Features

• ESP32-based WLED digital LED controller
• WiFi connectivity for wireless WLED control
• Built-in microphone for sound-reactive lighting effects
• Compatible with the WLED app
• Works with Home Assistant through WLED integration
• Designed for compatible addressable/digital LED strips
• DC 5–24V input voltage
• Up to 6A maximum output current per channel
• 10A maximum total output current
• Quick-release wiring terminals
• Compact 42 × 38 × 17 mm enclosure

WLED & Smart Home Control

The GL-C-310WL uses WiFi communication and is designed around the WLED platform. This allows you to control compatible digital LED strips using WLED. Home Assistant also provides a dedicated WLED integration, allowing WLED devices to be discovered and controlled within a Home Assistant installation.

Addressable LED Strip Compatibility

The controller is intended for digital/addressable LED strips supported by WLED. Compatible strip ICs include commonly supported types such as WS2811, WS2812, WS2812B, SK6812, TM1814, WS2813, WS2815 and SM16703P, subject to the specific strip configuration and WLED support.

Sound-Reactive Lighting

The built-in microphone enables sound-reactive lighting effects when supported by the installed WLED firmware and configuration. This makes the controller suitable for ambient lighting, entertainment setups and other applications where LED effects respond to surrounding sound.

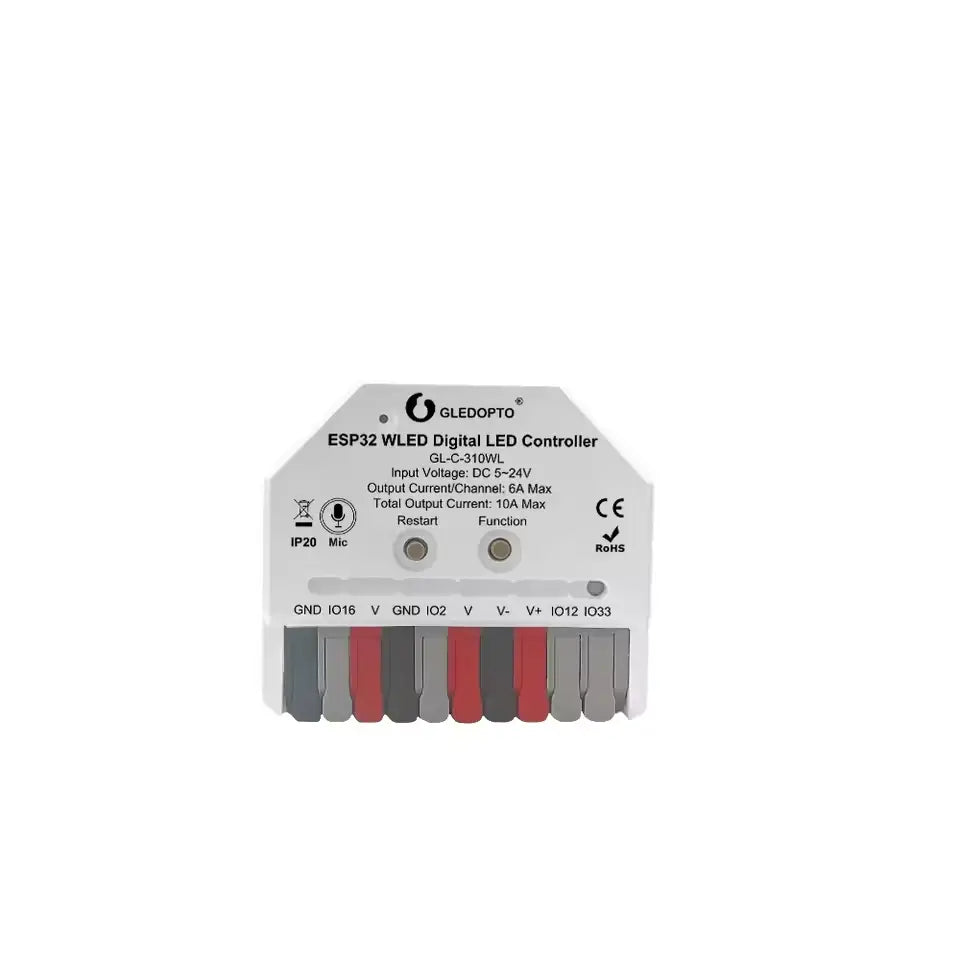

Electrical Specifications

• Model: GL-C-310WL
• Input Voltage: DC 5–24V
• Maximum Output Current per Channel: 6A
• Maximum Total Output Current: 10A
• Communication: WiFi
• Microphone: Yes
• Material: Fireproof PC
• IP Rating: IP20
• Operating Temperature: -20°C to 45°C
• Dimensions: 42 × 38 × 17 mm
• Weight: Approximately 20 g

Power and Load Information

The controller accepts DC 5–24V and is rated for a maximum total current of 10A. The theoretical power limit therefore depends on the supply voltage; for example, 120W at 12V or up to 240W at 24V at 10A. Always size the power supply, wiring and LED strip according to the actual voltage and current requirements of the installation.

Quick Wiring

The controller uses quick-connect terminals for convenient wiring. Disconnect power before making or changing electrical connections, and ensure the LED strip voltage matches the controller's DC input requirements.

Optional Remote Control

A compatible WLED remote control can be offered as an optional accessory where available. The controller itself provides WiFi-based WLED control.

Applications

• Addressable LED strip installations
• Smart home lighting projects
• Home Assistant lighting setups
• Ambient and accent lighting
• Music and sound-reactive lighting
• DIY WLED projects
• Entertainment and decorative lighting

Package Information

Please confirm the exact package contents supplied with your listing before publishing this section as a guaranteed specification. The controller and documentation are commonly supplied with this model, but package contents can vary by seller or bundle.
