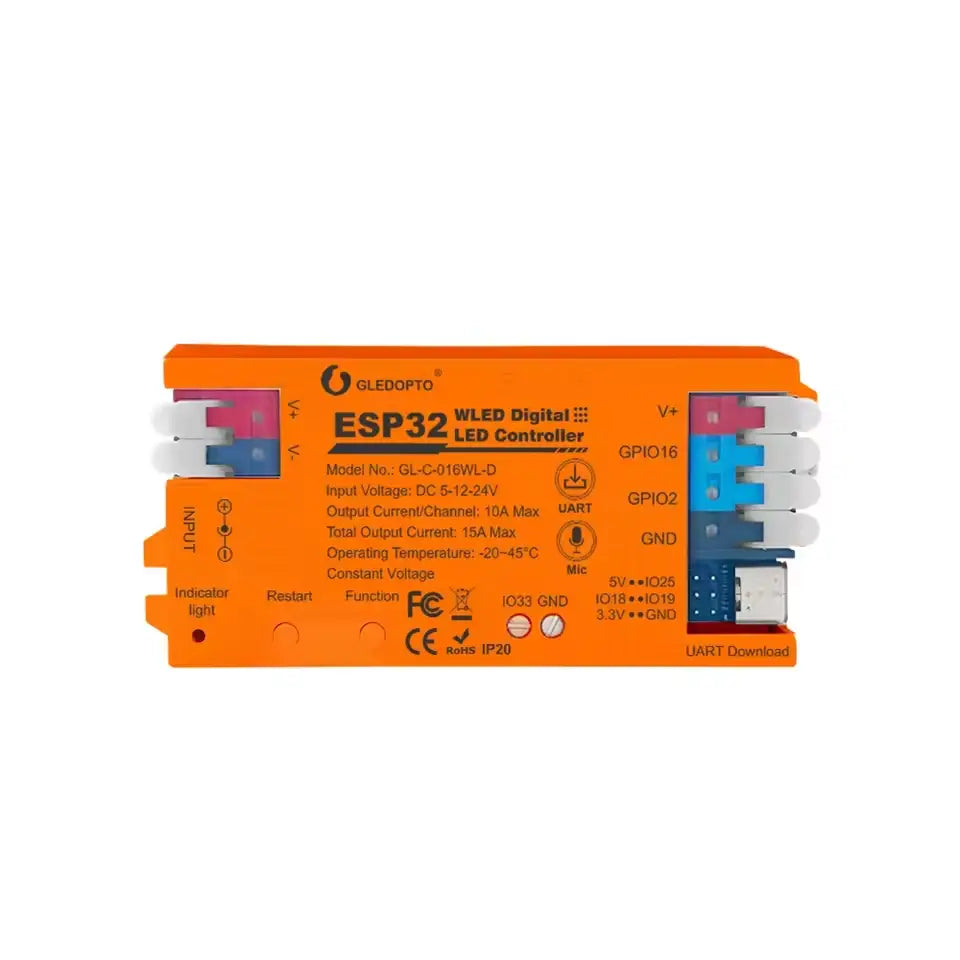

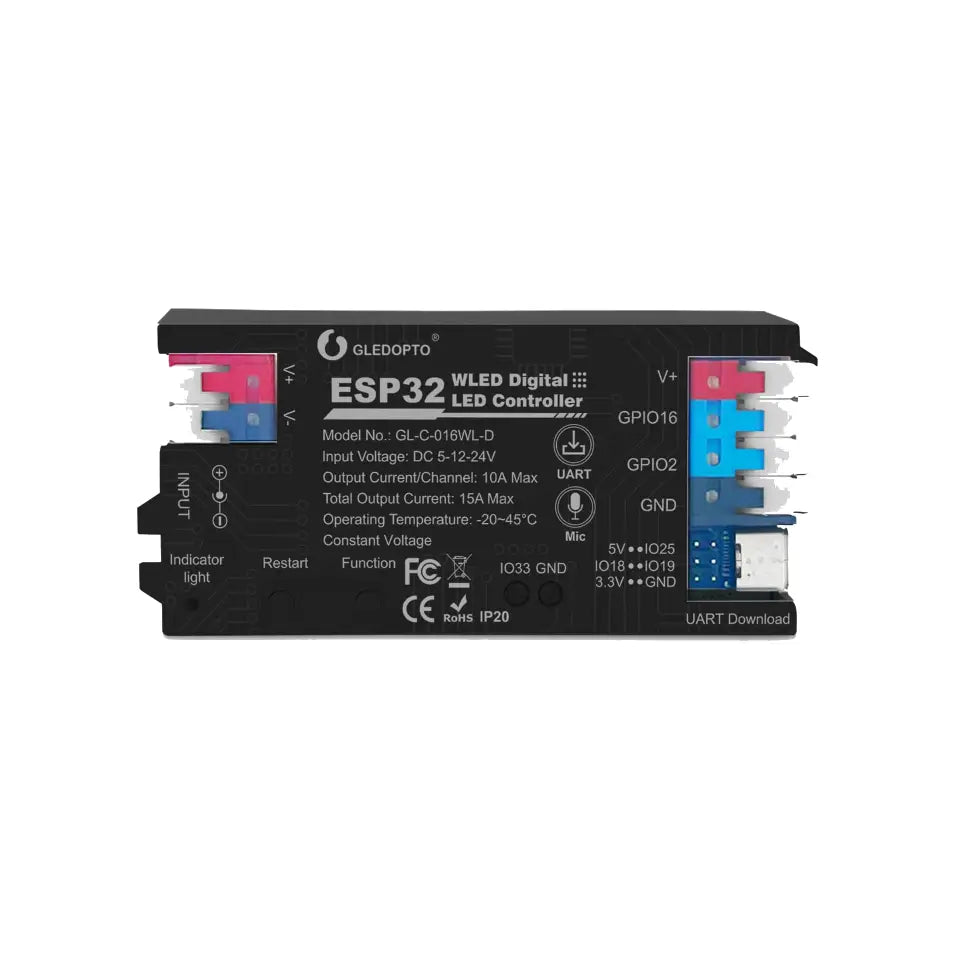

The GLEDOPTO GL-C-016WL-D is an ESP32-based WLED digital LED controller designed for addressable LED strip lighting. It supports 5V, 12V and 24V DC input and provides two LED output channels, with a maximum total output current of 15A and up to 10A per channel.
With built-in Wi-Fi and a digital microphone, the controller can be configured through WLED for dynamic lighting effects and sound-reactive lighting. A USB Type-C UART interface is provided for firmware downloading, while the controller also includes extended GPIO connections for DIY applications.
Key Features
- ESP32-based WLED digital LED controller
- Two addressable LED output channels
- Built-in digital microphone for sound-reactive lighting
- Wi-Fi control through WLED
- Supports 5V, 12V and 24V DC input
- 10A maximum output current per channel
- 15A maximum total output current
- USB Type-C UART interface for firmware download
- Built-in relay function for switching LED output power

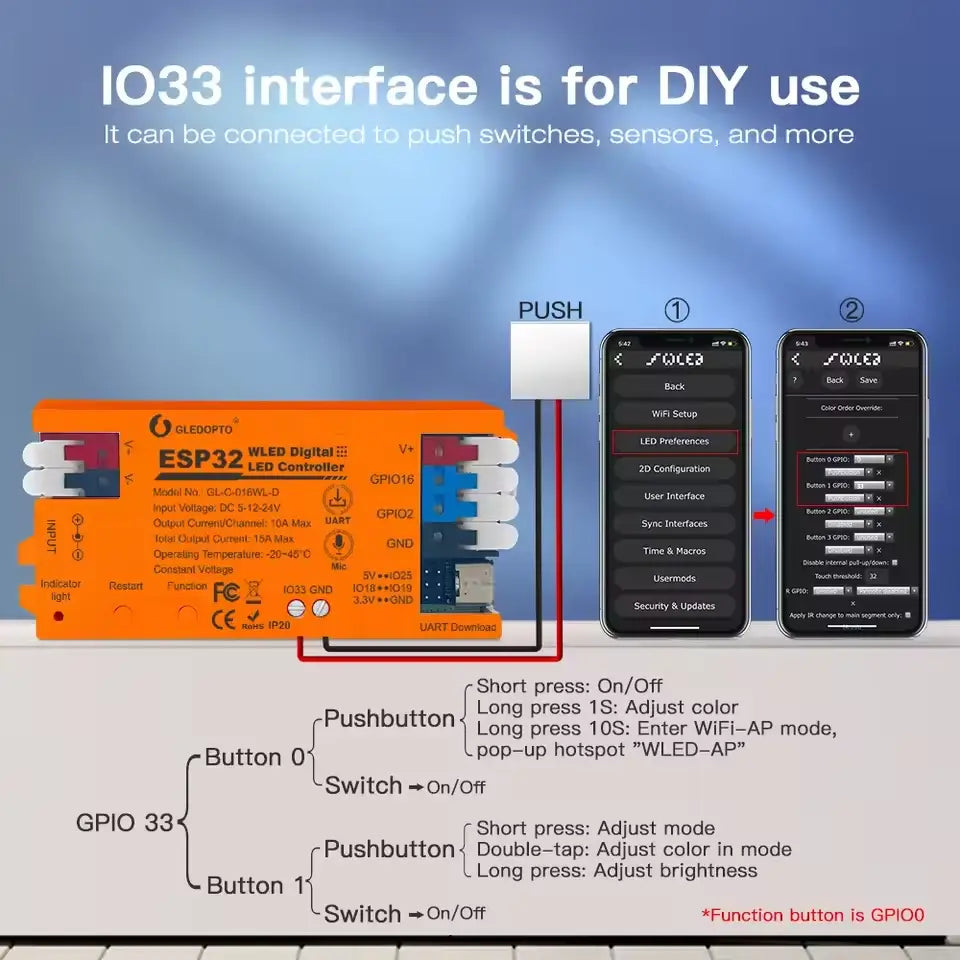

- Extended GPIO connections for DIY applications
- Suitable for a range of addressable LED protocols
Addressable LED Compatibility
The GL-C-016WL-D is designed for digital/addressable LED strips and supports commonly used LED protocols including WS2812B, WS2811, WS2813, WS2815, SK6812, TM1814 and GS8208. Compatibility can depend on the LED strip and its required data configuration, so the strip settings should be configured correctly in WLED before operation.
Sound-Reactive Lighting
The built-in digital microphone allows compatible WLED audio-reactive features to respond to surrounding sound or music. The microphone function can be configured through WLED's usermod settings and requires the controller to be restarted after configuration.
WLED and Wi-Fi Control
The controller uses Wi-Fi for WLED control, allowing users to configure LED type, effects, colors, brightness and other supported WLED settings from a compatible WLED interface. The controller can be initially configured through its WLED access point and then connected to a local Wi-Fi network.
Power and Output
The controller accepts DC 5V, 12V or 24V input. The maximum output current is 10A per channel, with a maximum total output current of 15A. Always match the controller input voltage to the LED strip and power supply requirements and keep the current within the specified limits.
USB Type-C UART
A USB Type-C UART interface is provided for firmware downloading and updates. This makes the controller convenient for users who need to configure or update the WLED firmware.
Technical Specifications

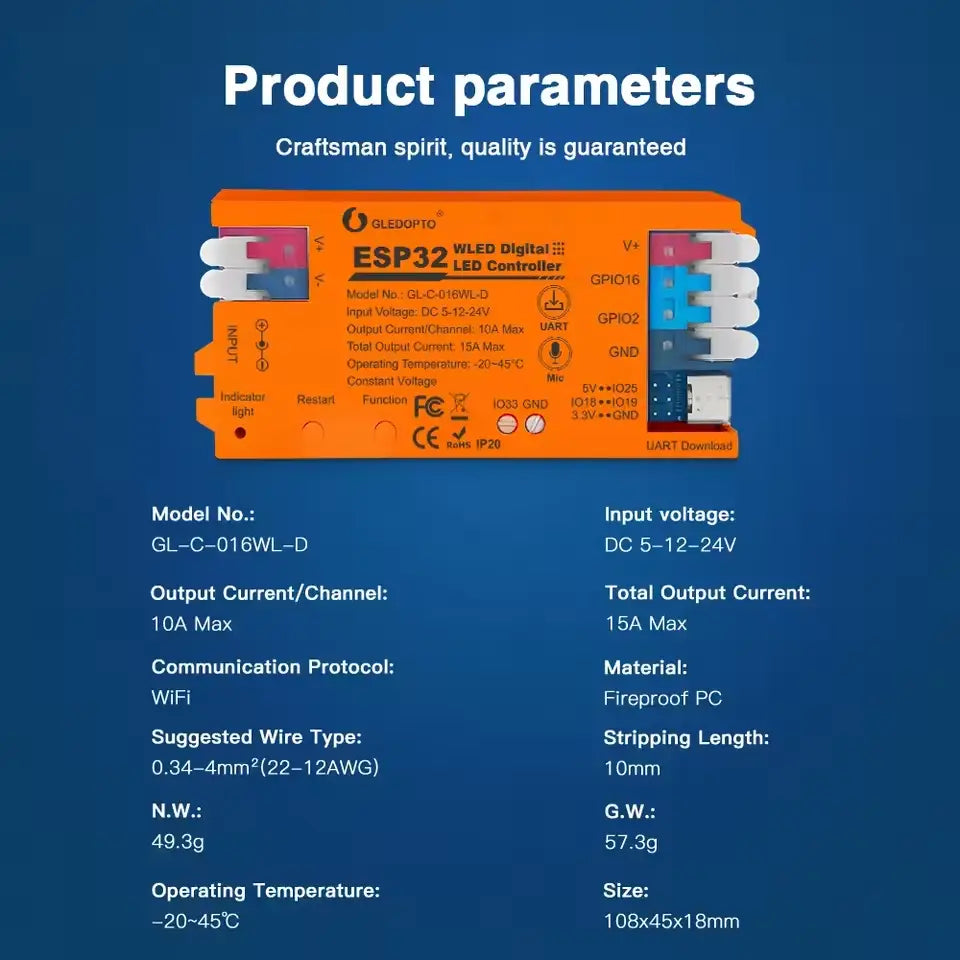

| Brand | GLEDOPTO |
|---|---|
| Model | GL-C-016WL-D |
| Controller Platform | WLED / ESP32 |
| Chipset | ESP32 |
| Input Voltage | DC 5V / 12V / 24V |
| Output Channels | 2 |
| Maximum Output Current per Channel | 10A |
| Maximum Total Output Current | 15A |
| Control Protocol | Wi-Fi |
| Microphone | Built-in digital microphone |
| USB Interface | USB Type-C UART |
| Dimensions | 108 × 45 × 18 mm |
| Operating Temperature | -20°C to 45°C |
| IP Rating | IP20 |
| Material | Flame-retardant PC |
What's Included
GLEDOPTO GL-C-016WL-D ESP32 WLED digital LED controller. Power supply, LED strip and optional remote control are not included unless specifically stated in the product variant or order.
Important Compatibility and Power Notes
This is a controller for addressable/digital LED strips, not a conventional single-colour or non-addressable RGB strip controller. Check the LED strip's voltage, protocol and current requirements before connection. Do not exceed 10A on an individual output channel or 15A total output current.
Frequently Asked Questions
What is the GLEDOPTO GL-C-016WL-D?
The GL-C-016WL-D is an ESP32-based WLED controller for controlling addressable LED strips over Wi-Fi.
How many LED strips can it control?
It provides two addressable LED output channels, allowing two LED outputs to be configured.
What voltage does the controller support?
It supports DC 5V, 12V and 24V input.
What is the maximum current?
The maximum output current is 10A per channel and 15A total across the controller.
Does it support sound-reactive lighting?
Yes. It has a built-in digital microphone for compatible WLED audio-reactive features.
Can I update the WLED firmware?
Yes. The controller includes a USB Type-C UART interface for firmware downloading.
Does it work with WLED?
Yes. It is designed for WLED control over Wi-Fi.
Does it include a remote control?
The controller supports an optional WLED Wi-Fi remote control. The remote is not automatically included unless the selected product variant or order specifically states that it is included.
- Model: GL-C-016WL-D
- Chip: ESP32
- Input: 5V-24V
- Current: 10A per channel
- MaxLoad: 15 A
- Dimensions: 18x45x108mm
- Supported LEDs: WS2812B WS2811 WS2813 WS2815 SK6812 TM1814 APA102 WS2801 LDP8806 GS8208
