Product description

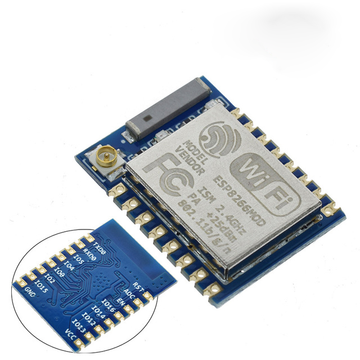

The ESP-07 is a compact and cost-effective Wi-Fi module designed for IoT applications. It is based on the ESP8266 chip and features 1MB flash and a built-in Wi-Fi transceiver. The module is easy to hand solder and is more compact compared to the ESP-12 modules as it uses a compact ceramic antenna. Apart from the antenna all other features are the same as the ESP-12F.

The ESP-07 drops the bottom row of pads compared to the ESP-12F (these pads can't be used for connection under normal circumstances anyway), it is also a slightly smaller module. All other features are identical to the ESP-12F.



Features:

  • ESP8266 32-bit microcontroller
  • 1MB flash memory
  • WiFi connectivity
  • Multiple communication interfaces: UART, SPI, I2C
  • Supports station and soft-AP wireless modes
  • Low power consumption
  • Ceramic Antenna
  • Compatible with Arduino, Micropython, Tasmota and ESPHome
  • Easy to hand solder

This module can replace modules such as: BT3L, CB3S, CB3L, C-8138, ESP-12, FL_M93_V1, T103, TYWE3L, TYWE3S, XR3, WB3, WB3L, WB3R, WB3S, WB8, WR3, WR3E, WR3L, WR3N

Specifications
  • Microcontroller: ESP8266EX (32-bit single-core SoC)
  • Operating Voltage: 3.3V
  • Digital Input/Output Pins: 11
  • Analog Input Pins: 1 (10-bit resolution)
  • Clock Speed: 80 MHz to 160 MHz
  • Flash Memory: 1 MB
  • RAM: 80 KB
  • WiFi: 802.11 b/g/n
  • Antenna: On-board ceramic antenna
  • Operating Temperature: -40°C to 85°C
  • Dimensions: 21.2mm x 16.0mm x 3.0mm
