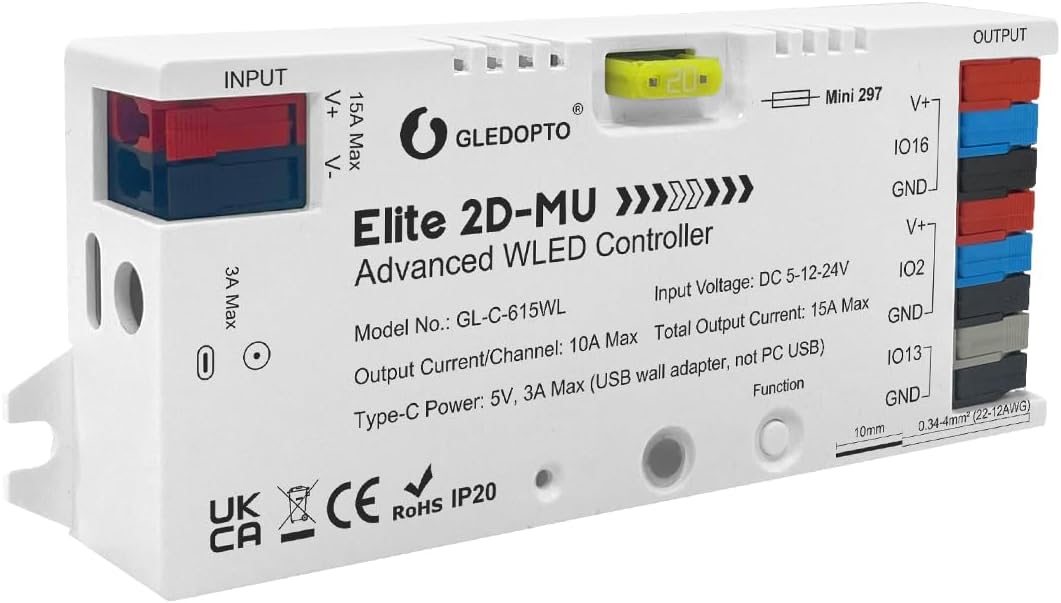

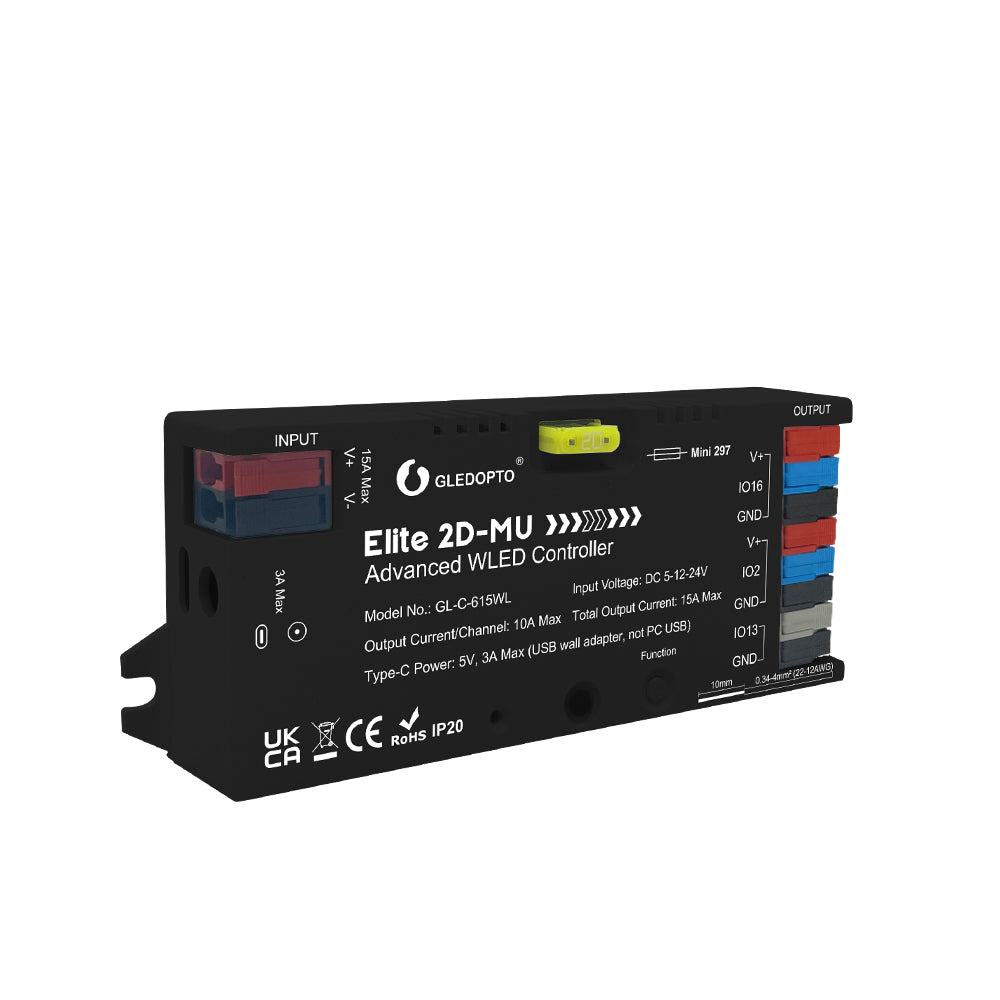

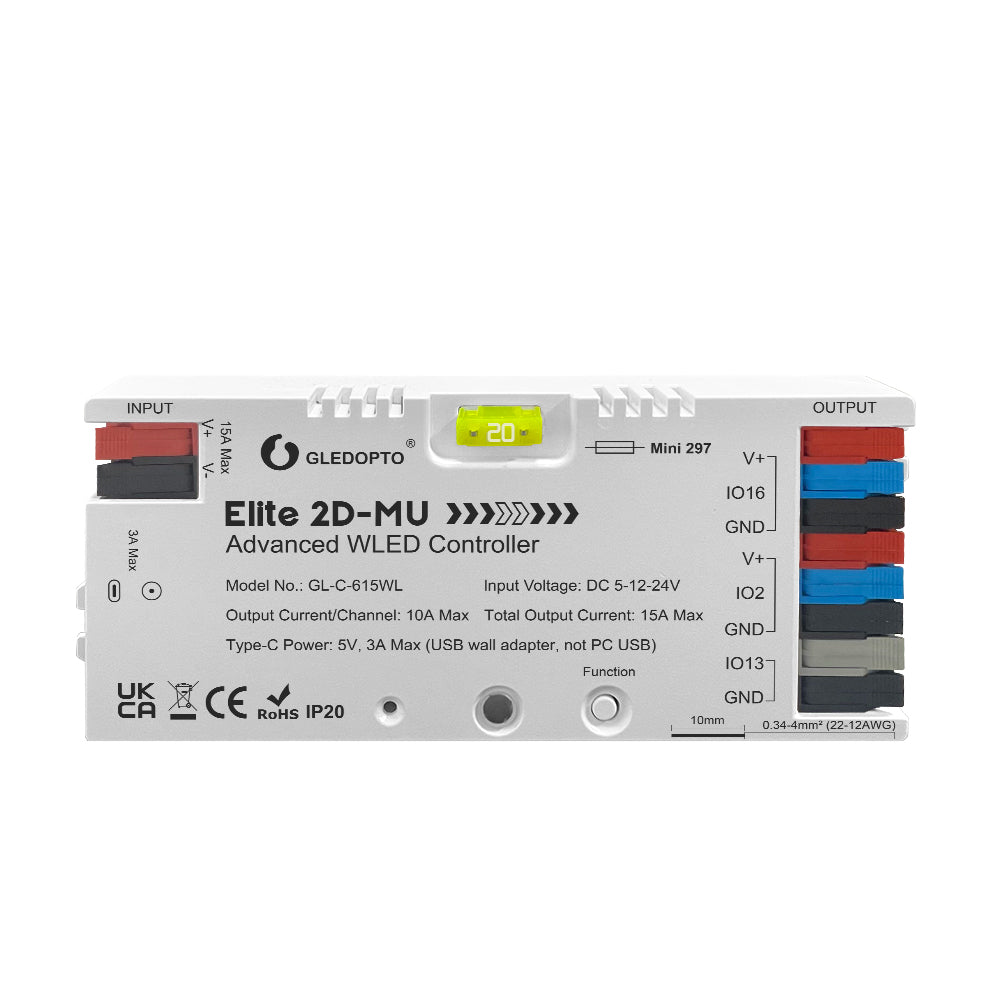

Elite 2D-MU WLED Addressable Controller

Take Complete Control of Your Addressable LED Lighting

Create dynamic, responsive lighting with the Elite 2D-MU WLED Addressable Controller, an advanced ESP32-based controller designed for two independent addressable LED circuits.

✔ Supports 5V, 12V & 24V Addressable LED Strips
✔ Up to 15A Maximum Current
✔ Built-In Digital Microphone for Sound-Reactive Lighting
✔ 2 Independent LED Channels
✔ Quick-Release Wire Terminals
✔ OTA & USB Type-C Firmware Updates

Built for custom WLED installations, gaming rooms, entertainment spaces, DIY lighting projects, and advanced LED automation.

Built for Flexible LED Control, Designed for Easier Installation

Creating a professional addressable LED setup can become complicated when different voltage requirements, wiring, control methods, and lighting effects need to work together.

The Elite 2D-MU WLED Addressable Controller brings these functions together in one practical ESP32-based platform. It supports 5V, 12V, and 24V addressable LED strips while providing two independent channels for more flexible lighting control.

The integrated digital microphone adds sound-reactive functionality, allowing compatible lighting effects to respond to audio frequencies and music. Quick-release terminals also make installation faster by removing the need for soldering.

Whether you're building immersive room lighting, a gaming setup, entertainment lighting, or a custom WLED project, the Elite 2D-MU gives you greater control with less installation complexity.

Why Choose the Elite 2D-MU WLED Controller?

Choosing an addressable LED controller is about more than simply powering LED strips. Reliable connections, flexible voltage support, channel control, and convenient updates all matter when building a lighting system.

The Elite 2D-MU combines:

ESP32-based WLED control for advanced addressable LED applications

5V, 12V & 24V compatibility for greater LED strip flexibility

Two independent channels for separate addressable LED circuits

Up to 15A maximum current across all channels, with individual power allocation available

Built-in digital microphone for sound-reactive LED control

OTA and USB Type-C updates for convenient firmware management

Quick-release terminals for faster, solder-free wiring

Every feature is designed to give you a more flexible and practical solution for modern addressable LED lighting.

Why the Elite 2D-MU Compared to Basic LED Controllers

The Difference You Notice Immediately

Dynamic Sound-Reactive Lighting

The built-in I2S PDM digital microphone detects audio frequencies, allowing compatible WLED effects to react dynamically to music and sound.

Support for Multiple LED Voltages

Use compatible 5V, 12V, or 24V addressable LED strips, giving you more freedom when planning or upgrading your lighting system.

Control Two LED Circuits

Two independent addressable LED channels allow you to manage separate LED circuits for more customised lighting configurations.

Simplify Installation

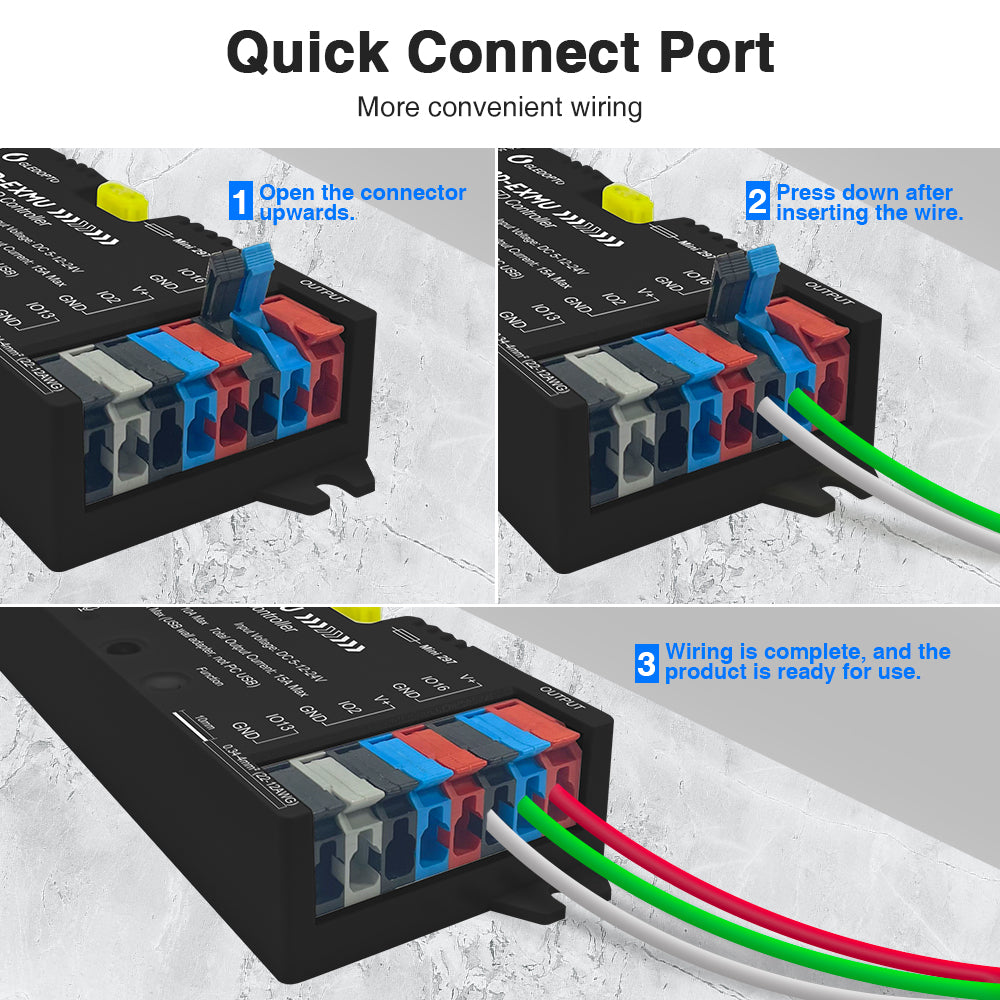

Quick-release wire terminals eliminate the need for soldering, helping you connect and adjust your LED setup more efficiently.

Keep Firmware Up to Date

Use OTA updates or the USB Type-C port for convenient firmware updates and ongoing compatibility improvements.

Add Flexible Control Options

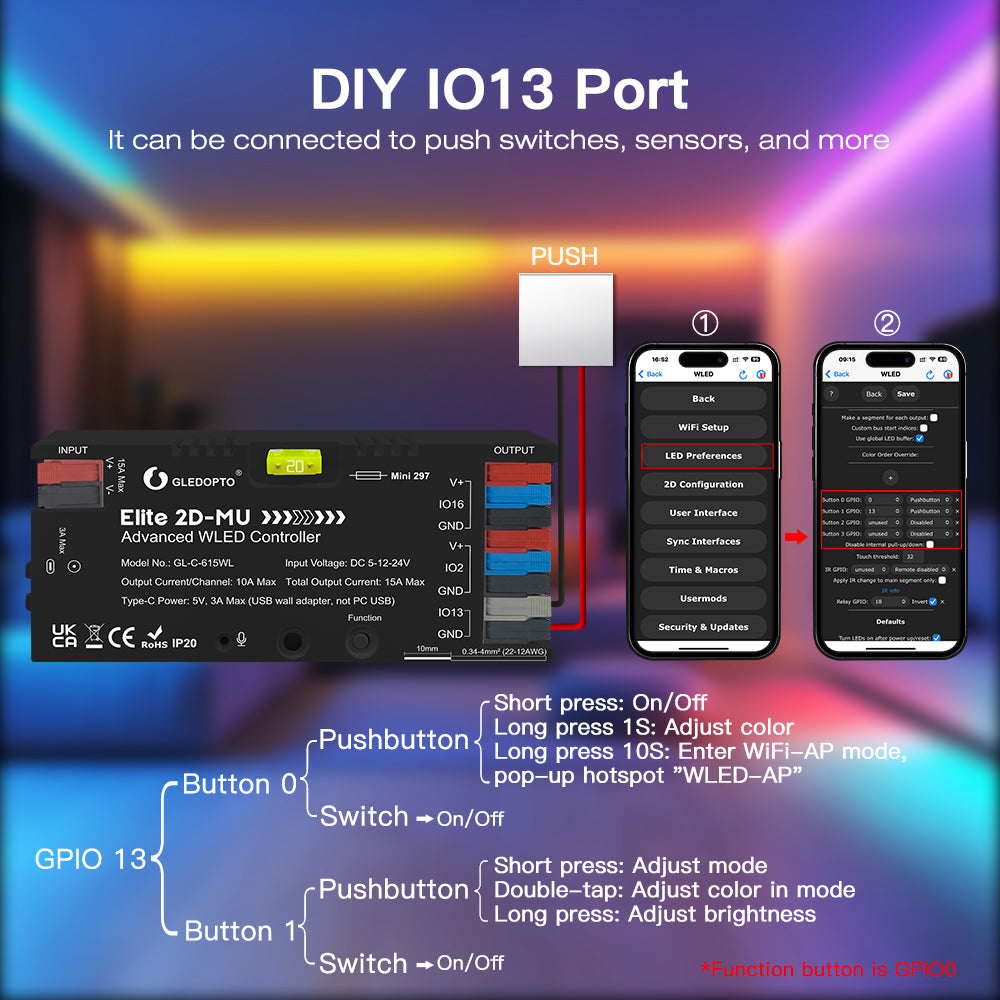

Use DIY switch control or add the optional Gledopto WLED WiFi Remote Control for an additional control method.

Premium Features

How to Use the Elite 2D-MU

Using the controller is straightforward:

1. Connect compatible addressable LED strips to the quick-release terminals.

2. Select the appropriate 5V, 12V, or 24V configuration for your LED strips.

3. Connect the required power supply according to your setup.

4. Configure your WLED lighting effects.

5. Use the built-in microphone for compatible sound-reactive lighting effects.

6. Control your lighting through your chosen control method.

7. Update firmware through OTA or USB Type-C when required.

Always ensure the LED strip voltage and power requirements match your installation before connecting the controller.

Who Is It For?

The Elite 2D-MU WLED Addressable Controller is ideal for:

• DIY LED lighting enthusiasts

• WLED users

• Gaming room setups

• Home entertainment lighting

• Custom addressable LED projects

• Smart lighting enthusiasts

• LED installers and makers

• Sound-reactive lighting projects

• Users upgrading existing addressable LED systems

If you want more control over your addressable LED strips without adding unnecessary installation complexity, the Elite 2D-MU provides a flexible platform for your project.

Compatibility & Control

The Elite 2D-MU supports 5V, 12V, and 24V addressable LED strips and provides two independent LED channels.

Maximum current is 15A across all channels, while Type-C USB power supports up to 3A maximum.

The GL-C616WL version includes an Ethernet port. DIY switch control is supported, while an optional Gledopto WLED WiFi Remote Control can provide an additional control option.

Specifications

Frequently Asked Questions

What LED strips does the Elite 2D-MU support?

The controller supports compatible 5V, 12V, and 24V addressable LED strips.

How many LED channels does it have?

It provides two independent addressable LED channels for flexible lighting configurations.

Does it support sound-reactive lighting?

Yes. The built-in I2S PDM digital microphone captures audio frequencies for compatible sound-reactive WLED lighting effects.

What is the maximum current?

The controller supports up to 15A maximum across all channels. Type-C USB power supports up to 3A.

Does installation require soldering?

No. The quick-release wire terminals are designed to simplify connections without soldering.

How can I update the firmware?

Firmware can be updated over the air (OTA) or through the USB Type-C port.

Does it support remote control?

Yes. DIY switch control is supported, and an optional Gledopto WLED WiFi Remote Control is available for additional control.

Does every version include Ethernet?

The GL-C616WL version includes an Ethernet port.

Bring Your WLED Lighting to Life

Build a more flexible and responsive addressable LED system with the Elite 2D-MU WLED Addressable Controller. With ESP32 technology, two independent channels, 5V/12V/24V compatibility, up to 15A current capacity, built-in sound reactivity, quick-release terminals, and OTA or USB Type-C firmware updates, it gives you the control needed for custom WLED lighting projects.

Whether you're upgrading a gaming room, creating sound-reactive entertainment lighting, or building a customised addressable LED installation, the Elite 2D-MU is designed to make advanced lighting control simpler and more flexible.

Upgrade your LED setup today and take greater control of your WLED lighting.
