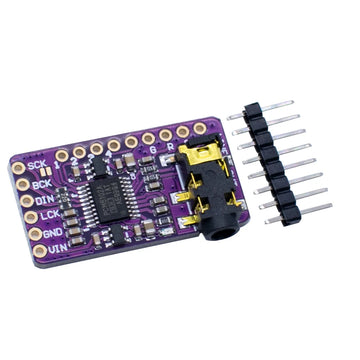

PCM5102 audio DAC for ESP32
GY-PCM5102 front and back views
GY-PCM5102 schematic
GY-PCM5102 dimensions
PCM5102 audio DAC for ESP32
GY-PCM5102 front and back views
GY-PCM5102 schematic
GY-PCM5102 dimensions
Generic - GY-PCM5102

PCM5102 Digital Audio Stereo DAC

Regular price $11.00
Sale price $11.00 Regular price
Unit price
Add high-quality audio output to your embedded projects
Ask a question

Ask a Question

* Required fields

Size guide Share
PCM5102 audio DAC for ESP32

PCM5102 Digital Audio Stereo DAC

Regular price $11.00
Sale price $11.00 Regular price
Unit price
Product description
Specifications
Related Links
Shipping & Returns
Product description
Discover the hidden audio capabilities of ESP32 modules with the GY-PCM5102 Audio DAC Module. This module harnesses the built-in I2S bus support of ESP32 to add high-quality audio output to your embedded projects. Whether you're creating a media player or designing your own voice assistant using ESPHome's new voice assist feature, this compact and versatile module is an indispensable addition to your audio setup.

Featuring the advanced PCM5102 DAC chip, renowned for its exceptional audio quality and precise conversion capabilities, the GY-PCM5102 module transforms your digital audio signals into stunning analog output. Immerse yourself in your favorite music, movies, and games with unparalleled clarity and detail.

Integrating the GY-PCM5102 module into your existing audio system is a breeze. Its user-friendly interface with analog output connectors ensures seamless connectivity to amplifiers, speakers, or headphones of your choice. The module supports I2S communication, making it compatible with a wide range of microcontrollers and development boards, including Arduino, ESP32, Rasberry Pi or Pico and more.

With its impressive 32-bit resolution and support for sampling rates up to 384kHz, the GY-PCM5102 delivers an incredibly accurate and immersive audio experience. Let every note and sound come to life as you upgrade your audio output to new heights of fidelity.

Elevate your listening experience today with the GY-PCM5102 Audio DAC Module. Rediscover your favorite music with remarkable clarity and fidelity, and explore the vast possibilities of high-quality sound reproduction. Unleash the true potential of digital audio and embark on an audio journey like never before.
Specifications
  • Model: PCM5102
  • Type: I2S DAC Decoder
  • Interface: I2S
  • Audio Format: PCM
  • Sampling Rate: 384kHz
  • Resolution: 32-bit
  • Dimensions: 29mm x 16mm
  • Embedded Platforms: Arduino, ESP32, Raspberry Pi
  • Jumpers (back of board):
  • 1. FLT - Filter select : Normal latency (Low) / Low latency (High)
  • 2. DEMP - De-emphasis control for 44.1kHz sampling rate: Off (Low) / On (High)
  • 3. XSMT - Soft mute control(1): Soft mute (Low) / soft un-mute (High)
  • 4. FMT - Audio format selection : I2S (Low) / Left justified (High)
