M5Stack - M5Stamp S3

M5Stamp S3 - ESP32-S3

Regular price $26.95
Sale price $26.95 Regular price
Unit price
Ask a question

Ask a Question

* Required fields

Size guide Share

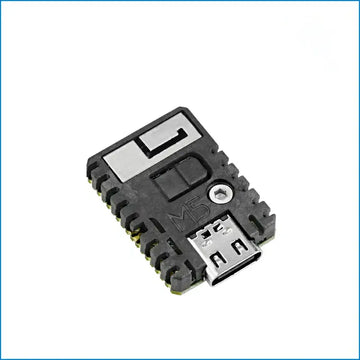

M5Stamp S3 - ESP32-S3

M5Stamp S3 - ESP32-S3

Regular price $26.95
Sale price $26.95 Regular price
Unit price
Product description
Specifications
Related Links
Shipping & Returns
Product description
The M5Stamp S3 stands out as a seamlessly integrated embedded controller tailored for IoT applications. Engineered with the Espressif ESP32-S3FN8 as its main microcontroller and boasting 8MB of SPI flash memory, this module delivers robust performance. Powered by a high-performance Xtensa 32-bit LX7 dual-core processor, M5Stamp S3 impresses with processing power reaching up to 240MHz core speeds. Crafted to meet the specific needs of IoT projects relying on embedded control modules, M5Stamp S3 ensures a reliable and stable operation.

This module features a built-in 5V to 3.3V circuit, guaranteeing a steady power supply for uninterrupted functionality. Additionally, it incorporates an RGB LED indicator and a programmable button to enhance user control and provide visual feedback. With 23 GPIOs leading out on the ESP32-S3, M5Stamp S3 facilitates extensive expansion capabilities. These GPIOs are easily accessible through 1.27mm/2.54mm headers, supporting diverse usage methods like SMT, DIP headers, and jump wire connections. In a compact form factor, M5Stamp S3 combines robust performance, abundant expansion IO, and low power consumption.

M5Stamp S3 emerges as the ideal solution for IoT applications demanding embedded controllers. Its compact size and extensive features make it a versatile choice for various projects, offering reliable performance and flexible expansion options.Product

Features:

  • Three  soldering options are available (SMT, DIP, flywire)
  • High-temperature resistant plastic enclosure, Peak temperature = 230℃
  • Efficient 5V->3.3V DC/DC design
  • GPIOx23
  • USB Type C port
  • Programmable RGB LED x1, Reset button x1, button x1
  • 3D antenna, providing stable and reliable wireless communication.
  • Platform support: Arduino, ESP32-IDF, Tasmota, ESPHome, ESPEasy, M5Stack UI Flow
Includes:
    • 1 x M5Stamp S3
    • 1 x Heat Resistant Sticker
    • 1x 2.54mm Headers set (to use all GPIO you need to use 1.27mm headers (not included)
    Specifications
    • MCU: ESP32-S3FN8 (Dual core Xtensa LX7)
    • DCDC: MUN3CAD01-SC
    • Flash: 8MB
    • Input voltage: 5V
    • Interactive: Programmable physical buttons x 1, programmable RGB LED (WS2812B-2020) x 1
    • Antenna: 2.4G 3D antenna
    • Wireless: Wifi, Bluetooth 5 and BLE
    • Interfaces: Touch sensor, SD/SDIO/MMC master controller, SPI, SDIO/SPI slave controller, EMAC, motor PWM, LED PWM, UART, I2C, I2S, GPIO, pulse counter
    • Connections: SMT/DIP (pitch 2.54mm and 1.27mm)/Jump Wire
    • IO spacing: 2.54mm or 1.27mm
    • Operating temperature: 0°C to 40°C
    • Product Size: 26mm × 18mm × 5mms.
