Hi-Link - LD2410B

LD2410 24GHz mmWave Human Presence Bluetooth Sensor

Regular price $11.00
Sale price $11.00 Regular price
Unit price
Ask a question

Ask a Question

* Required fields

Size guide Share
LD2410 24GHz mmWave Human Presence Bluetooth Sensor

LD2410 24GHz mmWave Human Presence Bluetooth Sensor

Product description
Specifications
Related Links
Shipping & Returns
Product description

Introducing Hailingco Electronics' LD2410 mmWave Human Presence Sensors - the perfect addition to your smart home network. With Bluetooth support and compatibility with Home Assistant (they were added to Home Assistant in version 2023.02), these sensors fill the gap left by traditional PIR motion detectors that forget you're in the room if you're not moving!


These modules are highly sensitive and utilize FMCW FM continuous wave technology to detect human targets in your room. Combining radar signal processing and accurate human sensing algorithms, they achieve high precision. With a sensing distance of up to 5 meters and a distance resolution of 0.75m, these modules accurately identify human bodies in motion or at rest and calculate the distance of the target and other auxiliary information.

Whether you're using them for home automation or security applications, the LD2410B and LD2410C with Bluetooth and Home Assistant support are versatile solutions for human presence detection. If you're experiencing range issues with Bluetooth from your Home Assistant hub, we recommend using these modules with a ESPHome Bluetooth proxy.

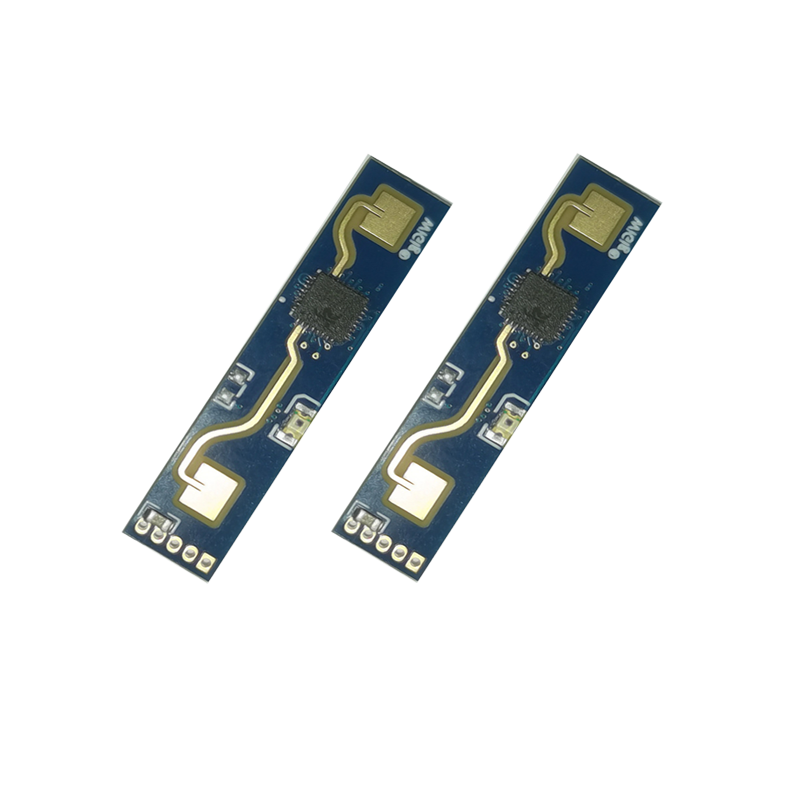

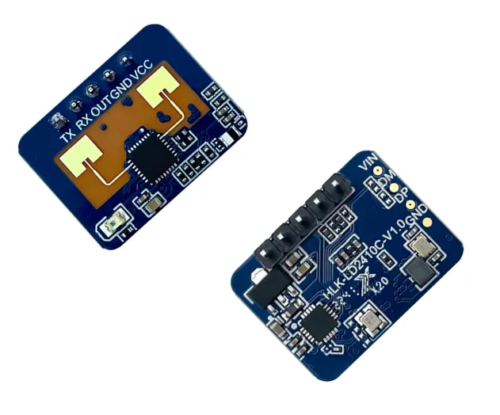

Please note that the LD2410B and LD2410C are identical except for their form factor and pin header sizes. The LD2410B has a 1.27mm pin header, while the LD2410C has a full-size 2.54mm pin header. Customize the sensing distance range and sensitivity in different zones to suit specific application requirements using the visual configuration tools provided. Choose Hi-Link LD2410B or LD2410C mmWave Human Presence Sensors for highly accurate human presence detection in your smart home network.

Features:

  • Plug and Play Sensor Module: This module offers easy assembly and requires minimal setup time.
  • Long-range Sensing: This device provides the longest sensing distance of up to 5 meters, making it suitable for various indoor sensing applications.
  • Wide Detection Angle: With a large detection angle of up to ±60 degrees, this device can cover a broad area and detect movement from different angles.
  • Accurate Identification: The module offers accurate identification within the sensing interval and supports the division of the sensing range. It also shields the interference outside the sensing interval.
  • Multi-level Intelligent Parameter Adjustment: This device offers multi-level intelligent parameter adjustment, allowing it to adapt to various changing scenarios.
  • Visual Debugging and Configuration Tools: This device provides visual debugging and configuration tools that make it easy to configure and debug the module.

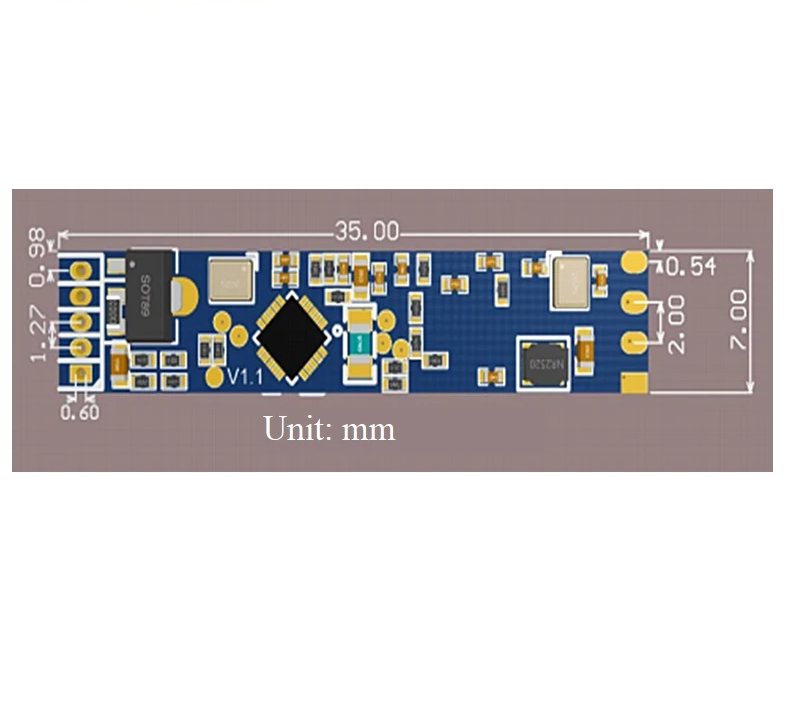

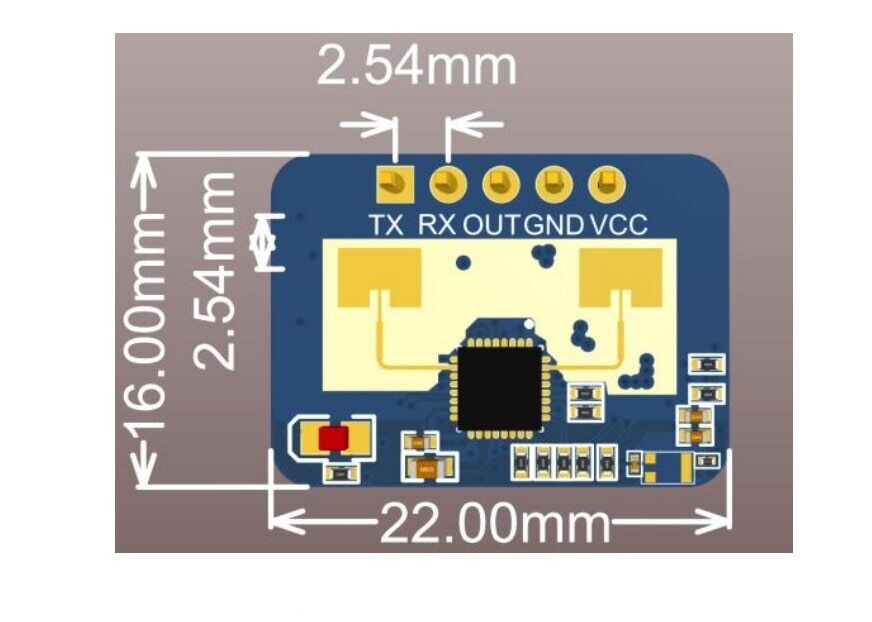

  • Compact and Simplified Design: The module has a small and simplified design, with the minimum size being only 16mmx22mm.

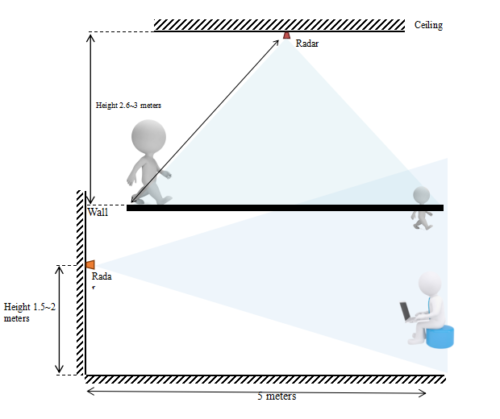

  • Various Installation Methods: The device supports various installation methods such as ceiling hanging and wall hanging.
  • 24GHz ISM Band Compliance: The device operates on the 24GHz ISM band, compliant with FCC and CE spectrum regulations.
  • Wide Voltage Power Supply: This module supports a wide voltage power supply range of 5-12V.
  • Ultimate Cost-Effective Choice: Overall, this device offers the ultimate cost-effective choice for users looking for a high-performance sensing module.
