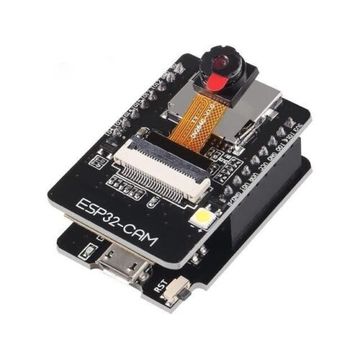

ESP32-CAM module with development motherboard and 66° camera lens. Great for any IoT project that needs vision.
ESP32-CAM pinout diagram
ESP32-CAM camera module + 66° camera
ESP32-CAM-MB Development motherboard for the ESP32-CAM. provides USB to UART for programming ESP32-CAM
ESP32-CAM module with development motherboard and wide angle fish eye lens
ESP32-CAM module with development motherboard and 66° camera lens. Great for any IoT project that needs vision.
ESP32-CAM pinout diagram
ESP32-CAM camera module + 66° camera
ESP32-CAM-MB Development motherboard for the ESP32-CAM. provides USB to UART for programming ESP32-CAM
ESP32-CAM module with development motherboard and wide angle fish eye lens
AI Thinker - ESP32-CAM-MB

ESP32-CAM-MB with OV2640 Camera

Regular price $12.00
Sale price $12.00 Regular price
Unit price
Very capable and affordable IoT Camera board. Stream videos to your Home Automation setup!
Ask a question

Ask a Question

* Required fields

Size guide Share
ESP32-CAM module with development motherboard and 66° camera lens. Great for any IoT project that needs vision.

ESP32-CAM-MB with OV2640 Camera

Product description
Specifications
Related Links
Shipping & Returns
Product description

The ESP32-CAM is a small, low-cost camera module that can be integrated into a variety of projects. It features an ESP32 microcontroller, which includes Wi-Fi and Bluetooth connectivity, as well as a built-in camera module with a resolution of up to 1080p. The module also includes a microSD card slot for storing captured images and videos. It's ideal for IoT projects, remote monitoring, and other applications that require a low-cost, low-power camera solution. With the ability to easily connect to the internet, it can also stream live video, and is compatible with a wide range of development platforms such as Arduino, MicroPython, and the ESP-IDF.

This ESP32-CAM development board can be used with ESPHome or Tasmota etc to stream pictures and/or videos to your Smart Home platforms such as Home Assistant, Openhab or Domoticz.

If you wish to use an external antenna with this device, which will greatly improve WiFi signal, there is a small modification required. Most kits on the market even when bundled with antennas don't include this mod. We still soon offer these modified boards for sale. Sign up for out of stock notification if you want to be notified.

Specifications
  • Low-power dual-core 32-bit CPU for application processors
  • 38-pin Development Board
  • Main frequency up to 240MHz, computing power up to 600 DMIPS
  • Built-in 520 KB SRAM, external 4M PSRAM
  • Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC
  • Support OV2640 and OV7670 cameras, built-in flash
  • Support image WiFi upload
  • Support TF card
  • Support multiple sleep modes
  • Embedded Lwip and FreeRTOS
  • Support STA/AP/STA+AP working mode
  • Support Smart Config/AirKiss one-click distribution network
  • Support secondary development
