Sonoff - ZBBridge-P

Sonoff Zigbee Bridge Pro

Name: Sonoff Zigbee Bridge Pro
Brand: Sonoff
SKU: ZBBridge-P
Price: 45.8 AUD
Availability: InStock

$45.80

Tax included.

Firmware: eWeLink

eWeLink

Tasmota

Ask a question

Size guide

Share

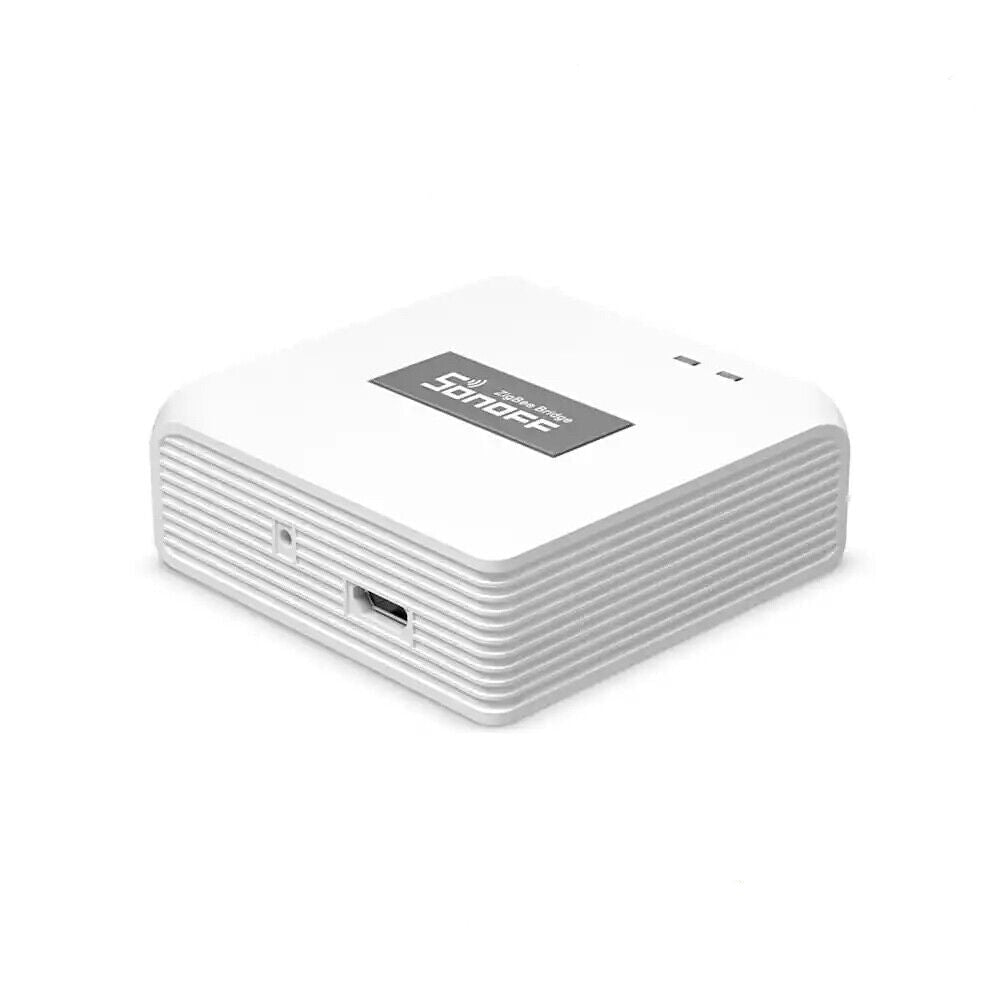

Sonoff Zigbee Bridge Pro

The SONOFF Zigbee Bridge Pro module creates a bridge between your Zigbee devices and your WiFi network, allowing you to seamlessly integrate both protocols. It is an upgraded version of the original Sonoff Zigbee bridge that offers increased capacity and stability. With a capacity of up to 128 connected devices, 4 times its predecessor, you can add a variety of wireless sensors, switches, power sockets, etc. Plug-in powered devices can also serve as Zigbee routers, extending the range and capacity of your Zigbee network.

eWeLink firmware is the standard Sonoff firmware for use with the eWeLink App.

Tasmota firmware is for use with any of the open home automation platforms such as Home Assistant, OpenHAB, Domoticz and more. It will work with any plugin based on Zigpy, ZHA or Zigbee2MQTT.

Features:

【Supports adding up to 128 sub-devices】Zigbee Bridge Pro supports adding sub-devices increased from 32 to 128.
【Smart Home Security】Set up home security modes, such as home mode, away mode, and sleep mode. The bridge can be used as a local alarm.
【Local Smart Scene】Timing and scene linkage between Zigbee devices can be executed normally even if the network is disconnected.
【Wi-Fi & Zigbee Dual-protocol Support】Make communication between Zigbee devices and WiFi devices.
【Strong Connectivity, Limitless Possibility 】The Bridge supports to add ZigBee devices from many manufacturers.

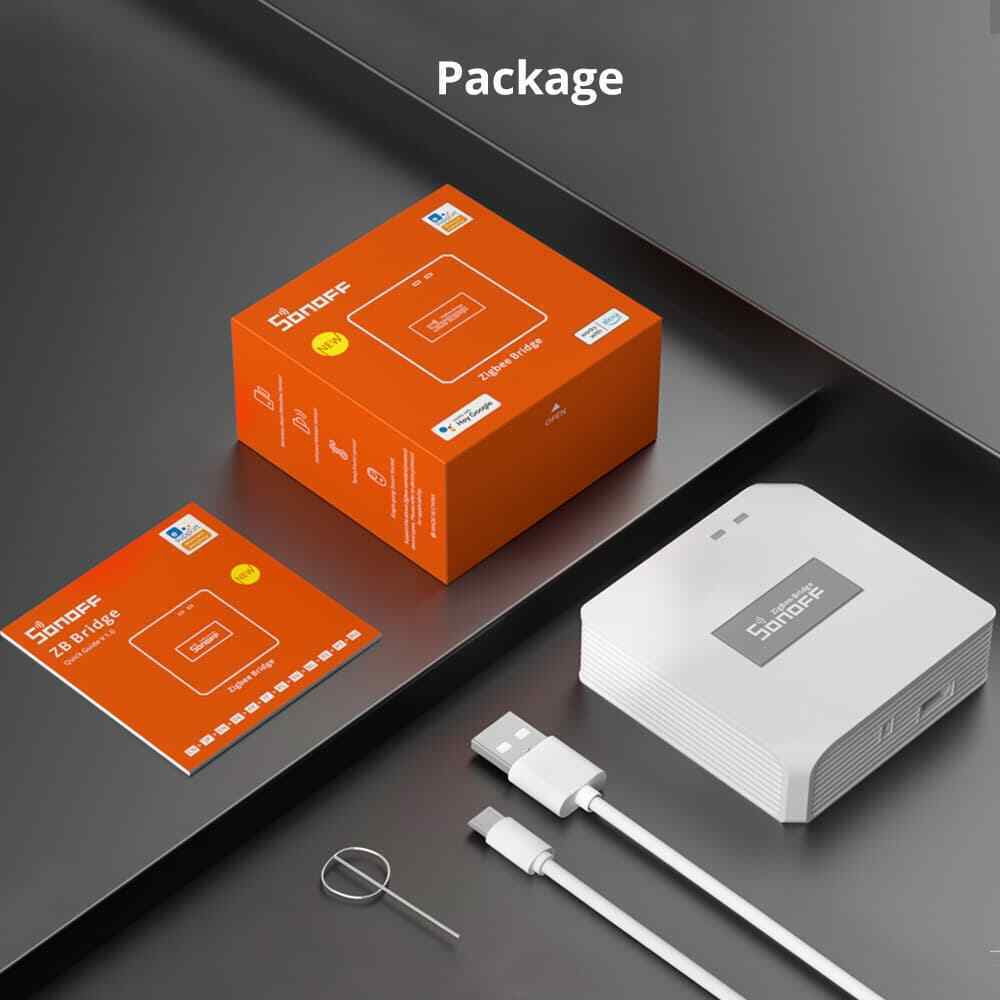

Package includes:

1 x SONOFF ZBBridge Smart Bridge Pro
1x Micro USB cable
1x Reset Pin

Microcontroller: ESP32
Zigbee Coordinator: cc2652
Input: 5V 1A
Wireless Connections: IEEE 802.11 b/g/n 2.4GHZ, Zigbee 3.0
Material: PC V0
Dimensions: 62X62X20mm
Supported Sub-devices: BASICZBR3 Smart Switch, S31 Lite zb Smart Plug, SNZB-01 Wireless Switch, SNZB-02 Temperature & Humidity Sensor, SNZB-03 Motion Sensor, SNZB-04 Wireless Door/Window Sensor.
Supported Sub-devices (Tasmota version): Supports the majority of Zigbee devices from most vendors on the market.

Following links are for the Tasmota version
Setup guide for Home Assistant and ZHA:
https://dialedin.com.au/blog/sonoff-zbbridge-p-setup

Device setup: https://zigbee.blakadder.com/Sonoff_ZBBridge-P.html

Platforms:
https://www.home-assistant.io/integrations/zha/
https://www.zigbee2mqtt.io/

Database of supported devices
https://zigbee.blakadder.com/
