WeAct - ESP32-C6-A-N4

ESP32-C6 Dev Kit

Name: ESP32-C6 Dev Kit
Brand: WeAct
SKU: ESP32-C6-A-N4
Price: 24.5 AUD
Availability: InStock

$24.50

GST included.

Model: 4MB Flash

4MB Flash

8MB Flash

Quantity

Ask a question

Size guide

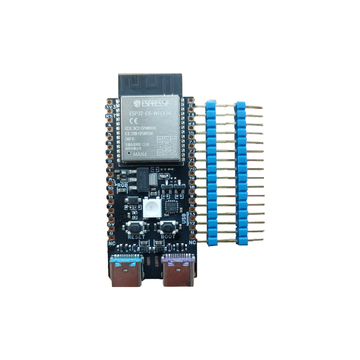

ESP32-C6 Dev Kit

Product description

Experience the versatility and performance of the ESP32-C6 module on a development kit that makes it easy to get started with module. Bringing the latest in connectivity options, is a remarkable solution designed to meet the demands of various industries such as smart homes, industrial automation, health care, consumer electronics, and more. This development kit offers a comprehensive range of features and peripherals, making it the perfect choice for your next project.

This module requires ESP-IDF v5.1, or Arduino-ESP 3.0 framework. Experimental support for ESPHome and Tasmota is available now. This module is pin compatible with the Espressif ESP32-C6-DevKitC-1. It can be used with the Matter demo apps for Wifi or Thread connectivity.

The ESP32-C6 module excels in providing seamless connectivity with support for WiFi 6, Bluetooth, and the first model to add a 802.15.4 radio for Zigbee and Thread support. This enables you to effortlessly connect your devices to local networks, communicate with other Bluetooth-enabled devices, and join Zigbee or Thread networks for advanced automation and control. Also provided are dual-USB Type-C ports for on-board USB to UART Serial and also direct USB Connection. There is also an RGB led on GPIO8.

At the core of this module lies the ESP32-C6, a 32-bit RISC-V single-core processor renowned for its reliability and efficiency. The ESP32-C6 integrates an impressive array of peripherals, including SPI, parallel IO interface, UART, I2C, I2S, RMT (TX/RX), LED PWM, USB Serial/JTAG controller, MCPWM, SDIO2.0 slave controller, GDMA, TWAI® controller, on-chip debug functionality via JTAG and up to 23 GPIOs, among others. This comprehensive set of features empowers you to build and customise your applications with ease.

Unleash the power of the ESP32-C6 module on this development kit and unlock endless possibilities for your smart projects. Whether you're a professional developer or an enthusiast, this module will elevate your creations to new heights.

Specifications

MCU: ESP32-C6-WROOM-01-N4
Manufacturer: Espressif
CPU: ESP32-C6 32-bit RISC-V single-core processor
USB-1: CH343 USB to Uart serial
USB-2: Direct USB
Speed: 80 MHz to 240 MHz
Chip: ESP32-C6
Flash: 4MB
ROM: 320 KB
HP SRAM: 512 KB
LP SRAM: 16 KB
WiFi: WiFi 6 - 802.11 b/g/n/ax (up to 150 Mbps)
Bluetooth: v5.3 Bluetooth, Mesh and Bluetooth LE
802.15.4: Zigbee 3.0, Thread 1.3
Antenna: PCB Antenna
Operating Temperature: -40°C ~ 85°C
Supply Voltage: 3.0V~3.6V
Platforms: ESP-IDF v5.1, Arduino-ESP 3.0, ESPHome, Tasmota
