Sonoff Zigbee 3.0 USB Dongle Plus featured image

Sonoff - ZBDongle-P

Sonoff Zigbee 3.0 USB Dongle Plus

Name: Sonoff Zigbee 3.0 USB Dongle Plus
Brand: Sonoff
SKU: ‎ZBdongle-P
Price: 52.95 AUD
Availability: InStock

$52.95

Tax included.

Add support for Zigbee to your smart home platform. Eliminate the need for multiple gateways from different vendors.

Ask a question

Size guide

Share

Sonoff Zigbee 3.0 USB Dongle Plus

$52.95

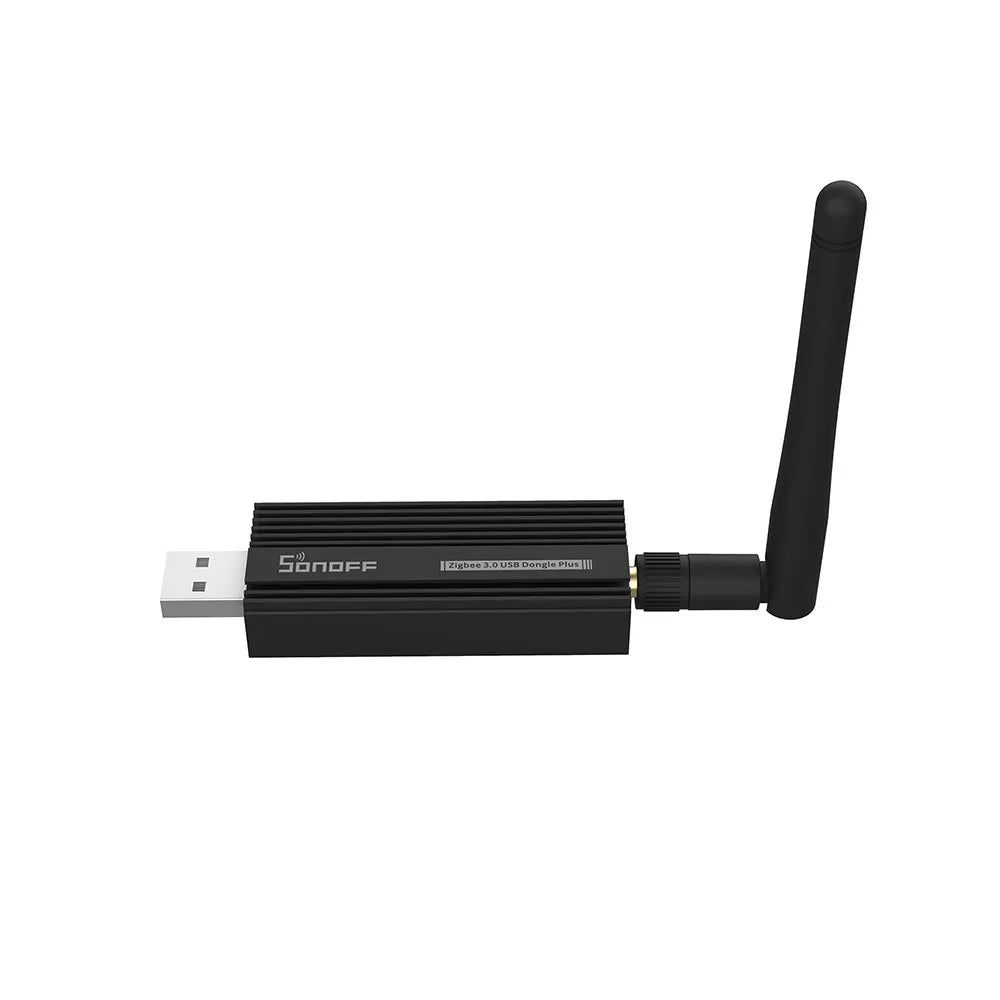

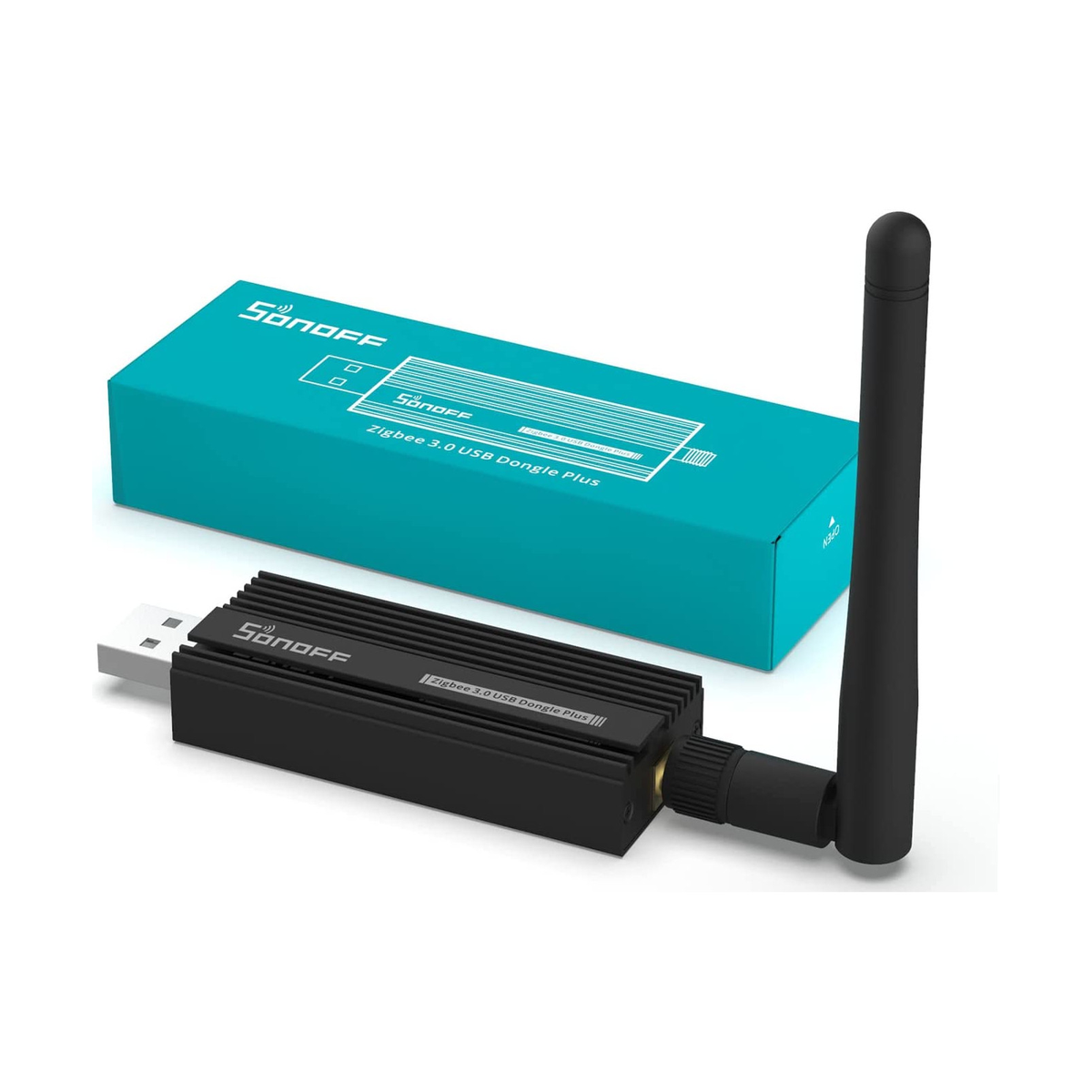

The SONOFF Zigbee 3.0 USB Dongle Plus (ZBDongle-P) is your solution to locally control Zigbee devices in your smart home. Connect and control all your Zigbee devices using this universal USB Zigbee gateway without any dependence on a working internet connection. Compatible with popular home automation platforms such as Home Assistant, OpenHAB, and Domoticz via Zigpy, ZHA, or Zigbee2MQTT, this dongle eliminates the need for multiple brand specific hubs.

This is original ZBDongle-P model, based on the Texas Instruments cc2652P Zigbee chipset, it is highly sought after but difficult to obtain due to global chip shortages. The cc2652P has the best support in Zigbee2MQTT.

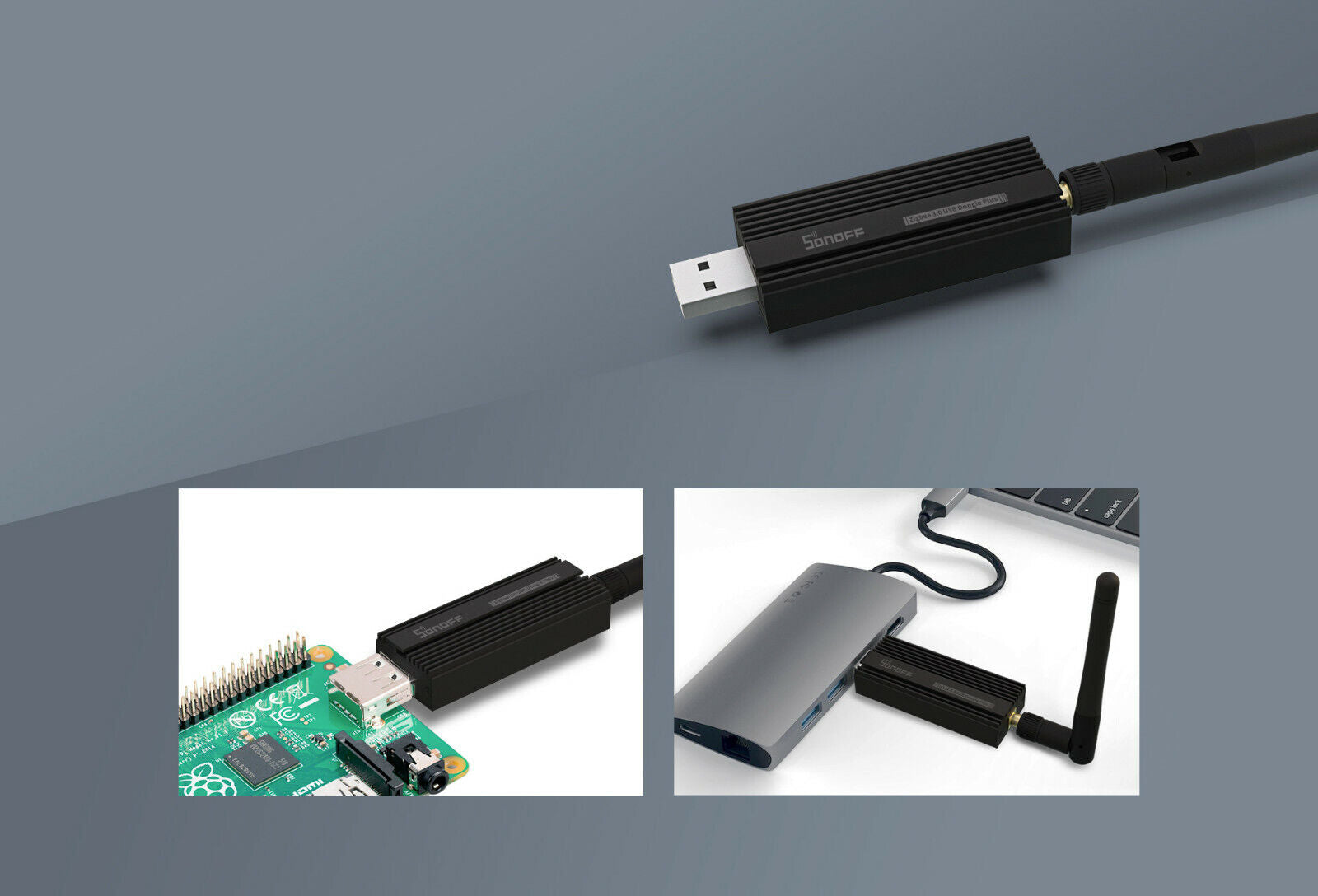

This dongle is compatible with a wide range of devices from top brands such as Aqara, Sonoff, Phillips Hue, IKEA, and Tuya. For optimal performance, it's recommended to use an USB extension to reduce interference from the host computer. With a capacity for up to 50 direct children and up to 200 children total across your network, this dongle is ready to supercharge you Zigbee network. It can also be flashed with router firmware to extend your zigbee network range and increase capacity of Zigbee devices.

Effortlessly upgrade your smart home with the SONOFF Zigbee 3.0 USB Dongle Plus. Easy to set up, this dongle is the perfect choice for anyone looking to improve their local control of their Zigbee network.

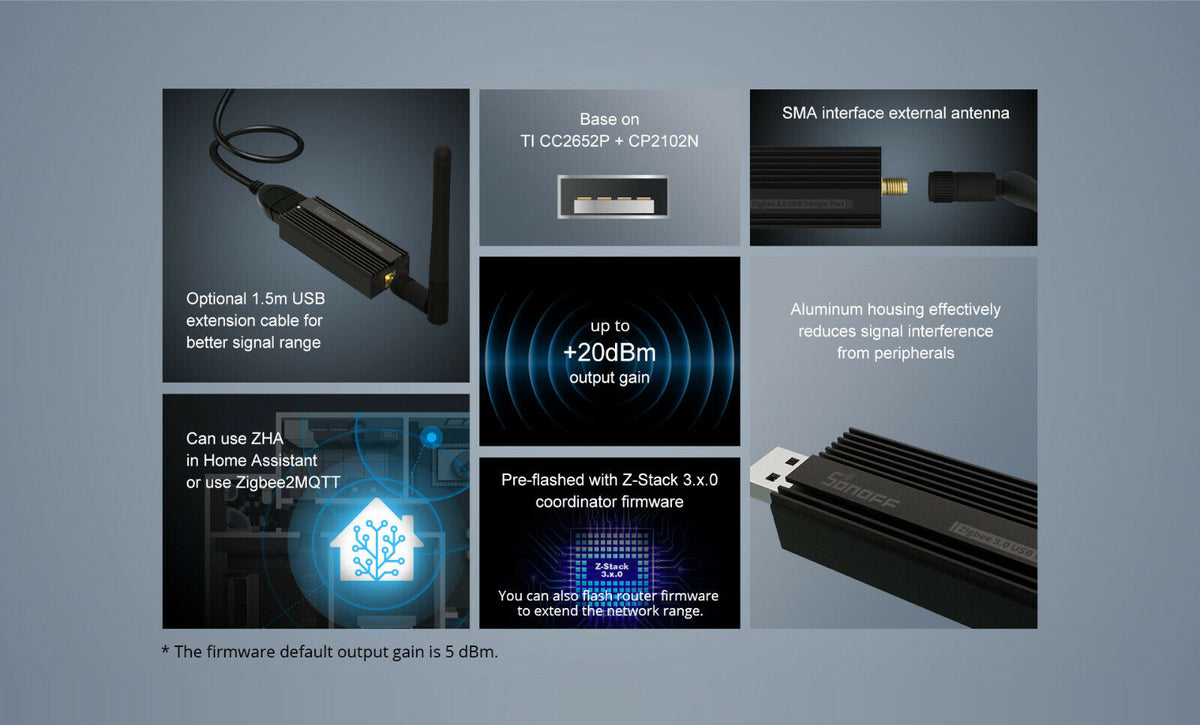

* Pre-flashed with Z-Stack 3.x.0 coordinator firmware
* Supported by Zigbee2MQTT and Zigpy based addons (such as ZHA)
* Can be used in any smart home platform, such as Home Assistant, OpenHAB and Domoticz

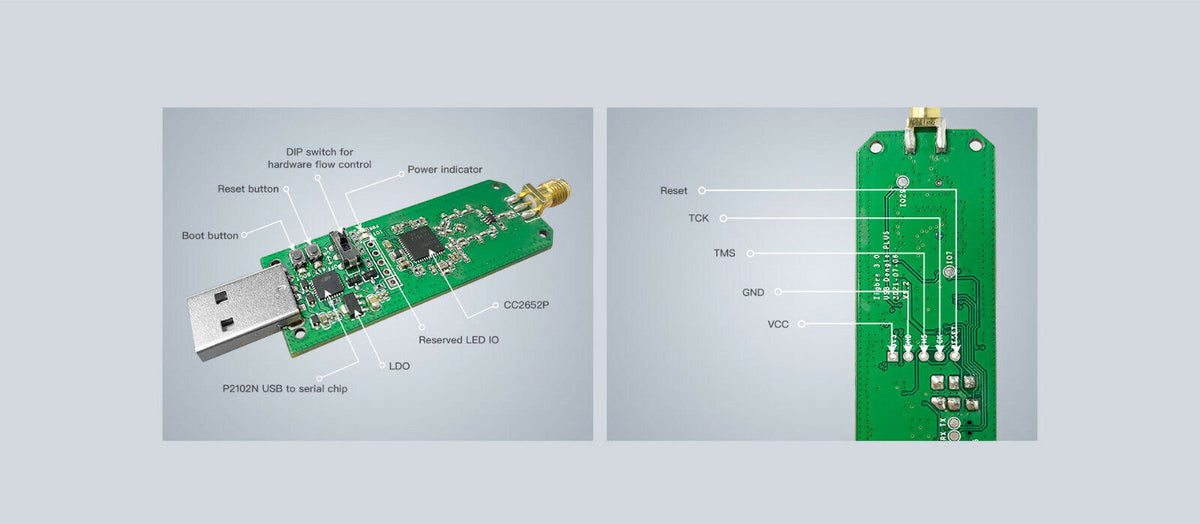

* Based on TI CC2652P + CP2102N
* Configurable up to 20dBm output gain
* SMA interface external antenna
* Aluminum housing effectively reduces signal interference

Coordinator (standard) Firmware:
https://github.com/Koenkk/Z-Stack-firmware/tree/master/coordinator/Z-Stack_3.x.0

Router Firmware:
https://github.com/Koenkk/Z-Stack-firmware/tree/master/router/Z-Stack_3.x.0

Python script for flashing:
https://github.com/JelmerT/cc2538-bsl
