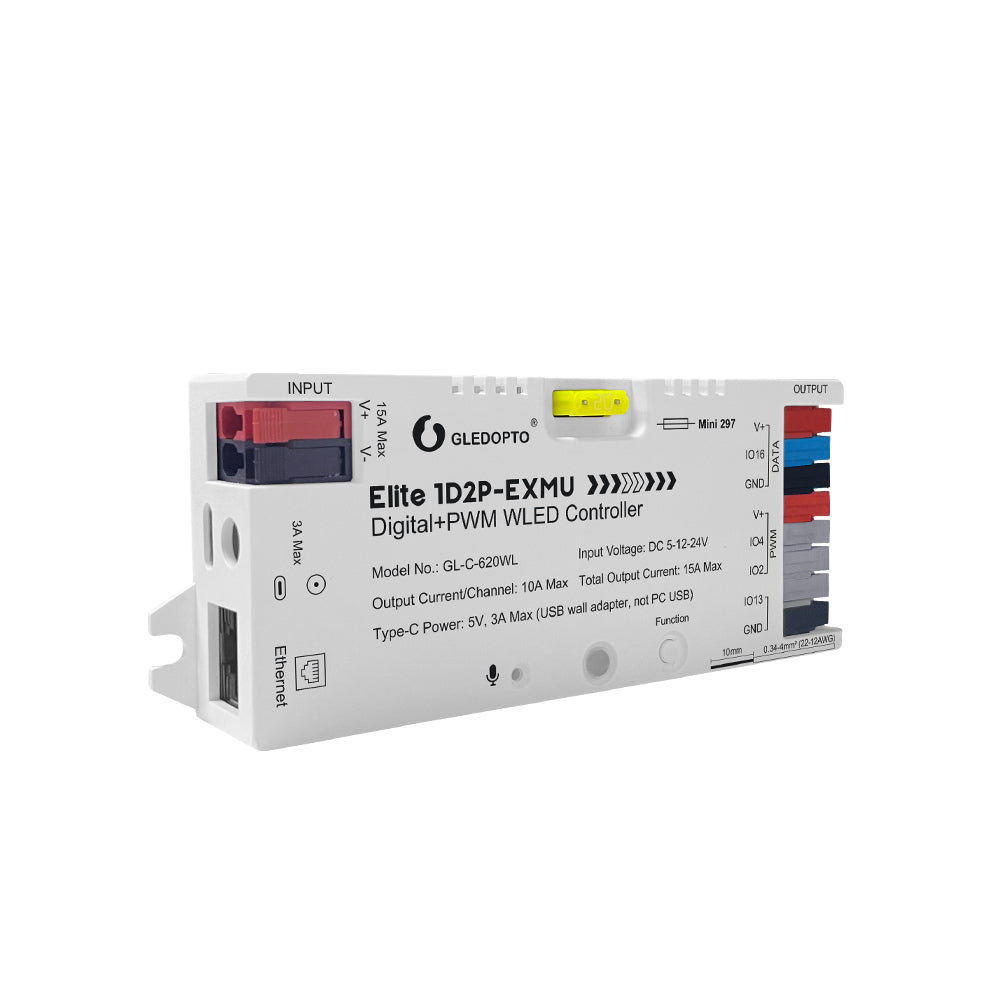

GLEDOPTO Elite 1D2P-EXMU Hybrid Digital + PWM WLED Controller (GL-C-620WL)

Unify digital pixel effects and conventional analog lighting under a single platform with the GLEDOPTO Elite GL-C-620WL (1D2P-EXMU). Built around an ESP32 microcontroller and pre-flashed with open-source WLED, this hybrid controller combines one addressable digital output and two analog PWM outputs into one compact unit.

Whether pairing addressable RGB cove accents with tunable white downlighting or managing under-cabinet task lighting alongside dynamic ambient effects, the GL-C-620WL eliminates the need for separate controllers, power supplies, or fragmented smart home dashboards.

Key Features & Benefits

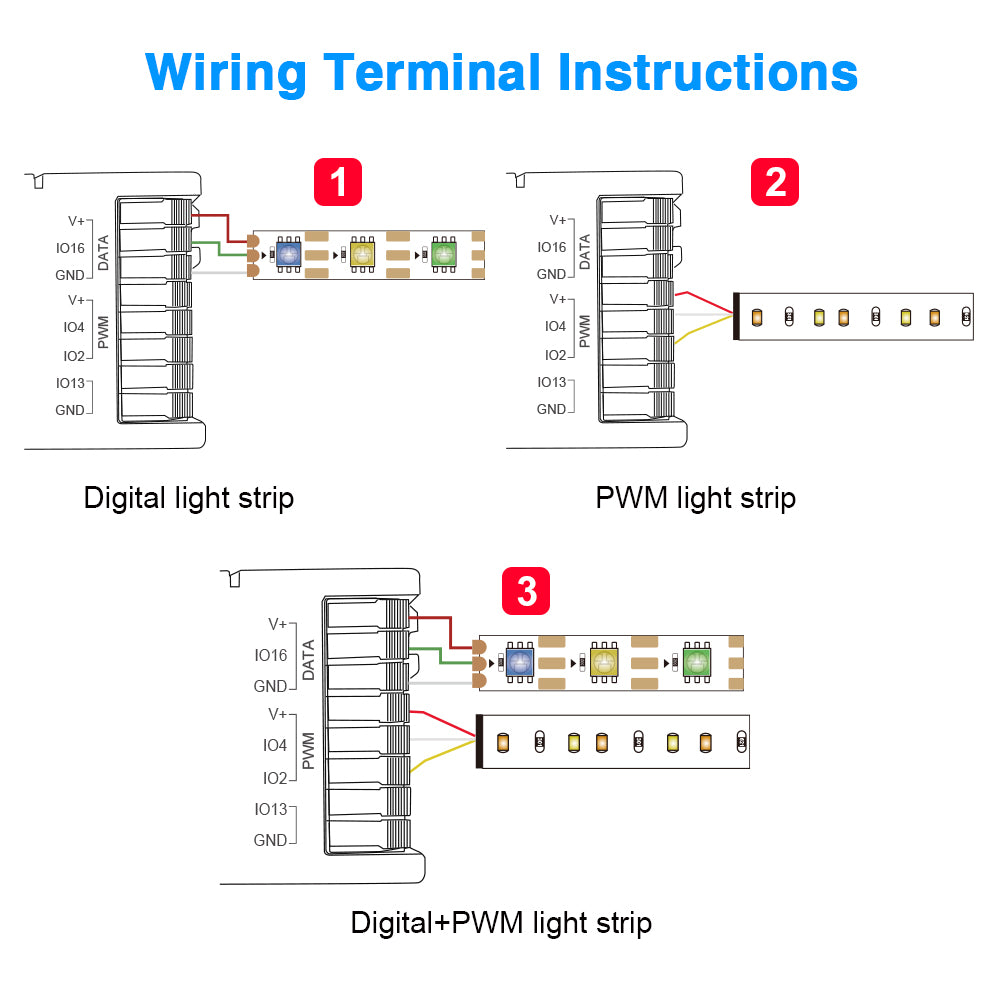

• Hybrid Digital + Analog (1D + 2P) Architecture: Drive both addressable pixel strips and traditional analog PWM strips from the same board:

  • 1× Digital Addressable Output (IO16): Full dynamic WLED animations, multi-segment chases, and color palettes for WS2812B, WS2811, SK6812, and WS2815 strips.

  • 2× Analog PWM Outputs (IO4 & IO2): Smooth, flicker-free dimming and CCT tunable white / single-color control for traditional non-addressable strips.

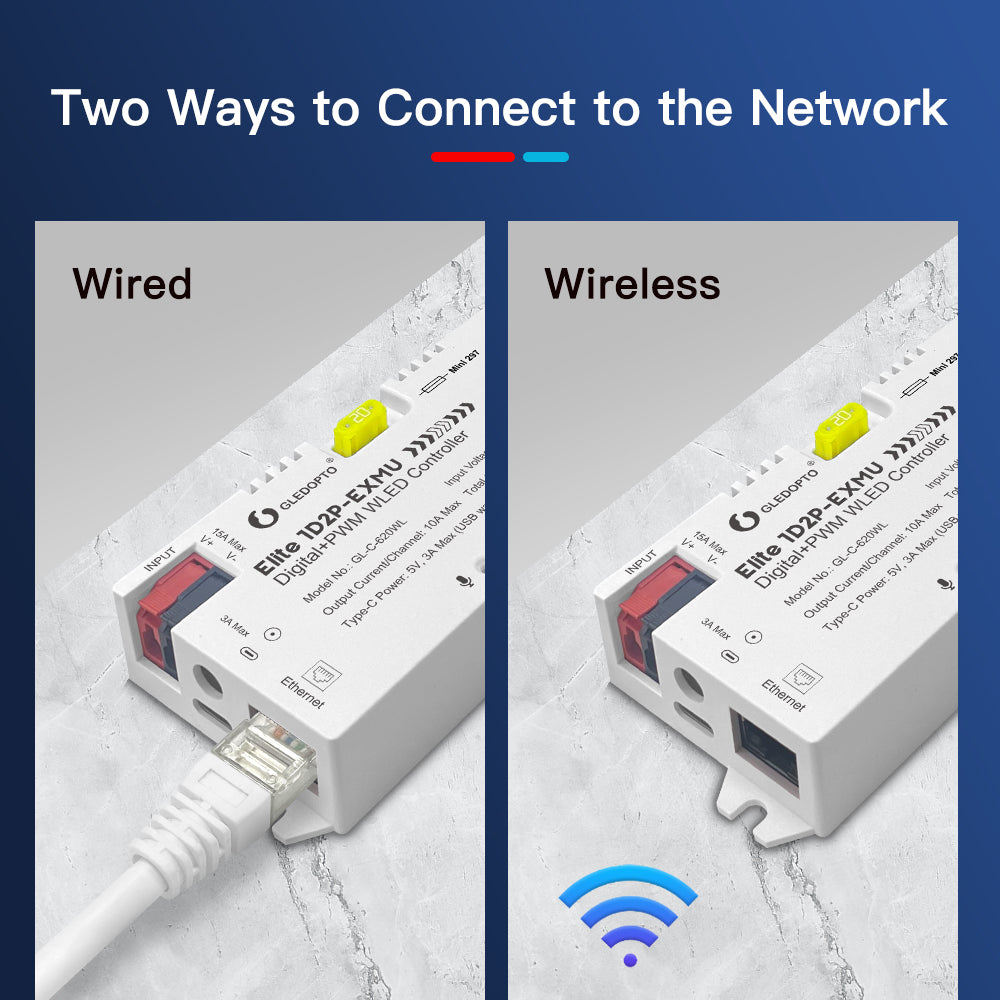

• Hardwired 10/100M Ethernet + 2.4GHz Wi-Fi: Features a dedicated RJ45 Ethernet port (with crystal oscillator) for ultra-reliable, low-latency, packet-loss-free control in dense network environments or server racks. Also includes 2.4GHz Wi-Fi for standard wireless deployment.

• Hardware Relay Isolation & Replaceable Blade Fuse: Equipped with an internal power-cutoff relay that physically cuts standby current to connected strips when turned off, preventing parasitic power draw. An easily accessible standard pluggable automotive blade fuse protects against overcurrent faults.

• Built-in AudioReactive Microphone: Onboard digital sound pickup delivers zero-latency, music-synchronized WLED lighting animations right out of the box without complex software routing.

• Spring-Loaded Quick Connect Terminals: Heavy-duty, tool-free lever spring clamps make wiring power, digital data, and PWM lines straightforward and secure.

• Triple Power Input Options: Power high-load runs via heavy-duty main terminal blocks (up to 15A), use the 5.5×2.1mm DC barrel jack (up to 5A) for plug-and-play desktop supplies, or use the 5V USB Type-C port for workbench flashing, configuration, and low-power strip testing.

• External Switch / DIY Expansion (IO13): Connect external momentary push-buttons, wall toggles, or PIR presence sensors for physical room control without opening an app.

• Open-Source Smart Home Integration: Native discovery in Home Assistant, MQTT, Node-RED, Art-Net/E1.31, DDP, and the official WLED mobile app or web interface.

What’s Included

• 1× GLEDOPTO Elite GL-C-620WL Hybrid Digital + PWM WLED Controller

• 1× Quick Start & Wiring Reference Sheet

Compatibility & Installation Notes

• Voltage Matching: The controller passes supply voltage directly to both digital and PWM channels. Your power supply voltage must match the voltage rating of your connected strips (e.g., 12V PSU for 12V strips, 24V PSU for 24V strips).

• Mixed Voltage Warning: Do not mix different voltage strips on the same controller (e.g., do not connect a 5V digital strip and a 24V PWM strip simultaneously), as all channels share the common input voltage rail.

• External Switch Input: The IO13 expansion terminal operates strictly at 3.3V logic. Do not connect external 5V, 12V, or mains voltage lines directly to the expansion terminal.

• High-Current Installations: For continuous loads exceeding 5A, supply power through the primary spring-connect terminals using appropriately gauged conductors (up to 1.5 mm² / 14–16 AWG) rather than the barrel connector or USB-C port.
