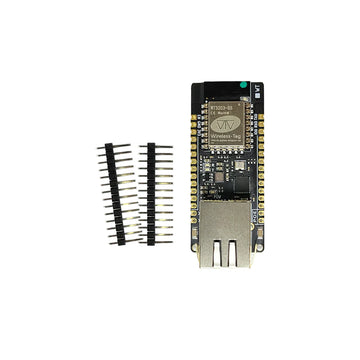

WT32-ETH01-EVO ESP32 Ethernet Adapter
WT32-ETH01-EVO ESP32 Ethernet Adapter
WT32-ETH01 EVO is a three-in-one Internet of Things communication gateway based on the ESP32-C3 chip, supporting WIFI, Bluetooth, and Ethernet. It supports a complete TCP/IP protocol stack and AT commands, making it easy for users to achieve network connectivity for embedded devices and significantly reducing development time and cost.
The module is compatible with both surface mount and through-hole connector designs, allowing it to be soldered directly onto PCBs or used on breadboards. Additionally, it has a reserved Power of ethernet position, making it suitable for various scenarios.
Features
- Highly integrated ESP32-C3 module with low power consumption
- Wireless connectivity with Wi-Fi and BLE and Ethernet
- Supports AT instructions
- Supports a complete TCP/IP protocol stack
- Optional Power of ethernet(PoE) addon board
Of course this module is also fully compatible with all the popular ESP32 platforms, such as Arduino IDE, Tasmota, ESPHome, ESPEasy or any other ESP distro, for adding ethernet capabilities to your ESP32 IoT projects.
Please note that this module does not include a USB port, so a USB Serial adapter is required to flash this device with your chosen firmware. You can purchase a suitable USB serial adapter from our store or opt for a pre-flashed model with ESPHome Bluetooth Proxy, which can just be connected to your network with ethernet cable (5V power also required) and then adopted into ESPHome Dashboard.
Overall, the Wireless Tags WT32-ETH01-EVO is a reliable and cost-effective solution for those looking to add Ethernet connectivity to their embedded devices. With its rich wireless communication interfaces and multiple working modes, it provides a flexible and customizable option for a range of applications. Or, use it with ESPHome Bluetooth Proxy for an extended range of all your Bluetooth devices.
- Microcontroller: WT32C3-S5 (ESP32-C3)
- Flash: 4MB
- Wireless: Integrated 2.4GHz b/g/n WiFi and Bluetooth dual-mode
- Ethernet: 100Mbps DM9051 chipset
- Operating Voltage: 5V or 3.3V
- Dimensions: 55mm x 26mm
