WeAct - ESP32-S3-B

ESP32-S3 Dev Kit

Name: ESP32-S3 Dev Kit
Brand: WeAct
SKU: ESP32-S3-B
Price: 17.5 AUD
Availability: InStock

$17.50

GST included.

Quantity

Ask a question

Size guide

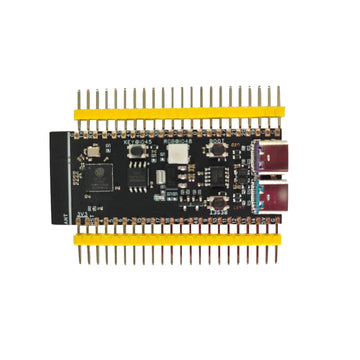

ESP32-S3 Dev Kit

$17.50

Product description

Experience the versatility and performance of the ESP32-S3 module on a development kit that makes it easy to get started with the module. Bringing the most powerful ESP32 yet, including 16MB Flash and 8MB PSRAM, a remarkable solution designed to meet the demands of various industries such as smart homes, industrial automation, consumer electronics, and more.

This board is particularly suited to driving larger LCD displays due to the addition of PSRAM. Compatible with Tasmota, ESPHome, ESPEasy and most other ESP based projects.

The ESP32-S3 module excels in providing seamless connectivity with support for WiFi and Bluetooth. This enables you to effortlessly connect your devices to local networks, communicate with other Bluetooth-enabled devices, and join Zigbee or Thread networks for advanced automation and control. Also provided are dual-USB Type-C ports for on-board USB to UART Serial and direct USB/JTAG connection. Also included on-board RGB led on GPIO48 and 2 programmable buttons.

At the core of this module lies the ESP32-S3, a 32-bit Xtensa dual-core processor renowned for its reliability and efficiency, this is the most powerful ESP32 to date. The ESP32-S3 integrates an impressive array of peripherals, including SPI, parallel IO interface, UART, I2C, I2S, RMT (TX/RX), LED PWM, USB Serial/JTAG controller, MCPWM, SDIO2.0 slave controller, GDMA, TWAI® controller, on-chip debug functionality via JTAG and up to 23 GPIOs, among others. This comprehensive set of features empowers you to build and customise your applications with ease.

Unleash the power of the ESP32-S3 module on this development kit and unlock endless possibilities for your smart projects. Whether you're a professional developer or an enthusiast, this module will elevate your creations to new heights.

Specifications

MPN: ESP32-S3B-N16R8
Manufacturer: Weact
CPU: ESP32-S3 32-bit Xtensa LX7 dualcore-core processor
Speed: 80 MHz to 240 MHz
Chip: ESP32-S3
Flash: 16MB
PSRAM: 8MB
ROM: 320 KB
HP SRAM: 512 KB
LP SRAM: 16 KB
WiFi: WiFi 802.11 b/g/n (up to 150 Mbps)
Bluetooth: v5.0 Bluetooth, Mesh and Bluetooth LE
Antenna: PCB Antenna
Operating Temperature: -40°C ~ 85°C
Supply Voltage: 5V on USB or 3.0V~3.6V direct
Platforms: Arduino, ESP-IDF, Tasmota, ESPHome, ESPEasy and many more
