Lilygo - T-Display S3

T-display S3 1.9" LCD Display ESP32-S3

Name: T-display S3 1.9" LCD Display ESP32-S3
Brand: Lilygo
SKU: T-Display-S3-H569
Price: 52.95 AUD
Availability: InStock

$52.95

GST included.

Headers: Not Soldered

Not Soldered

Soldered

Touch Display

Black Shell

Gray Shell

Only Black Shell

Only Grey Shell

Touch Display Soldered

A Beautiful display for your embedded microcontroller projects

Quantity

Ask a question

Size guide

T-display S3 1.9" LCD Display ESP32-S3

Product description

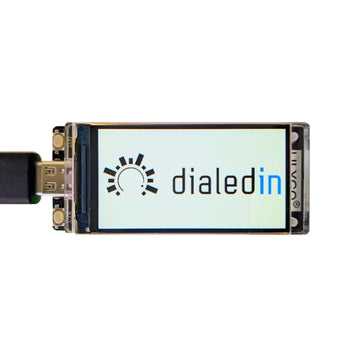

This compact development board is based on Espressif ESP32-S3 and includes a large built-in 1.9" full colour LCD with 170*320 Resolution. Screen is fixed in place with a Perspex plate. Offering external breakouts for GPIO, ADC, SPI, I2C, QWIIC/Stemma and 2 progammable buttons. It also has hardware support allowing it to be battery powered (battery not included).

These can be used with the Tasmota LVGL firmware or there is out of tree support (for now) for ESPHome. Open source code samples and schematics are available on the Lilygo Github site.

Specifications

MCU: ESP32-S3R8 Dual-core LX7 microprocessor
Wireless: Wi-Fi, BLE 5
Platforms: platformIO, ESP-IDF, Arduino IDE, Micropython
Flash: 16MB
PSRAM: 8MB
Onboard Functions: 2 programmable buttons, battery support, Qwiic/Stemma port
LCD: 1.9" diagonal, ST7789V Full-color TFT Display
Resolution: 170(H)RGB x320(V) 8-Bit Parallel Interface
Power supply: 3.3v
