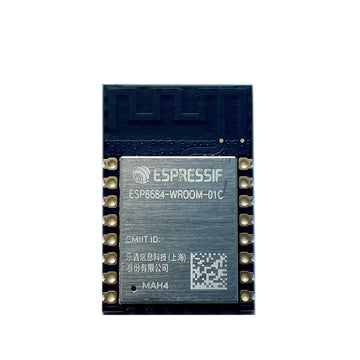

esp8684 wroom 01 esp module front view
esp8684 wroom 01 esp module back view
esp8684 wroom 01 esp module front view
esp8684 wroom 01 esp module back view
Espressif - ESP8684-WROOM-01C-H4

ESP8684 WROOM 01

Regular price $7.00
Sale price $7.00 Regular price
Unit price
Ask a question

Ask a Question

* Required fields

Size guide Share
esp8684 wroom 01 esp module front view

ESP8684 WROOM 01

Regular price $7.00
Sale price $7.00 Regular price
Unit price
Product description
Specifications
Related Links
Shipping & Returns
Product description
The ESP8684 WiFi module is newest member of the ESP family based on the new ESP32-C2 core. It is an embedded wireless microcontroller module designed for Internet of Things (IoT) applications. It boasts high cost performance and low power consumption, making it ideal for use in smart grid, building automation, security, smart home, and other similar applications.

The ESP32-C2 is intended as a replacemt to the original ESP-12E and ESP12-F modules packing many improvements over the previous chips.

This module features the ESP32-C2, an industry-leading RISC-V 32-bit single-core processor that supports a main frequency of up to 120 MHz and 4MB Flash. The module also has a small package size and an on-board PCB antenna. Additionally, it is pin-compatible with the ESP-12E and ESP-12F modules and features many improvements over the ESP8266. This includes Bluetooth, extra GPIO, improved 12-bit ADCs (up to 6 channels), I2S, PWM and more.

The ESP32-C3 module supports the standard IEEE802.11 B / g / N protocol as well as Bluetooth 5.0 (Bluetooth LE) and Bluetooth mesh. Users can leverage this module to add Bluetooth and networking capabilities to existing devices or build custom IoT Devices.

There is now experimental support for this module within Tasmota and ESPHome (esp-idf backend). Arduino support will be released soon.
Specifications
  • Model Number: ESP8684-WROOM-01C-H4
  • MCU: ESP32-C2, 32-bit RISC-V single-core microprocessor
  • Core Speed: 120MHz
  • Flash: 4MB
  • Antenna: PCB
  • WIFI: IEEE 802.11b/g/n protocol
  • Bluetoooth: Bluetooth 5, BLE, BT Mesh
  • BLE Speed: 125Kbps, 500Kbps, 1Mbps, 2Mbps
  • Interfaces: GPIO, ADC, SPI, UART, I2C, I2S, PWM
  • Flash: 4 MB SPI flash
  • Operating voltage: 3.0~3.6 V
  • Operating ambient temperature: -40~85℃
  • Dimensions: 16mm * 24mm * 3mm
  • Package: SMD-22 package
  • Applications: Smart home, IoT, Sensors, Health Care, Audio Device
